Hamilton Cush-N-Aire Rigid Caster with 8" Pneumatic Air-Filled Tire with 17mm Sealed Precision Ball Bearing - 330 lbs Capacity

0 Reviews

Quantity Discounts:
5% Off: 50-99 pcs | 10% Off: 100-199 pcs | 15% Off: 200+ pcs

$0.00

Bulk Discounts Auto-Applied at Checkout

Usually Ships in 24 to 48 Hours

PRODUCT CODE: R-7008-PRB

Choose your options:

BRAKES:

MOUNTING PLATE SIZE:

Quantity:

Hamilton Cush-N-Aire Rigid Caster with 8" Pneumatic Air-Filled Tire with 17mm Sealed Precision Ball Bearing - 330 lbs Capacity

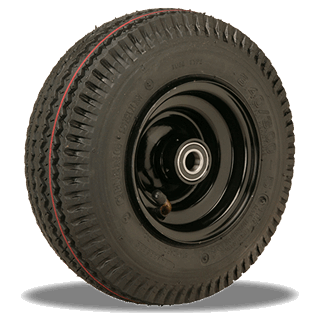

This listing is for a Pneumatic Cush-N-Air Hamilton Caster Part#: R-7008-PRB. This 8" Swivel Pneumatic Caster is an industrial grade version holding a weight capacity of 330 lbs per caster.

Wheel Characteristics

Rollability:
Durability:
Floor Preservation:
Quiet Operation:
Type:	Pneumatic
Material:	Pneumatic
Relative Capacity:	Low
Cushioning (Resilience):	Highest
Impact Resistance:	High
Moisture Resistance:	Medium
Abrasion Resistance:	Low
Relative Cost:	High
Low Temp. Range (F):	-30
High Temp. Range (F):	120
Chemical Resistance:	Low

Load Capacity (lbs.) @ 3 mph	330
Wheel Diameter (in.)	8
Wheel Face (in.)	3
Overall Height (in.)	10.625
Swivel Offset (in.)	0 (Rigid Caster)
Wheel Type	Pneumatic
Bearing Type	Precision Ball
Replacement Wheel	W-8-PRB-17
Mounting Plate (in.)	4 1/2 x 6 1/2
Bolt Holes (in.)	2 3/8 x 4 15/16 slotted to 3 3/8 x 5 1/4
Mounting Bolt (in.)	0.5
Caster Rig Type	Forged Steel
Caster Color/Finish	Crimson Powder
Wheel Color/Finish	Black Tire on Black Rim
Weight (lbs.)	12.0000
Bolt Hole 1 (in.)	3 3/8 x 5 1/4
Bolt Hole 2 (in.)	2 3/8 x 4 15/16
Swivel or Rigid caster	Rigid
Max Air Pressure (lbs.)	50
Tire Size	2.80-2.50-4
Mounting Plate Length (in.)	6.5
Mounting Plate Width (in.)	4.5
3D view option	yes
