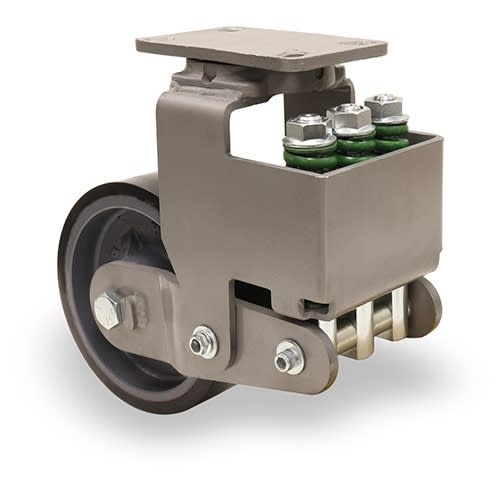

Hamilton Aerospace S-AEZFFM-63DB70 Spring Loaded Forge Master Swivel Caster

Best-in-Class Aerospace Swivel Caster for Demanding Applications

Experience the latest in heavy-duty caster technology with the Hamilton Aerospace S-AEZFFM-63DB70 Forge Master Swivel Caster. Engineered specifically for aerospace environments, this swivel caster boasts a premium 6" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel for enhanced durability and resilience. The integrated 3/4" sealed precision ball bearings promise smooth functionality, even in the most challenging conditions.

Forge Ahead with Hamilton's Spring-Loaded Caster Technology

Trust in the unmatched quality of Hamilton's S-AEZFFM series. Created for aerospace professionals seeking superior performance and longevity, our Forge Master swivel caster reduces downtime and ensures your operations run seamlessly. Choose Hamilton, the industry benchmark for aerospace casters.

Seeking Guidance on Aerospace Casters? Hamilton Experts Await

Opting for the S-AEZFFM-63DB70 for your aerospace needs? Our seasoned team of Caster Specialists is ready to assist. Connect with us weekdays between 8 am - 5 pm for personalized caster recommendations. Your aerospace success is our mission.

Top 10 Features of Hamilton Aerospace S-AEZFFM-63DB70 Swivel Caster

• Engineered for Aerospace: Tailored for demanding aerospace applications.
• 6" x 3" Duralast XC Wheel: Premium polyurethane on a cast iron core ensures durability.
• 3/4" Sealed Bearings: Precision ball bearings for smooth operation.
• Spring-Loaded Technology: Adapts to varying loads and terrains.
• Forge Master Design: Top-tier construction for resilience and longevity.
• User-friendly Swivel: Enhances maneuverability in tight spaces.
• Low Maintenance: Built for consistent performance with minimal upkeep.
• Heavy-Duty Performance: Ideal for high-demand environments.
• Industry-Leading Brand: Trust in Hamilton's renowned quality.
• Expert Support: Dedicated team ready to assist with any caster needs.

Product Specifications

Wheel Specifications

Wheel Diameter (in.): 6

Wheel Face (in.): 3

Wheel Type: Duralast XC

Wheel Color/Finish: Black Poly On Black Center

Wheel Core Material: Cast Iron

Wheel Material @ Tread: Polyurethane

Caster Specifications

Overall Height (in.): 12

Swivel Offset (in.): 4.5625

Bearing Type: Precision Sealed Ball

Replacement Wheel: W-630-DB70-3/4

Caster Rig Type: Kingpinless

Caster Color/Finish: Platinum Powder

Swivel or Rigid caster: Swivel

Mounting Specifications

Mounting Plate (in.): 4 1/2 x 6 1/2

Mounting Bolt (in.): 0.5

Bolt Hole 1 (in.): 2 7/16 x 4 15/16

Bolt Hole 2 (in.) (in.): 3 3/8 x 5 1/4

Mounting Plate Length (in.):6.5

Mounting Plate Width (in.): 4.5

Load Specifications

Shipping Weight (lbs.): 38.5000

Max. Capacity 1 (lbs.): 2775

Min. Capacity 1 (lbs.): 200

Note: For further information, contact our product support team.

Hamilton Aerospace S-AEZFFM-63DB70 Swivel Caster: Detailed Overview

Product Introduction

The Hamilton Aerospace S-AEZFFM-63DB70 stands as a testament to precision engineering and durability. Born out of rigorous research and catering to the sophisticated requirements of aerospace professionals, this caster is a confluence of robust design and innovative technology.

Wheel Construction and Benefits

At its core, the caster features a 6" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel. This combination ensures:

• Superior wear resistance, thanks to the polyurethane exterior.
• Optimal load distribution due to the robust cast iron core.
• Enhanced lifespan and reduced wear and tear.

Bearing System and Performance

The 3/4" sealed precision ball bearings are pivotal to the caster's exemplary performance. These bearings are crafted to:

• Ensure friction-less rotations.
• Provide sturdiness and dependability under heavy loads.
• Contribute to an extended maintenance-free operational period.

Why Choose Hamilton's S-AEZFFM-63DB70?

Apart from its construction and performance, the unmatched support from Hamilton's dedicated team and the brand's reputation in the industry makes the S-AEZFFM-63DB70 a top-tier choice. When you prioritize reliability, efficiency, and long-term value, Hamilton's Aerospace Swivel Casters emerge as the undisputed leaders.
