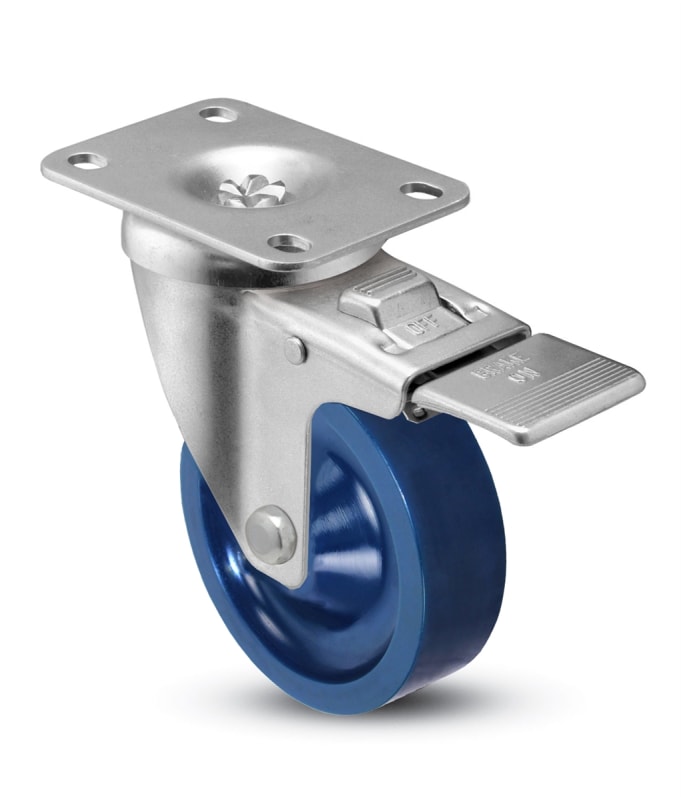

4" x 1-1/4" Total Locking Plate Caster | Blue Solid Polyurethane Wheel | 350 lbs Capacity
Bulk Discounts Auto-Applied at Checkout
CasterHQ's #15 Series Total Locking Swivel Casters. This listing is for our 4" diameter by 1-1/4" wide Total Locking Plate Caster with a Blue Solid Polyurethane wheel. The wheel is made of a one-piece molded design Blue Polyurethane tread wheel that is non-marking and chemical resistant. Total locking brake allows you to simultaneously lock the swivel raceway and the wheel with the simple press of our metal brake pedal. Total Locking Casters are the most secure type of locking casters because they allow your cart or equipment to become completely stationary when the brakes are engaged.
| CASTER TYPE: | TOTAL LOCKING SWIVEL CASTER |
| WHEEL DIAMETER: | 4" |
| TREAD WIDTH: | 1-1/4" |
| WHEEL TYPE: | SOLID POLYURETHANE |
| WHEEL COLOR: | BLUE |
| WEIGHT CAPACITY: | 350 LBS PER CASTER |
| TOP PLATE OVERALL SIZE: | 2-3/8" X 3-5/8" |
| BOLT HOLE PATTERN: | 1-3/4" X 2-7/8" TO 3" |
| ATTACHING BOLT / MOUNTING HARDWARE (NOT INCLUDED): | 5/16" |
| BEARING TYPE: | PLAIN BORE |
| OVERALL HEIGHT: | 5-1/8" |
| SWIVEL RADIUS: | 3-7/32" |
| BRAKE TYPE: | METAL PEDAL TOTAL LOCKING BRAKE |
| CASTER BRACKET PLATING: | ZINC PLATED |
| CASTER BRACKET STEEL: | HEAVY GAUGE COLD ROLLED STEEL |
| WHEEL DUROMETER: | 63 SHORE D (+/-5) |
| TEMPERATURE RANGE: | 180°F TO -45°F |
