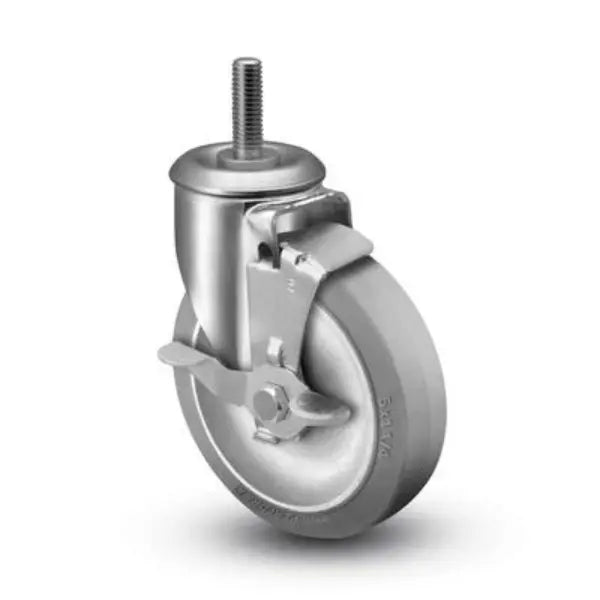

5" x 1.25" Side Lock Caster with 1/2" Thread and Performa BB Wheel - 2.05254.445 MTG53 BRK1

Product Features

• Wheel Diameter: 5 inches
• Wheel Width: 1.25 inches
• Thread Size: 1/2 inch
• Type: Side Lock Caster with Performa BB Wheel
• Material: Performa Ball Bearing (BB) Wheel
• Model Number: 2.05254.445 MTG53 BRK1
• Locking Mechanism: Side lock for secure positioning
• Application: Suitable for versatile industrial and commercial environments

Discover reliability and ease of mobility with the 5" x 1.25" Side Lock Caster, featuring a 1/2" Thread and Performa BB Wheel. Designed for both industrial and commercial applications, this caster offers smooth, quiet movement while providing stability through its side lock mechanism. The durable Performa ball bearing wheel enhances performance by ensuring efficient rolling, even under heavy loads. Ideal for carts, workstations, and other equipment requiring precision and ease of use, this caster is built to meet the rigorous demands of any environment.

Why Choose This Caster?

Invest in the 5" x 1.25" Side Lock Caster with 1/2" Thread and Performa BB Wheel for its exceptional durability, smooth mobility, and secure locking capability. Perfect for any heavy-duty or commercial environment where performance and reliability matter most.

Technical Specifications

• Part Number: 22TRB50S-T824-TB
• SKU: 2.05254.445 MTG53 BRK1
• Series: 22 Series (supports up to 325 lb per caster)
• Raceway Type: Full Double Ball Hardened Raceways for smooth swivel action
• Brake: Top Lock brake for enhanced control and safety
• Load Capacity: 325 lb, suitable for heavy-duty use
• Mounting Height: 6.06 inches
• Wheel Diameter: 5 inches, providing stability and mobility
• Wheel Tread Width: 1.25 inches for optimal performance
• Wheel Description: Performa material, designed for durability and smooth operation
• Wheel Color: Grey on Grey
• Wheel Bearing: Precision Ball Bearings for quieter, smoother movement
• Wheel Profile: Flat Tread for stability and reduced rolling resistance
• Wheel Hardness: 65(+/-5) Shore A, providing a balance between hardness and cushion
• Wheel Thread Guards: None

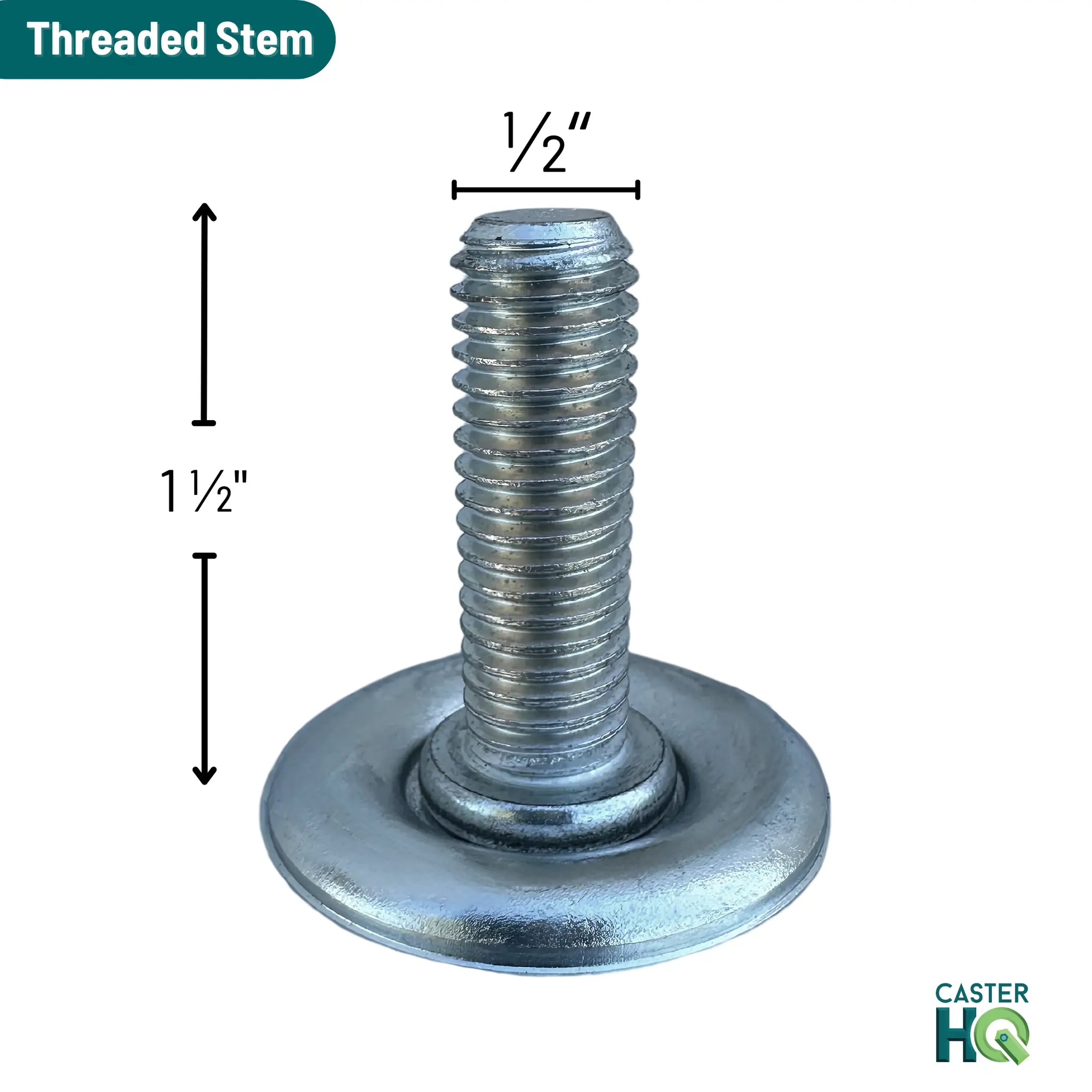

• Fastening: 1/2"-13 x 1-1/2" stud for secure attachment
• Swivel Radius: 3.94 inches, allowing tight turns and maneuverability
• Finish: Zinc Plated for corrosion resistance
• Axle Size: 3/8" diameter for enhanced stability
• Operating Temperature Range: -45°F to +180°F, suitable for extreme environments
• Manufacturer: 2.05254.445 MTG53 BRK1
• Warranty: 3 years, ensuring product reliability and durability
• Conformity: RoHS compliant zinc plating, tested to ANSI ICWM:2012 standards for capacity and durability

Top 10 Product Features

1. Wheel Diameter: 5 inches, providing a stable base for smooth and consistent movement.
2. Wheel Width: 1.25 inches, ideal for supporting heavy loads without compromising mobility.
3. Thread Size: 1/2 inch, ensuring compatibility with a wide range of equipment and industrial setups.
4. Wheel Type: Performa Ball Bearing Wheel, engineered for quiet, smooth rolling in demanding environments.
5. Locking Mechanism: Side Lock feature, delivering enhanced stability and secure positioning during use.
6. Material: Durable Performa wheel material, designed for long-lasting performance and resistance to wear.
7. Load Capacity: Suitable for heavy-duty applications, providing robust support in industrial settings.
8. Model Number: 2.05254.445 MTG53 BRK1, uniquely identifying this high-performance caster for easy reference.
9. Application: Versatile, ideal for both industrial and commercial environments requiring reliable mobility.
10. Installation: Simple 1/2" thread design for quick and secure installation on various equipment.

• Flat-rate shipping by order size. Final shipping cost shown before payment.
• No post-checkout shipping adjustments or re-billing.
• Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Product Overview

The 5" x 1.25" Side Lock Caster with 1/2" Thread and Performa BB Wheel (Part Number: 22TRB50S-T824-TB, SKU: 2.05254.445 MTG53 BRK1) is a versatile and reliable solution for industrial and commercial environments. Designed for heavy-duty use, this caster is part of the durable 22 Series, with a load capacity of up to 325 lbs per caster. It offers smooth mobility, superior stability, and easy locking for secure positioning.

Key Features

• Precision Ball Bearings: Equipped with high-quality ball bearings for smooth, quiet movement, ensuring efficiency in demanding industrial environments.
• Durable Performa Wheel: The Performa wheel material offers exceptional wear resistance, ideal for frequent use on various floor types, from concrete to tile.
• Side Lock Mechanism: The built-in top lock brake provides enhanced safety, allowing the caster to lock securely when stationary, preventing unwanted movement during operation.
• Heavy-Duty Construction: Zinc-plated finish offers corrosion resistance, and the full double ball hardened raceways provide smooth swivel action, ensuring the caster can handle heavy loads with ease.
• Versatile Use: Suitable for a wide range of applications, including factory carts, workstations, and warehouse trolleys, where both mobility and load stability are crucial.

Performance and Durability

Built to withstand the toughest industrial environments, this caster is designed for temperatures ranging from -45°F to +180°F, making it suitable for extreme conditions. Its 65(+/-5) Shore A hardness rating ensures that the wheel provides a balanced combination of durability and cushioning, reducing strain on equipment and floors. The 325 lb load capacity makes it a perfect fit for heavy-duty applications, providing reliable performance even under intense use.

Mounting and Installation

Installation is quick and easy, thanks to the 1/2"-13 x 1-1/2" stud fastening system. The 6.06-inch mounting height ensures compatibility with a variety of equipment types. The swivel radius of 3.94 inches allows for smooth, tight turns, improving maneuverability in confined spaces.

Compliance and Warranty

This product meets RoHS compliance standards and is tested to ANSI ICWM:2012 standards, ensuring both capacity and durability for long-lasting performance. The caster is backed by a 3-year warranty, providing peace of mind and confidence in its reliability.

Why Choose This Caster?

The 5" x 1.25" Side Lock Caster with 1/2" Thread and Performa BB Wheel offers exceptional value for industrial and commercial use. Its top-tier features, including durable construction, smooth ball bearings, and safety lock mechanisms, make it a superior choice for those seeking reliability and performance in high-demand environments.
