All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.








Spanner bushings for caster wheels, in steel and stainless, IDs 5/16 to 3/4 in and lengths 1-5/8 to 3-3/8 in. Size by axle, bearing bore and hub length.








| ID x OD x length | Material |
|---|---|
| 5/16 x 3/8 x 1-5/8 in | Carbon steel |

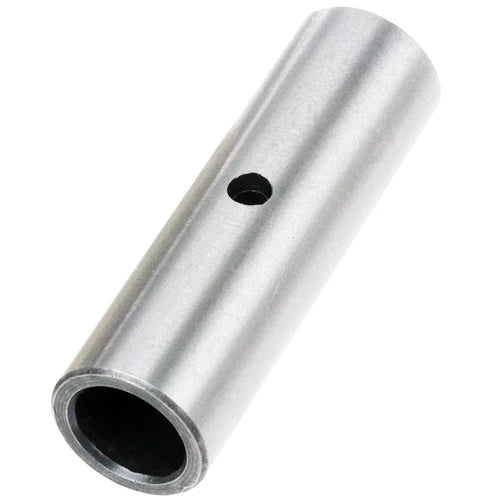

| 3/8 x 1/2 x 1-11/16 in | Stainless |
| 1/2 x 3/4 x 1-7/8 in | Steel |
| 1/2 x 3/4 x 2-7/16 in | Steel or stainless |
| 5/8 x 3/4 x 2-7/16 in | Steel |
| 3/4 x 1 x 2-7/8 in | Steel |

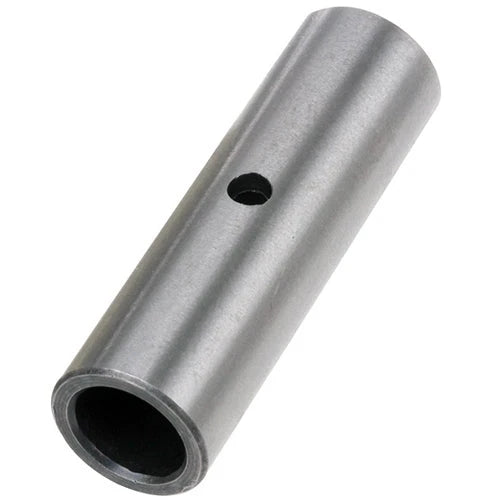

| 3/4 x 1 x 3-3/8 in | Steel |
From product titles [S1].
The bushing should be the same length as the hub, or a hair longer. Too short and the nut squeezes the bearings so the wheel drags; too long and the wheel slides on the axle.
More parts: wheel bearings and wheel replacement parts.
It runs through the wheel hub between the bearings so the axle nut clamps the bushing, not the bearings.
Match the ID to the axle, the OD to the bearing bore, and the length to the hub.
Yes, in 1/2 x 3/4 x 2-7/16 in and 3/8 x 1/2 x 1-11/16 in.
