Light Duty High Temp Casters

Plate sizes: 2-3/8 x 3-5/8, 2-1/2 x 3-5/8, 3-1/8 x 4-1/8Bolt holes: 1-3/4 x 2-15/16 slotted to 2-3/8 x 3-3/8; 1-3/4 x 2-7/8Diameter: 3, 4, 5 inTread: 1-1/4, 1-1/2 inCapacity: up to 600 lbStem: threaded
Match a 2-3/8 x 3-5/8 top plate when bolting casters under chemical, food-contact, and washdown carts. Catalog chips cover wheel diameters 3, 4, 5 in and nylon, cast iron, and steel treads. Replace worn corners in matched sets when possible so the cart tracks straight under load. Bring plate and stem measurements when replacing unmarked casters so the new corners sit level. These light-duty options cover everyday chemical, food-contact, and washdown carts without jumping to extreme forged series.

Shop by wheel material

2 types

Rubber and polyurethane favor floor protection; phenolic and steel favor heavy capacity. Compare materials →

300 lbs
TieredPricing
Z20P2431NGD – 4" Food-Safe High-Temp Oven Rack Caster – 3-1/8" × 4-1/8" OEM Plate CasterHQ
In Stock · Same/Next Day
4" x 1.5" Epoxy Resin Oven Rack Caster – 3-1/8" x 4-1/8"
Part # Z20P2431NGD
from $30.00
Volume pricing available
Epoxy ResinPlate
Load rating
300 lbs
Size4" x 1-1/2"
Capacity300 lbs
WheelEpoxy Resin
MountPlate 3-1/8" x 4-1/8"
TypeSwivel
More Details Less Details
Width 1-1/2"
Height 5-1/8"
Bolt Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Temp Range 475°F continuous; 550°F intermittent (up to 30 min)
Rig Type Swivel
Frame Zinc Plated Steel
Z20P2431NGD – 4" Food-Safe High-Temperature Oven Rack Caster – 3-1/8" × 4-1/8" PlateThe Z20P2431NGD...
Shop Product
350 lbs
TieredPricing
3" Threaded Stem Caster - 1/2" x 1.5" Stem | Semi-Steel Wheel | 350 lbs Capacity CasterHQ
In Stock · Same/Next Day
3" Semi-Steel Swivel Caster – 350 lb
Part # 24CS314SS82S-43
from $23.00
Volume pricing available
Cast IronThreaded Stem
Load rating
350 lbs
Size3" x 1-1/4"
Capacity350 lbs
WheelCast Iron
MountStem 1/2"-13 x 1-1/2"
TypeSwivel
More Details Less Details
Width 1-1/4"
Height 4-3/16"
Temp Range -45°F to 600°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
3" Threaded Stem Caster | ½” x 1.5” Stem | Semi-Steel Wheel | 350...
Shop Product
350 lbs
TieredPricing
4 Inch High Temperature Oven Rack Caster - 450°F Continuous | 350 lbs Capacity | NSF Certified CasterHQ
In Stock · Same/Next Day
4" High-Temp Glass-Filled Nylon Plate Mount Caster – 350 lb
Part # CB-HTORSC
$32.00
Volume pricing available
NylonPlate
Load rating
350 lbs
Size4" x 1-1/2"
Capacity350 lbs
WheelNylon
MountPlate 3-1/8" x 4-1/8"
Type—
More Details Less Details
Width 1-1/2"
Height 5"
Bolt Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Temp Range Up to 450°F
Frame Zinc Plated Steel
4" High-Temp Oven Rack Caster | 450°F Continuous | 350 lbs CapacityThis 4-inch high-temperature...
Shop Product
600 lbs
TieredPricing
4" X 1-1/2" STEEL WHEEL W/ 1/2" Roller Bearing w/ 3/8" Spanner Bushing | 600 LBS CAPACITY| MADE IN USA madeusa
In Stock · Same/Next Day
MADEUSA
4" x 1-1/2" Steel Wheel Industrial Replacement Wheel – 600 lb
Part # SS-4X150-R38
$27.00
Volume pricing available
Ductile Iron
Load rating
600 lbs
Size4" x 1-1/2"
Capacity600 lbs
MaterialDuctile Iron
CoreSteel
More Details Less Details
Width 1-1/2"
Core Steel
Temp Range Up to 800°F
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
350 lbs
TieredPricing
4 Inch x 1-1/4 Inch Hi-Temp Glass Filled Nylon Swivel Caster - 350 lbs Capacity | Heat Resistant CasterHQ
In Stock · Same/Next Day
4" x 1-1/4" Hi-Temp Glass Filled Nylon Swivel Caster – 350 lb
Part # HQ1340S-PL2-GFN
from $31.00
Volume pricing available
NylonPlate
Load rating
350 lbs
Size4" x 1-1/4"
Capacity350 lbs
WheelNylon
MountPlate 3-1/8" x 4-1/8"
TypeSwivel
More Details Less Details
Width 1-1/4"
Height 5-1/8"
Bolt Pattern 1-3/4" x 2-15/16" slotted to 2-3/8" x 3-3/8"
Temp Range Up to 550°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
4" Hi-Temp Glass Filled Nylon Wheel | Swivel Caster | Capacity: 350 lbs |...
Shop Product
600 lbs
TieredPricing
4" X 1-1/2" STEEL WHEEL W/ 1/2" Roller Bearing | 600 LBS CAPACITY| MADE IN USA madeusa
In Stock · Same/Next Day
MADEUSA
4" x 1-1/2" Steel Industrial Replacement Wheel – 600 lb · Model SS-4X150-R12
Part # SS-4X150-R12
$26.00
Volume pricing available
Ductile Iron
Load rating
600 lbs
Size4" x 1-1/2"
Capacity600 lbs
MaterialDuctile Iron
CoreSteel
More Details Less Details
Width 1-1/2"
Core Steel
Temp Range Up to 800°F
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
600 lbs
TieredPricing
4" X 1-1/2" STEEL WHEEL | 600 LBS CAPACITY| MADE IN USA madeusa
In Stock · Same/Next Day
MADEUSA
4" x 1-1/2" Steel Industrial Replacement Wheel – 600 lb · Model SS-4X150
Part # SS-4X150
$21.00
Volume pricing available
Ductile Iron
Load rating
600 lbs
Size4" x 1-1/2"
Capacity600 lbs
MaterialDuctile Iron
CoreSteel
More Details Less Details
Width 1-1/2"
Core Steel
Temp Range Up to 800°F
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
300 lbs
TieredPricing
5" X 1.25" Light Duty Semi-Steel Wheel - Swivel Caster - 300 lb capacity per caster CasterHQ
In Stock · Same/Next Day
5" x 1.25" Semi-Steel Swivel Caster – 300 lb
Part # HQ1350S-PL1-SS
from $25.00
Volume pricing available
Cast IronPlate
Load rating
300 lbs
Size5" x 1-1/4"
Capacity300 lbs
WheelCast Iron
MountPlate 2-3/8" x 3-5/8"
TypeSwivel
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Bolt Pattern 1-3/4" x 2-7/8"
Temp Range -40°F to 250°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
5" X 1.25" Light Duty Semi-Steel Wheel - Swivel Caster300 lb capacity per casterCasterHQ's...
Shop Product
300 lbs
TieredPricing
4" x 1-1/4" Hi-Temp Glass FiIled Nylon Wheel - 300 LBS cap CasterHQ
In Stock · Same/Next Day
4" x 1-1/4" Hi-Temp Glass Filled Nylon Wheel – 300 lb
Part # HTPHW4X14
from $23.00
Volume pricing available
Nylon
Load rating
300 lbs
Size4" x 1-1/4"
Capacity300 lbs
MaterialNylon
Core—
More Details Less Details
Width 1-1/4"
Temp Range Up to 425°F
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
300 lbs
TieredPricing

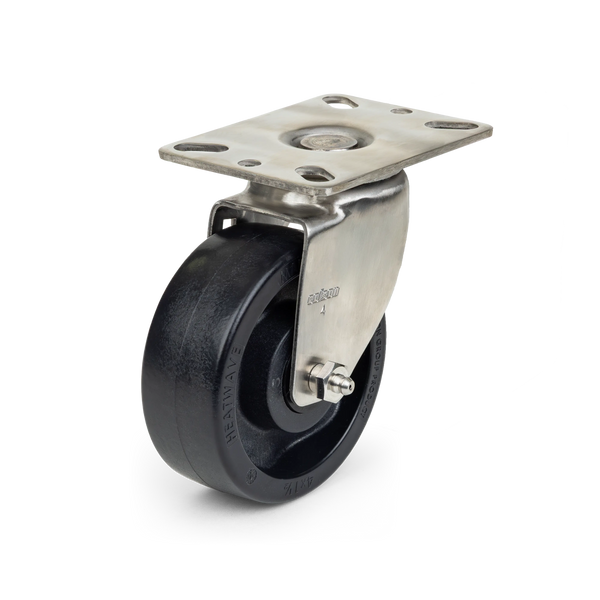

HS40P2HWO 4" High-Temp Bakery Rack Caster – 500°F Heatwave, Zinc-Plated Swivel (No Brake) CasterHQ
In Stock · Same/Next Day
Colson HS40P2HWO 4" x 1.5" Heatwave Swivel Caster – 300 lb
Part # HS40P2HWO-1
from $24.00
Volume pricing available
Plate
Load rating
300 lbs
Size4" x 1-1/2"
Capacity300 lbs
Wheel—
MountPlate
TypeSwivel
More Details Less Details
Width 1-1/2"
Height 5.125"
Temp Range Up to 500°F
Rig Type Swivel
Brake No Brake
Frame Zinc Plated Steel
HS40P2HWO is a 4" high-temperature swivel caster engineered for bakery racks, oven racks, and...
Shop Product
350 lbs
TieredPricing
5" X 1.25" Steel Wheel | Total Locking Swivel Caster | 350 lbs Cap CasterHQ
In Stock · Same/Next Day
5" x 1.25" Steel Swivel Total Lock Caster – 350 lb
Part # HQ1550S-TS1-SS
from $40.00
Volume pricing available
Cast Iron
Load rating
350 lbs
Size5" x 1-1/4"
Capacity350 lbs
WheelCast Iron
Mount—
TypeSwivel with Total Lock Brake
More Details Less Details
Width 1-1/4"
Height 6-1/4"
Temp Range -45°F to 600°F
Rig Type Swivel with Total Lock Brake
Brake Total Lock Brake
Frame Zinc Plated Steel
5" X 1.25" Steel Wheel | Total Locking Swivel Caster | 300 lbs CapacityThis...
Shop Product
300 lbs
TieredPricing
5" x 1-1/4" Hi-Temp Glass FiIled Nylon Wheel - 350 LBS cap CasterHQ
In Stock · Same/Next Day
5" x 1-1/4" Hi-Temp Glass-Filled Nylon Wheel – 350 lb
Part # HTPHW5X14
from $26.00
Volume pricing available
Nylon
Load rating
300 lbs
Size5" x 1-1/4"
Capacity300 lbs
MaterialNylon
Core—
More Details Less Details
Width 1-1/4"
Temp Range Up to 425°F
Quick-fit wheel specs for replacement and procurement teams.
Shop Product
300 lbs
TieredPricing
SSHS40P2HPB 4" Stainless High-Temp Bakery Rack Caster (500°F) — Swivel Only (No Brake) CasterHQ
In Stock · Same/Next Day
Colson SSHS40P2HPB 4" x 1.5" Heatwave Swivel Stainless Caster – 300 lb
Part # SSHS40P2HPB
$39.99
Volume pricing available
Plate
Load rating
300 lbs
Size4" x 1-1/2"
Capacity300 lbs
Wheel—
MountPlate
TypeSwivel
More Details Less Details
Width 1-1/2"
Height 5.125"
Temp Range Up to 500°F
Rig Type Swivel
Brake No Brake
SSHS40P2HPB is a 4" stainless steel high-temperature swivel caster engineered for bakery racks, oven...
Shop Product

Light-duty high-temperature casters and wheels with narrower treads (about 1-1/4" to 1-3/4") for oven racks, light carts, and similar HT duty.

Browse the full high-temp parent at Heat Casters, step up to medium-duty high-temp casters, or go to the bakery oven rack hub for rack-plate fitment.

Search
