6-1/4″ x 7-1/2″ Plate Casters

This collection holds 6-1/4 in x 7-1/2 in Plate Casters with nylon, forged steel and semi steel wheels, built for heavy equipment, dies, molds, and plant carts that move very heavy loads. Casters in this collection range from 3,000 to 9,500 lb per caster. Wheels in this category range from 6 up to 12 inches in diameter with 3 to 4 in tread widths. The collection includes swivel, rigid, and brake models. Kingpinless swivels hold up better under shock and repeat loads. Dual wheel casters split the load over two wheels and swivel with less effort under heavy loads. Nylon rolls easily, resists water and many chemicals, and is hard, so it is loud on rough floors. Forged steel wheels carry very heavy loads and handle impact, debris, and heat. They are loud and will mark finished floors. Choose swivel casters when the cart must turn in place and rigid casters for straight travel. Nylon aisle: nylon casters. Wheel hub: replacement wheels.
Caster Finder Find your caster in 3 steps Mount, size, capacity, narrowed to your exact spec in this collection.

6-1/4″ x 7-1/2″ Plate Casters: buying guide

6-1/4 x 7-1/2 in plate casters in nylon, forged steel and polyurethane, 6 to 12 in wheels, rated 3,000 to 9,500 lb per caster.

Diameter 6 to 12 inTread 3 and 4 inPlate 6-1/4 x 7-1/2 in3,000 to 9,500 lb per caster

6-1/4 x 7-1/2 in plate casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Nylon 6, 8 and 10 in 7,200 lb -30°F to 220°F low rolling effort on smooth floors, handles wet areas
Forged steel 8 and 10 in 5,400 to 9,500 lb Up to 800°F very high loads and impact
Polyurethane Cast iron 10 in 3,000 lb -40°F to 180°F quiet, floor-friendly and long wearing
Phenolic 12 in 8,000 lb Up to 250°F hard and easy rolling on smooth, dry floors

Ratings are for single casters of 6-1/4 x 7-1/2 in plate casters, from product fields [S1].

Wheel sizes

Wheel Treads Rated
6 x 3 in nylon 7,200 lb
8 x 3 in nylon and forged steel 5,400 to 7,200 lb
10 x 3 in nylon, polyurethane and forged steel 3,000 to 7,200 lb

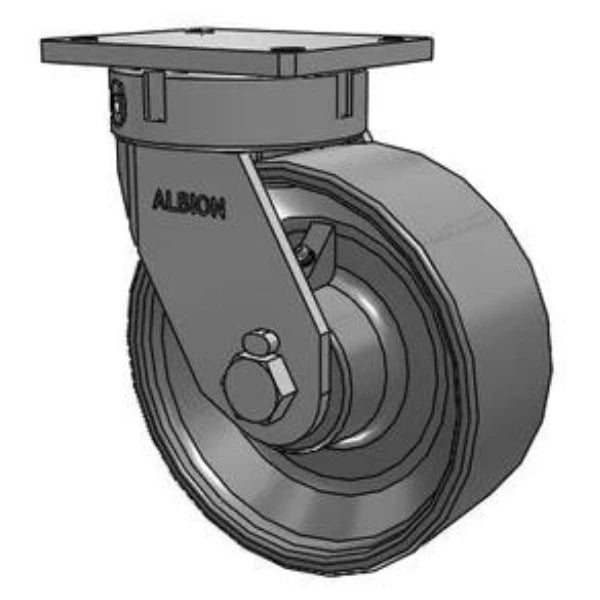

10 x 4 in forged steel 8,400 to 9,500 lb
12 x 4 in phenolic 8,000 lb

Choosing 6-1/4 x 7-1/2 in plate casters

  1. Load: divide the loaded weight by three for a four-caster cart [S2]. A 7,200 lb caster from this page then suits about 21,600 lb, and the strongest at 9,500 lb about 28,500 lb.
  2. Mount: most 6-1/4 x 7-1/2 in plate casters use a 6-1/4 x 7-1/2 in top plate; 4-1/2 x 6-1/8 in plates are listed too; check the bolt spacing on your frame against the plate size.
  3. Floor: on 6-1/4 x 7-1/2 in plate casters, polyurethane is kinder to tile and finished floors; nylon, forged steel and phenolic roll easier under heavy loads on smooth concrete.
  4. Rig: swivel and rigid 6-1/4 x 7-1/2 in plate casters are listed, with side lock brake options.
  5. Heat: among 6-1/4 x 7-1/2 in plate casters, the highest listed range is up to 800°F on forged steel; check the temperature field on each listing before oven or hot-room use.

6-1/4 x 7-1/2 in plate casters questions

How much weight can 6-1/4 x 7-1/2 in plate casters carry?

Single 6-1/4 x 7-1/2 in plate casters are rated 3,000 to 9,500 lb; most fall between 5,400 and 7,200 lb.

What top plate do 6-1/4 x 7-1/2 in plate casters use?

Most 6-1/4 x 7-1/2 in plate casters use 6-1/4 x 7-1/2 in. Others listed: 4-1/2 x 6-1/8 in.

What wheel material is most common on 6-1/4 x 7-1/2 in plate casters?

Nylon leads on 6-1/4 x 7-1/2 in plate casters, rated 7,200 lb per caster. Forged steel is next at 5,400 to 9,500 lb.

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
