6-1/4″ x 7-1/4″ Plate Casters

This collection holds 6-1/4 in x 7-1/4 in Plate Casters with semi steel, nylon and forged steel wheels, built for heavy equipment, dies, molds, and plant carts that move very heavy loads. Casters in this collection range from 5,500 to 10,000 lb per caster. Wheels in this category range from 6 up to 10 inches in diameter with 3 to 4 in tread widths. The collection includes rigid models. Kingpinless swivels hold up better under shock and repeat loads. Semi steel (gray iron) rolls with low effort and shrugs off debris. It is loud and can mark finished floors. Nylon rolls easily, resists water and many chemicals, and is hard, so it is loud on rough floors. Forged steel wheels carry very heavy loads and handle impact, debris, and heat. They are loud and will mark finished floors. Match plate size, bolt pattern, and overall height before you order. Semi steel aisle: semi steel casters. Wheel hub: replacement wheels.

6-1/4″ x 7-1/4″ Plate Casters: buying guide

6-1/4 x 7-1/4 in plate casters in cast iron, nylon and forged steel, 6 to 10 in wheels, rated 2,800 to 10,000 lb per caster.

Diameter 6 to 10 inTread 3 and 4 inPlate 6-1/4 x 7-1/4 in (most)2,800 to 10,000 lb per caster

6-1/4 x 7-1/4 in plate casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Cast iron 10 in 2,800 lb Up to 800°F heat, chips and heavy loads on rough floors
Nylon 6 in 7,200 lb low rolling effort on smooth floors, handles wet areas
Forged steel 10 in 10,000 lb very high loads and impact

Ratings are for single casters of 6-1/4 x 7-1/4 in plate casters, from product fields [S1].

Wheel sizes

Wheel Treads Rated
6 x 3 in nylon 7,200 to 10,000 lb
8 x 3 in 5,500 lb
10 x 3 in cast iron 2,800 lb

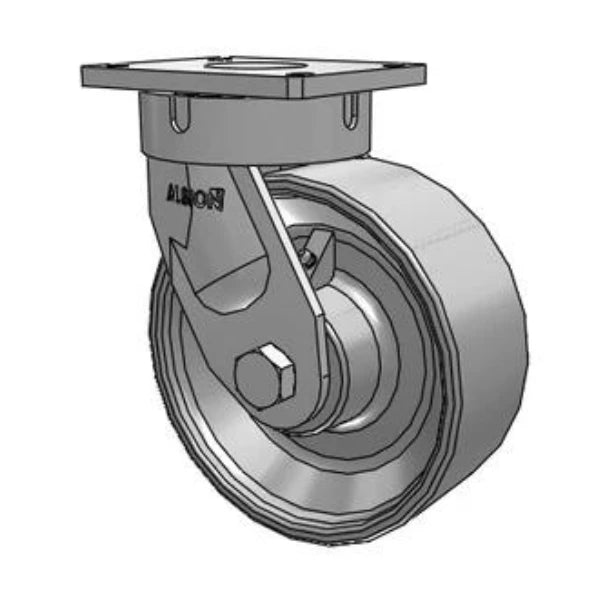

10 x 4 in forged steel 10,000 lb

Choosing 6-1/4 x 7-1/4 in plate casters

  1. Load: divide the loaded weight by three for a four-caster cart [S2]; at 10,000 lb each, 6-1/4 x 7-1/4 in plate casters suit a loaded cart of about 30,000 lb.
  2. Mount: most 6-1/4 x 7-1/4 in plate casters use a 6-1/4 x 7-1/4 in top plate; 5-1/4 x 7-1/4 in plates are listed too; check the bolt spacing on your frame against the plate size.
  3. Floor: on 6-1/4 x 7-1/4 in plate casters, cast iron, nylon and forged steel suit smooth concrete and heavy loads, but are loud and hard on tile and wood.

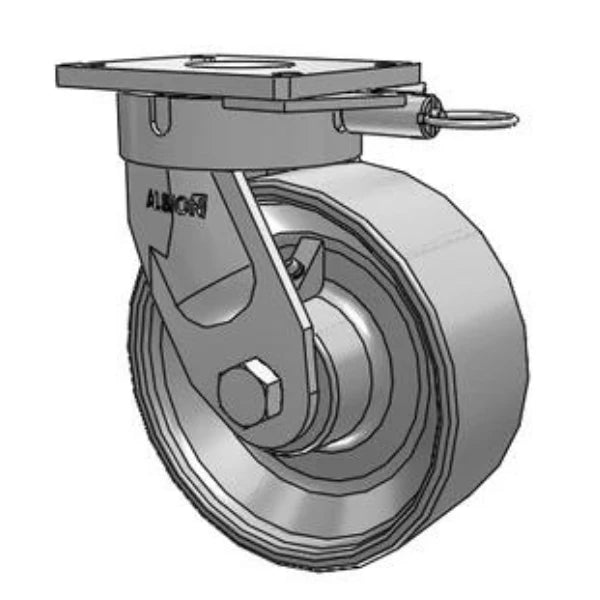

  4. Rig: swivel and rigid 6-1/4 x 7-1/4 in plate casters are listed, with side lock brake options.
  5. Heat: among 6-1/4 x 7-1/4 in plate casters, the highest listed range is up to 800°F on cast iron; check the temperature field on each listing before oven or hot-room use.

6-1/4 x 7-1/4 in plate casters questions

How much weight can 6-1/4 x 7-1/4 in plate casters carry?

Single 6-1/4 x 7-1/4 in plate casters are rated 2,800 to 10,000 lb; most fall between 5,500 and 10,000 lb.

What top plate do 6-1/4 x 7-1/4 in plate casters use?

Most 6-1/4 x 7-1/4 in plate casters use 6-1/4 x 7-1/4 in. Other plates on 6-1/4 x 7-1/4 in plate casters: 5-1/4 x 7-1/4 in.

What wheel material is most common on 6-1/4 x 7-1/4 in plate casters?

Cast iron leads on 6-1/4 x 7-1/4 in plate casters, rated 2,800 lb per caster. Among 6-1/4 x 7-1/4 in plate casters, nylon is next at 7,200 lb.

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
