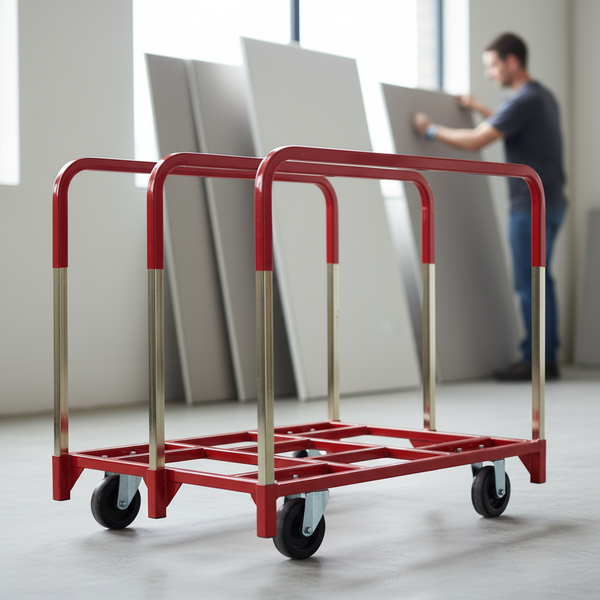

Panel Mover, Standard Uprights1,800-2,400 lb · 26" uprightsThe everyday workhorse for sheet goods.✓ 27-1/2" wide, fits 32" doors and upView This Model →
Tall panels and door slabs?

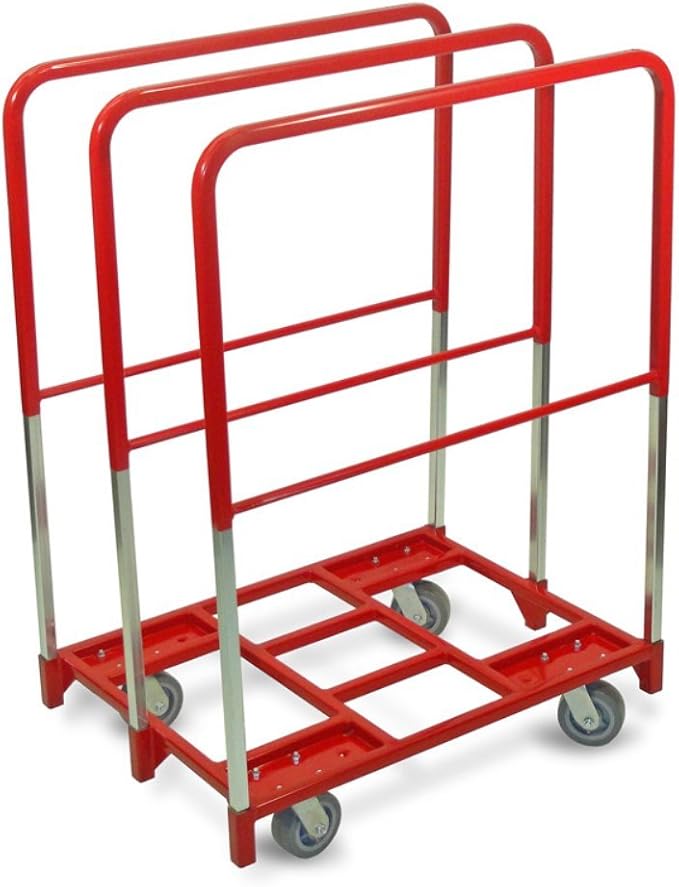

Panel Mover, Extra-Tall Uprights45" uprightsStabilizes full-height partitions and doors.✓ 27-1/2" wide, fits 32" doors and upView This Model →
Elevators and tight doorways?

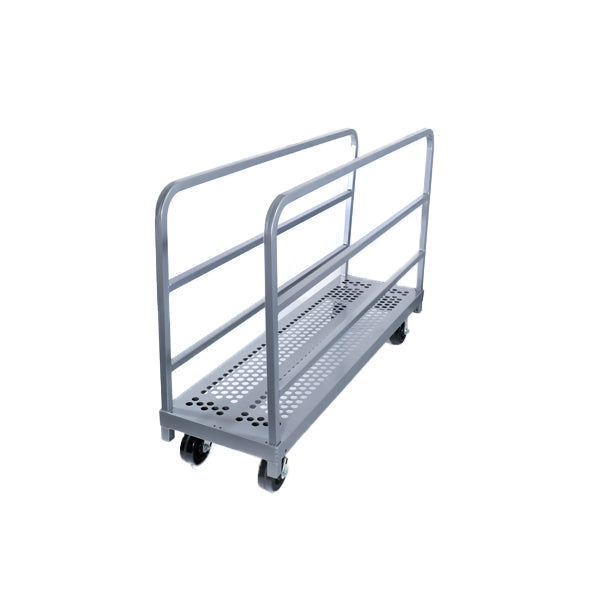

HD Narrow P/S MoverSlim base · 5" phenolicBuilt to clear standard doorways loaded.✓ 16-1/4" wide, fits every doorwayView This Model →
Glass, stone, finished panels?

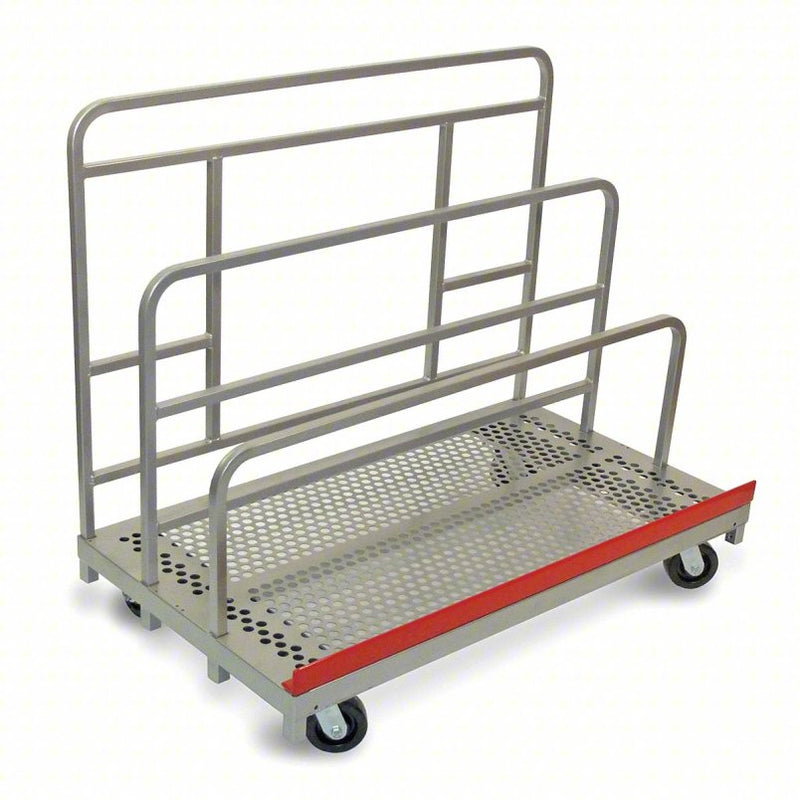

Waterfall 50503,200 lb · adjustable uprightsLoad leans into the frame, not balanced vertical.✓ 30" wide, needs a 36" or double doorView This Model →
Max weight, occupied building?

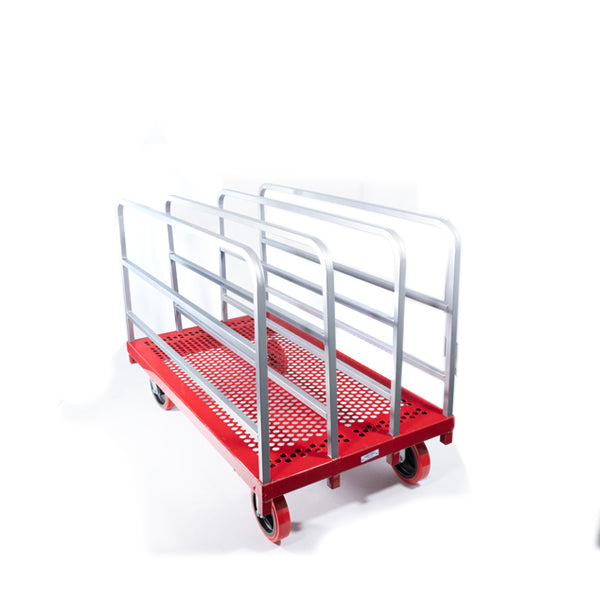

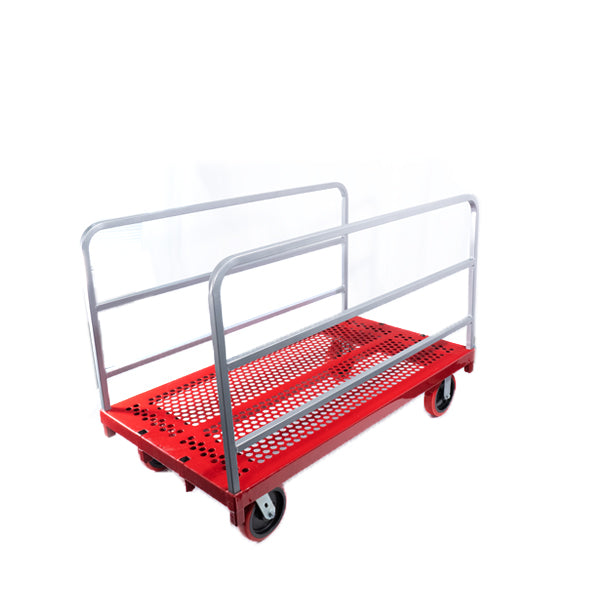

HD P/S Mover3,200 lb · 8" quiet polyTop capacity with quiet non-marking casters.✓ 30" wide, needs a 36" or double doorView This Model →
Mixed sheet heights all day?

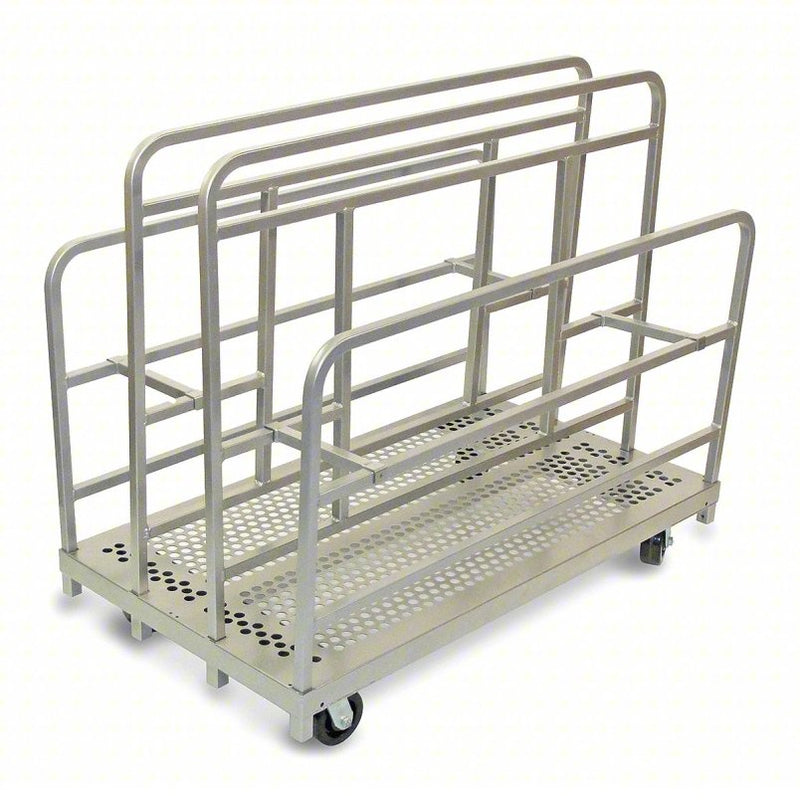

Multiheight Vertical Truck3,200 lb · adjustable railsOne truck adapts to every sheet size.✓ 30" wide, needs a 36" or double doorView This Model →
Match the mover to three things: total sheet weight, sheet height, and the tightest doorway on the route.
If the route crosses expansion joints or door thresholds, spec the 8" quiet poly casters. Under a 2,000 lb sheet load a 5" wheel drops into a 3/8" gap and stops dead; an 8" wheel bridges it and keeps rolling. Order brakes on at least two casters if the mover will be loaded or staged on any slope.
Roughly 30 sheets of 5/8" Type X on a 2,400 lb standard mover, using USG's figure of about 70 lb per 4x8 sheet. Half-inch lightweight board runs lighter, so count goes up. Keep the stack centered and strap anything taller than the uprights.

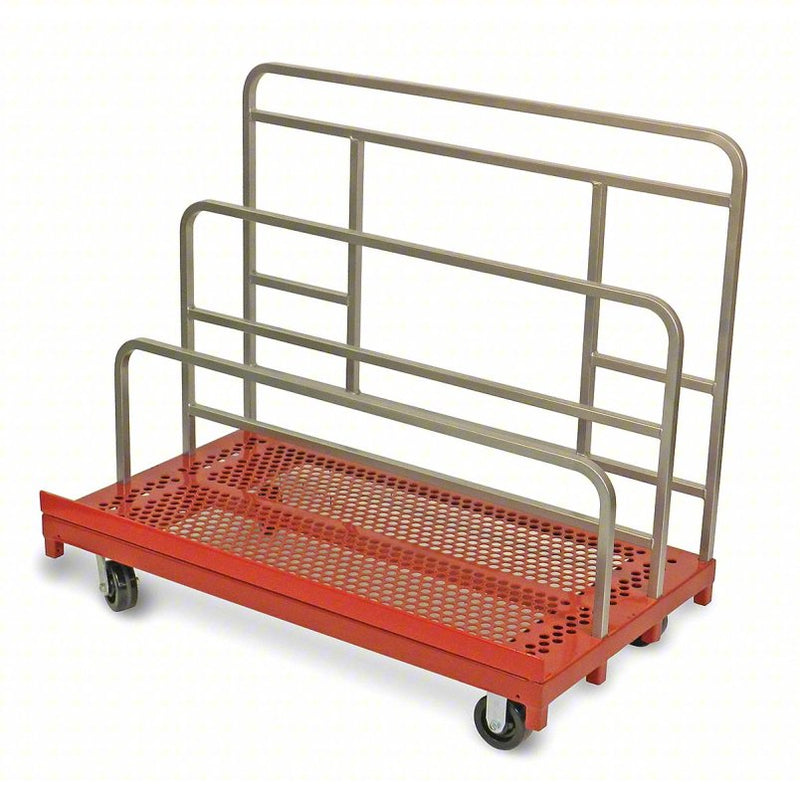

A design where the uprights angle the load so sheet goods lean into the frame instead of standing dead vertical. That is why waterfall models are the pick for glass, stone, and finished panels. Raymond's 5000-series waterfall movers are rated to 3,200 lb with adjustable uprights.
Phenolic for unfinished concrete and back-of-house routes, it is the economical option. Quiet polyurethane is non-marking and much quieter, the right choice for occupied offices, schools, hospitals, and finished floors. Both are available fixed, swivel, or with brakes on most models.
The HD Narrow series is built specifically for elevators and standard doorways. Standard-width movers clear double doors comfortably. Exact base dimensions are listed on every product page, measure your tightest opening first.
Yes. Genuine OEM 5" and 6" phenolic and 8" quiet poly replacement casters are stocked in our Raymond replacement parts collection, and they bolt to the same mounting pattern as the factory set.
Sources: sheet weights per USG technical data; manual handling limits per OSHA ergonomics and materials handling guidance; full engineering drawings at raymondproducts.com.
Raymond panel and sheet movers carry drywall, plywood, doors, glass, and cubicle partitions on edge, so one worker moves loads that used to take two or three. Standard 3800-series movers are rated 1,800-2,400 lb; heavy-duty cross-brace, waterfall, and vertical panel trucks reach 3,200 lb. All are made in USA since 1958 with a lifetime warranty.
Outfitting a facilities crew or ordering for multiple sites? Request a bulk quote or call 844-439-4335 and a caster engineer will spec the right model for your floors and loads.
