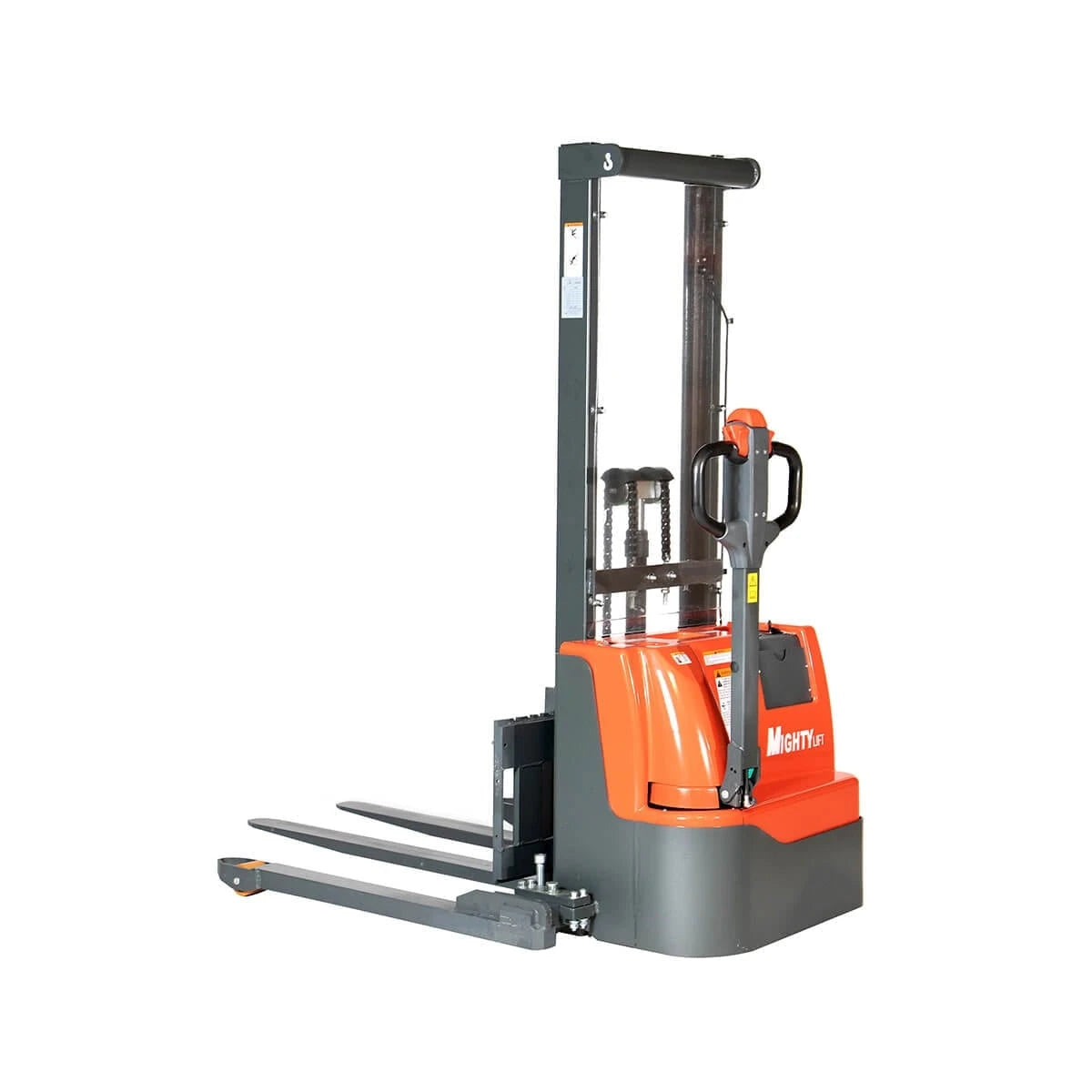

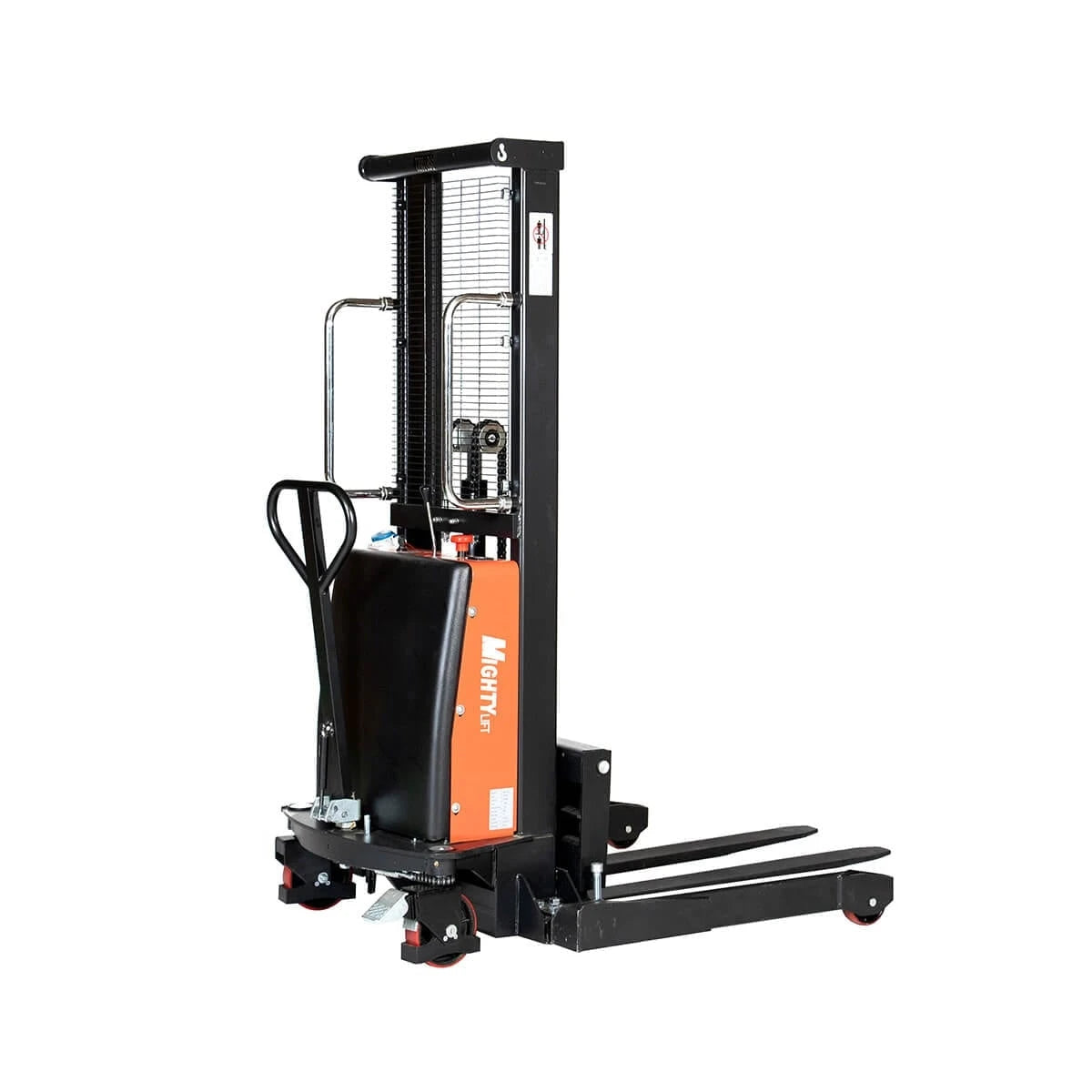

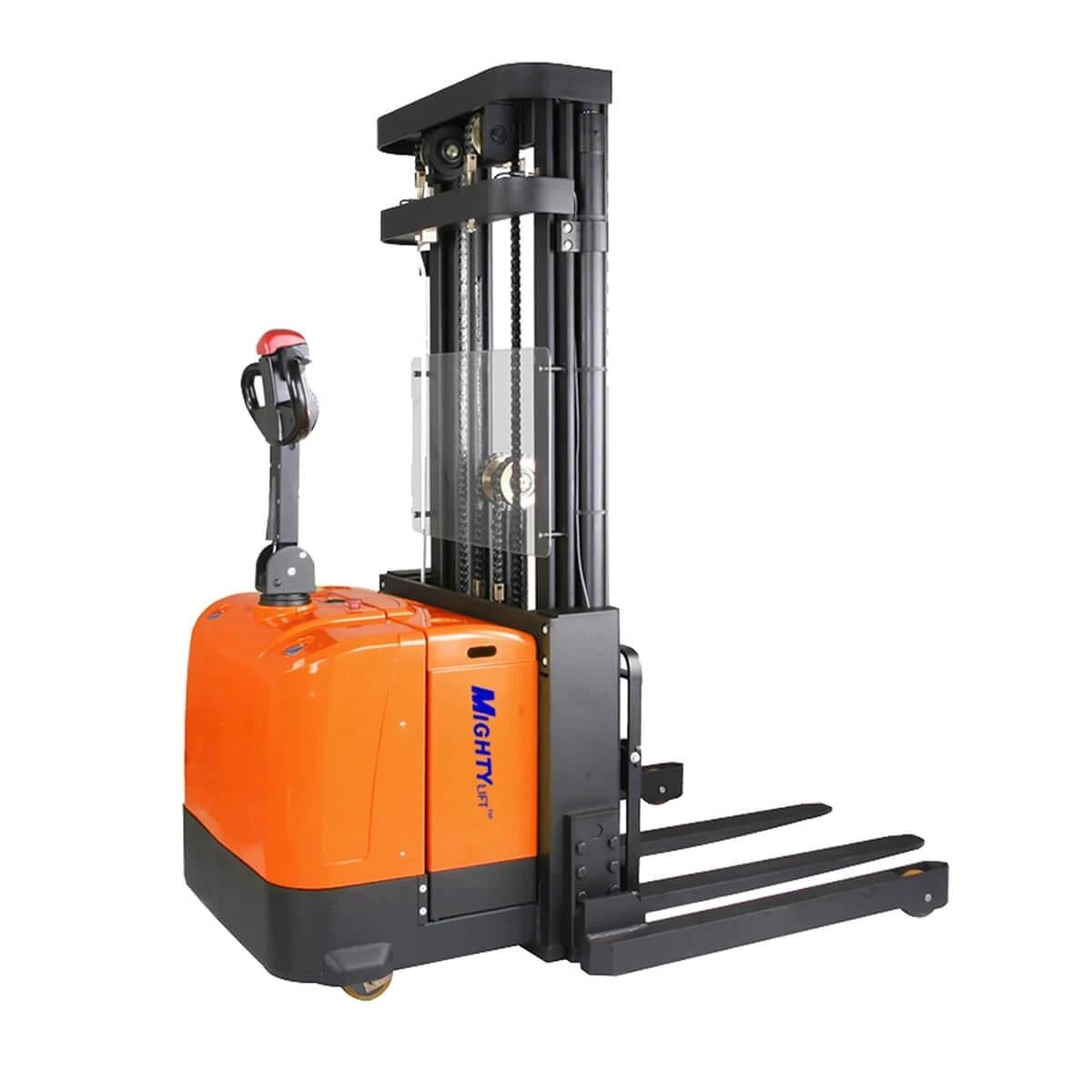

Manual and powered stackers — pallet-lift equipment that raises pallets to truck or rack height. Manual hydraulic and battery-electric models, 1,650 to 3,300 lb capacity, lift heights 63 to 130 inches. Faster than a forklift for short hauls, cheaper than a forklift for low-volume operations. Stocked at our Mansfield, TX facility.









Stackers fill the gap between pallet jacks (low lift) and forklifts (full forklift). They lift pallets onto trailers, into racking, and to working height without the cost of a forklift.
Standard 48x40 GMA pallet loaded: 1,500-2,500 lb typical. Light goods: 1,650 lb. Heavy: 3,300 lb. Match capacity to heaviest pallet.
63 inches: trailer loading. 100-130 inches: rack stocking up to second tier. Match height to your tallest staging requirement.

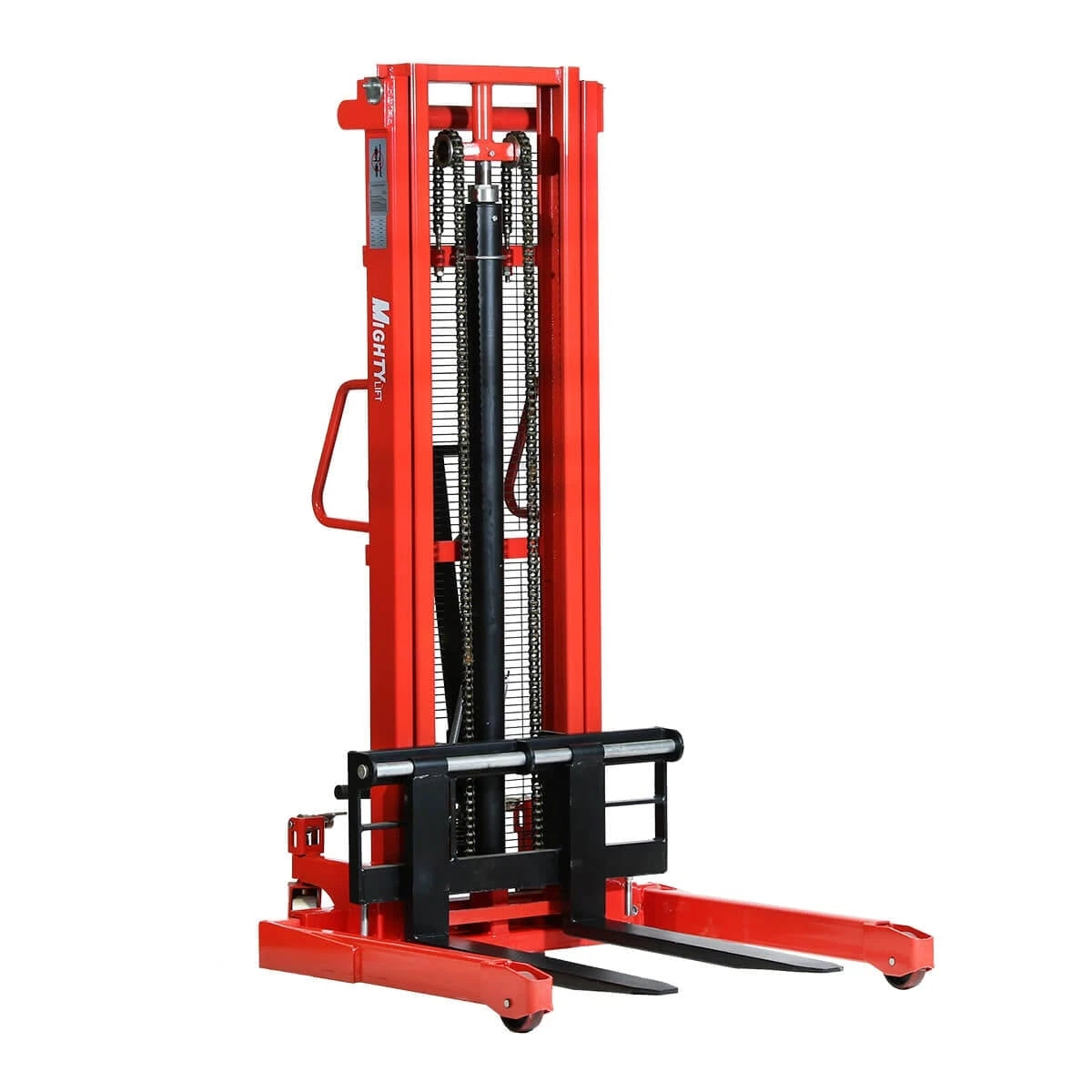

Manual hydraulic: lower cost, no battery, slower. Powered: faster, less operator effort, requires battery charging.
For low-volume operations (under 30 pallet moves/day), a stacker is faster to deploy and 1/3 the cost of a forklift.
Need help? Contact CasterHQ for support.
CasterHQ stocks 9 configurations at our Mansfield, TX facility. 99 percent ship same or next business day.
A pallet-lift device midway between a pallet jack and a forklift. Lifts pallets to rack height or truck level.
1,650 to 3,300 lb.
63 inches (truck loading) to 130 inches (rack stocking).
Manual: lower cost, hydraulic pump. Powered: battery electric, faster, less operator effort.
Stacker is cheaper and easier to operate for low-volume. Forklift wins for high-volume, very heavy, or outdoor.
LTL freight 1-3 business days from Mansfield TX.
