12" x 2-1/2" by capacity tier

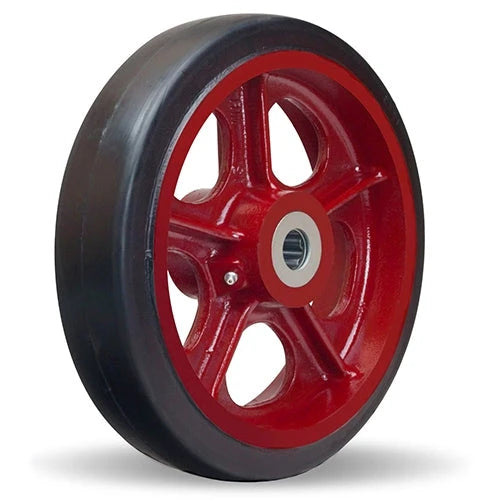

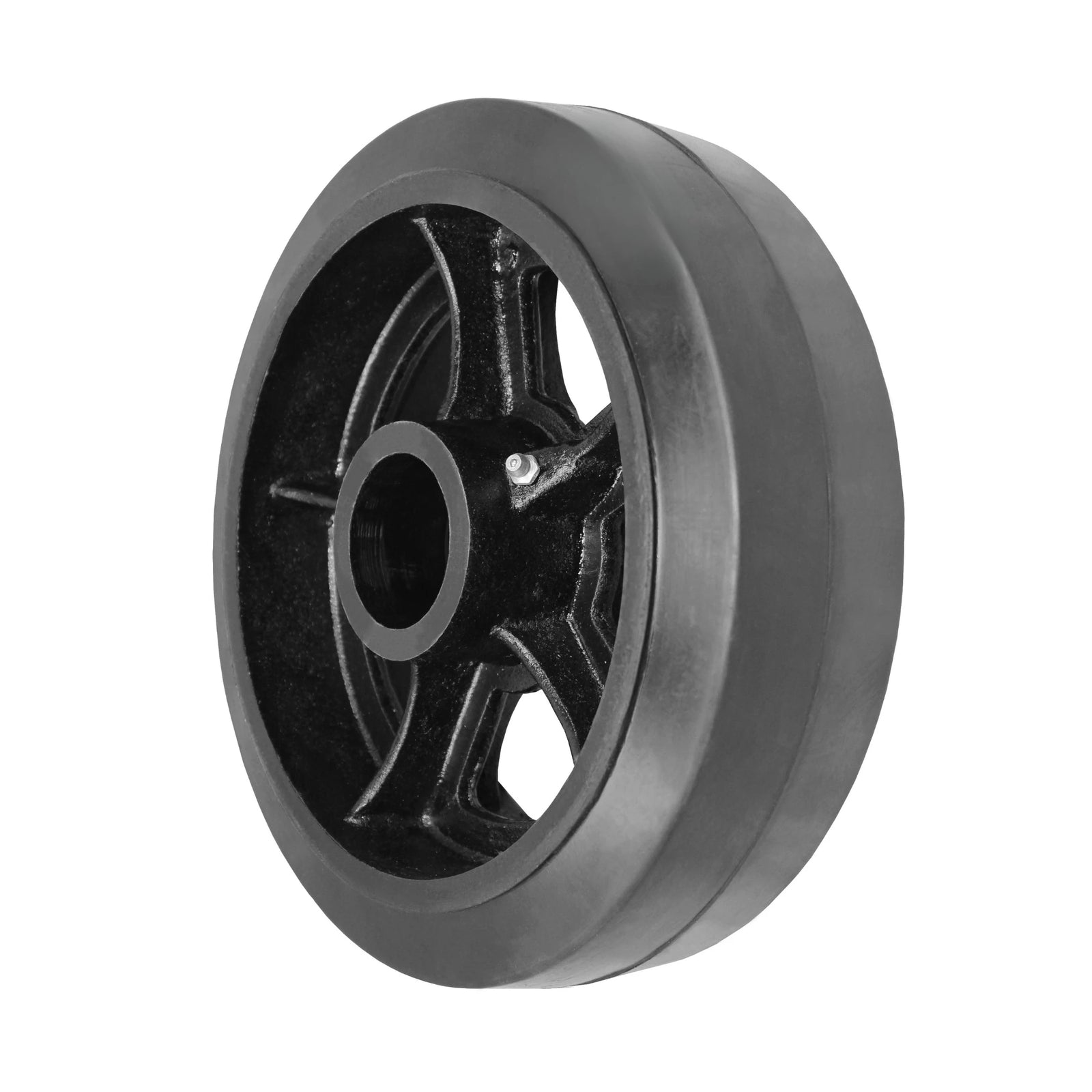

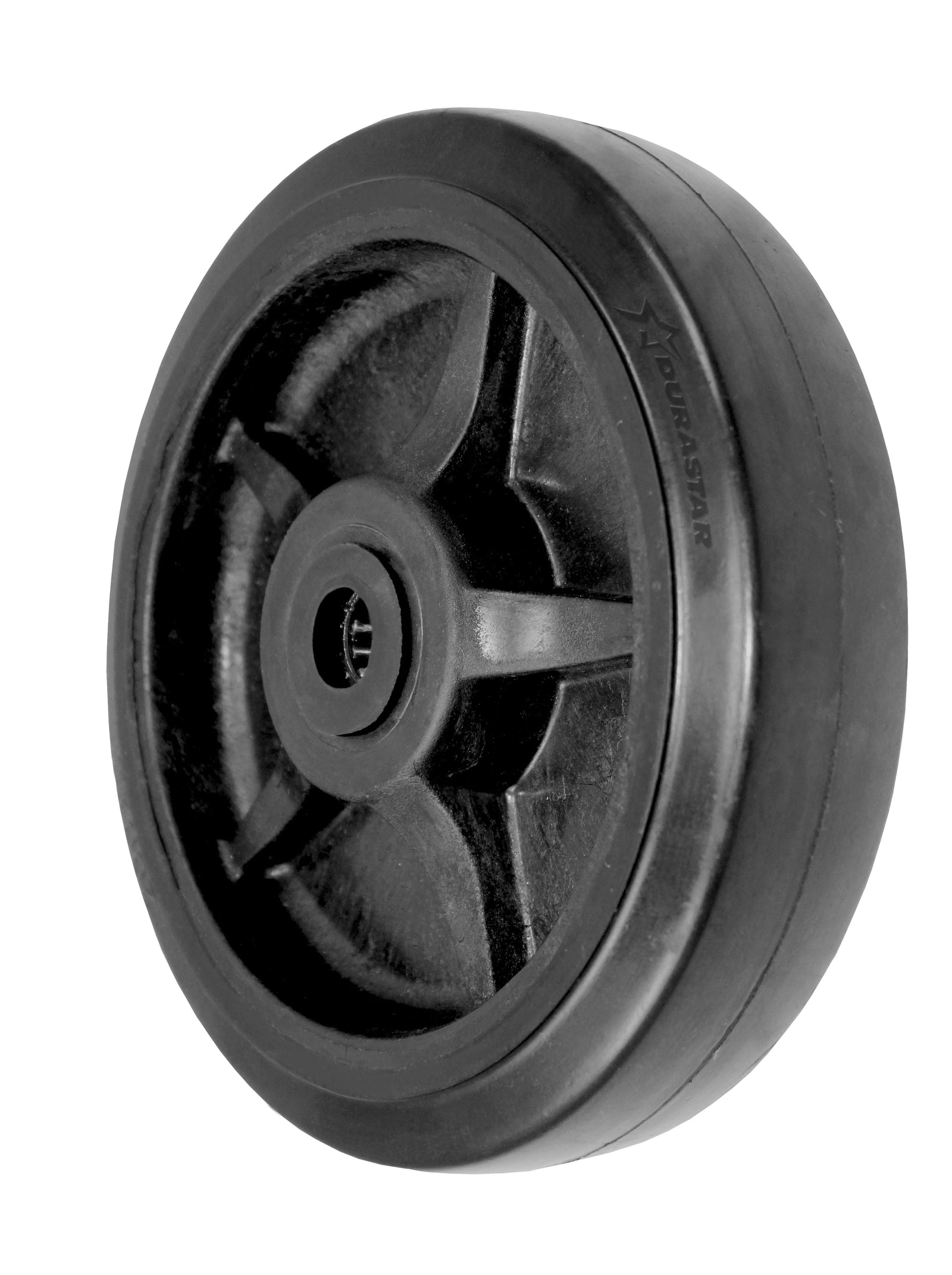

Light · 600-1,000 lbMold-on rubber on cast iron
Quiet, cushioned roll for platform trucks and material carts on finished or mixed floors.

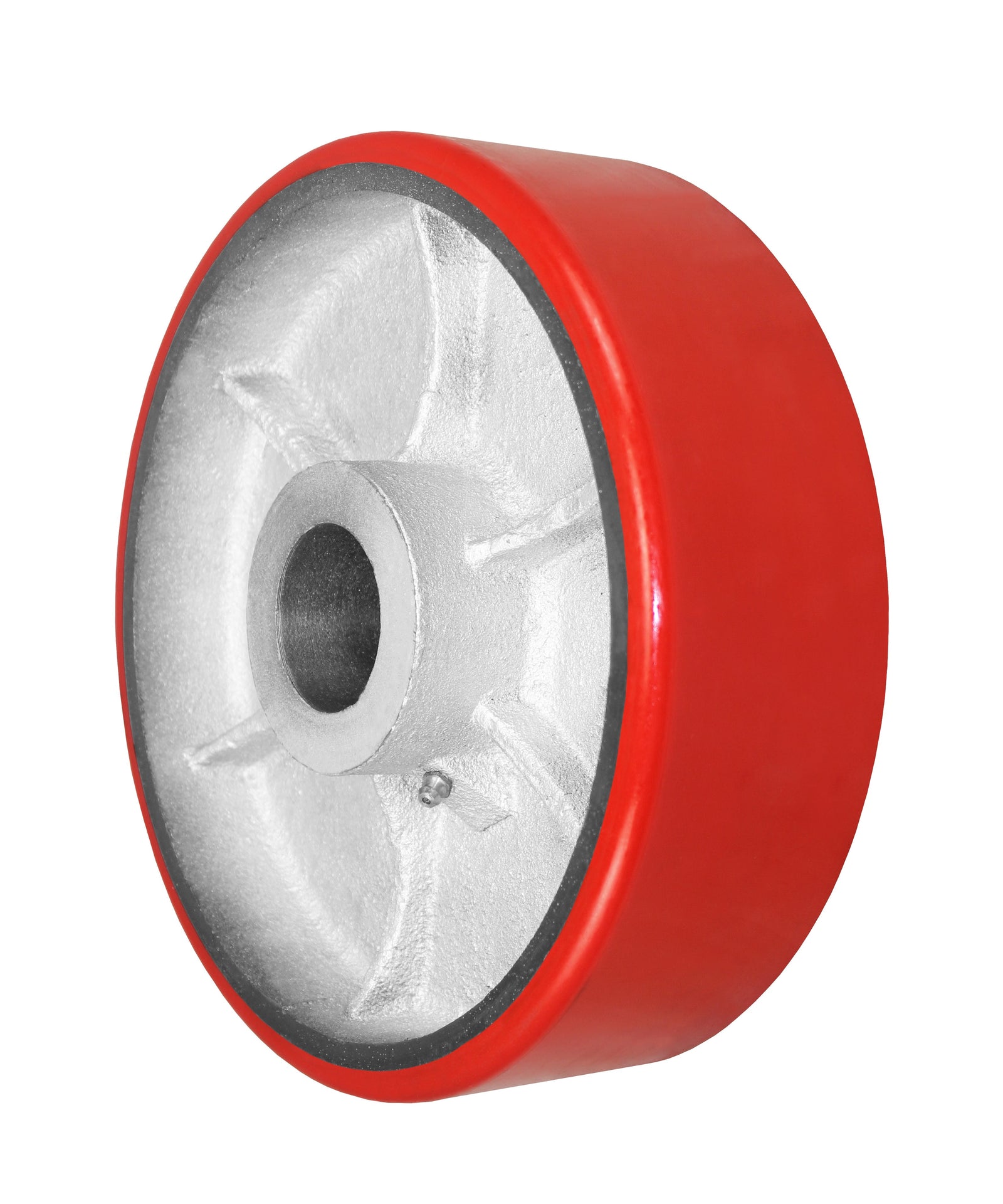

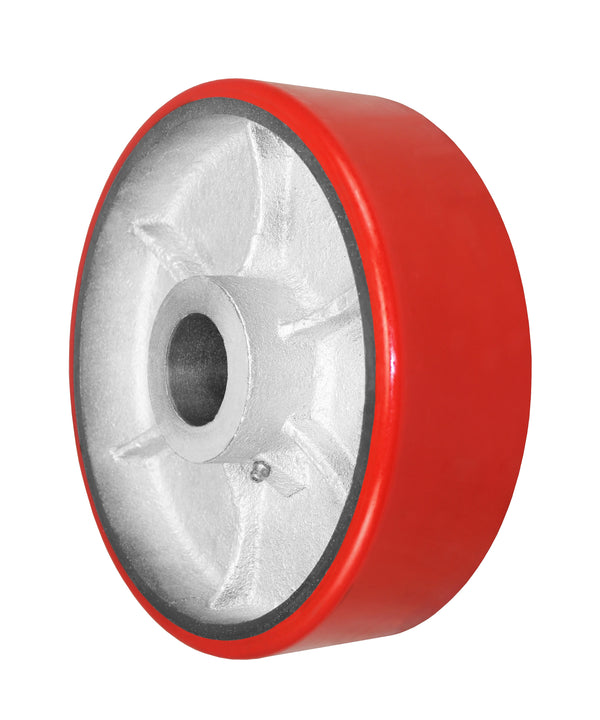

Medium · 1,000-1,800 lbPolyurethane on cast iron
The workhorse build — floor protection plus real capacity for industrial transfer carts.

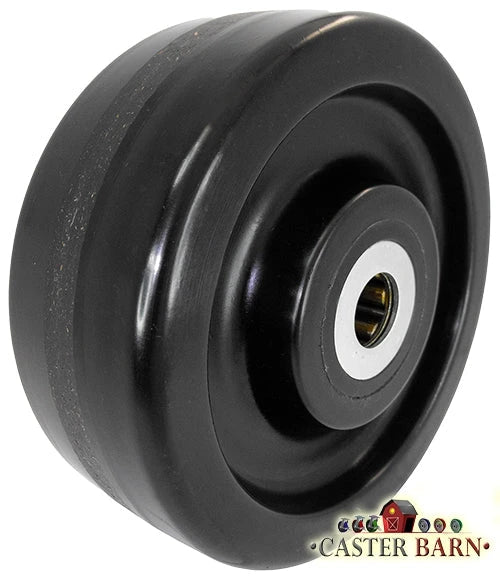

Heavy · 1,800-2,500 lbPhenolic or forged-core poly
Hard tread, higher capacity, low rolling resistance for heavier carts that still need 12-inch roll-over.
When to pick 12" x 2-1/2" over 12" x 3"
The decision comes down to weight and cost versus capacity headroom. The 12" x 2-1/2" runs lighter and cheaper but caps lower. If your load math lands comfortably under ~2,500 lb per caster and you want the lightest 12-inch caster you can get, this is it. If you need 3,000+ lb, step to 12" x 3" or 12" x 4" — the extra tread width is the only way to get there at this diameter.
FAQs
Why go to 12" diameter at all for a lighter cart?Roll-over ability. A 12-inch wheel clears dock plates, expansion joints, and debris that stop smaller wheels cold. If your route has those obstacles, 12-inch earns its place even on a light cart.
Mold-on rubber or polyurethane?Rubber for the quietest, most cushioned roll. Polyurethane for more capacity and floor protection with less cushion.
Does it sit static well?Polyurethane and phenolic on metal cores hold static loads without flat-spotting. Soft mold-on rubber can flat-spot if parked loaded for long stretches.
Spec a 12 x 2-1/2 build
Send load per caster and floor type — we'll confirm the tier.
