Ball Transfers

These ball transfers let loads slide in any direction on conveyor tables, fixtures, and pack stations. Units in this collection range from about 40 to 850 lb per ball transfer. Main ball sizes run about 5/8 to 1-1/2 in in carbon steel, stainless steel, and nylon. Carbon steel covers dry indoor transfer decks. Stainless suits washdown and outdoor corrosion. Nylon is the quieter pick when the transfer surface needs a softer contact. Mount the units so the load balls sit at a common height across the array. Match housing and ball material before you place your order today. Confirm the rating on the listing before you buy. Keep the load on the rating printed for that SKU. Verify the SKU matches your old unit. Capacities below are per ball transfer unless a listing says set. Small MBT series: MBT 5/8 ball transfers. Related industrial plates: Hamilton casters.

Shop by type

7 types

Wheel = wheel diameter · capacity is per caster.

Ball Transfers: buying guide

Ball transfers from Hudson Bearings for conveyor tables, fixtures and pack stations. 5/8 to 1-1/2 in main balls in carbon steel, stainless or nylon, rated 40 to 850 lb each.

40 to 850 lb eachCarbon, stainless, nylonDrop-in, flange, stud, pipeHudson Bearings

Watch: Inside Hudson Bearing: How Ball Transfers Are Manufactured

Shop Ball Transfers by Mount Style

hudson bearing hdbtm 1-3/16 ss ball transfer unit – 850 lb | casterhq

By main ball size

Main ball	Series examples	Rated load each	Mounts
5/8 in	FSBT, NFSBT, MBT, NMBT, NSMBT	About 40 to 125 lb	Flange, drop-in, stud

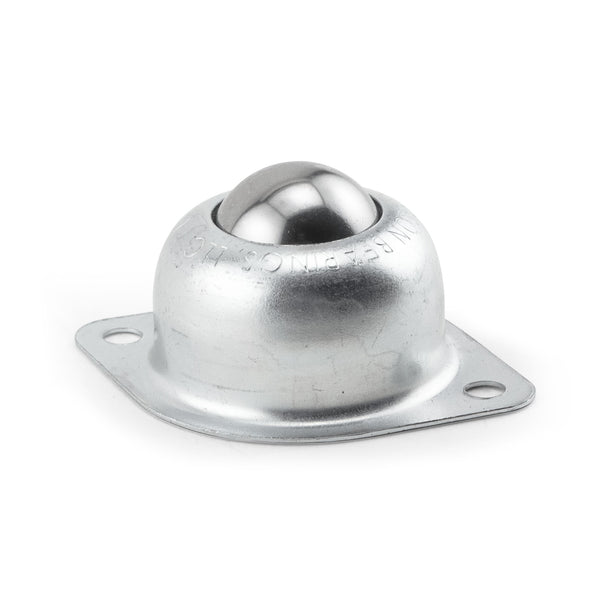

1 in	BT-1, LPBT, FSBT, SBT, SMBT, NSBT	About 75 to 200 lb	Flange, drop-in, stud
1-3/16 in	HDBT, HDBTM, SHDBT, FHDBTM	About 550 to 850 lb	Drop-in, flange (heavy duty)
1-1/2 in	FSBT, FLBT, PBT, NSBT	About 200 to 250 lb	Flange, drop-in, pipe, stud

Hudson Bearings titles and capacity fields on this page [S1].

Mount styles

Drop-in: sits in a drilled hole in a table top or plate.
Bolt-flange: flange with bolt holes for sheet metal and thin plate.
Stud: threaded stud into a tapped hole or nut.
Pipe: fits the end of a tube for a ball-topped support.

Ball material

Carbon steel for dry indoor tables.
Stainless for wet, washdown, and food areas.
Nylon when the load surface is painted, plastic, or finished.

Ball transfer questions

How much weight can a ball transfer hold?

From about 40 lb on 5/8 in units to 850 lb on 1-3/16 in HDBT and HDBTM heavy-duty units, per unit on this page.

What mounts are available?

Drop-in, bolt-flange, threaded stud, and pipe mounts across the Hudson series listed here.

Which ball for washdown?

Stainless steel or nylon. Carbon steel is for dry areas.

How many ball transfers does a table need?

Enough that the smallest item always rests on at least three balls, with load per ball under the unit rating and a safety margin for uneven floors.

Jordan Wilson, CasterHQ · reviewed October 26, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ Hudson Bearings product fields for ball-transfers, pulled October 26, 2026 (81 ACTIVE).
[S2] Hudson Bearings manufacturer site (hudsonbearings.com) and Access Casters Hudson brand page.
[S3] McMaster-Carr transfer bearings category (higher-capacity recessed/specialty units outside this Hudson hub).
