Nylon Casters: Hard Tread

These nylon wheel casters roll with low effort on smooth floors in plants, kitchens, and warehouses. Casters in this collection range from 350 to 1,100 lb per caster. Wheels in this category range from 4 up to 8 in on 4 x 4-1/2 in top plates, swivel and rigid. Nylon resists water and many chemicals. It is hard, so it is loud on rough floors. Soft rubber or TPR tread is the better pick when the floor has chips or grit. Match plate size, bolt pattern, and overall height before you order. Choose swivel casters when the cart must turn in place, rigid casters for straight travel, and add a brake when the cart needs to stay put. Capacities below are per caster unless a listing says set. Read the listing for the exact wheel size, overall height, and mount shown. Confirm the load rating printed on the title before you order. Nylon aisle: nylon wheels. Plate aisle: plate casters.

Shop by caster type

5 types

Capacity shown is per caster (per wheel for wheels).

Nylon wheel casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits
Nylon		4, 5, 6 and 8 in	350 to 1,100 lb	-40°F to 210°F	low rolling effort on smooth floors, handles wet areas

Ratings are for single casters of nylon wheel casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated
4 x 1-1/4 in	nylon	350 lb
4 x 2 in	nylon	800 lb
5 x 2 in	nylon	900 lb

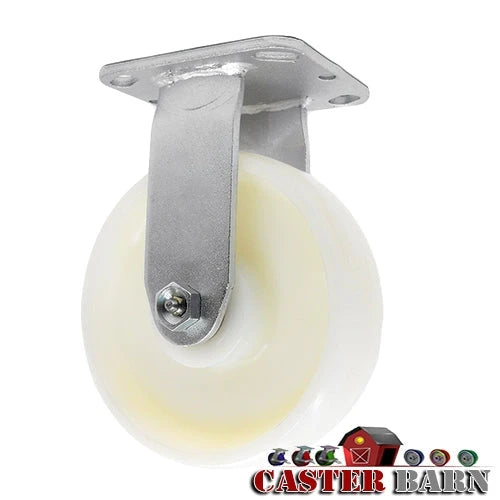

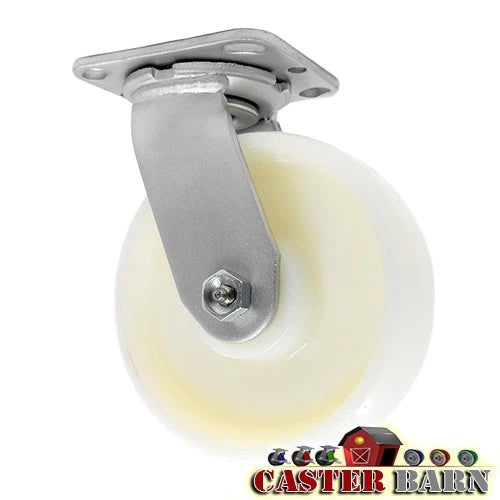

6 x 2 in	nylon	1,000 lb
8 x 2 in	nylon	1,100 lb

Choosing nylon wheel casters

Load: plan on three casters carrying a four-caster cart [S2]; at 1,000 lb each, a common rating here, that is about 3,000 lb, and the 1,100 lb top rating covers about 3,300 lb.
Mount: most nylon wheel casters use a 4 x 4-1/2 in top plate; 2-3/8 x 3-5/8 in plates are listed too; measure bolt hole centers on the old plate and compare.
Floor: on nylon wheel casters, nylon suits smooth concrete and heavy loads, but is loud and hard on tile and wood.
Rig: swivel and rigid nylon wheel casters are listed, with total lock brake options.

Nylon wheel casters questions

How much weight can nylon wheel casters carry?

Single nylon wheel casters are rated 350 to 1,100 lb; most fall between 800 and 1,000 lb.

What top plate do nylon wheel casters use?

Most nylon wheel casters use 4 x 4-1/2 in. Others listed: 2-3/8 x 3-5/8 in.

What wheel material is most common on nylon wheel casters?

Nylon leads on nylon wheel casters, rated 350 to 1,100 lb per caster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
