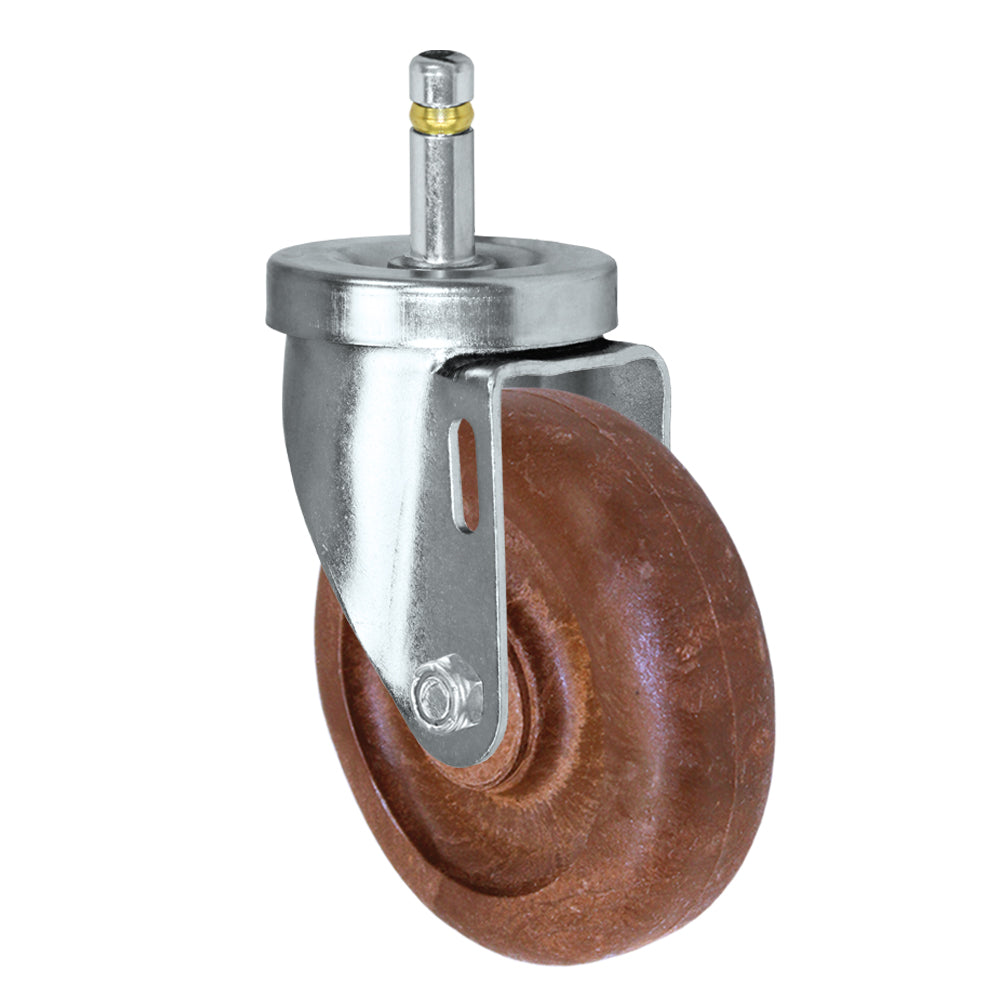

4" x 1-1/4" High-Temp Glass-Filled Nylon Swivel Caster – 350 lb | 7/16" x 1-3/8" Grip Ring Stem

This 4" x 1-1/4" High-Temp Glass-Filled Nylon Swivel Caster – 350 lb is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

This caster runs a Nylon wheel with a 1-1/4" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

This caster uses a Grip Ring Stem mount (4" x 1-1/4" stem). Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.

This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.

Rated for -45°F to 475°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).

The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

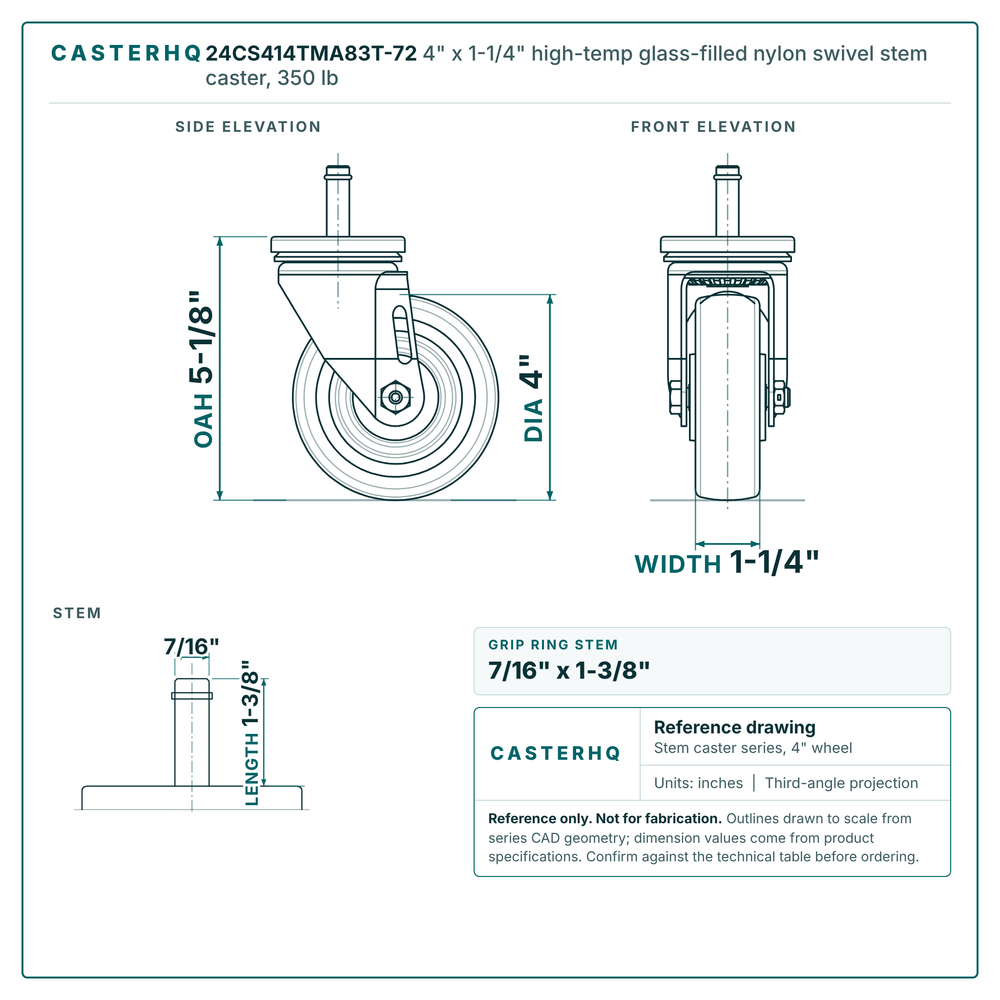

The overall height (floor to top of plate or stem) is 5-1/8". Account for it when checking equipment clearance, dock height, and ergonomic working height.

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
