Up to 350 lbs
Up to 6,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
High-capacity loads
Shock absorbing
Corrosion resistant
Outdoor / rough terrain
OEM replacements
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

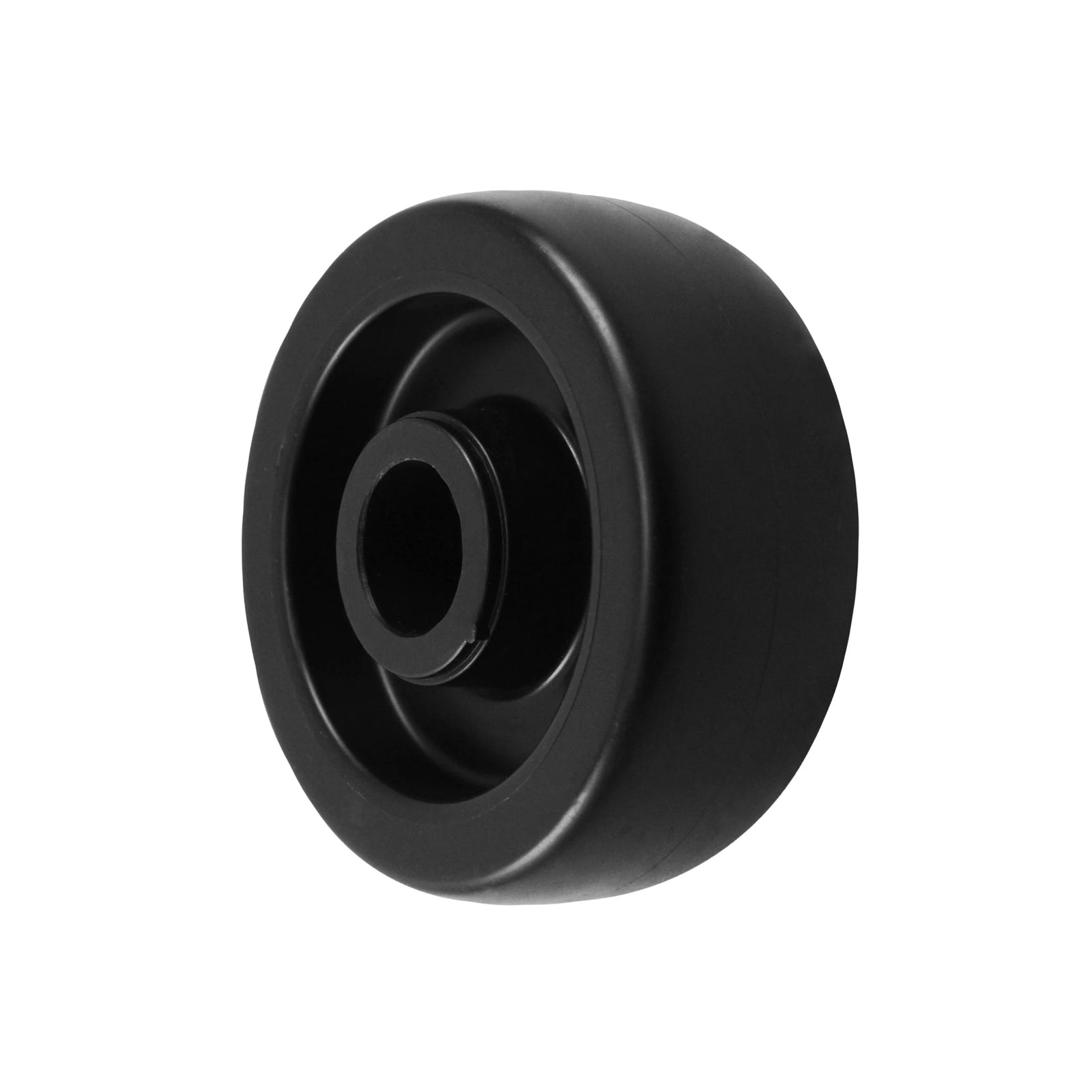

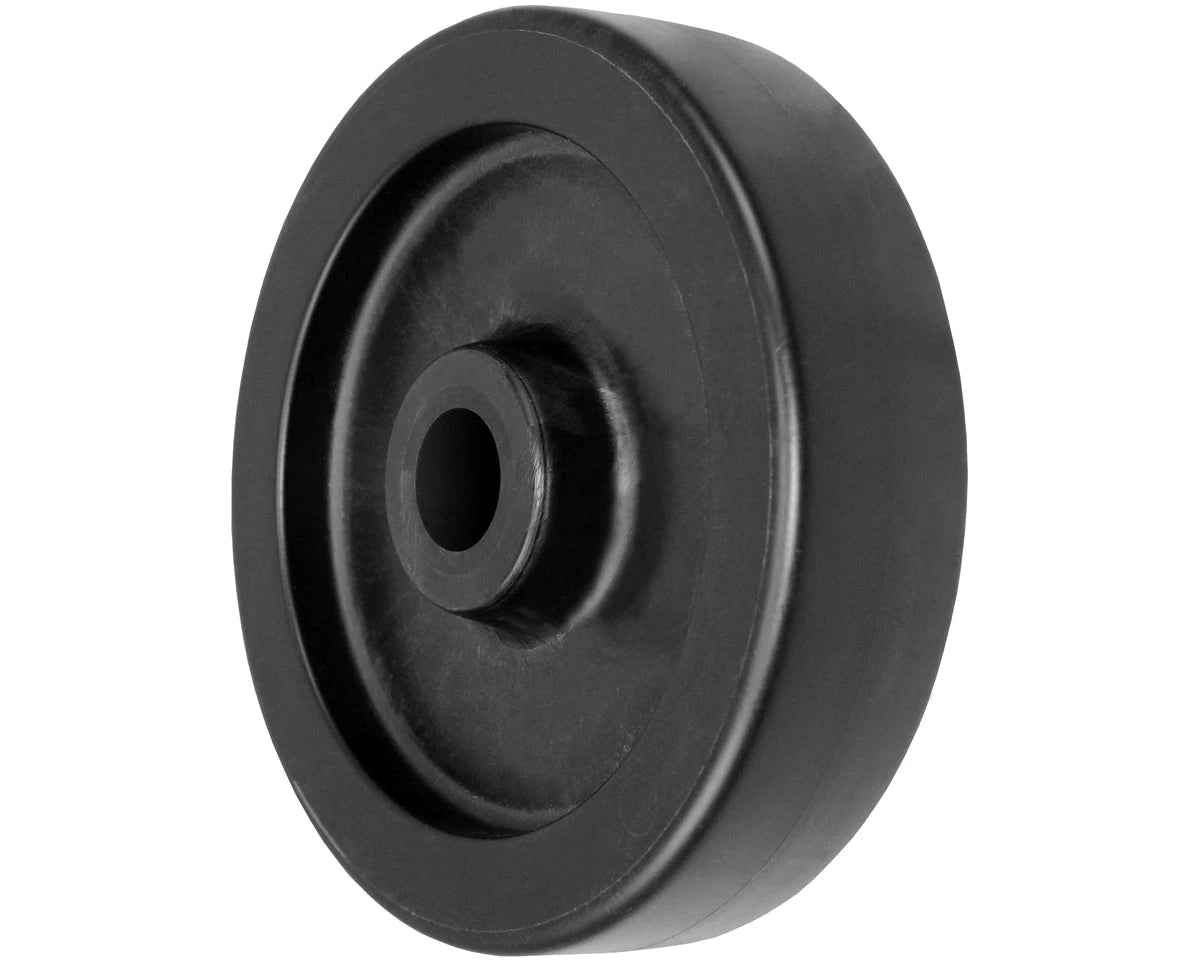

Polyolefin wheels are a single molded hard plastic — no tread, no core, one material. They're the lowest-cost wheel that still carries a real moderate load, and they shrug off the water, grease, and cleaning chemistry that degrade other materials. For dry indoor carts at fleet scale, nothing competes on price.




Polyolefin is rigid, lightweight, and genuinely chemical-resistant. It rolls easily, carries moderate loads up to roughly 1,000 lb per wheel in larger sizes, and handles frequent wash-downs without degrading. What it gives up: it transmits floor shock straight into the load, it can be noisy on hard floors, and it offers no floor cushioning. It's an economy moderate-duty wheel, not a heavy-duty or floor-protecting one.
Polyolefin loses strength in heat and can crack in freezing cold. Prolonged UV exposure degrades it. That rules out freezers, hot process areas, and outdoor use. Inside its lane — dry, indoor, temperature-controlled — it's the value choice. Outside it, move to polyurethane on a core, or a rubber wheel.
