Pick the right 8 x 2-1/2 in five questions
Decision tree
1What’s your load per caster?
Under 1,200 lb: polyurethane on polyolefin or aluminum core. 1,200–2,000 lb: polyurethane on cast iron or forged steel. Over 2,000 lb: forged steel wheel.
2Hand-pushed, or towed?
Hand-pushed: standard kingpin construction is fine. Towed in a tugger train: kingpinless with roller bearings — towing wears standard kingpin swivels fast.
3Indoor finished floor, or rough/outdoor?
Indoor smooth: polyurethane wins on capacity and floor protection. Rough or outdoor: pneumatic or mold-on rubber for shock absorption.
4Does the equipment sit static under load for long stretches?
Yes: avoid soft rubber (it flat-spots). Pick polyurethane on a metal core — it holds the static load without taking a set.
5Does the deck height matter?
If you need it lower, 8 x 2-1/2 is already the compromise. If you can go taller, a 10″ wheel rolls easier — but 8″ is the standard for a reason: it’s the best balance of roll-over ability and deck height.
Real-world 8 x 2-1/2 builds
Capacity by wheel build at this size
| Build |
Capacity |
Where it fits |
| Polyurethane on polyolefin |
700–1,000 lb |
Light platform trucks, service carts |

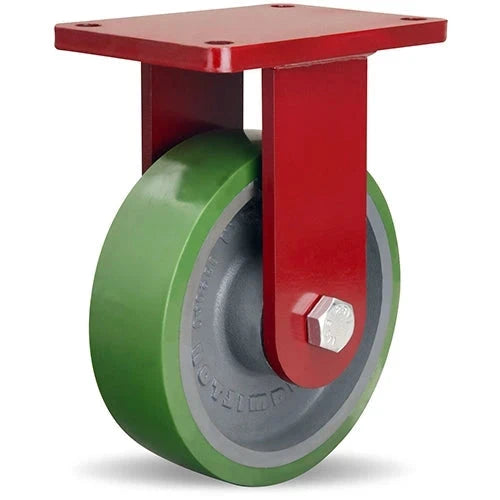

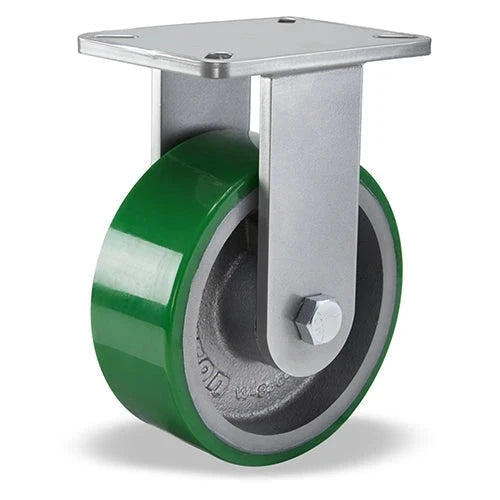

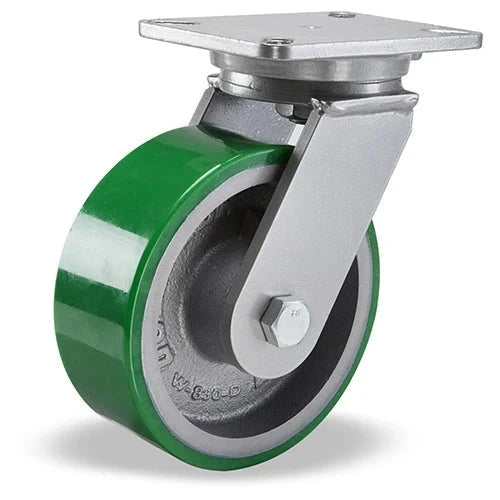

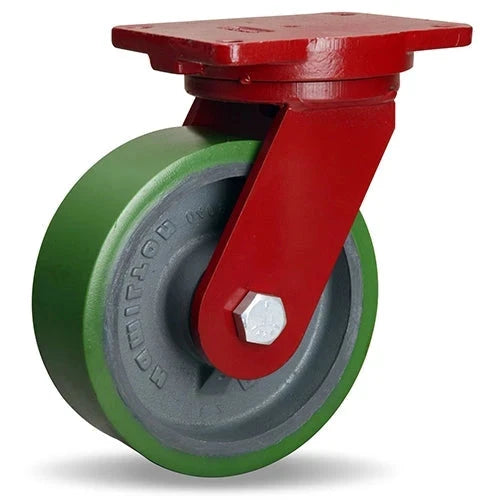

| Polyurethane on cast iron |
1,200–1,500 lb |
Standard platform trucks, A-frame carts |
| Polyurethane on forged steel |
1,500–2,000 lb |
Heavy platform trucks, towables |

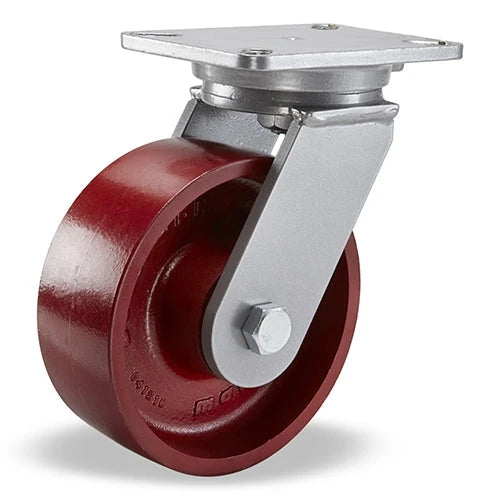

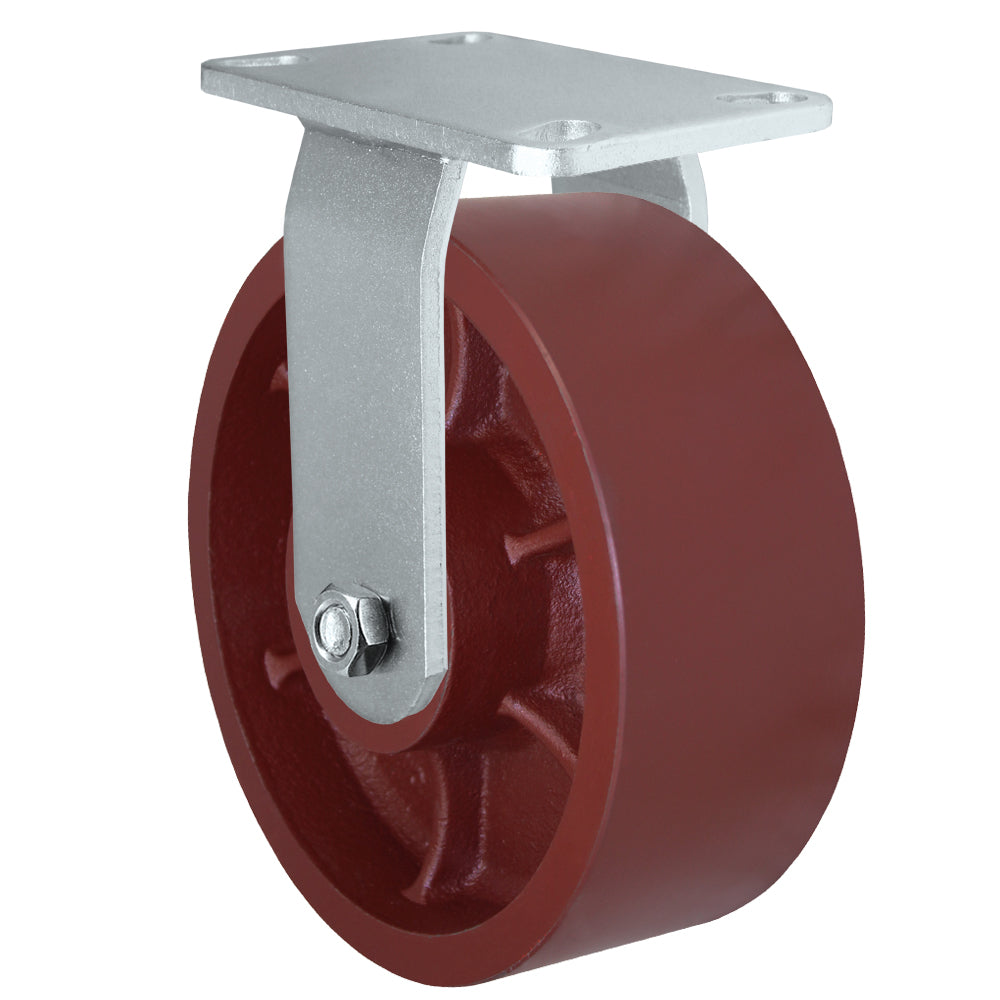

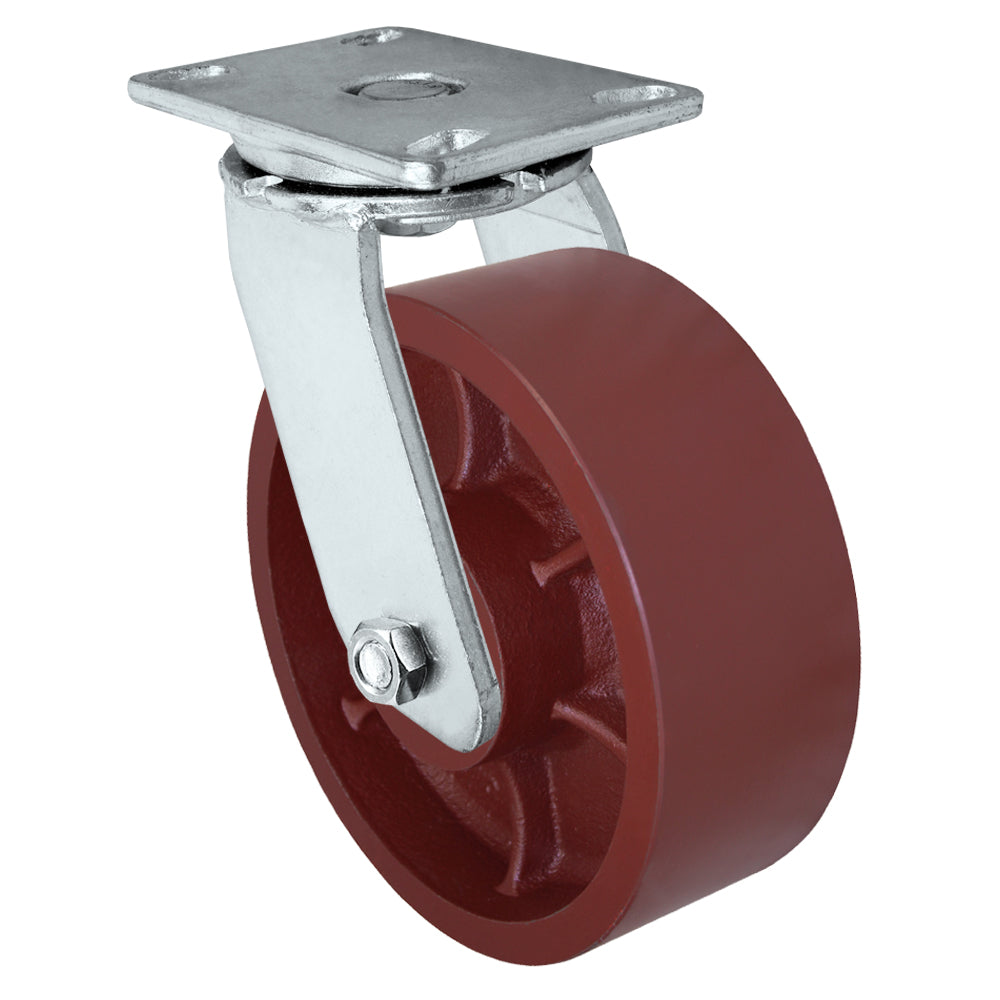

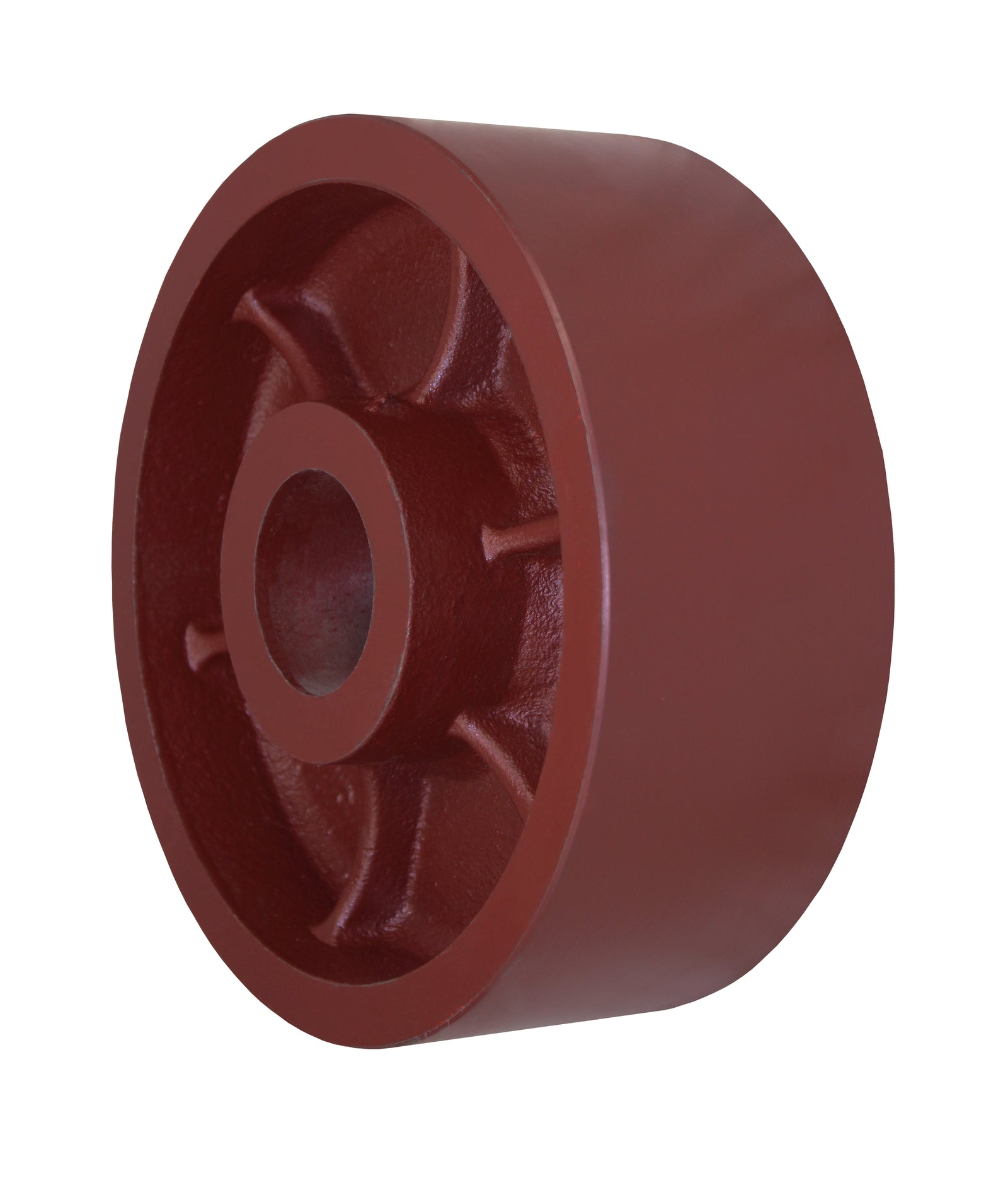

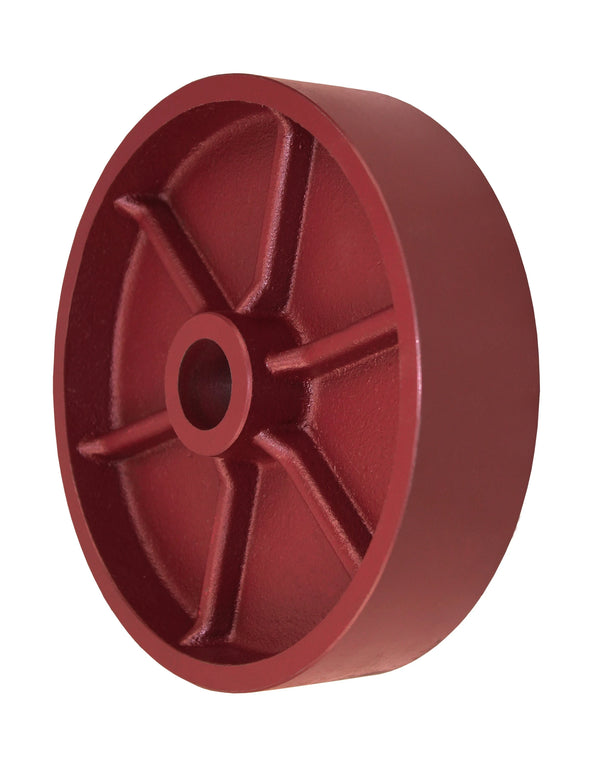

| Forged steel |
2,000–2,500 lb |
Foundry carts, rail, hot environments |

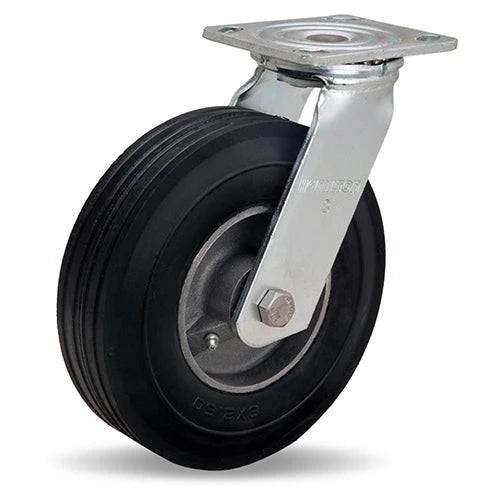

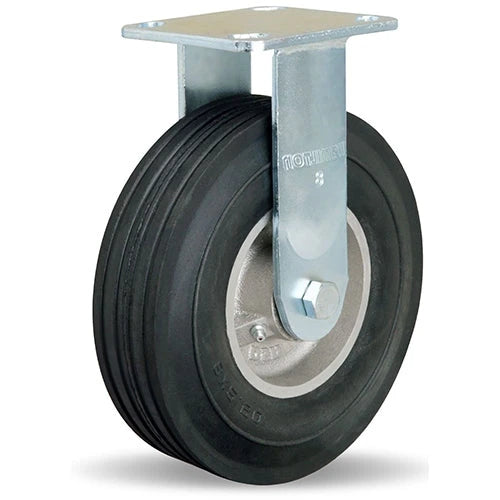

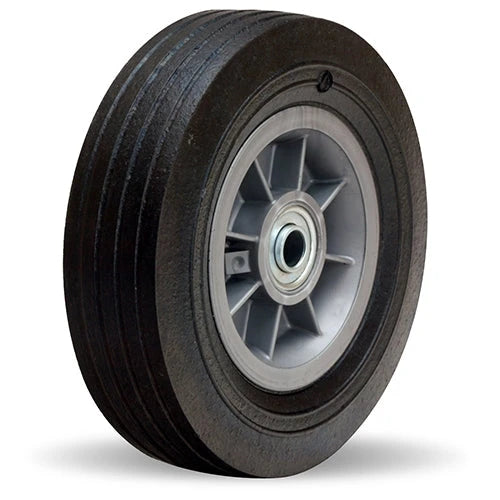

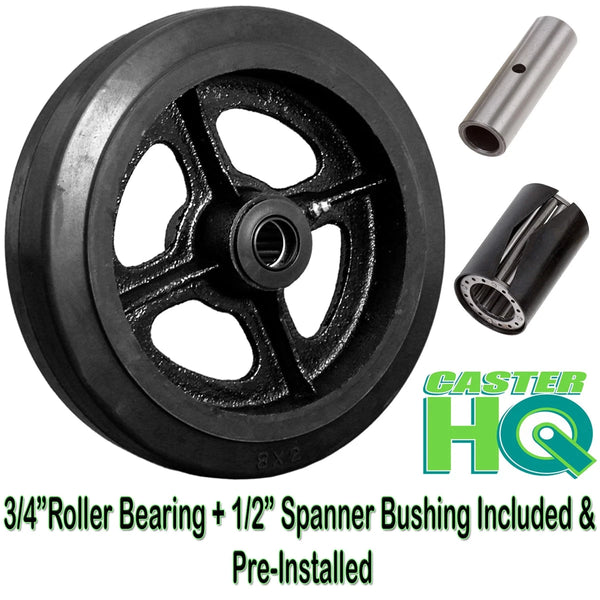

| Mold-on rubber / pneumatic |
600–1,200 lb |
Quiet routes, outdoor staging |
Why 8″ is the platform-truck default
An 8″ wheel is the smallest diameter that reliably rolls over standard warehouse floor seams, expansion joints, and threshold gaps without the wheel jamming at the edge. Go smaller and the cart lurches at every seam. Go bigger and the deck climbs — a 10″ or 12″ wheel adds 2–4″ of deck height, which matters for loading ergonomics. The 8″ x 2-1/2″ size is the equipment designer’s standing compromise: enough diameter to roll clean, enough tread to carry the load, low enough to keep the deck usable.
8 x 2-1/2 FAQs
Why is 8 x 2-1/2 so common on platform trucks?It’s the best balance of three things: rolls over floor seams cleanly, carries 1,000–2,000 lb, and keeps the deck low enough for comfortable loading. No other size hits all three as well.
Top plate size?Typically 4″ x 4-1/2″ or 4-1/2″ x 6-1/4″ for medium duty, scaling up for heavier builds. Confirm the bolt pattern before retrofitting.
Polyolefin core or cast iron core?Polyolefin core for loads under ~1,000 lb — economical and adequate. Cast iron core once you need 1,200 lb and up — the metal core is what carries the rating.
Can I use 8 x 2-1/2 for a towed cart?Yes — with kingpinless construction and roller bearings. Towing wears standard kingpin swivels quickly; the kingpinless build is the towed-cart spec.
Brake options?Total-lock (wheel + swivel) is the standard at this size for platform trucks that need to stay parked. Wheel-only brakes are available but less common.
Spec your 8 x 2-1/2 build
Send load per caster, floor type, and whether it’s hand-pushed or towed. We’ll match the right core and bearing.
