6-1/2″ x 7-1/2″ Plate Casters

This collection holds 6-1/2 in x 7-1/2 in Plate Casters with nylon and forged steel wheels, built for heavy equipment, dies, molds, and plant carts that move very heavy loads. Casters in this collection range from 2,500 to 10,000 lb per caster. Wheels in this category range from 6 up to 10 inches in diameter with 3 to 4 in tread widths. Nylon rolls easily, resists water and many chemicals, and is hard, so it is loud on rough floors. Forged steel wheels carry very heavy loads and handle impact, debris, and heat. They are loud and will mark finished floors. Match plate size, bolt pattern, and overall height before you order. Read the listing for the exact wheel size, overall height, and mount shown. Confirm the load rating printed on the title before you order. Measure the old wheel or caster before you buy. Nylon aisle: nylon casters. Wheel hub: replacement wheels.
Caster Finder Find your caster in 3 steps Mount, size, capacity, narrowed to your exact spec in this collection.

6-1/2″ x 7-1/2″ Plate Casters: buying guide

6-1/2 x 7-1/2 in plate casters in nylon, steel and phenolic, 6 to 10 in wheels, rated 2,500 to 10,000 lb per caster.

Diameter 6 to 10 inTread 3 and 4 inPlate 6-1/2 x 7-1/2 in2,500 to 10,000 lb per caster

6-1/2 x 7-1/2 in plate casters by tread

Tread Core Wheel sizes Rated per caster Listed temperature Where it fits
Nylon 6, 8 and 10 in 5,000 to 7,100 lb -30°F to 220°F low rolling effort on smooth floors, handles wet areas
Steel 6 and 10 in 10,000 lb Up to 800°F heavy loads and track
Phenolic 8 in 2,500 lb Up to 250°F hard and easy rolling on smooth, dry floors
Forged steel 10 in 5,000 lb Up to 800°F very high loads and impact

Ratings are for single casters of 6-1/2 x 7-1/2 in plate casters, from product fields [S1].

Wheel sizes

Wheel Treads Rated

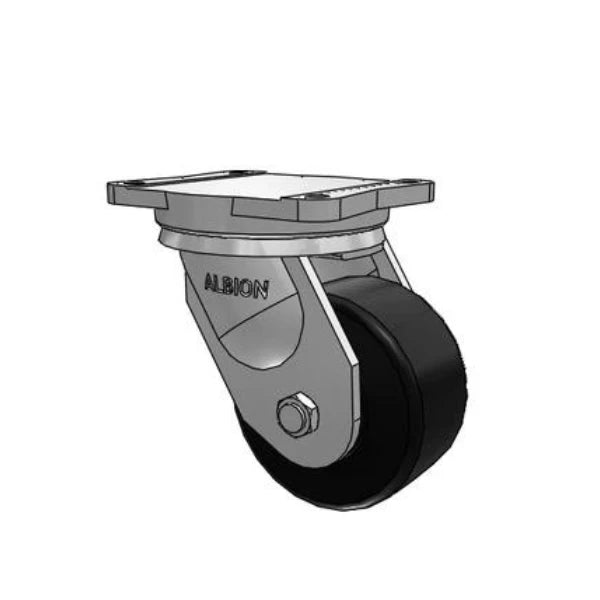

6 x 3 in nylon and steel 5,000 to 10,000 lb

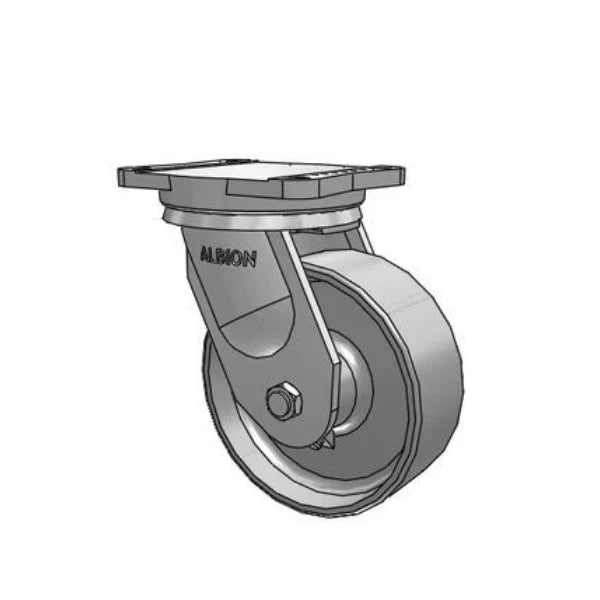

8 x 3 in phenolic and nylon 2,500 to 5,000 lb
10 x 3 in nylon 5,000 to 7,100 lb

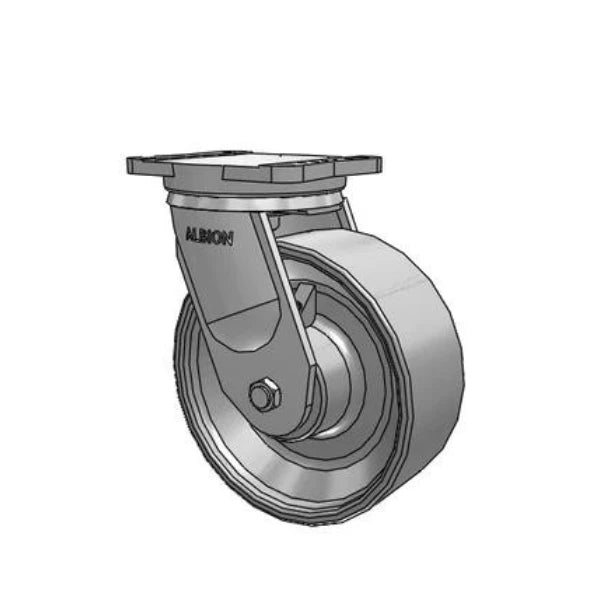

10 x 4 in steel and forged steel 5,000 to 10,000 lb

Choosing 6-1/2 x 7-1/2 in plate casters

  1. Load: plan on three casters carrying a four-caster cart [S2]; at 7,100 lb each, a common rating here, that is about 21,300 lb, and the 10,000 lb top rating covers about 30,000 lb.
  2. Mount: most 6-1/2 x 7-1/2 in plate casters use a 6-1/2 x 7-1/2 in top plate; measure bolt hole centers on the old plate and compare.
  3. Floor: on 6-1/2 x 7-1/2 in plate casters, nylon, steel, phenolic and forged steel suit smooth concrete and heavy loads, but are loud and hard on tile and wood.
  4. Rig: swivel 6-1/2 x 7-1/2 in plate casters are listed.
  5. Heat: among 6-1/2 x 7-1/2 in plate casters, the highest listed range is up to 800°F on steel; check the temperature field on each listing before oven or hot-room use.

6-1/2 x 7-1/2 in plate casters questions

How much weight can 6-1/2 x 7-1/2 in plate casters carry?

Single 6-1/2 x 7-1/2 in plate casters are rated 2,500 to 10,000 lb; most fall between 5,000 and 7,100 lb.

What top plate do 6-1/2 x 7-1/2 in plate casters use?

Most 6-1/2 x 7-1/2 in plate casters use 6-1/2 x 7-1/2 in.

What wheel material is most common on 6-1/2 x 7-1/2 in plate casters?

Nylon leads on 6-1/2 x 7-1/2 in plate casters, rated 5,000 to 7,100 lb per caster. Among 6-1/2 x 7-1/2 in plate casters, steel is next at 10,000 lb.

Sources

  • [S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
  • [S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
