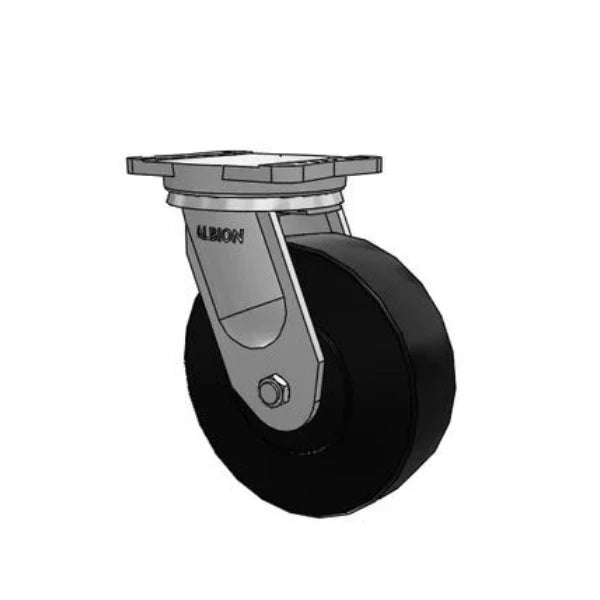

Discover the exceptional performance of the 10" x 3" Industrial Line Super Duty BBL Trionix Nylon Caster. Designed for superior load-bearing capacity and long-lasting use, this caster features a robust nylon wheel that excels in high-demand industrial settings. The 7.5" x 6.5" plate ensures a secure and stable attachment, enhancing its reliability for heavy-duty applications. The BBL Trionix design provides enhanced resistance to impacts and abrasions, making this caster ideal for use in factories, warehouses, and other challenging environments. Enhance your equipment's mobility and performance with this high-strength caster, engineered to tackle the toughest tasks with ease.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.
The Albion Casters 10" x 3" Super Duty Nylon Caster is engineered for demanding industrial environments, combining robust design with superior functionality. This caster is part of the Industrial Line BBL Trionix series, known for its high-performance capabilities and durability in heavy-duty applications. Whether used in factories, warehouses, or other rigorous settings, this caster delivers outstanding load-bearing capacity and reliable mobility.
The Albion Casters 10" x 3" Super Duty Nylon Caster is designed to withstand the toughest conditions while ensuring smooth operation. Its advanced Trionix Nylon wheel material and precision engineering provide exceptional performance in demanding environments. This caster is an excellent choice for industrial applications where durability, load capacity, and reliability are paramount. Enjoy the peace of mind that comes with a 1-year warranty and compliance with industry standards.
This Albion 94NX10528SBBL 10" x 3" Nylon Caster – 7.5" x 6.5" Plate is rated to 5000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 3" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.

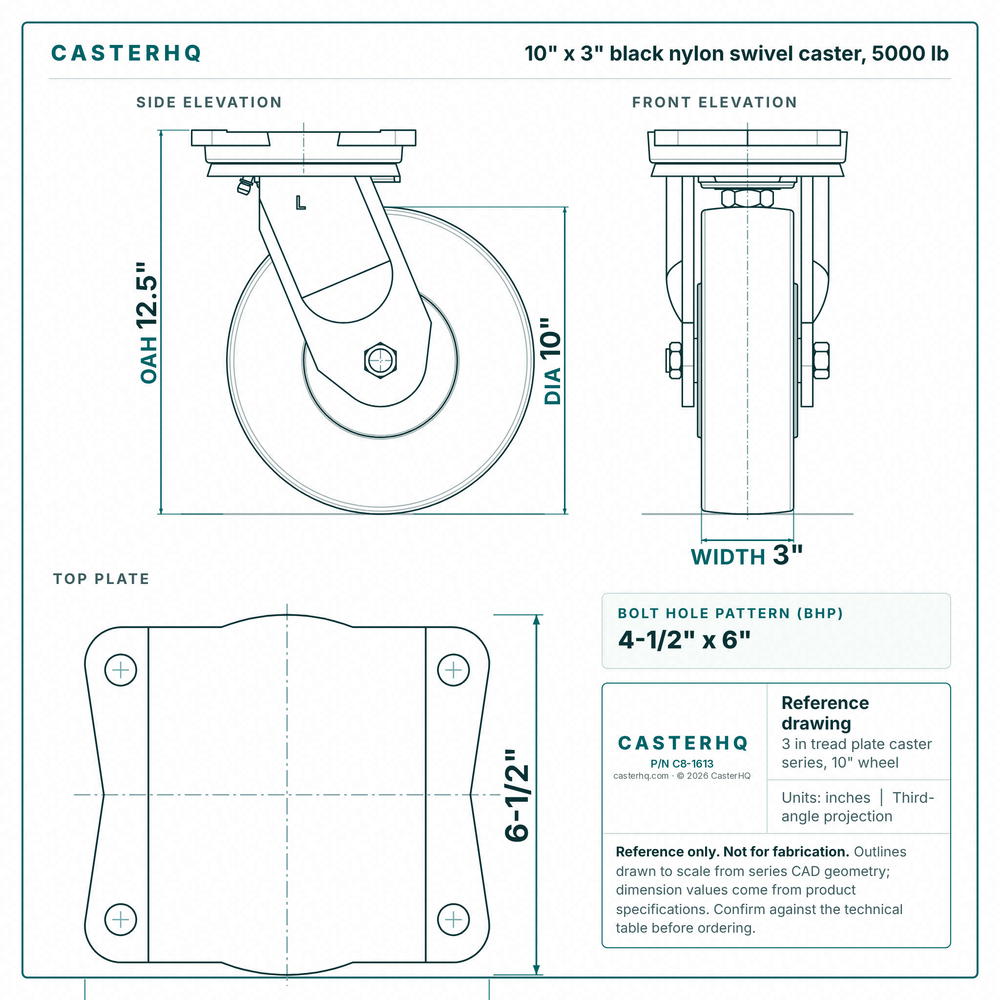

This caster uses a top-plate mount with a 6-1/2" x 7-1/2" plate and a 4-1/2" x 6" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 12.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,309.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 12.5" |
| Plate Size | 6-1/2" x 7-1/2" |
| Bolt Hole Pattern | 4-1/2" x 6" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 5000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Nylon |
| Frame Material | Zinc Plated Steel |
