Why the 5″ x 1-1/4″ size shows up on so many OEM carts
The 5″ wheel diameter is the threshold where casters start to handle floor seams and expansion joints without snagging — below 5″ you need to slow down or risk catching the wheel; at 5″+ you roll over typical industrial floor transitions at normal cart speed. The narrower 1-1/4″ tread keeps the rolling resistance lower than a 2″ tread on smooth concrete and tile (the contact patch is smaller, so less rubber-on-floor friction). For OEM cart manufacturers building products that will see daily use on commercial-grade floors, 5″ x 1-1/4″ balances cost, capacity, and rolling efficiency better than any other size in the medium-duty class.
B&P Manufacturing is the dominant OEM at this size. Their oak furniture dollies, platform trucks, and hand trucks ship with 5″ x 1-1/4″ polyurethane casters as the standard spec, and the replacement wheels for those products land in this collection. Other OEMs using 5″ x 1-1/4″: light AGV bases for assembly lines, hospitality service carts, food-service prep stations, light shop trucks, retail back-of-house transport.
Tread material at 5″ x 1-1/4″

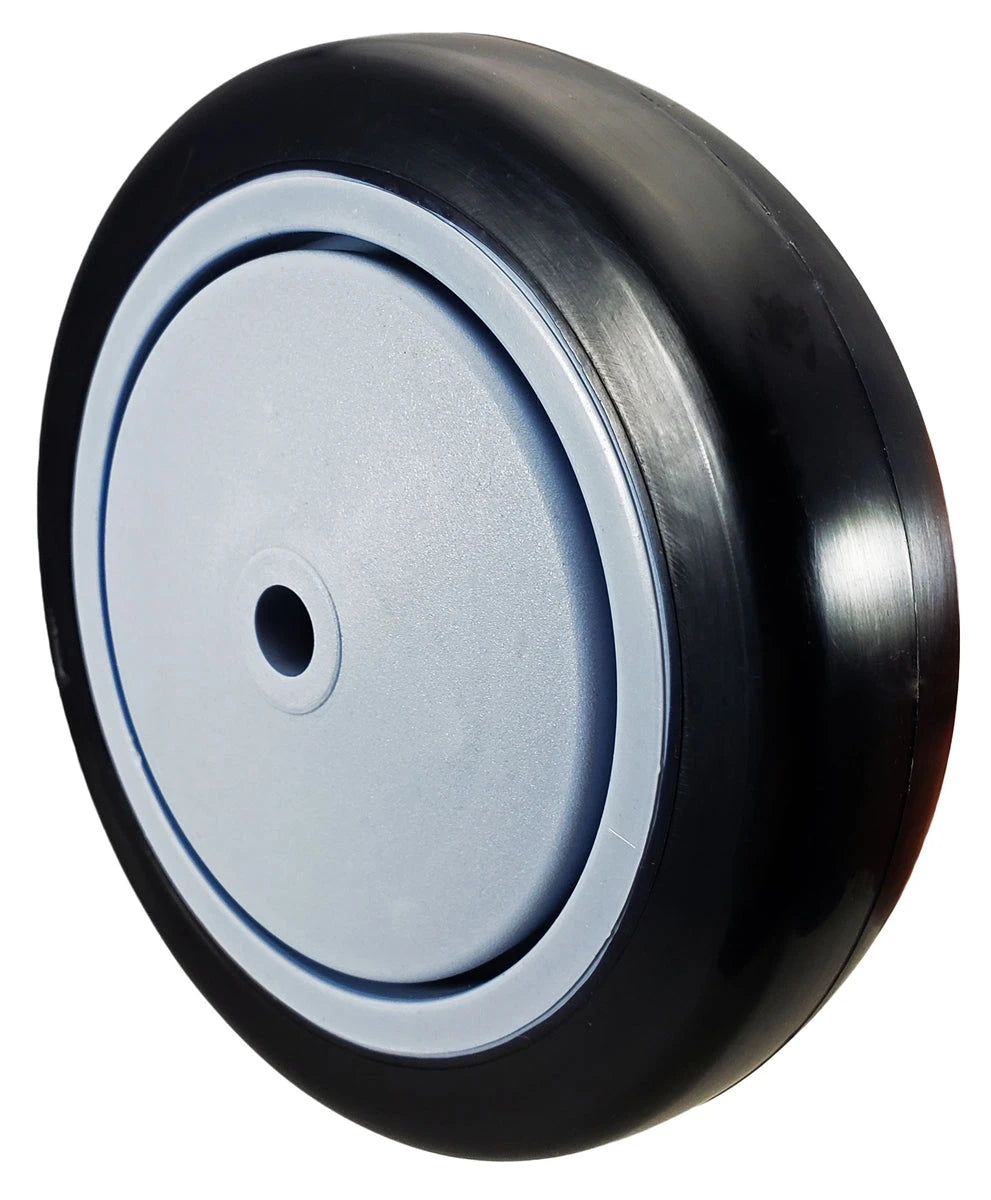

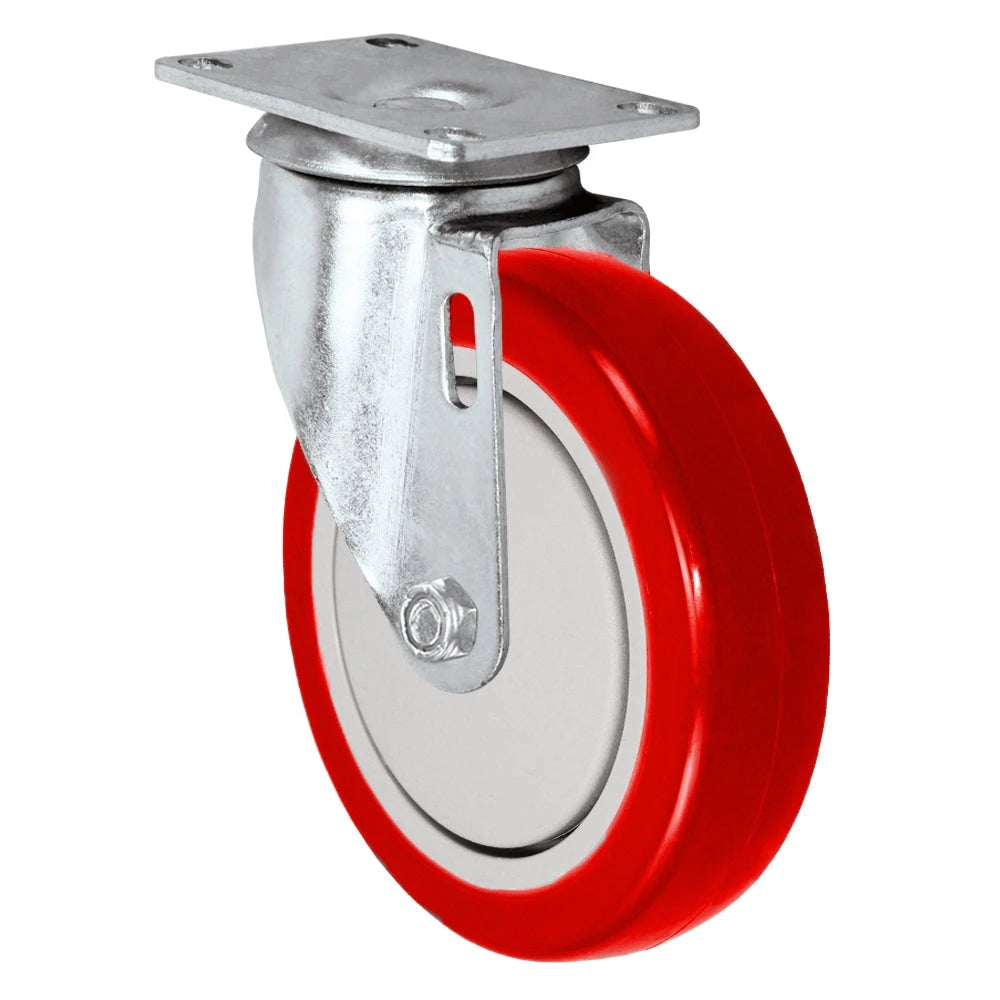

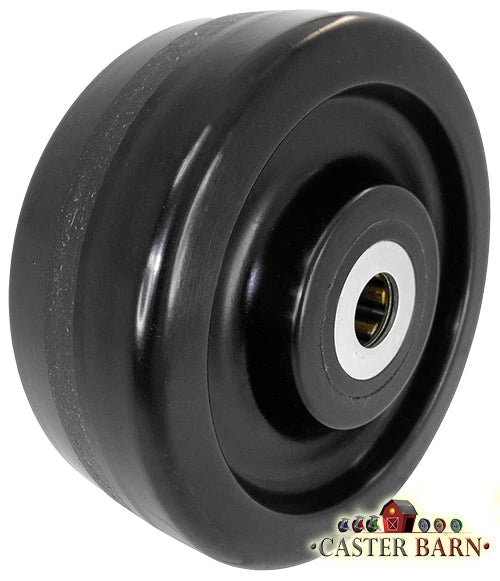

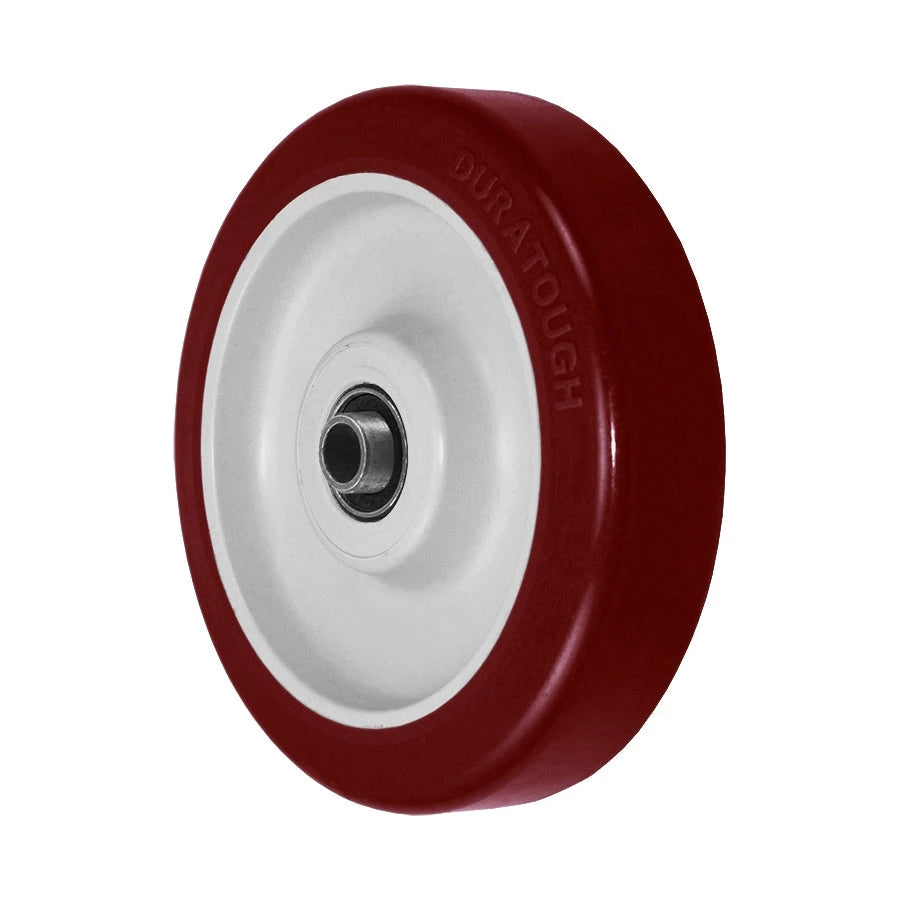

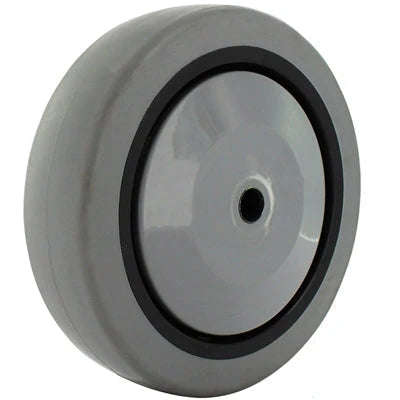

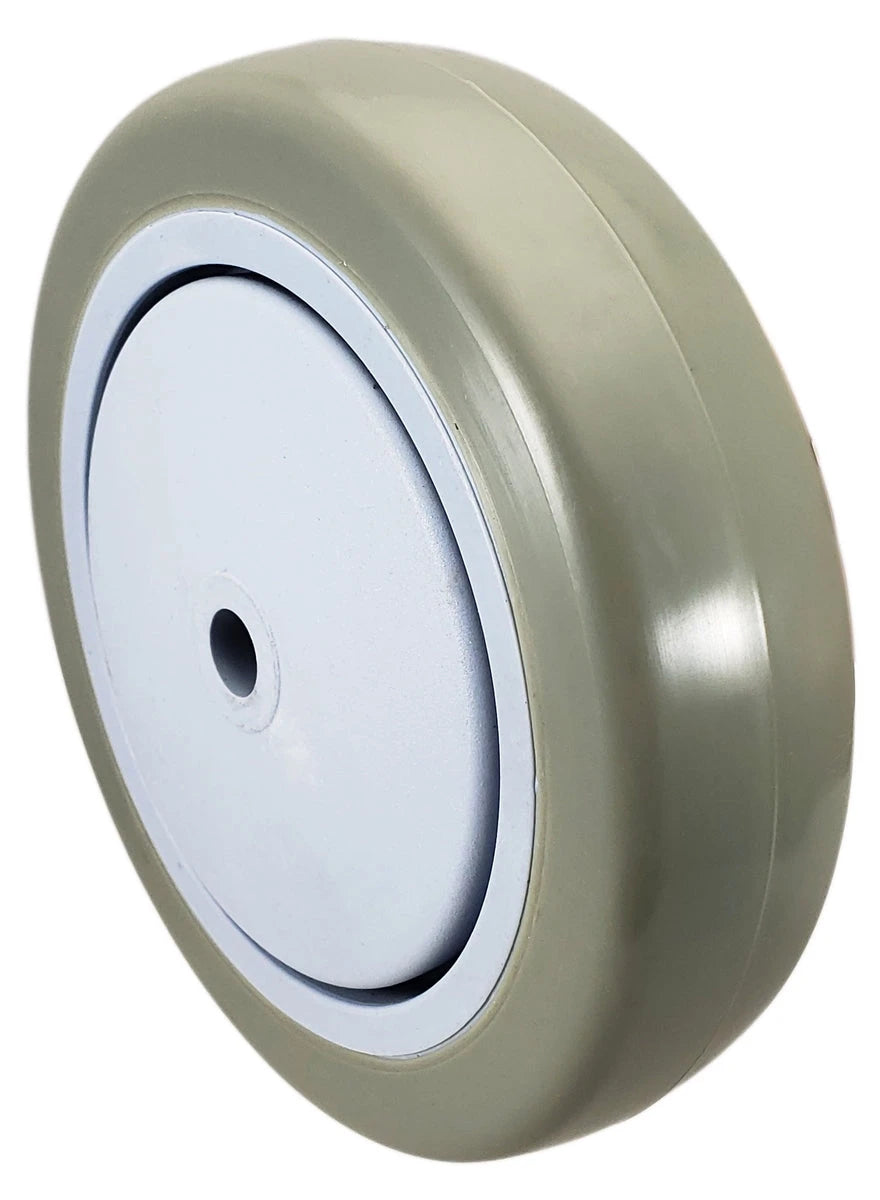

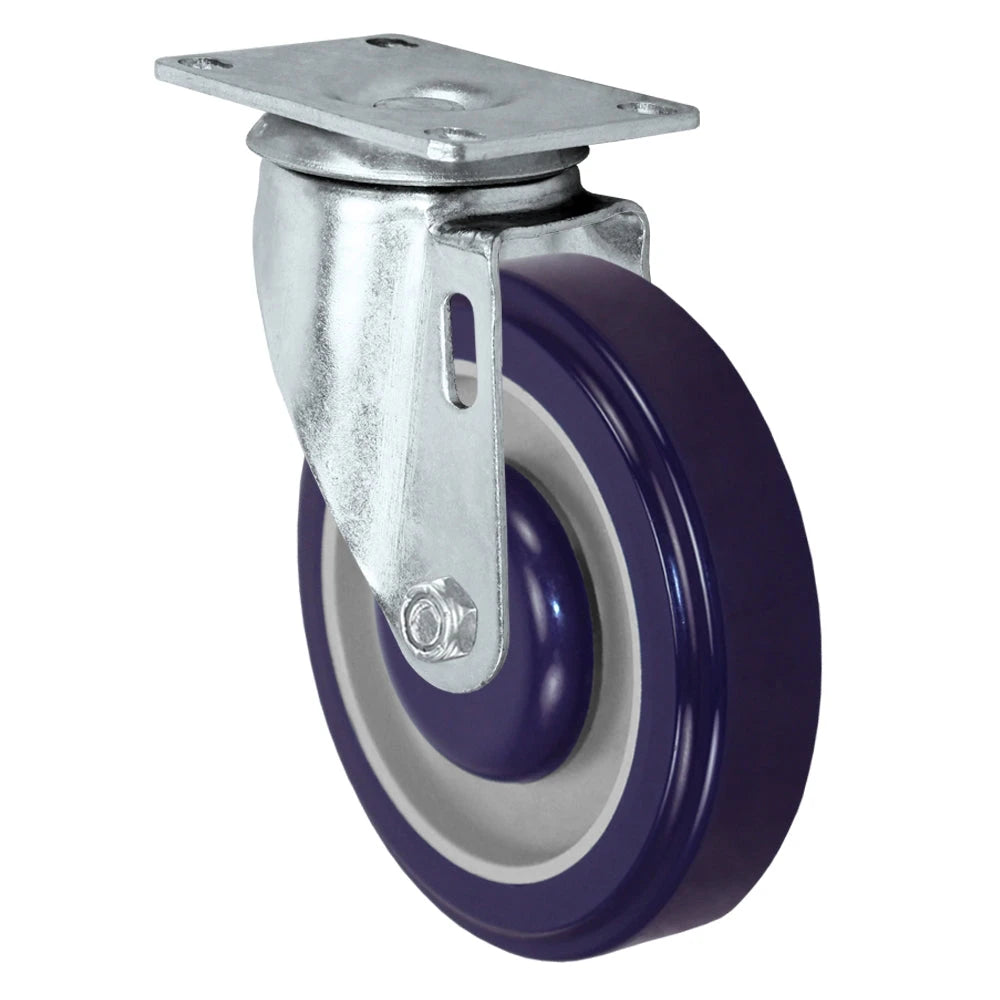

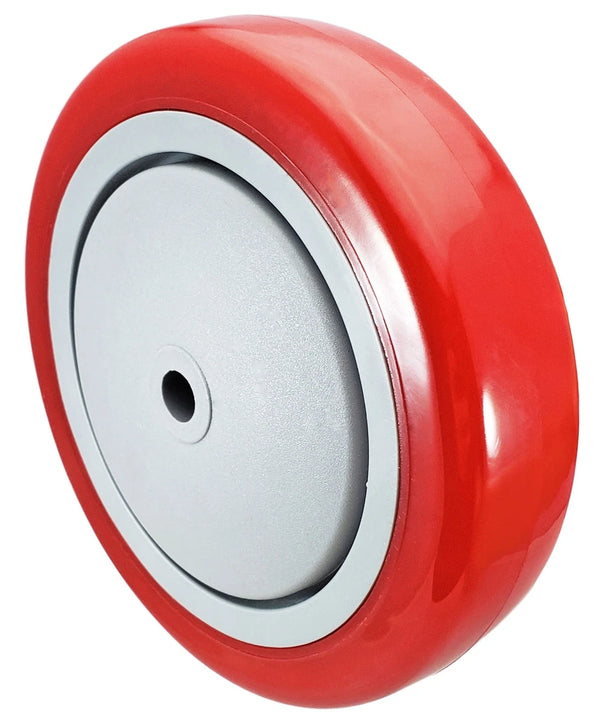

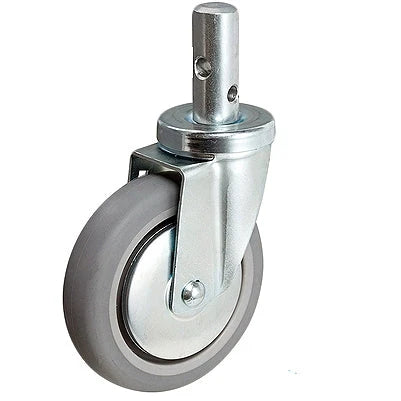

The dominant choice is polyurethane on polyolefin — it gives the best balance of capacity (300-350 lb), floor protection (non-marking on commercial flooring), and service life (8-12 years on smooth concrete). TPR (thermoplastic rubber) is the secondary spec when noise control matters — food service, healthcare, library applications. Phenolic at this size is rare but available for paint booth and oven-adjacent rolling carts at 400 lb. Polyurethane on aluminum is the washdown spec for food and pharma where the polyolefin hub of standard poly-on-polyolefin can’t handle the chemical exposure.
The keyed-bore polyurethane variant is the AGV / tow-line drive wheel — the keyway transfers torque from the drive motor through the axle to the wheel. Specified on motorized cart applications where the wheel spins under power. About 15-20% of the 5″ x 1-1/4″ inventory is wheel-only keyed variants for AGV replacement.
How do I know if my equipment uses 5″ x 1-1/4″ vs 5″ x 1-1/2″?
Measure tread width with a caliper. 1.25″ = 1-1/4″. 1.50″ = 1-1/2″. The two are easy to confuse by eye but won’t fit each other’s yokes — mixing them causes premature bearing wear from lateral slop. Always confirm tread width before ordering.
What plate dimensions for 5″ x 1-1/4″ casters?

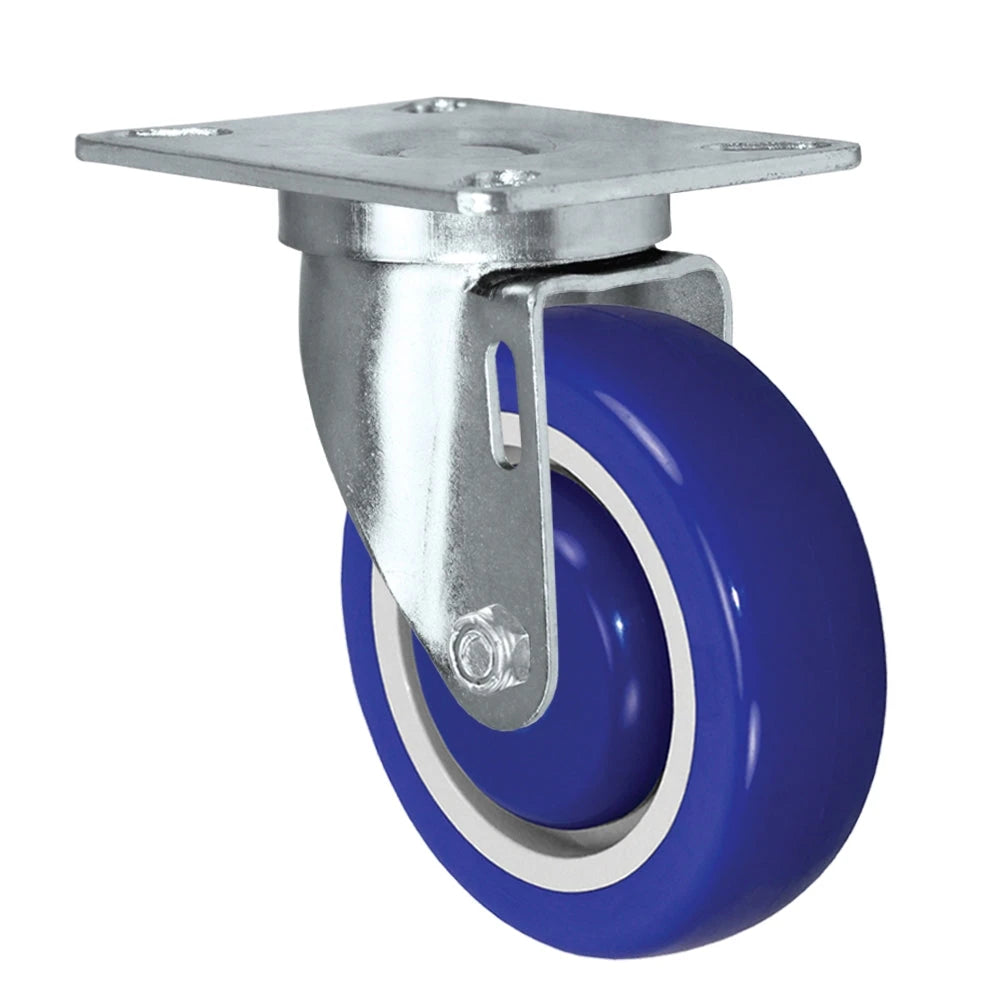

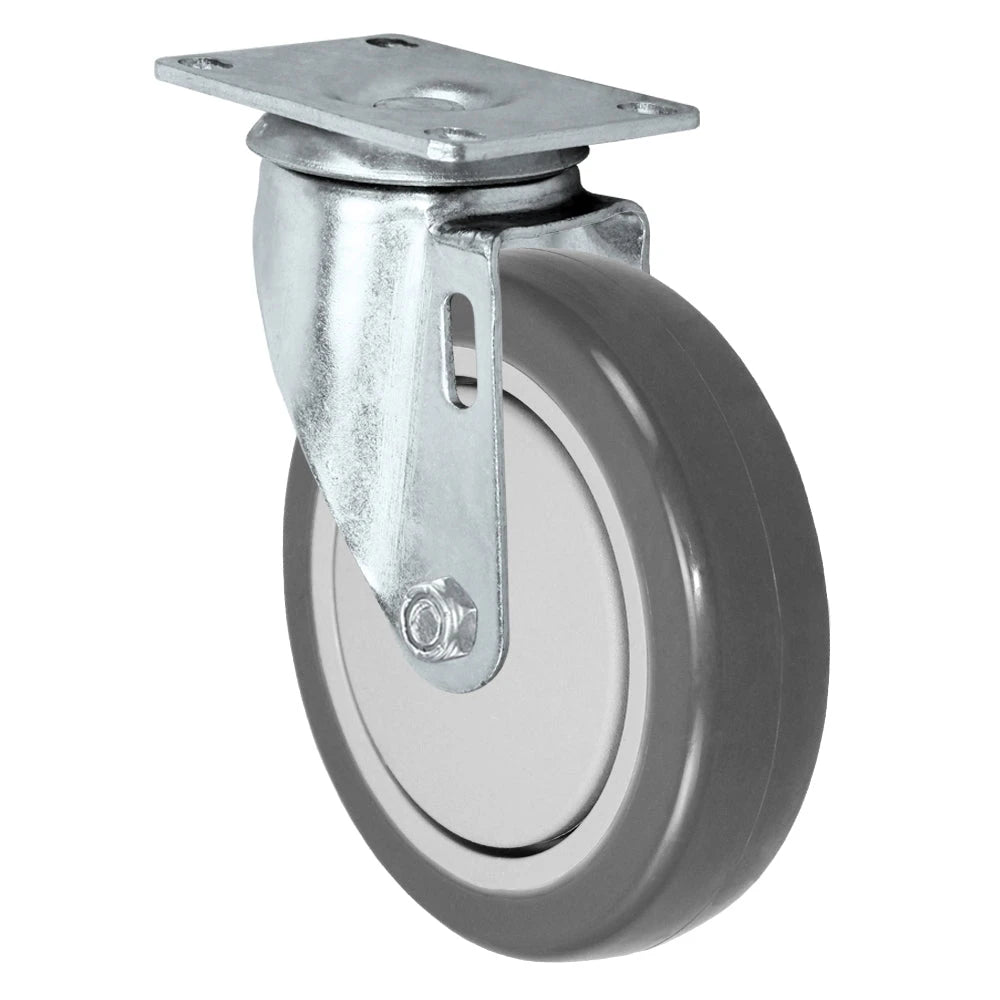

Two standards: 2-3/8″ x 3-5/8″ light-institutional plate (most common, used on B&P dollies, light shop carts) and 3-1/8″ x 4-1/8″ medium-duty plate (used on heavier B&P platform trucks and some AGV bases). Verify your existing equipment plate dimensions before ordering.
Why is the capacity capped at 450 lb when the same wheel material at 5″ x 2″ reaches 1,000+ lb?
Tread width is the capacity bottleneck. A 1-1/4″ tread distributes load across a narrower contact patch than a 2″ tread — meaning higher peak stress on the wheel and faster wear under heavy loads. To get more capacity at 5″ diameter you need to step up to the wider 5″ x 2″ tread.
What does “keyed” mean and when do I need it?
Keyed means the wheel bore has a longitudinal slot that mates with a key on the axle — transferring rotational torque from a drive motor through the axle to the wheel. Required for AGV drive wheels, tow-line drive wheels, and any motorized cart application. Standard non-keyed wheels are press-fit and rotate freely on the axle — fine for manual carts but NOT for motorized use.
Are these casters B&P MFG OEM replacements?
Yes — the 5″ x 1-1/4″ polyurethane casters in this collection match B&P Manufacturing’s OEM spec for oak furniture dollies, Chicago-style platform trucks, and B&P hand trucks. Direct replacement with no equipment modification. Cross-reference is supported by part number at info@casterhq.com.
