Commercial bakery and oven rack casters fail two ways: bearing grease cooks off, or the wheel material softens and deforms under load. The 14 products here use one of three material classes engineered for sustained dry or wet heat. Green epoxy resin handles the heaviest load (500 lb per caster) at 475°F continuous and 550°F intermittent — the spec on most commercial bread and bun rack ovens. Glass-filled nylon goes wet (475°F continuous, 530°F intermittent, autoclave and steam-cleaning compatible) at 300-350 lb each. Phenolic and high-temp poly fill in the lower-temp range for proofers and warming cabinets where 250-300°F continuous is enough.
Each material class has a temperature ceiling and a load ceiling that don’t move — exceeding either is what causes bakery rack caster failure on the shop floor. The series breakdown below maps the products in this collection to the operating envelope their material can actually handle:
| Series | Wheel Material | Continuous | Intermittent | Capacity | Wet OK? |
|---|---|---|---|---|---|
| Z20P / Green Epoxy | Glass-reinforced epoxy resin | 475°F | 550°F | 500 lb | Yes (dry & wet) |
| Colson Heatwave (HS40P, SSHS40P) | Heat-stabilized polymer | 475°F | 550°F | 300 lb | Steel + SS variants |
| Glass-Filled Nylon | 30% glass-filled nylon | 475°F | 530°F | 300-350 lb | Yes (steam-cleaning, autoclave) |
| High-Temp Phenolic | Cotton-reinforced phenolic | 475°F | 550°F | 300-400 lb | Yes (dry & humid) |
| Oven Rack Yoke (replacement) | Steel yoke only, no wheel | — | — | Matches yoke spec | Yes |
Walk into any commercial bakery with rotating rack ovens, double-rack convection ovens, or rack proofers and you’ll see the same caster failure pattern: the bearing grease has flowed out, the wheel has “flat-spotted” from sitting parked under load while hot, and the swivel raceway has stiffened from baked-on flour and grease. A standard industrial caster — rubber, polyurethane, even phenolic — will deform within weeks at the temperatures a rotating rack oven runs. Specifically: standard polyurethane softens past 150°F and permanently deforms past 200°F. Glass-filled nylon, green epoxy resin, and high-temp phenolic are the three material classes that handle 475°F continuous without flat-spotting, soft creep, or grease loss. All three are stocked here.
The wet-or-dry distinction also matters. Bread and bun rack ovens run dry-heat cycles; proofer carts cycle through steam (high humidity) and dry heat repeatedly. Glass-filled nylon and epoxy resin both handle wet cycles. Phenolic is fine in dry heat but absorbs moisture in proofer applications and can swell, throwing wheel-to-floor clearance off. If your equipment runs through both wet and dry cycles, spec glass-filled nylon (the Z20P epoxy is also acceptable but typically reserved for the heaviest dry-heat applications). For dry-only ovens, phenolic is the cost-effective spec.
The 3-1/8″ x 4-1/8″ plate is the dominant mount in this collection because that’s the standard mounting pattern on Baxter, Hobart, Vulcan, BKI, and other major bakery rack oven OEMs. Cross-references to brand part numbers are supported — email info@casterhq.com with the equipment model number for fitment verification.
475°F continuous duty, 550°F brief intermittent peaks (during a cleaning cycle, for example). Below 475°F the wheel runs its full 500 lb rated capacity; in the 475-550°F intermittent range, derate capacity by 25-30%. Above 550°F the resin softens and permanent deformation begins.
Glass-filled nylon is the better steam-cycle choice. The 30% glass reinforcement gives the polymer dimensional stability through wet-dry cycles, and the material doesn’t absorb moisture the way phenolic does. Capacity tops out at 300-350 lb per caster (vs. 500 lb for epoxy) but for proofer carts that’s usually enough.
Most use the standard 3-1/8″ x 4-1/8″ top plate that the products on this page mount with. For OEM-specific cross-reference (Baxter OV-200, Hobart HB6, BKI VGG series and similar), email info@casterhq.com with the equipment model number — we’ll match to the right wheel material and capacity for your duty cycle.

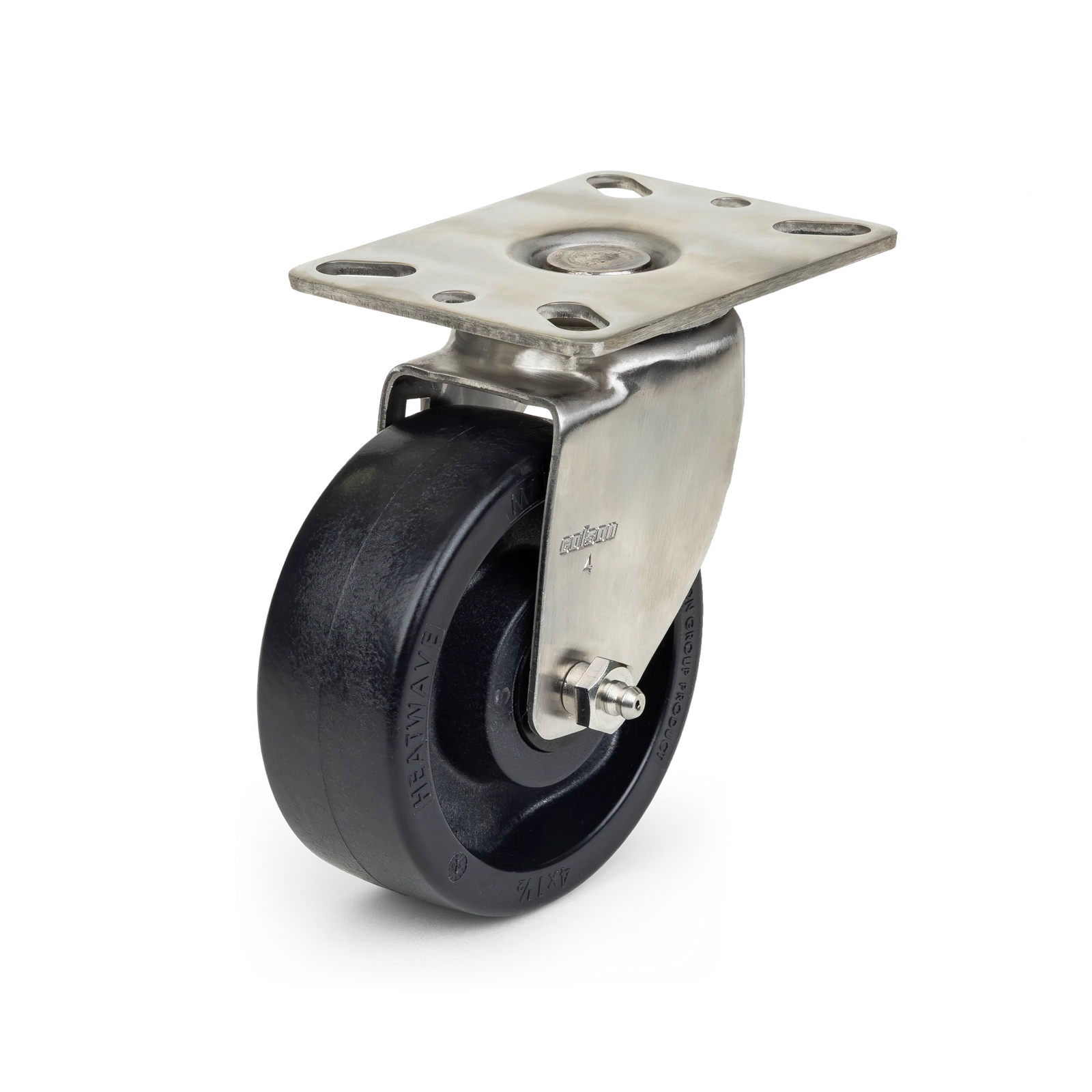

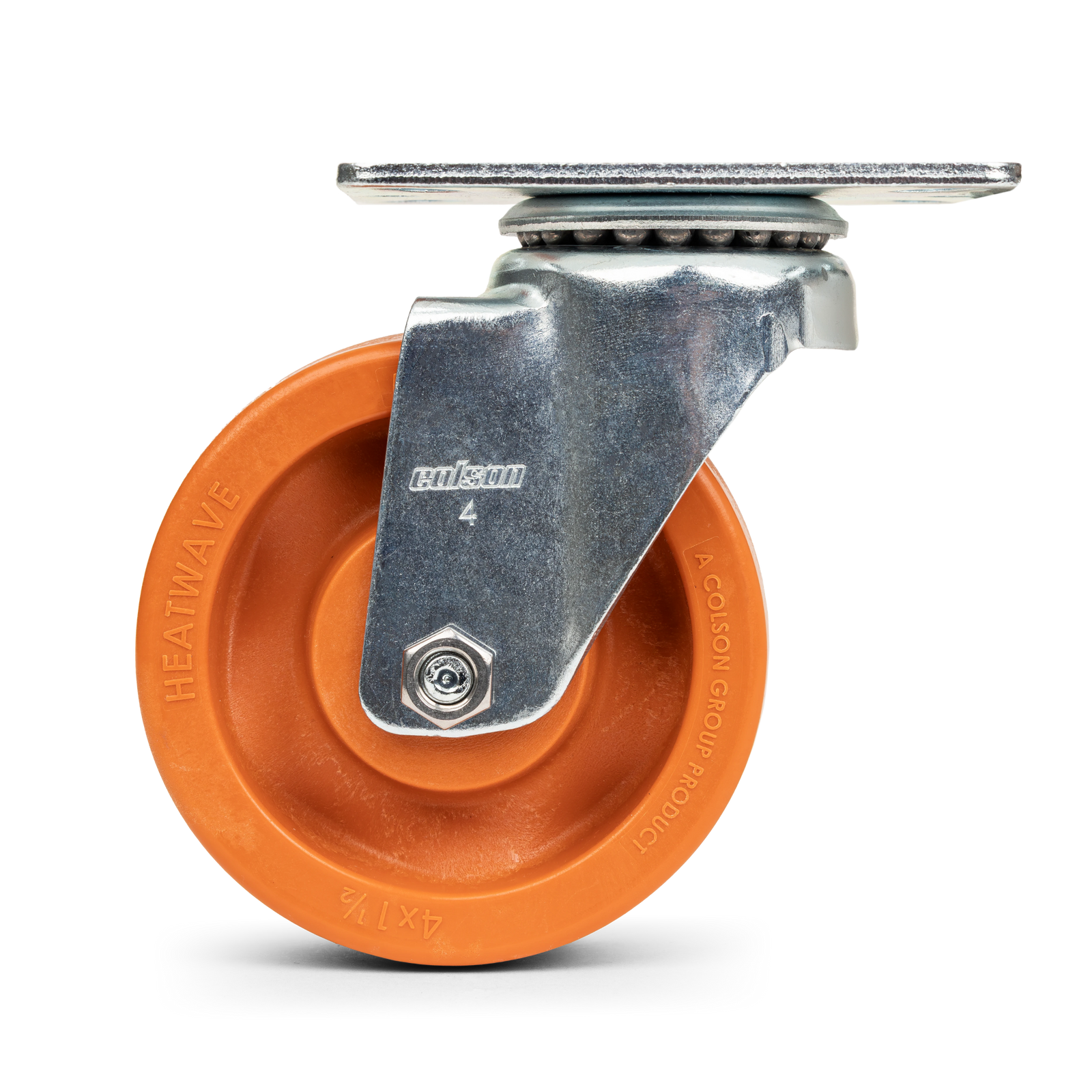

Colson Heatwave (HS40P, SSHS40P) is a heat-stabilized polymer wheel on a steel or stainless-steel yoke — 300 lb capacity, 475°F continuous. The Z20P epoxy series uses a glass-reinforced epoxy resin wheel with similar yoke material — 500 lb capacity, same temperature range. Choose Heatwave for medium-duty rack ovens; Z20P for the heaviest commercial bakery applications.
Yes. The 4″ x 1-1/2″ epoxy resin replacement wheel (5/16″ bore) and 4″ x 1-1/2″ green epoxy replacement wheel are both stocked. The oven rack caster yoke (3-1/8″ x 4-1/8″ plate, 5/16″ bore) is also available separately. Common for OEM repair where the yoke is fine but the wheel material has cooked off.
The glass-filled nylon and high-temp phenolic options carry NSF food-grade certifications for the wheel material. Stainless steel yokes (Colson SSHS40P) add corrosion resistance for daily washdown environments. For full NSF documentation on a specific product, email info@casterhq.com and we’ll send the manufacturer cert.
