Heavy Duty Pan Dolly Caster - 500 LBS CAP - 3" x 1-3/4" CasterHQ

3" x 1-3/4" Pan Dolly Caster – 500 lb | 3-1/8" x 4-1/8" Top Plate | CasterHQ

Wheel

3" x 1-3/4"

Capacity

500 lbs

Mount

Plate

Full specs Spec sheet (PDF)

$20.00 USD

Save 30%+ vs big-box distributors

In Stock · Ships 1-2 Business Days

✉️ Email a Caster Solutions Expert (Mon–Fri 8–5 CST)

PO Net 30 ACH Tax-Exempt

Business Purchasing

Purchase orders accepted for approved accounts
Net 30 terms for qualified businesses
ACH, credit card, and tax-exempt ordering
Bulk and contract pricing on fleet quantities

Upload a PO / Quote·Request bulk pricing·844-439-4335

Not sure this is the right spec? Jordan (Founder) and Bob (45+ years in casters) review applications before you order.

Call now

Product Overview

At a glance

Load capacity500 lbs

Wheel3" × 1-3/4"

MountPlate

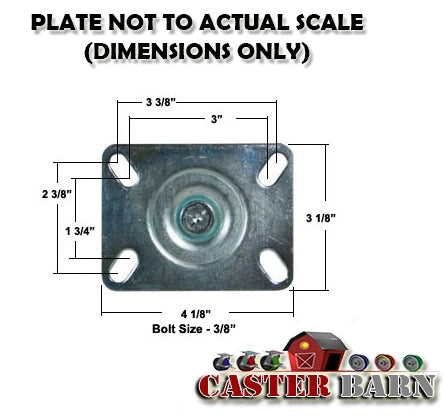

3-1/8" X 4-1/8" Mounting Plate

Key Features

Capacity up to 500 lbs. per caster
3" x 1-3/4" Black Polyolefin ( Industrial Plastic ) wheel with Roller Bearing for easy rolling and higher capacity.
Zerk fitting in Axle
Overall Mounted Height - 3-7/8""
Plate size - 3-1/8" x 4-1/8"
Hole Spacing - 2-3/8" x 3-3/8"

Ordering & Shipping Information

Order processing

In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.

Shipping method

Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.

Payment & procurement terms

Purchase orders — accepted from approved accounts

Net 30 terms — available on approved credit

ACH & all major cards — Visa, MC, Amex, Discover

Tax-exempt — submit your resale/exemption certificate

New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.

Volume pricing & quotes

Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.

Returns & warranty

Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.

Need an exact freight quote or blanket PO?

For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

Frequently Asked Questions

What is the load capacity of this caster?+

This 3" x 1-3/4" Pan Dolly Caster – 500 lb is rated to 500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

What plate size and bolt pattern does it use?+

This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.

How do I order, and what are the terms?+

We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).

3" x 1-3/4" Pan Dolly Caster – 500 lb | 3-1/8" x 4-1/8" Top Plate | CasterHQ

$20.00

Technical Specifications

Dimensions & Mounting
Wheel Diameter	3"
Wheel Tread Width	1-3/4"
Mount Style	Plate
Load & Performance
Wheel Capacity	500 lbs
Materials & Finish
Frame Material	Zinc Plated Steel

Reference Dimensions

Wheel3" x 1-3/4"

Illustrative wheel profile drawn to this item's proportions — dimensions are manufacturer specification values. Confirm against the technical table before ordering.

Compare Similar

3" x 1-1/4" Polyolefin Pan Dolly Caster – 300 lb | CasterHQ 3" x 1-1/4" · 300 lbs $16

3" x 1-1/4" Solid Polyurethane Swivel Caster Set – 1,200 lb | CasterHQ 3" x 1-1/4" · 1200 lbs $87 View all food service casters →

Will This Caster Handle Your Load?

Enter your loaded weight — we derate to 3 effective casters on a 4-caster rig, per industry practice for uneven floors.

Rated capacity: 500 lbs per caster. For dynamic loads, towing, or debris-strewn floors, apply additional safety factor · full engineering tools →

Documentation

Spec sheet (PDF) 30-day pricing honored Request STEP / CAD fileour engineers email it same day Caster selection guide Caster University Fleet & contract pricing Net 30 available

30-day returns · manufacturer warranty · spec support: 844-439-4335 (Mon–Fri 8–5 CST)

Compare Similar Casters

View all food service casters →

Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.

Casters (in stock)	Load capacity	Wheel	Type	Overall height	Price
3" x 1-1/4" Polyolefin Pan Dolly Caster – 300 lb	300 lbsLighter duty	3" × 1-1/4"Polyolefin	—	—	$16.00	View →
This item3" x 1-3/4" Pan Dolly Caster – 500 lb	500 lbs	3" × 1-3/4"	—	—	$20.00	Viewing
3" x 1-1/4" Solid Polyurethane Swivel Caster Set – 1,200 lb	1200 lbsHeavier duty	3" × 1-1/4"Blue Solid Polyurethane	Rigid with Brake + brake	4-3/16"	$87.00	View →
