Silent caster wheels — kingpinless stainless steel casters with non-marking thermo rubber treads engineered for medical facilities, libraries, lab equipment, and office furniture where noise matters. 6″ and 8″ wheel sizes, swivel and rigid configurations, optional foot brake. 600–675 lb single-caster capacity. Stocked at our Mansfield, TX facility.
6" and 8" stainless kingpinless casters with thermo rubber treads — the quietest production industrial caster series.
| Diameter | Config | Yoke | Tread | Capacity |
|---|---|---|---|---|

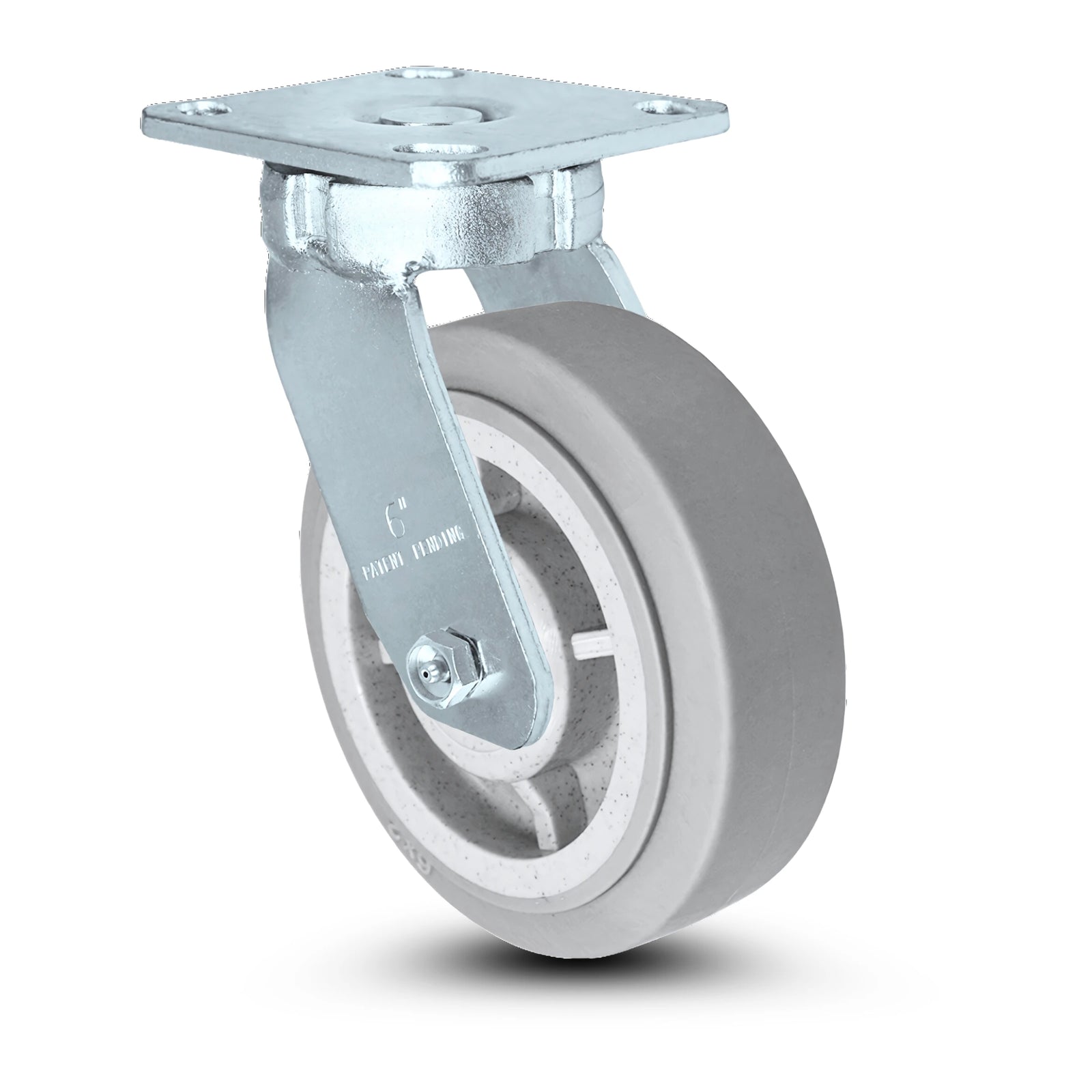

| 6" x 2" | Swivel | S304 Stainless | Thermo Rubber (non-marking) | 600 lb |

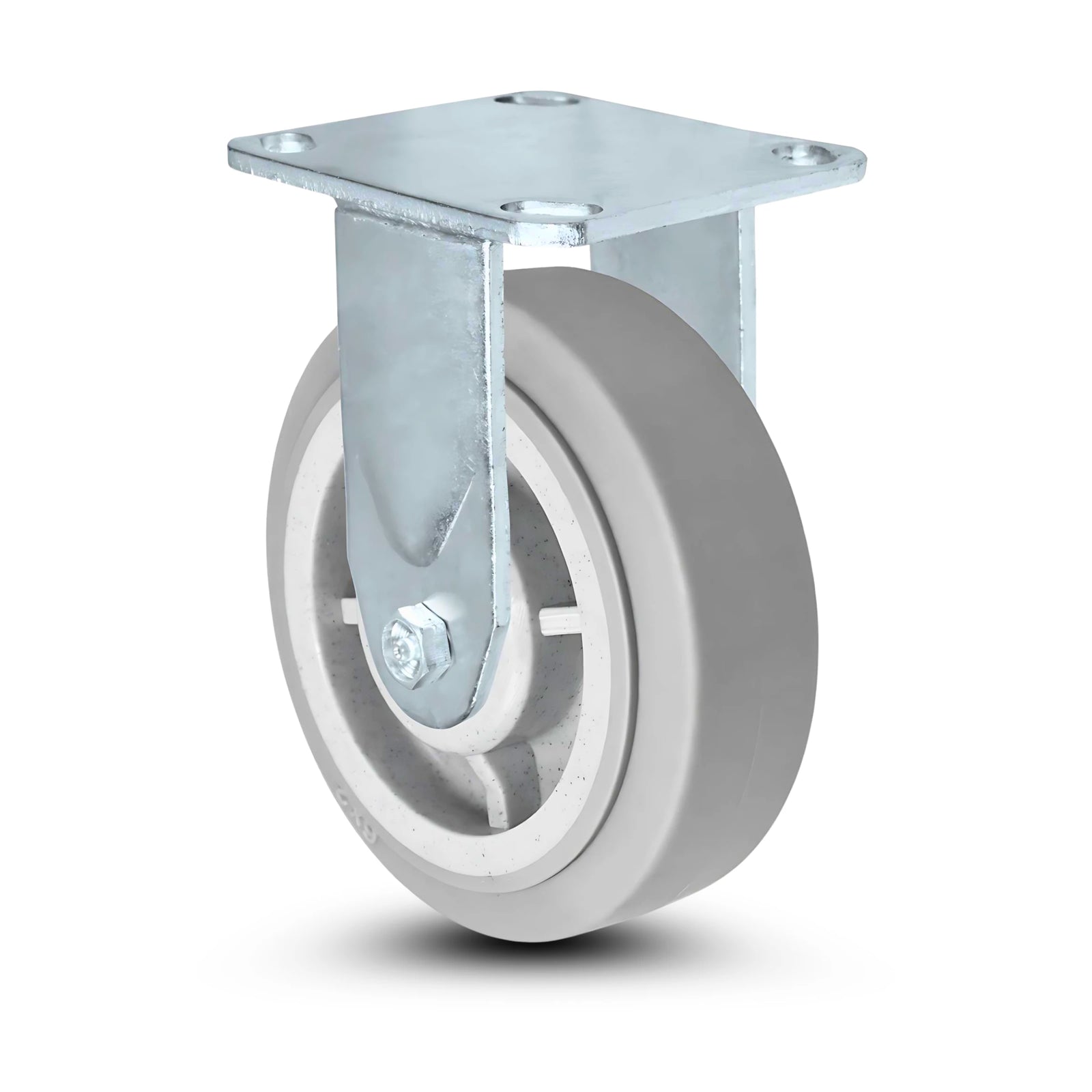

| 6" x 2" | Rigid | S304 Stainless | Thermo Rubber | 600 lb |

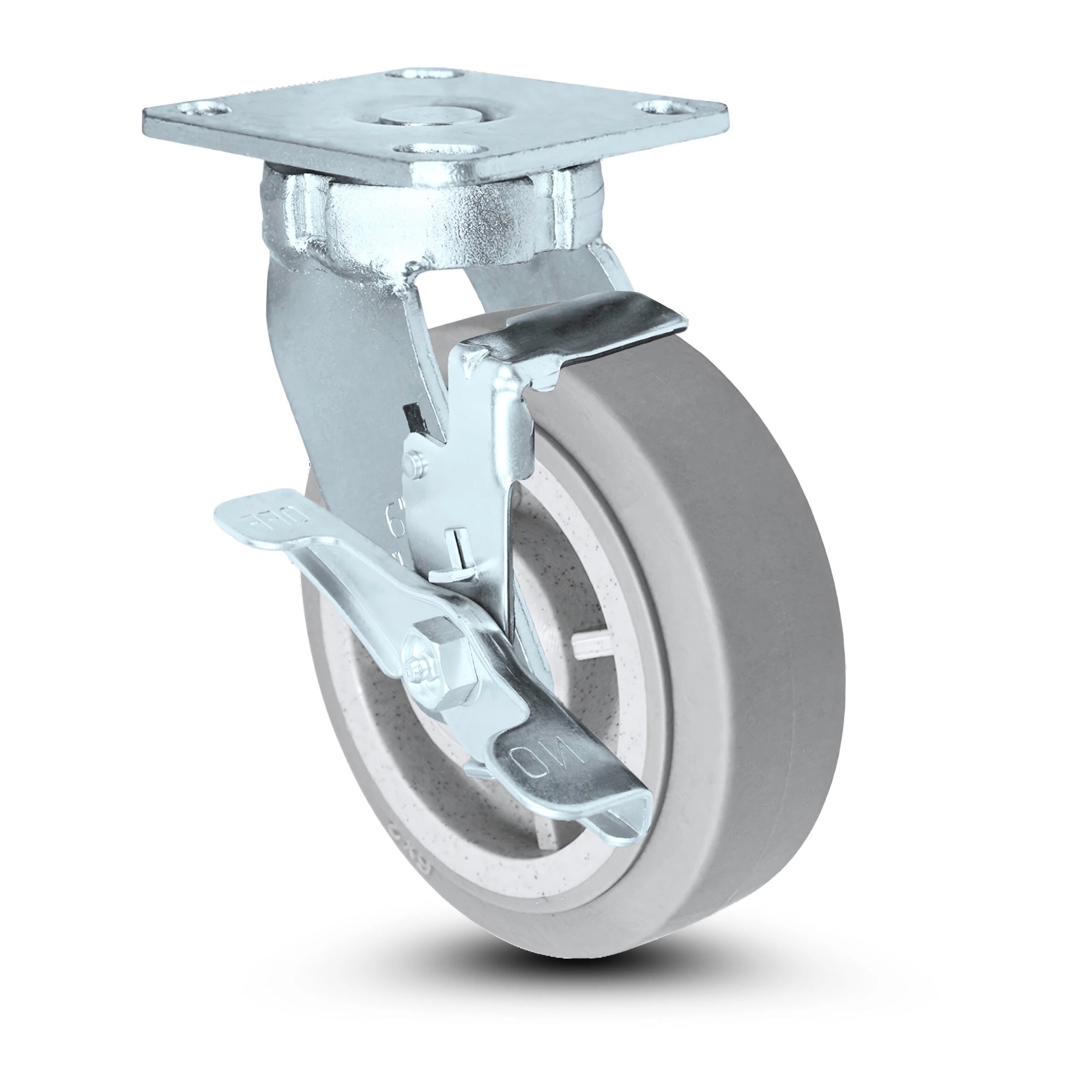

| 6" x 2" | Swivel w/ Foot Brake | S304 Stainless | Thermo Rubber | 600 lb |

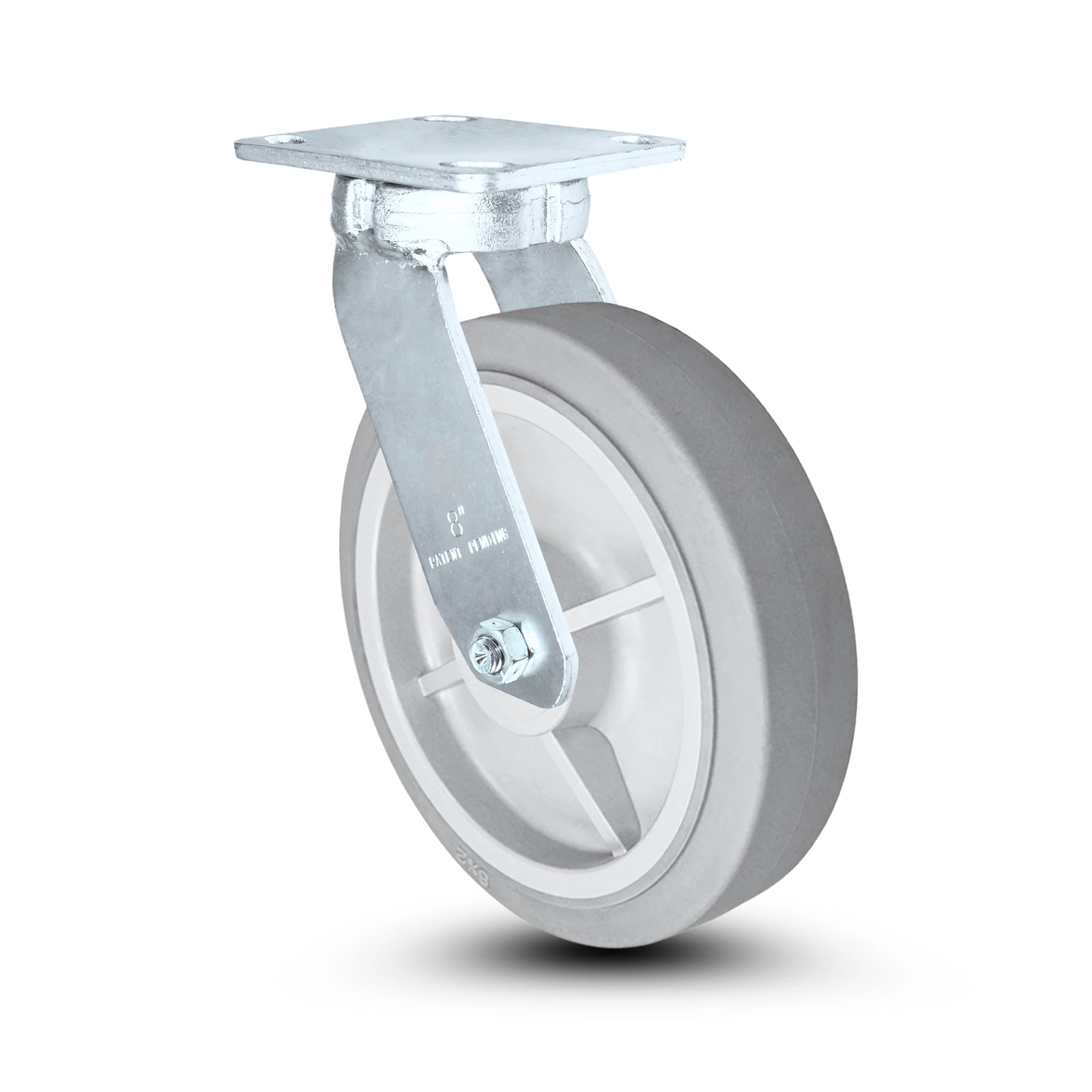

| 8" x 2" | Swivel | S304 Stainless | Thermo Rubber | 675 lb |

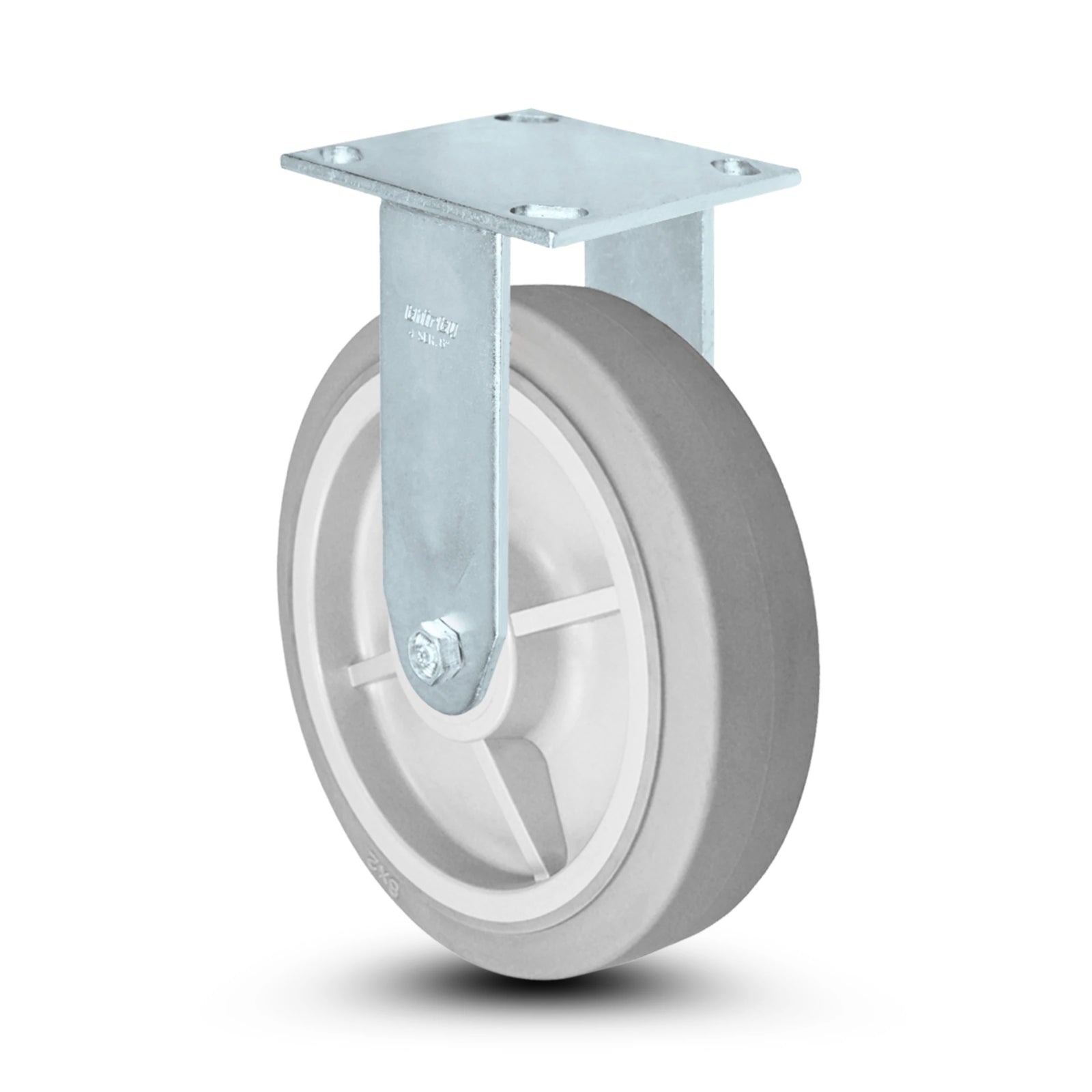

| 8" x 2" | Rigid | S304 Stainless | Thermo Rubber | 675 lb |

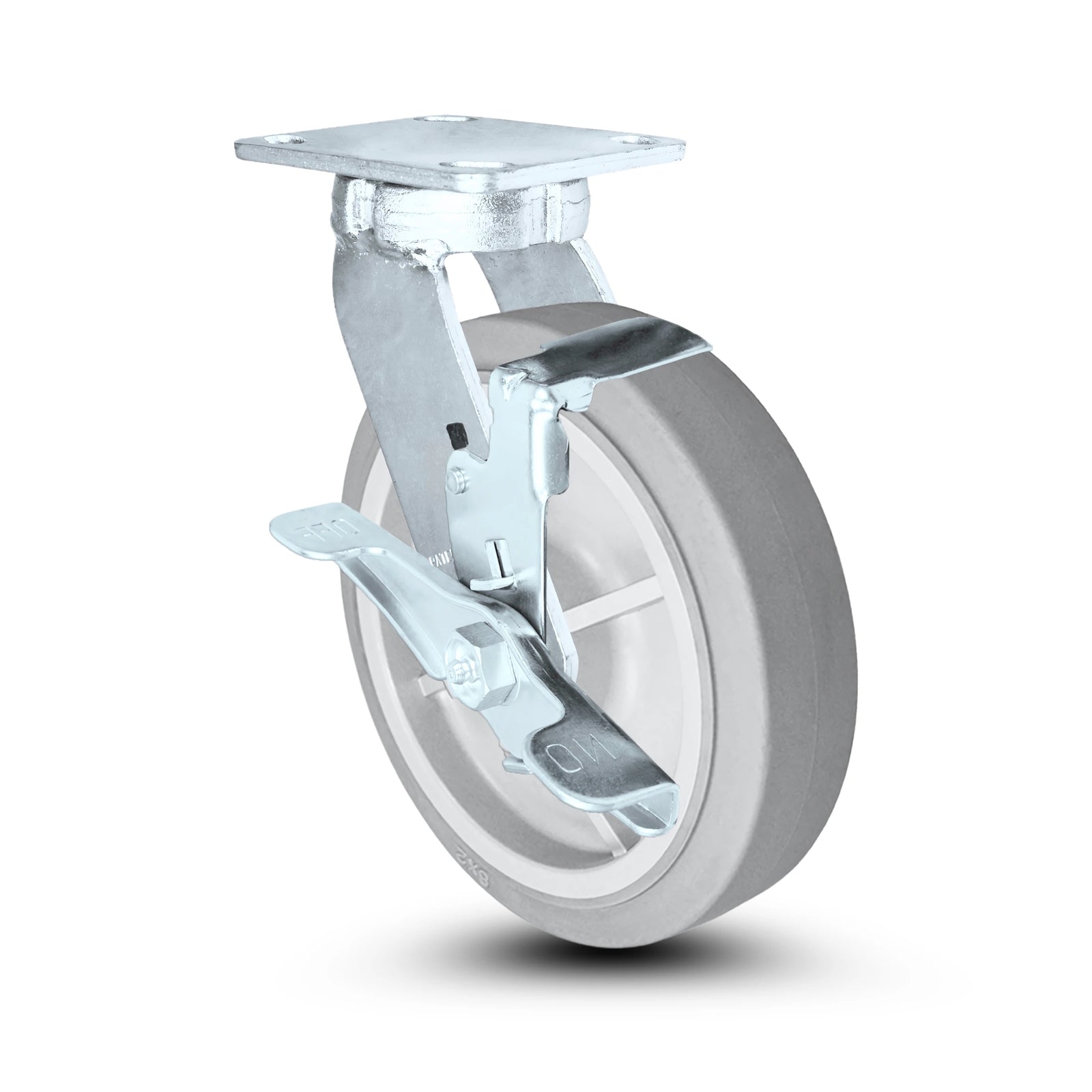

| 8" x 2" | Swivel w/ Foot Brake | S304 Stainless | Thermo Rubber | 675 lb |
Kingpinless casters eliminate the central swivel pin — the loudest mechanical component on a standard caster. Combined with thermo rubber treads that absorb vibration, these are the quietest production industrial casters available. Medical and library specified.
6" rolls over standard floor seams, vinyl reducers, and 1/2" thresholds. 8" handles deeper seams and uneven hospital corridor transitions. The larger 8" also reduces rolling effort and tread wear in high-traffic service.
Foot brake recommended on any cart that stops near patients, in libraries, or on sloped corridors. Plain swivel works on level floors with cart-mounted hand brakes. Specify 2 swivel + 2 rigid for stable straight-line rolling.
Hospital floor cleaning protocols (quat sanitizers, hot water) destroy zinc-plated yokes within 12-18 months. S304 stainless yokes outlast the equipment they're bolted to. The cost premium pays back in <2 years.
Three things: a kingpinless swivel design (no central pin to squeak), a soft non-marking thermo rubber or polyurethane tread (absorbs floor irregularities), and a sealed precision swivel bearing (no metal-on-metal contact). All three together produce a sub-50 dB rolling noise — quieter than a typical office HVAC system.
A swivel caster design that eliminates the central kingpin bolt. The swivel bearing race is integrated into the top plate. Kingpinless casters last 5-10x longer in high-cycle applications because there is no kingpin to wear, loosen, or squeak. Standard in medical, defense, and aerospace.
Yes — the thermo rubber tread on these casters is explicitly non-marking. Safe for hospital vinyl, library hardwood, polished concrete, and finished tile. Will not leave black streaks or scuff marks under normal use.
Single-caster capacity: 600 lb for 6" diameter, 675 lb for 8". A 4-wheel cart can handle 2,400-2,700 lb total with 100% capacity safety. For higher capacity in a silent profile, contact us — some Hamilton SEC kingpinless options scale to 6,000 lb per caster.
The casters are NSF-compatible — food-safe materials, non-marking treads, stainless yokes. NSF certification is at the assembled equipment level. Our silent casters are commonly specified on NSF prep tables, bakery rack systems, and hospital service carts.
Measured rolling noise on smooth concrete: standard polyurethane caster ~62 dB, standard kingpinless ~56 dB, our silent kingpinless with thermo rubber tread ~48 dB. That's a 14 dB reduction — perceptibly half as loud as standard.
Yes if the cart has a 4" x 4-1/2" top plate (the standard for medium-duty industrial). Match the existing bolt pattern and overall height to avoid changing cart deck height. We stock 6" and 8" silent casters with 4" x 4-1/2" plates as the default.
Hamilton-sourced stainless kingpinless casters carry a 5-year manufacturer warranty against defects in materials and workmanship. Industrial duty cycle (1-2 shifts/day on appropriate flooring) typically delivers 10-15 years of service life. Failures are usually thermo rubber tread wear at 7-10 years — the casters themselves rarely fail.
