The kingpin is the 5/8-inch shaft that holds a traditional swivel caster together. The wheel rotates, the swivel race rotates, and the kingpin holds the whole thing on the top plate. For light and medium duty, the kingpin works fine. For heavy duty, it’s a 5/8-inch shaft taking every floor impact, every load drop, every cornering twist that the entire caster generates. After enough cycles, it deforms. After enough deformations, the caster fails.

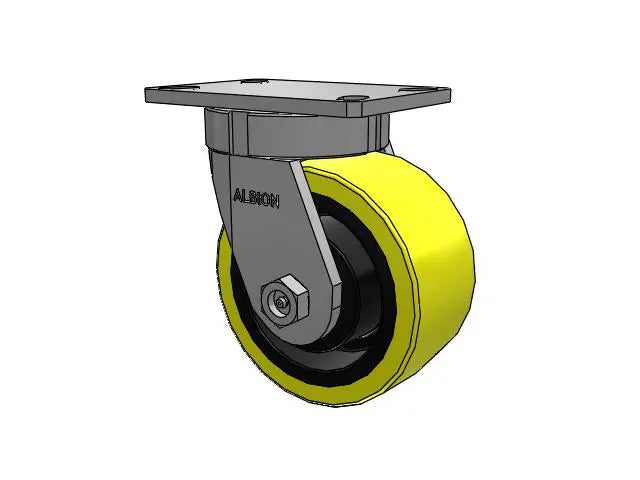

Kingpinless construction removes the shaft entirely. The load distributes around a full circumferential raceway instead of concentrating on a 2-inch shaft circumference. The math changes everything below.
A kingpin caster swivels around a single steel shaft. The shaft has to take the radial load (the weight pressing down) and the thrust load (the cornering force when the wheel changes direction). Every time the caster hits a floor seam, expansion joint, or doorway threshold, the kingpin takes the impact. Over a few thousand cycles, the kingpin starts to elongate, the swivel develops play, and the wheel starts to wobble. Once the wobble starts, the swivel race wears out fast.
The other failure mode: drop loading. When you set 5,000 lb of equipment on a caster too quickly, the kingpin compresses momentarily. Most of the time it springs back. After enough drops, it stays compressed — the caster sits lower on that side and the load redistributes badly across the other three corners.
| Factor | Kingpin | Kingpinless |
|---|---|---|
| Load distribution surface | ~2″ (5/8″ shaft circumference) | Full circumferential raceway (typically 6-12″) |
| Floor impact resistance | Shaft deforms over time | Distributed force — no single point fails |
| Drop loading tolerance | Shaft compresses, can stay compressed | Force spreads to bearings, returns to position |
| Typical max capacity | ~5,000 lb before failure curves | 40,000+ lb available |
| Service life under abuse | 2-5 years on heavy routes | 15-25 years |
| Cost premium | Baseline | ~15-25% more at light-duty, comparable at HD |
Kingpinless construction gets paired with tapered roller bearings because tapered rollers handle both radial load and thrust load simultaneously. That’s the load profile of a swivel caster: radial from the weight pressing down, thrust from the cornering motion. Ball bearings handle radial well but thrust poorly; needle rollers handle thrust well but radial poorly. Tapered rollers do both, which is why every kingpinless caster above 2,000 lb uses them.
The combination of kingpinless body + tapered roller bearings is what makes 20,000+ lb single-caster ratings possible. Neither feature works alone at that load tier.
Match the wheel material to the floor and environment. Match the capacity to load per caster (total platform weight divided by number of casters, plus 25% safety margin). Match the bearing config to load distribution: single-row tapered for steady loads, dual-row for impact-heavy or drop-load applications. Confirm the top plate bolt pattern matches your existing equipment before ordering — kingpinless top plates are usually larger than their kingpin equivalents because the load distributes wider.
