The Albion S610PY10509S is a 10" x 3" cast iron plate caster rated 3000 lbs per caster, mounted on a 6-1/4" x 7-1/2" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 10" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The S610PY10509S earns its place when rough concrete and shock loading are the controlling spec. Pair 10" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The S610PY10509S is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
3000 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 10" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

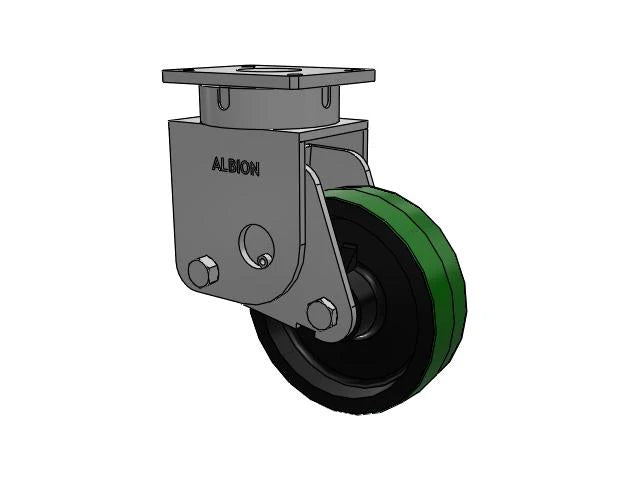

Designed to meet the demanding needs of industrial environments, the Albion 10"x3" Kingpinless Caster provides exceptional performance and durability. This model S610PY10509S features a robust design with innovative technology tailored for heavy-duty applications.
The kingpinless design not only increases the lifespan of the caster but also ensures a smoother ride, reducing the stress on the wheel during turns. The spring-loaded feature absorbs shocks effectively, making it ideal for transporting sensitive materials across uneven surfaces.
Perfect for automotive factories, aerospace facilities, and other industrial settings where reliability and endurance are critical. Its performance under load and ability to navigate obstacles make it an essential component for any high-demand system.
Equip your operations with the Albion 10"x3" Kingpinless Caster for enhanced productivity and reduced maintenance costs. Trust Albion's proven track record of quality and innovation to keep your operations moving smoothly.
This Albion S610PY10509S 10" x 3" Cast Iron Caster — 3000 lb is rated to 3000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 3" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.
This caster uses a top-plate mount with a 6-1/4" x 7-1/2" plate. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 14.88". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,961.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 14.88" |
| Plate Size | 6-1/4" x 7-1/2" |
| Mount Style | Plate |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 3000 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
Albion 90PY10501SL 10" x 3" Py Caster — 3000 lb | CasterHQ
10" x 3" · 3000 lbs
$613
Albion 90PY10501R 10" x 3" Poly-on-Iron Rigid Caster 7.25" x 5.25" Plate | CasterHQ
10" x 3" · 3000 lbs
$386
10" x 3" Phenolic Rigid Kingpinless Caster – 2,900 lb | CasterHQ
10" x 3" · 2900 lbs
$100
View all 10′ x 3′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2900 lbsLighter duty | 10" × 3"Phenolic | Swivel | 11-1/2" | $237.00 | View → | |
| 2900 lbsLighter duty | 10" × 3"Phenolic | Swivel | 12.5" | $523.00 | View → | |
| 3000 lbs | 10" × 3"Cast Iron | Swivel | 14.88" | $1,961.00 | Viewing | |
| 3000 lbsSame capacity | 10" × 3"Cast Iron | Swivel | 12.5" | $613.00 | View → | |
| 3000 lbsSame capacity | 10" × 3"Cast Iron | Rigid | 12.5" | $386.00 | View → |
