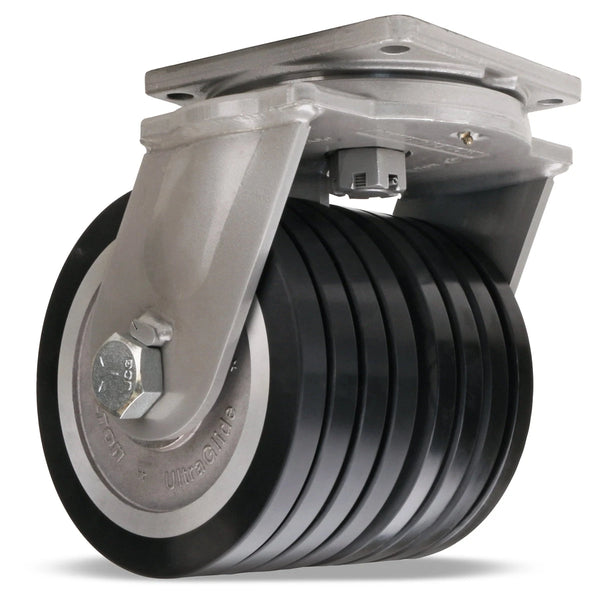

10″ x 4″ Casters - EPSD, Maxi-Duty, 18,000 lb

This collection holds 10 in x 4 in Casters with polyurethane, poly on iron and rubber wheels, built for heavy equipment, dies, molds, and plant carts that move very heavy loads. Casters in this collection range from 750 to 28,800 lb per caster. Wheels in this category are 10 inches in diameter with 4 in tread width. The collection includes swivel, rigid, and brake models. Kingpinless swivels hold up better under shock and repeat loads. Polyurethane (poly or urethane) treads are quiet, floor safe, and resist water and many chemicals. Rubber wheels are quiet, cushion the load, and protect floors. Softer poly or TPR is the better pick when the floor has chips or grit. Plate and stem mounts are listed on each product so you can match bolt pattern or stem size before you order. Choose swivel casters when the cart must turn in place and rigid casters for straight travel. Polyurethane aisle: polyurethane casters. Wheel hub: replacement wheels.

Shop by wheel material

4 types

Rubber and polyurethane favor floor protection; phenolic and steel favor heavy capacity. Compare materials →

10″ x 4″ Casters - EPSD, Maxi-Duty, 18,000 lb: buying guide

10 x 4 in casters and wheels in polyurethane, forged steel and steel, 10 in wheels, rated 2,775 to 28,800 lb per caster.

Diameter 10 inTread 4 inPlate 8-1/2 x 8-1/2 in (most)2,775 to 28,800 lb per caster

10 x 4 in casters and wheels by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits

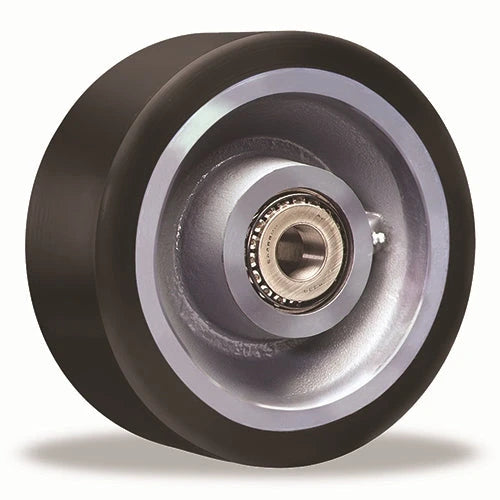

Polyurethane	Steel and Aluminum	10 in	2,775 to 11,700 lb	-5°F to 160°F	quiet, floor-friendly and long wearing

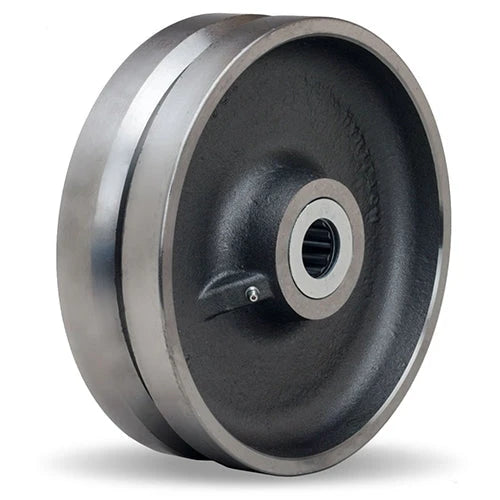

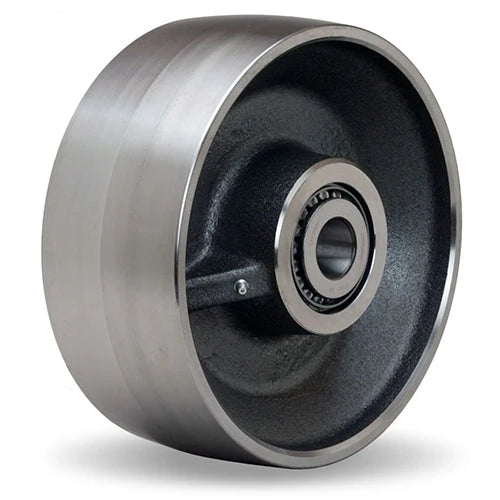

Forged steel	Steel	10 in	5,000 to 28,800 lb	Up to 800°F	very high loads and impact

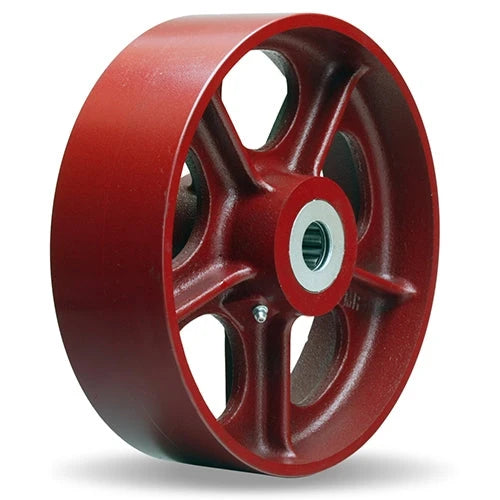

Steel		10 in	5,200 to 28,800 lb	-40°F to 320°F	heavy loads and track

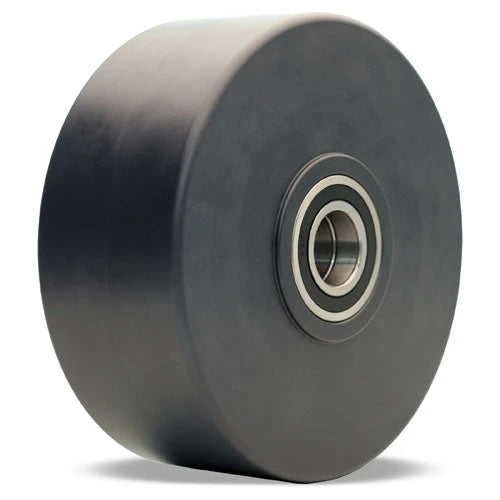

Nylon		10 in	8,200 to 13,100 lb	-30°F to 220°F	low rolling effort on smooth floors, handles wet areas

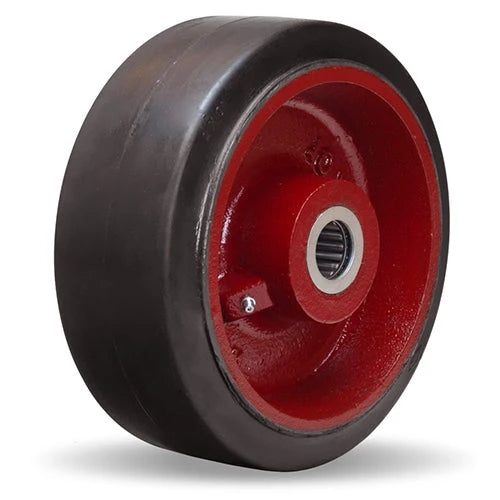

Rubber	Cast iron	10 in	Not listed	-30°F to 160°F	cushioned and quiet on finished floors
Phenolic		10 in	8,200 lb	Up to 250°F	hard and easy rolling on smooth, dry floors

Ratings are for single casters of 10 x 4 in casters and wheels, from product fields [S1].

Choosing 10 x 4 in casters and wheels

Load: divide the loaded weight by three for a four-caster cart [S2]. A 10,000 lb caster from this page then suits about 30,000 lb, and the strongest at 28,800 lb about 86,400 lb.
Mount: most 10 x 4 in casters and wheels use a 8-1/2 x 8-1/2 in top plate; 6-1/2 x 7-1/2 in and 6-1/4 x 7-1/2 in plates are listed too; measure bolt hole centers on the old plate and compare.
Floor: on 10 x 4 in casters and wheels, polyurethane and rubber are kinder to tile and finished floors; forged steel, steel, nylon and phenolic roll easier under heavy loads on smooth concrete.

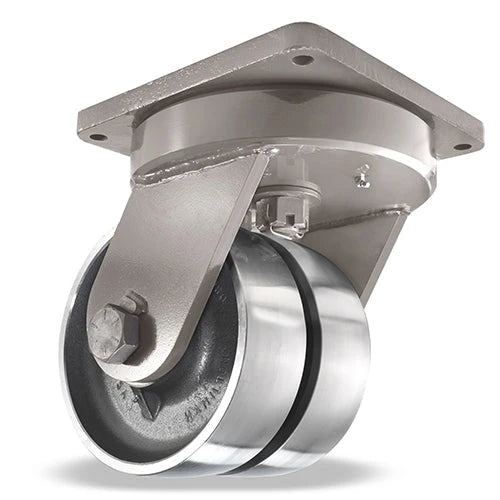

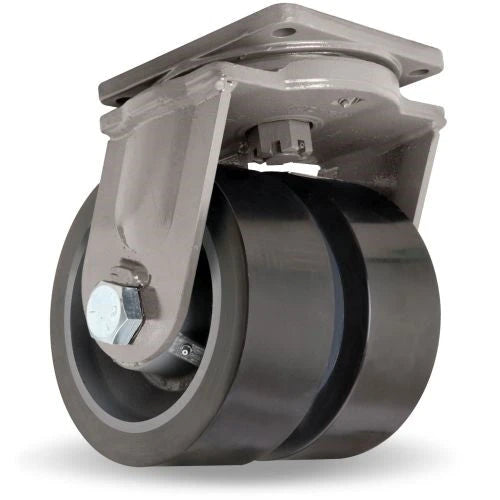

Rig: swivel and rigid 10 x 4 in casters and wheels are listed.
Heat: among 10 x 4 in casters and wheels, the highest listed range is up to 800°F on forged steel; check the temperature field on each listing before oven or hot-room use.

Related to 10 x 4 in casters and wheels: 10 x 2-1/2 in casters, 10 x 3 in casters and 8 x 4 in casters.

10 x 4 in casters and wheels questions

How much weight can 10 x 4 in casters and wheels carry?

Single 10 x 4 in casters and wheels are rated 2,775 to 28,800 lb; most fall between 5,200 and 10,000 lb.

What top plate do 10 x 4 in casters and wheels use?

Most 10 x 4 in casters and wheels use 8-1/2 x 8-1/2 in. Other plates on 10 x 4 in casters and wheels: 6-1/2 x 7-1/2 in and 6-1/4 x 7-1/2 in.

What wheel material is most common on 10 x 4 in casters and wheels?

Polyurethane leads on 10 x 4 in casters and wheels, rated 2,775 to 11,700 lb per caster. Among 10 x 4 in casters and wheels, forged steel is next at 5,000 to 28,800 lb.

Are replacement wheels sold for 10 x 4 in casters and wheels?

Yes. Wheel-only listings for 10 x 4 in casters and wheels are here, sized 10 in; check the axle diameter and hub length on the old wheel.

How long do 10 x 4 in casters and wheels take to ship?

Lead time on 10 x 4 in casters and wheels depends on brand and model: Hamilton builds many of its models here to order, typically 4 to 6 weeks, and Hamilton models stocked for Pronto Ship go out faster.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
[S3] Hamilton Caster catalog, PRONTO star marks for stocked models (hamiltoncaster.com/catalog.pdf), checked October 20, 2026.
