The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size. When replacing existing casters, select the closest plate size and verify bolt-hole compatibility. BHP = Bolt Hole Pattern, shown under each plate.
Heavy-duty gate casters and gate wheels for swing gates, sliding gates, v-track gates, and chain link fence gates. Spring-loaded gate wheels that absorb sagging gate weight, fixed adjustable-height gate casters, and v-track wheels for sliding gates. Up to 1,000 lb capacity per wheel. Fixes sagging gates and adds wheels to wood, chain link, vinyl, and metal gate frames. Stocked at our Mansfield, TX facility.
Spring-Loaded & Fixed VariantsUp to 1,000 lb CapacitySwing Gate & V-Track SlidingWood, Chain Link, Vinyl, Metal99% Same or Next-Day Ship
Compare gate caster and gate wheel configurations by gate type, mount method, capacity, and best application. Spring-loaded variants absorb sagging gate weight; fixed variants hold a constant height.
Type
Gate Type
Capacity
Mount
Best For

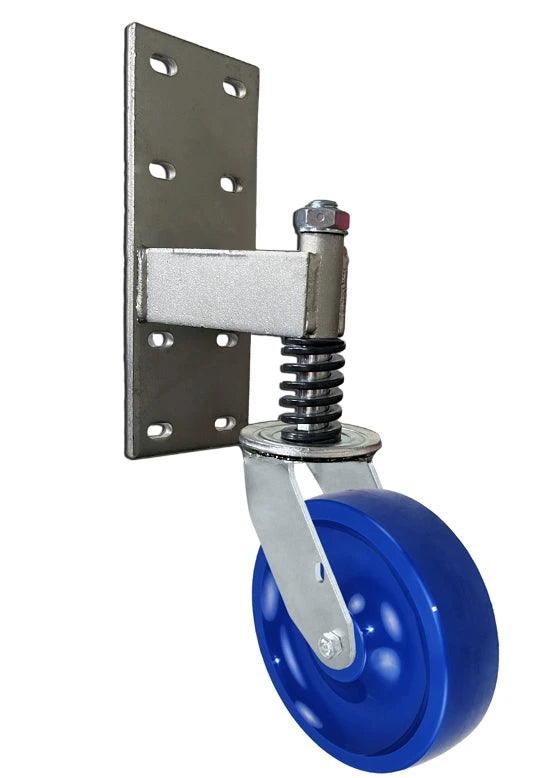

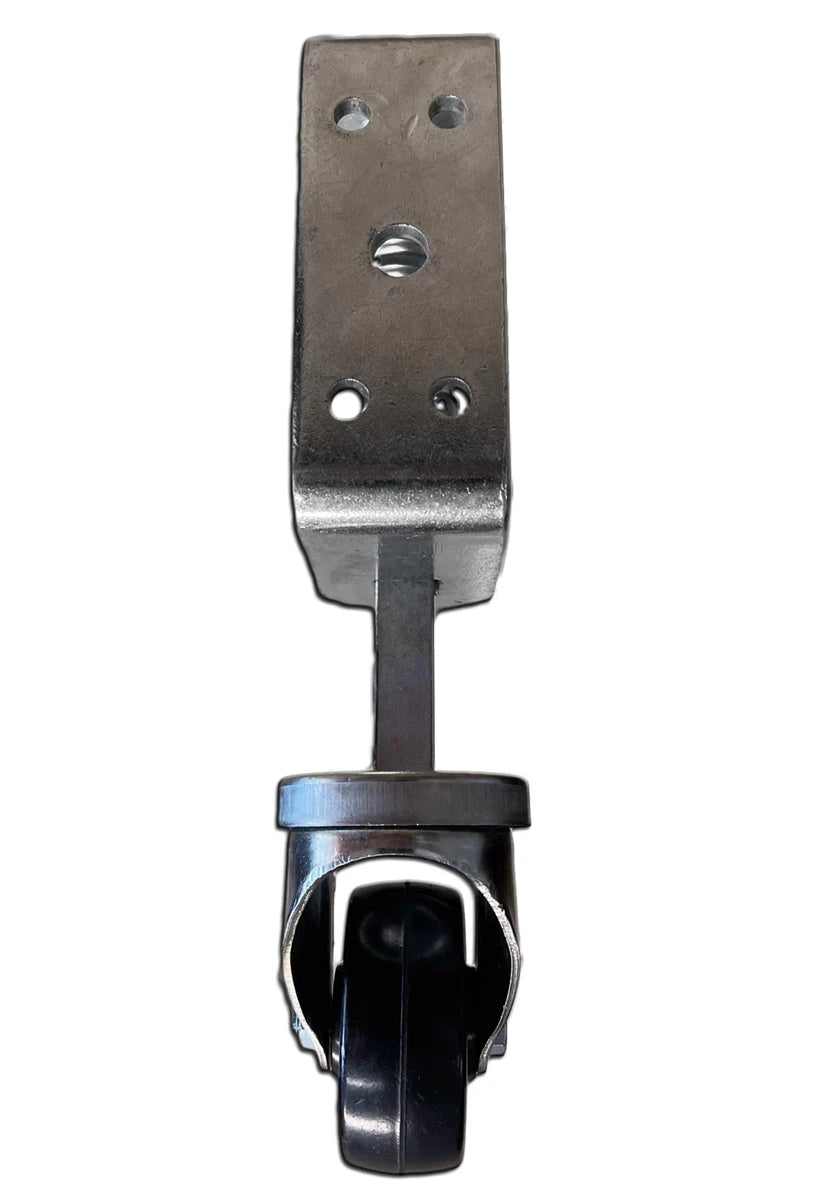

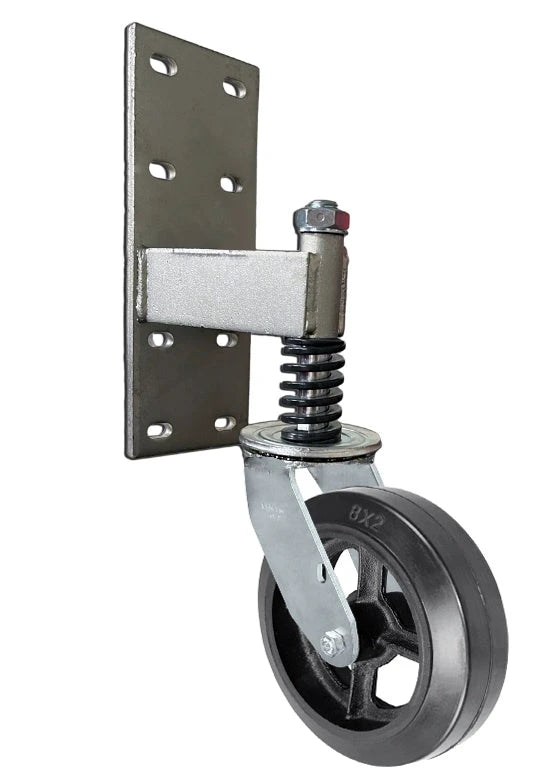

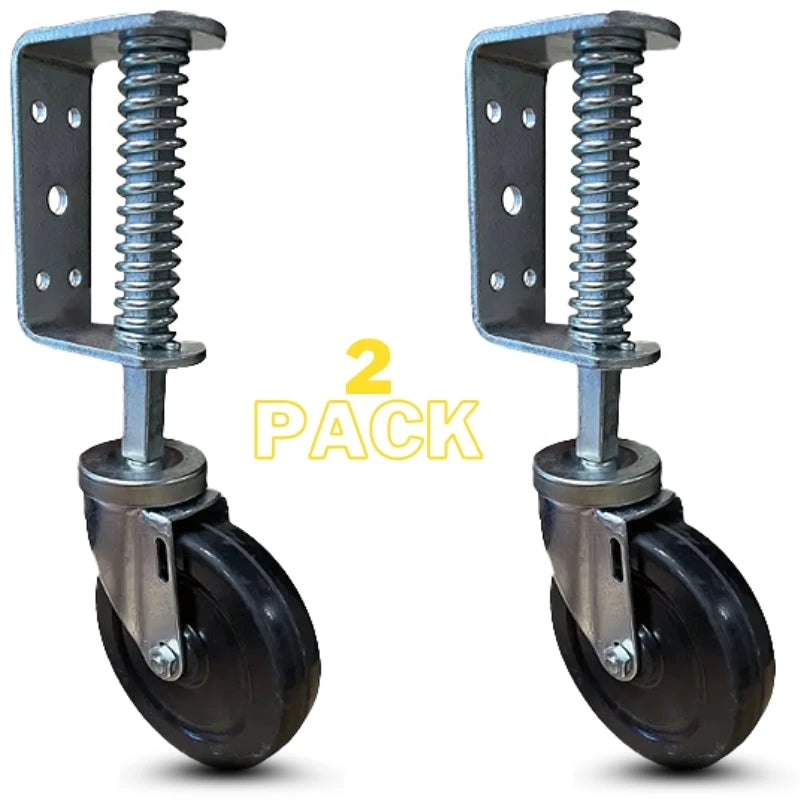

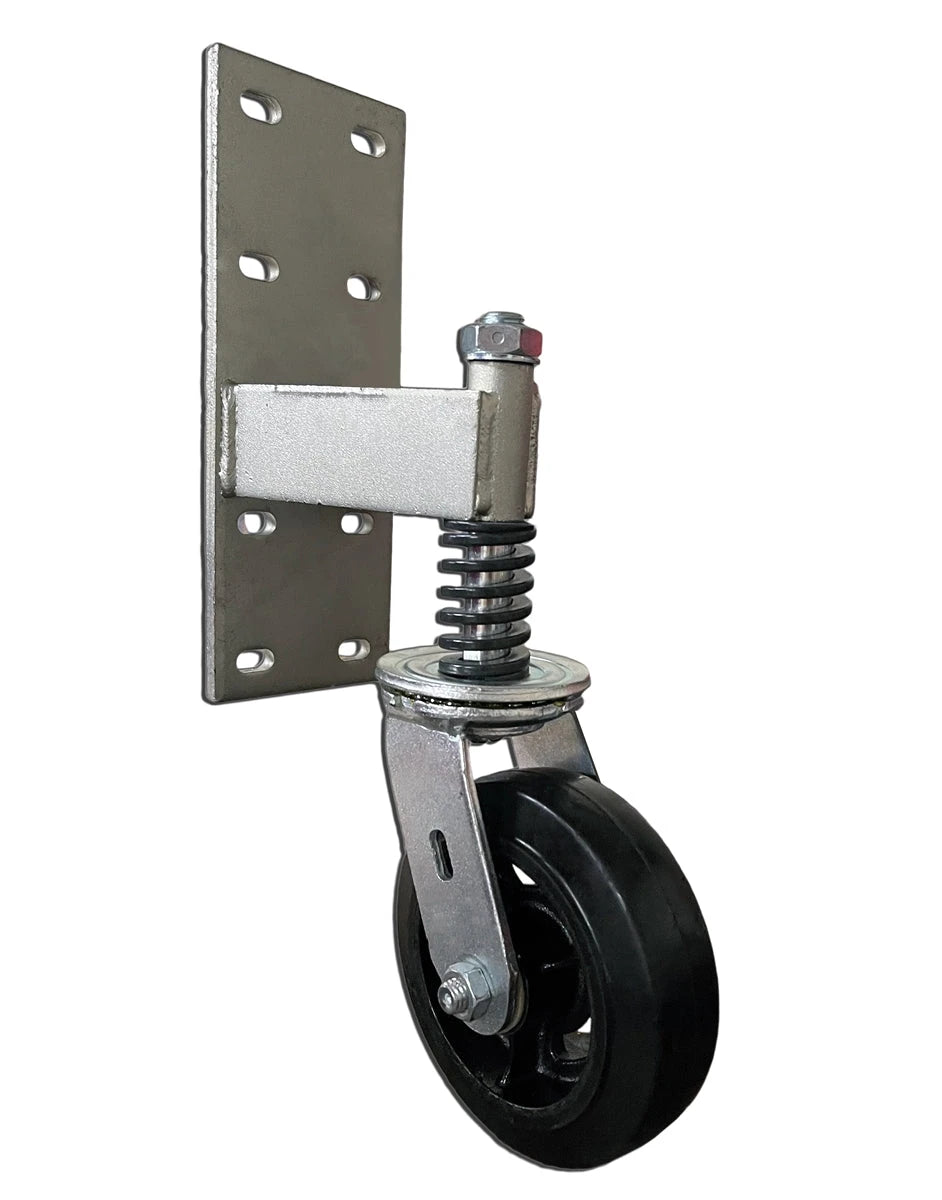

Spring-Loaded Swing Gate Wheel
Wood, vinyl, chain link swing
Up to 1,000 lb
Bolt-on bracket
Sagging gates that need height absorption
Adjustable-Height Gate Caster
Wood, metal swing
500 lb
Threaded bracket
New gate builds, fine-tune height

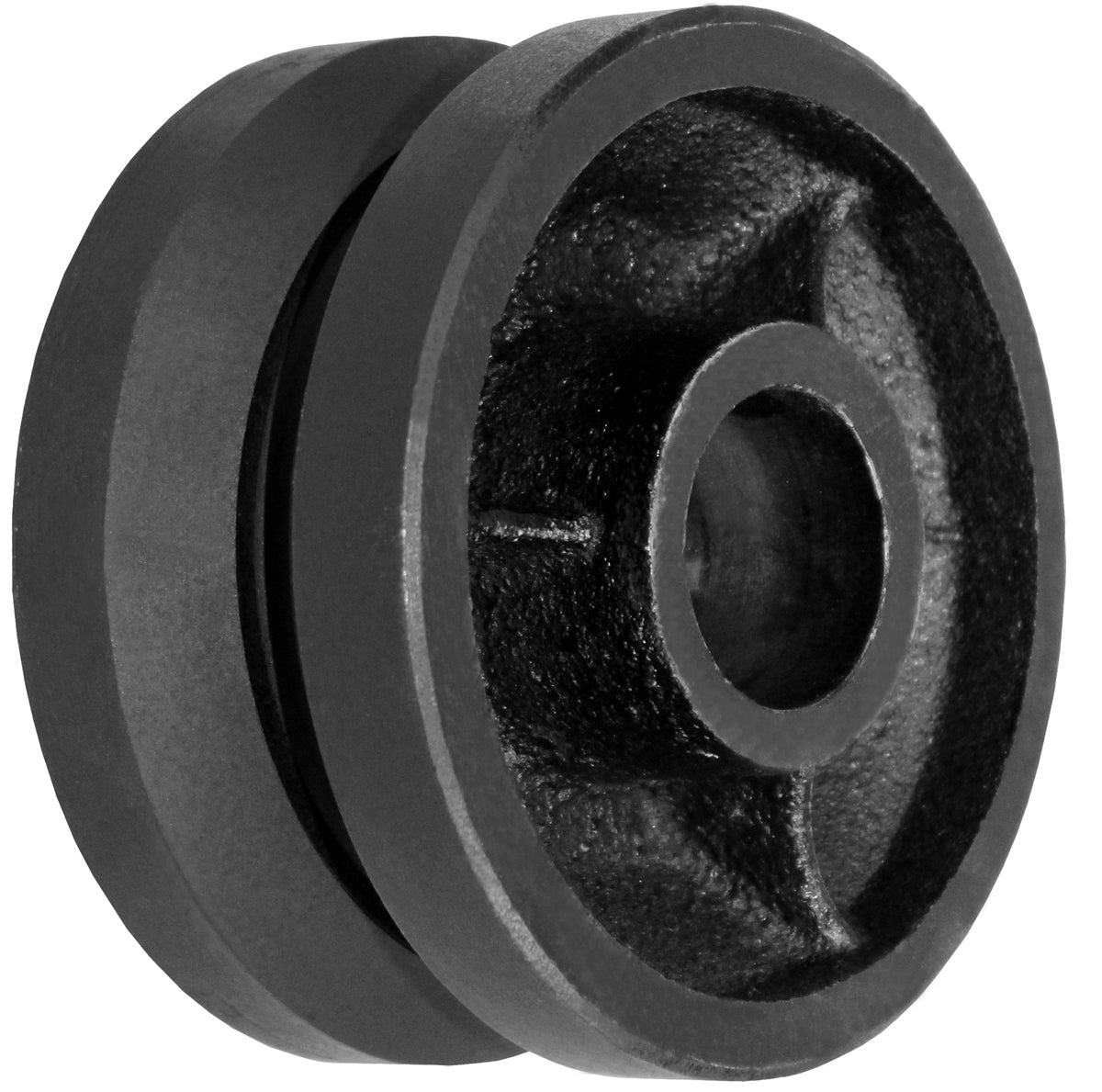

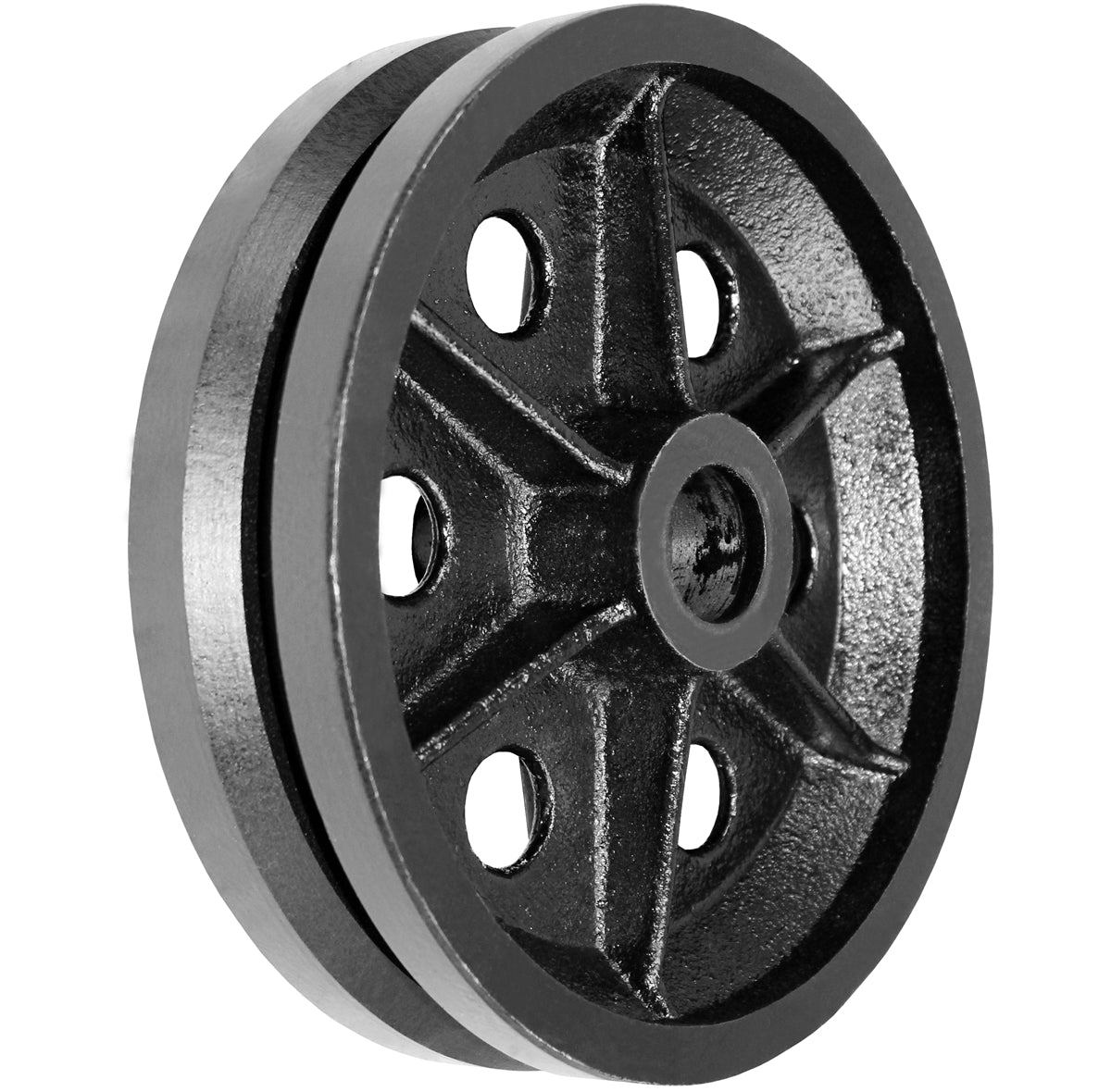

V-Track Sliding Gate Wheel
Sliding gates on rail
200 to 600 lb
Bolt-on / yoke
Industrial sliding driveway, security gates
Chain Link Gate Roller
Chain link sliding
200 lb
Threaded
Residential and light commercial chain link

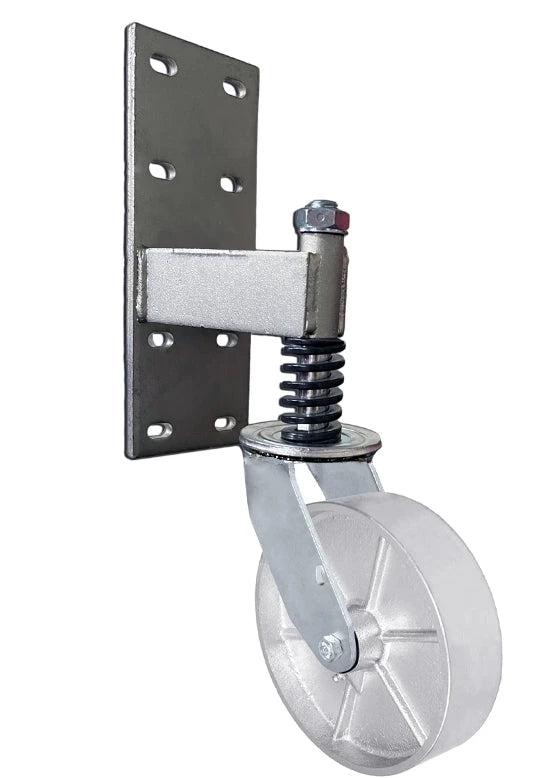

Heavy-Duty Spring Caster
Heavy wood swing
1,000 lb
Bolt-on plate
Heavy farm gates, ranch gates, industrial
How to Choose a Gate Caster or Wheel
1. Swing Gate vs Sliding Gate
If your gate swings open on hinges: choose a spring-loaded gate wheel that mounts under the latch end of the gate. The wheel takes the gate's weight off the hinges and prevents sagging. If your gate slides horizontally on a rail or track: choose a v-track wheel or chain link gate roller designed for sliding.

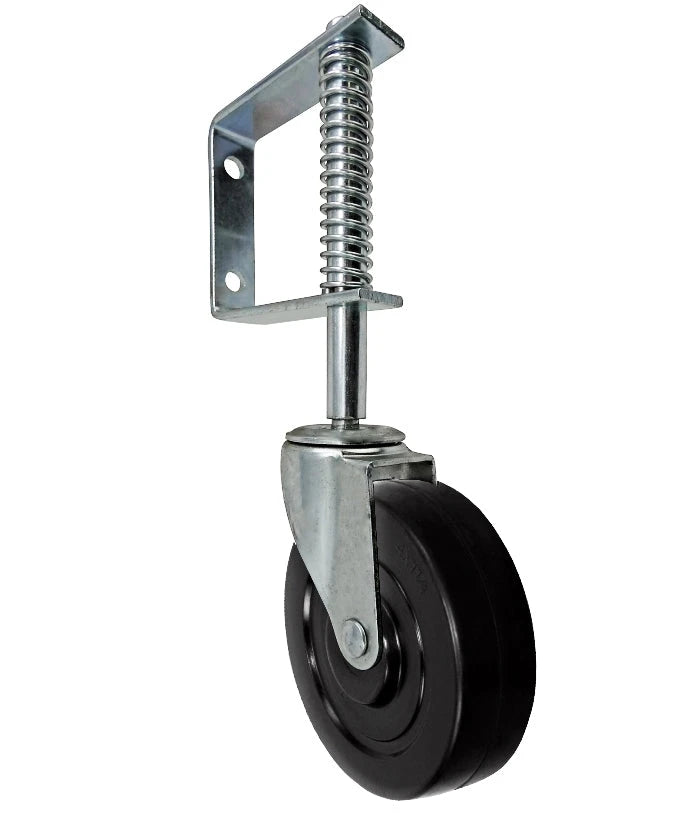

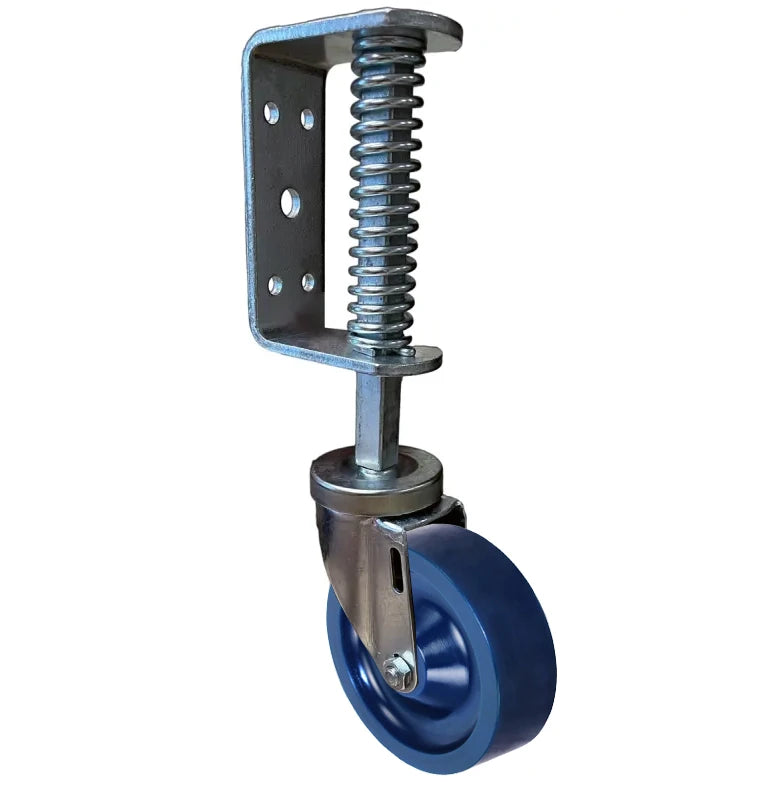

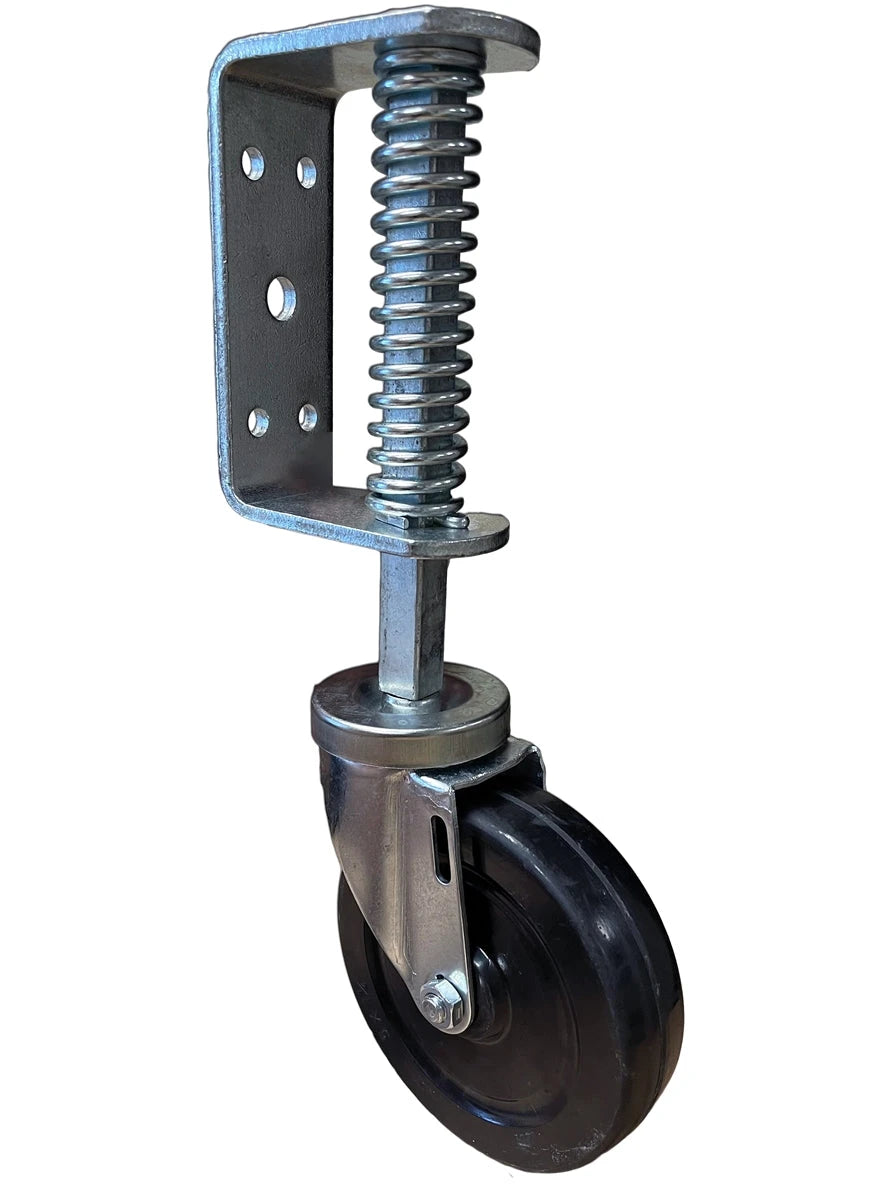

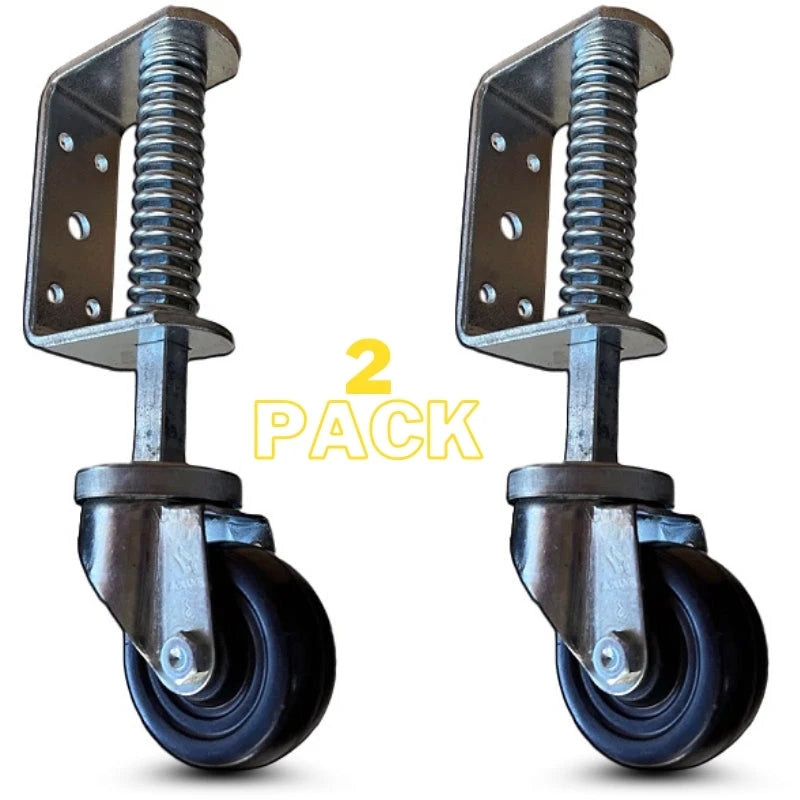

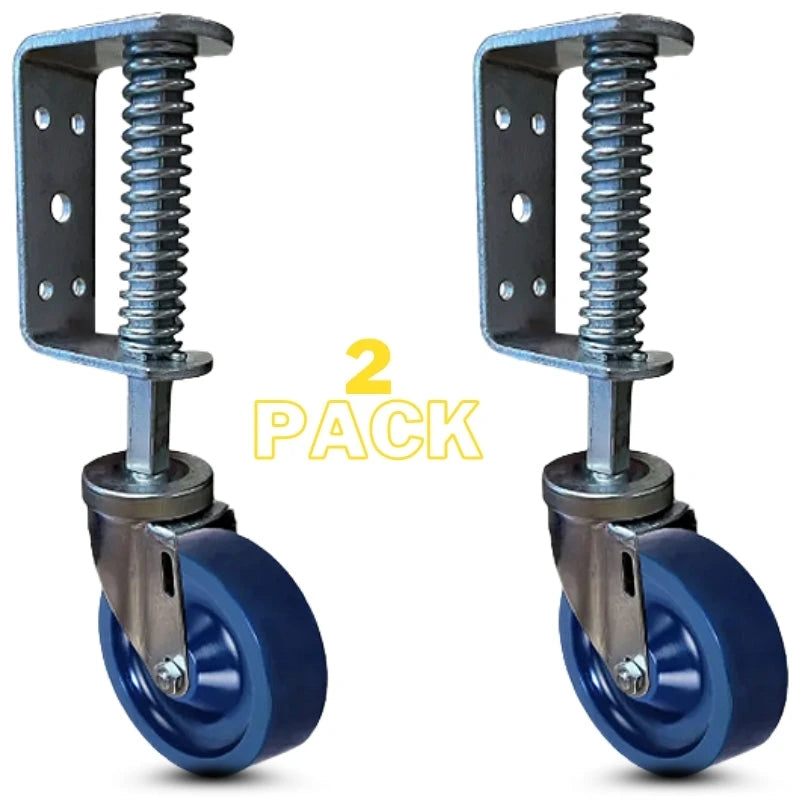

2. Spring-Loaded for Sagging Gates
The most common reason customers buy gate wheels: their gate sags. The hinges and post can't support the gate's weight indefinitely — over years it droops at the latch end. A spring-loaded gate wheel mounts at the bottom of the latch end. The spring absorbs the gate's full weight and lifts it back to the original height. This is the #1 fix for sagging wood, vinyl, and chain link swing gates.
3. Pick Capacity Based on Gate Weight
Gate weight estimates: 4-foot residential wood = 50-80 lb. 6-foot residential = 100-150 lb. 10-foot driveway = 200-400 lb. Commercial / industrial = 500-1,000 lb. The wheel needs to support the full gate weight at the wheel end (the latch end of a swing gate). Add 25 percent headroom.
4. Wheel Material for Outdoor Use
Gate wheels are outdoor by definition. Polyurethane and hard rubber tread handle weather; nylon is the most weather-resistant but harder. Chrome, zinc-plated, or powder-coated frames resist rust. Avoid bare steel frames outdoors.
Need help spec'ing a heavy-duty gate wheel for a sagging farm gate or industrial sliding gate? Contact CasterHQ with the gate weight and dimensions.
Watch: Spring Loaded Gate Wheel — How to Fix Your Sagging Gate
Tutorial showing how to install a spring-loaded gate wheel to lift a sagging gate back to original height. Covers wood, vinyl, and chain link gate installation.
CasterHQ stocks 89 gate caster and gate wheel configurations — spring-loaded swing gate wheels (most popular, fixes sagging gates), fixed adjustable-height gate casters, v-track sliding gate wheels, and chain link gate rollers — at our Mansfield, TX facility. Wood, vinyl, chain link, and metal gate compatible. 99 percent of orders ship same or next business day.
Frequently Asked Questions
How does a spring-loaded gate wheel work?
The spring-loaded wheel mounts under the latch end of a swing gate. The spring is calibrated to absorb the gate's full weight. When the gate is closed, the wheel supports the latch end and prevents the hinges from being overloaded. When the gate swings open, the wheel rolls along the ground, keeping the gate at constant height.
Will a gate wheel fix a sagging gate?
Yes — this is the most common use case. A sagging gate occurs when the hinges and post can't support the gate weight long-term. A spring-loaded gate wheel under the latch end lifts the gate back to original height by taking the weight off the hinges. The fix is permanent if the wheel is sized correctly.
What size gate wheel do I need?
The wheel capacity must exceed the gate weight at the latch end. Most residential gates need 200-500 lb capacity. Heavy farm or industrial gates need 1,000 lb. Wheel diameter is typically 6-8 inches for ground clearance over uneven terrain.
Can I install a gate wheel on a chain link gate?
Yes — spring-loaded gate wheels with bolt-on brackets work on chain link, vinyl, wood, and metal gates. Drill matching holes in the gate frame and bolt the wheel bracket under the latch end. Tutorial video above walks through installation.

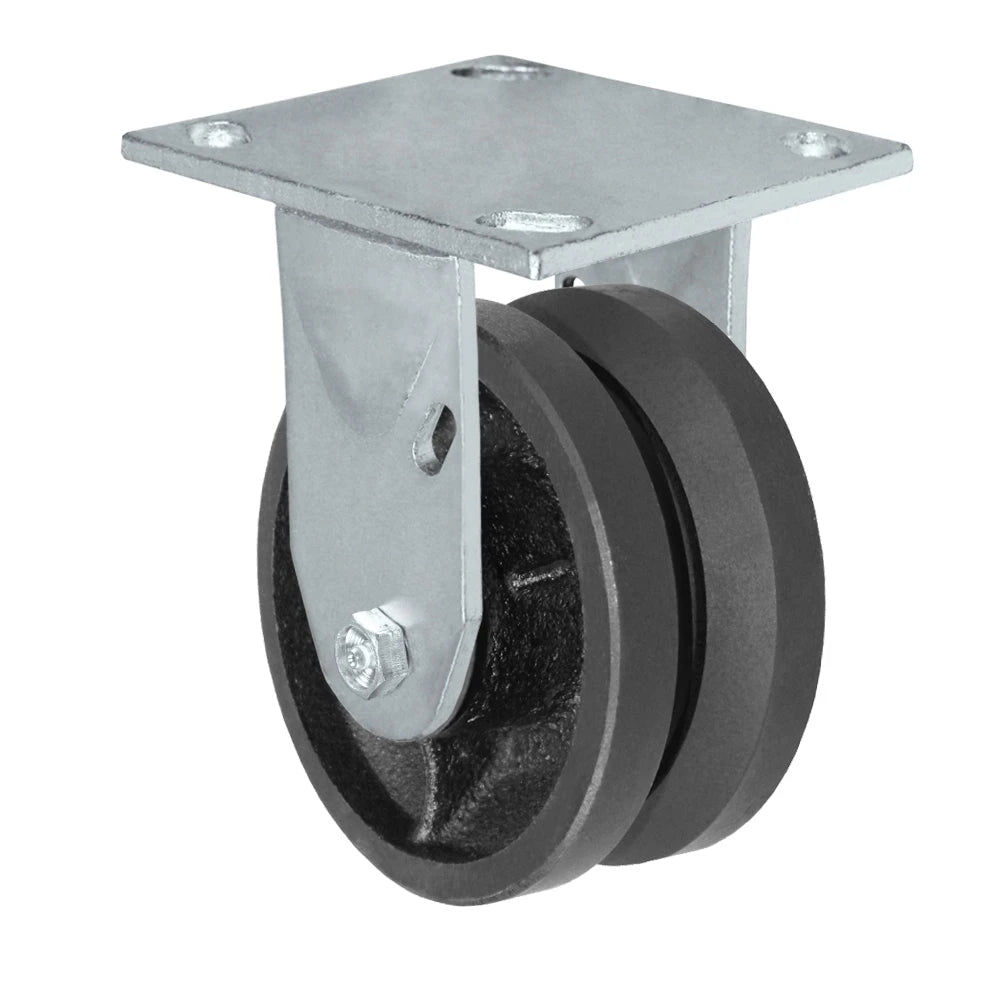

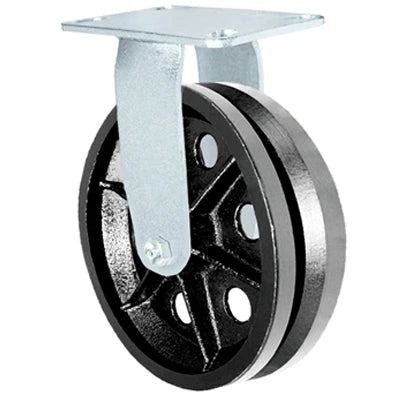

What's a v-track wheel for?
V-track wheels are for sliding gates that run on a V-rail track (common on industrial driveway gates, security gates, and parking lot gates). The wheel has a V-shaped groove that rides on the inverted-V rail, keeping the gate on track as it slides.
Are gate wheels weather-resistant?
Yes — they're designed for outdoor use. Polyurethane and hard rubber treads handle weather; frames are typically zinc-plated, powder-coated, or galvanized to resist rust. Avoid bare steel frames outdoors.
How is a gate wheel installed?
Most spring-loaded gate wheels use a bolt-on bracket. Position the bracket under the latch end of the gate, drill matching holes through the gate frame, bolt the bracket on, and adjust the spring tension to lift the gate to desired height. Total install time: 20-30 minutes.
What capacity for a residential vinyl gate?
Standard 4-foot residential vinyl gate: about 50-100 lb total weight. A 200-300 lb spring-loaded gate wheel covers it with plenty of headroom. 6-foot driveway vinyl gates need 500 lb capacity wheels.
Will the wheel mark my driveway?
Polyurethane and TPR rubber wheels are non-marking on concrete and asphalt driveways. Hard rubber may leave gray streaks on light surfaces — check the product listing for non-marking designation.
How fast do gate wheels ship?
99 percent of gate caster and gate wheel orders ship same or next business day from our Mansfield, TX facility via FedEx Ground. Cutoff 2pm Central.
