Spring Deflection to 125 lbs.

These medium duty spring loaded gate casters fit light carts, racks, and stands. Casters in this collection range from 300 to 350 lb per caster. Wheels are 3 to 5 in hard rubber and solid poly in swivel models. Spring loaded casters absorb shock and help gates and carts stay level on uneven floors. Soft rubber or TPR tread is the better pick when the floor has chips or grit. Common uses include food service, bakeries, hospitals, schools, laboratories, and material handling carts. Threaded stem, grip-ring, and expanding rubber stems for round and square tubing all appear on light-duty builds. Match plate size, bolt pattern, and overall height before you order. Read the listing for the exact wheel size, overall height, and mount shown. Confirm the load rating printed on the title before you order. Measure the old wheel or caster before you buy. Spring aisle: spring loaded casters. Gate hub: gate casters.

Medium duty spring loaded casters by tread

Tread	Core	Wheel sizes	Rated per caster	Listed temperature	Where it fits
Rubber		3, 4 and 5 in	300 to 350 lb		cushioned and quiet on finished floors
Polyurethane		3 in	300 lb	-45°F to 180°F	quiet, floor-friendly and long wearing

Ratings are for single casters of medium duty spring loaded casters, from product fields [S1].

Wheel sizes

Wheel	Treads	Rated

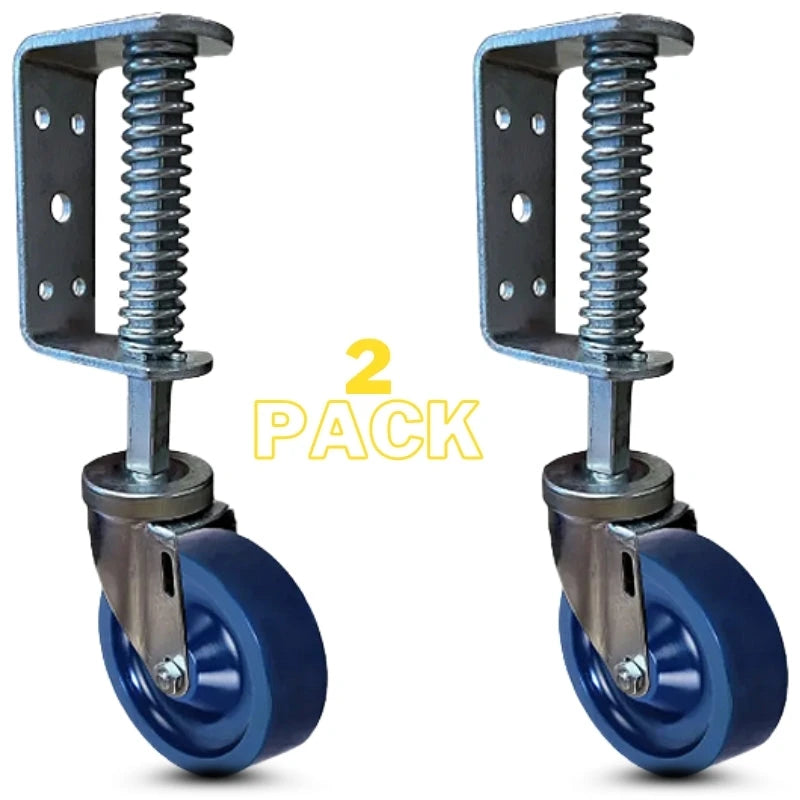

3 x 1-1/4 in	rubber and polyurethane	300 lb

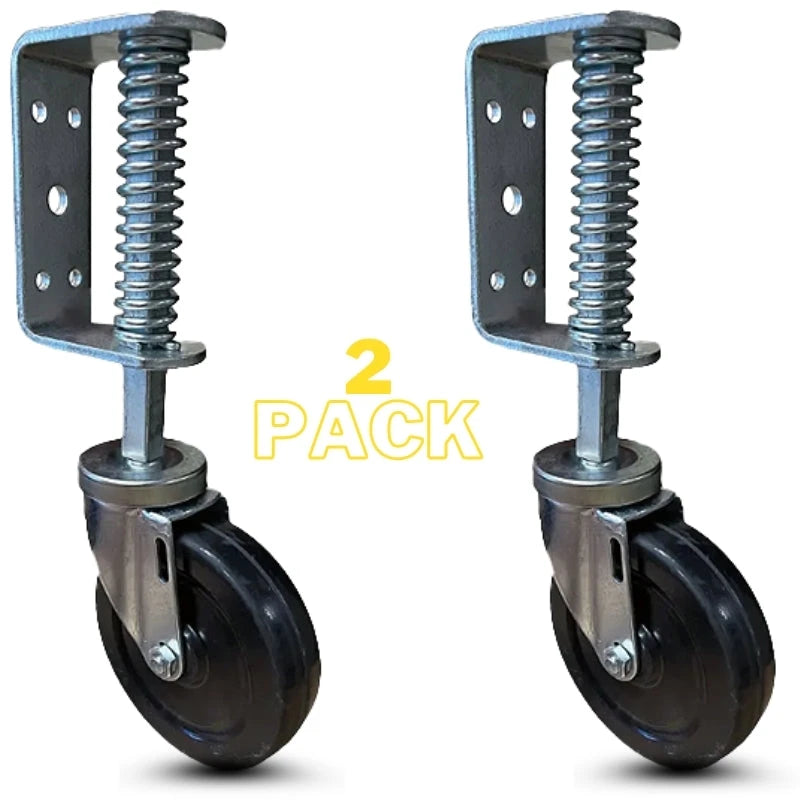

4 x 1-1/4 in	rubber	350 lb
5 x 1-1/4 in	rubber	350 lb

Choosing medium duty spring loaded casters

Load: plan on three casters carrying a four-caster cart [S2]; medium duty spring loaded casters rated 350 lb each then carry about 1,050 lb.
Mount: most medium duty spring loaded casters use a 2 x 5-3/8 in top plate; check the bolt spacing on your frame against the plate size.
Floor: on medium duty spring loaded casters, rubber and polyurethane protect finished floors and run quietly; check the rating if the cart also crosses rough concrete.

Related to medium duty spring loaded casters: spring loaded casters and spring wheels.

Medium duty spring loaded casters questions

How much weight can medium duty spring loaded casters carry?

Single medium duty spring loaded casters are rated 300 to 350 lb.

What top plate do medium duty spring loaded casters use?

Most medium duty spring loaded casters use 2 x 5-3/8 in.

What wheel material is most common on medium duty spring loaded casters?

Rubber leads on medium duty spring loaded casters, rated 300 to 350 lb per caster. Among medium duty spring loaded casters, polyurethane is next at 300 lb.

Jordan Wilson, CasterHQ · reviewed October 20, 2026 · 844-439-4335 · info@casterhq.com

Sources

[S1] CasterHQ product fields (rated load, diameter, width, wheel and core material, temperature range, mount) and product descriptions for the items on this page, pulled October 20, 2026.
[S2] Preferred Equipment casters and wheels quick guide PDF (prefeq.com): load sizing on one less caster, wheel types and floor notes.
