PRODUCT CODE: S410PY10509S
The Albion S410PY10509S is a 10" x 3" plate caster rated 3000 lbs per caster, mounted on a 5-1/4" x 7-1/4" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 10" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The S410PY10509S earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 10" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The S410PY10509S is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
3000 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 10" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

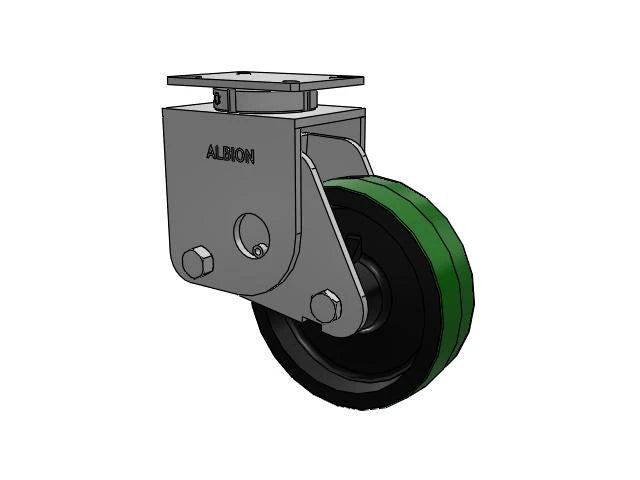

The Spring-Loaded Kingpinless 10"x3" Poly-on-Iron Caster by Albion Casters is a high-performance solution for industrial needs, offering unparalleled durability and functionality. Engineered with precision, this caster is designed to withstand demanding environments, making it an ideal choice for applications requiring robust support and smooth maneuverability.
| Specification | Details |
|---|---|
| SKU | Albion Casters S410PY10509S |
| Wheel Type | Poly-on-Iron |
| Wheel Size | 10"x3" |
| Load Capacity | 3000 lbs |
| Top Plate Dimensions | 7.25"x5.25" |
| Mount Height | 14 inches |
| Swivel Radius | 9.88 inches |
| Fastening Type | Top Plate |
| Design | Spring-Loaded Kingpinless |
| Corrosion Resistance | Yes |
Albion Casters is renowned for its commitment to quality and innovation in the caster industry. Our products are designed with precision engineering to meet the highest standards of performance and reliability. With expert support available weekdays from 8 am to 5 pm, we ensure our customers receive the guidance they need for successful project completion.
For inquiries or assistance, reach out to our knowledgeable team of Caster Experts. We're here to help you find the perfect solution for your industrial needs.
$1,547.00
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 9.88" |
| Wheel Capacity | 3000 lbs |
| Temp Range | -20°F to 180°F |
| Frame Material | Zinc Plated Steel |
| Bolt Hole Pattern | 3-3/8" x 5-1/4" slotted to 4-1/8" x 6-1/8" |
| Mount Style | Plate |
| Plate Size | 5-1/4" x 7-1/4" |
| Rig Type | Swivel |
| Brake Type | No Brake |
