The Albion S310PY10501S is a 10" x 3" plate caster rated 3000 lbs per caster, mounted on a 4-1/2" x 6-1/4" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 10" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The S310PY10501S earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 10" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The S310PY10501S is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
3000 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 10" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Got questions? Our Caster Experts are here weekdays 8 am - 5 pm. Get expert advice for your project needs.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

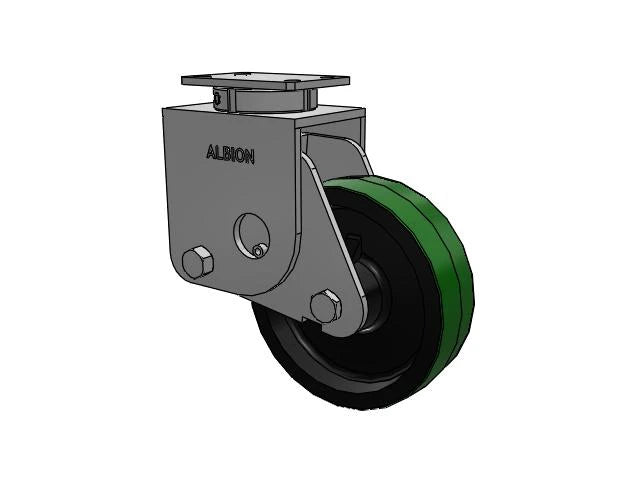

The Spring-Loaded Kingpinless 10"x3" Poly-on-Iron Caster is designed for heavy-duty industrial and commercial applications. This caster is engineered to support a substantial load capacity of up to 3000 lbs, making it ideal for a variety of demanding environments.
Featuring a spring-loaded mechanism, this caster offers superior shock absorption, ensuring smooth and stable transport over uneven surfaces. The kingpinless design minimizes maintenance requirements and extends the caster's lifespan, providing excellent value for long-term use.
This caster is perfect for use in industrial settings such as warehouses, manufacturing plants, and distribution centers. It is also suitable for commercial applications requiring reliable mobility solutions for heavy equipment and machinery.
Got questions? Our Caster Experts are here weekdays 8 am - 5 pm. Get expert advice for your project needs.
This Albion S310PY10501S 10" x 3" Caster — 3000 lb is rated to 3000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.

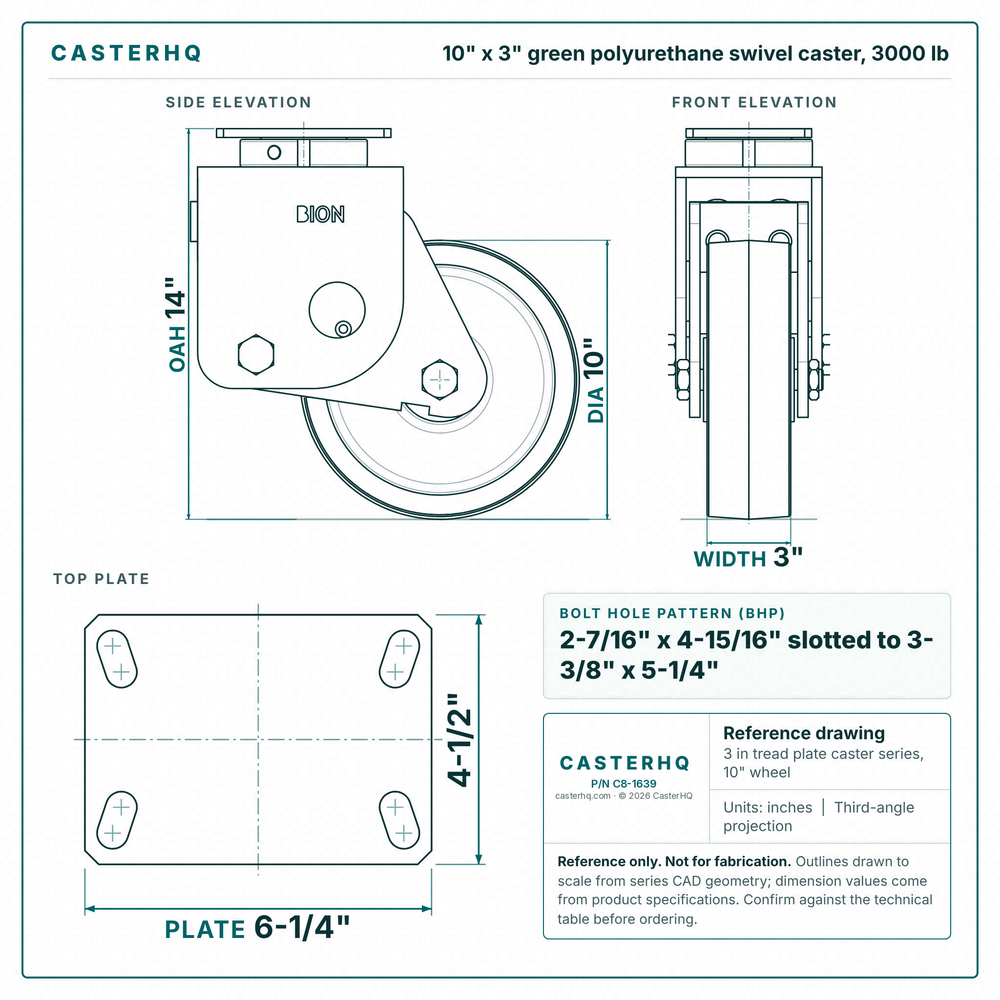

This caster uses a top-plate mount with a 4-1/2" x 6-1/4" plate and a 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 14". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,941.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 10" |
| Wheel Tread Width | 3" |
| Overall Height | 14" |
| Plate Size | 4-1/2" x 6-1/4" |
| Bolt Hole Pattern | 2-7/16" x 4-15/16" slotted to 3-3/8" x 5-1/4" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 3000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
Albion 90PY10501SL 10" x 3" Py Caster — 3000 lb | CasterHQ
10" x 3" · 3000 lbs
$613
Albion 90PY10501R 10" x 3" Poly-on-Iron Rigid Caster 7.25" x 5.25" Plate | CasterHQ
10" x 3" · 3000 lbs
$386
Albion 90TM10501SP 3" Tm Caster — 2900 lb | CasterHQ
10" x 3" · 2900 lbs
$523
View all 10′ x 3′ casters →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 2900 lbsLighter duty | 10" × 3"Phenolic | Swivel | 11-1/2" | $237.00 | View → | |
| 2900 lbsLighter duty | 10" × 3"Phenolic | Swivel | 12.5" | $523.00 | View → | |
| 3000 lbs | 10" × 3" | — | 14" | $1,941.00 | Viewing | |
| 3000 lbsSame capacity | 10" × 3"Cast Iron | Swivel | 12.5" | $613.00 | View → | |
| 3000 lbsSame capacity | 10" × 3"Cast Iron | Rigid | 12.5" | $386.00 | View → |
