| Caster Type | SWIVEL |
|---|---|
| Attachment Method | PLATE |
| Attachment Size | 3 1/8″ X 4 1/8″ |
| Plate Hole Centers | 3 1/8″ X 2 1/16″ |
| Overall Height | 5 1/8″ |
| Application | Food Service, High Temperature |
| Series | 20 |
| Caster Finish | ZINC PLATED STEEL |
| Wheel Material | HIGH TEMP |
| Wheel Diameter | 4″ |
| Load Capacity | 500 LBS |
| Tread Width | 1.5″ |
| Hub Width | 1.6″ |
| Wheel Bearing | YOKE ONLY |
| Wheel Hardness | YOKE ONLY |
| Operating Temp | -20°F TO 550°F |
| Weight | 2.1 |
| Axle | 3/8" |
| Wheel Color | GREEN |
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

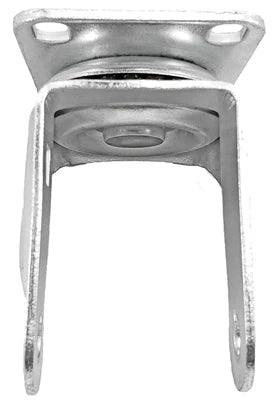

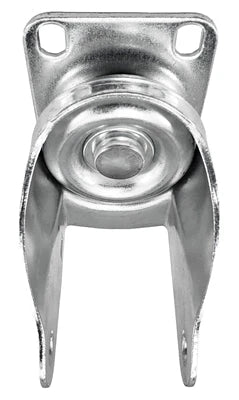

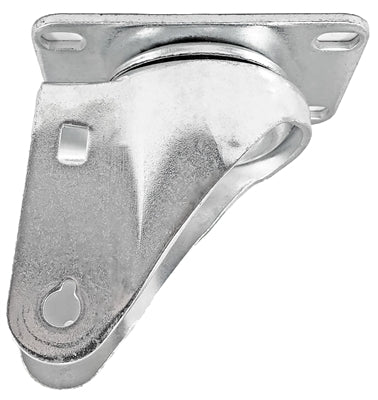

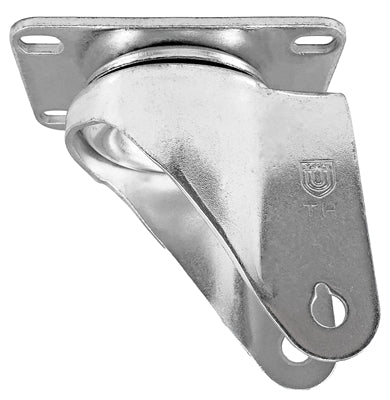

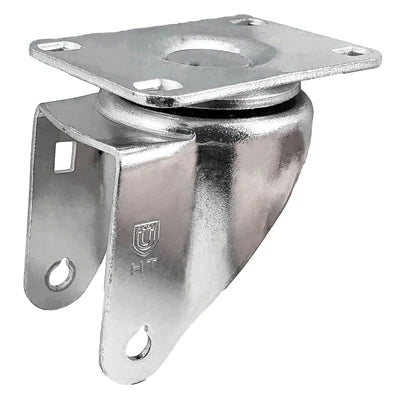

This 4" Swivel Oven Rack Caster Yoke 3-1/8" x 4-1/8" Plate 5/16" Bore is rated to 500 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 550°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$10.00
| Dimensions & Mounting | |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 500 lbs |
| Temp Range | -20°F to 550°F |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
