Up to 350 lbs
Up to 6,000 lbs
Up to 16,000 lbs
Up to 40,000 lbs
High-capacity loads
Shock absorbing
Corrosion resistant
Outdoor / rough terrain
OEM replacements
All measurements indicate the wheel diameter by the tread width.
The below capacity ranges indicate the working (dynamic) load that each caster will support. A safety factor should be included in your formula to determine your required load rating per caster.
W/(C-1)=R W is total weight needed to move. C is total number of casters required. R is ideal load rating, with safety factor built in. Divide the total load weight by one less caster than you will use to safely determine load rating.
Plate dimensions shown are overall mounting plate size.
When replacing existing casters, select the closest plate size and verify bolt-hole compatibility.
BHP = Bolt Hole Pattern, shown under each plate.

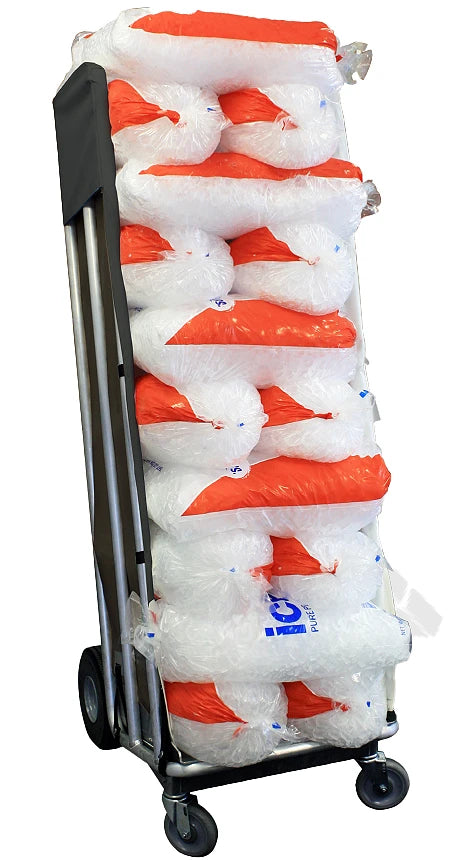

The B&P 5012-002 commercial ice cart moves 20 bags (500 lb) of bagged ice from walk-in to point of sale with both foot brake and dead-man brake engaged. Designed for convenience stores, hotels, and event venues where ice handling is daily and floors are wet.





| Spec | Value | Why it matters |
|---|---|---|
| Capacity | 20 bags / 500 lb | Stages a full walk-in run in one trip |
| Overall (H×W×D) | 64″ × 22″ × 30″ | Fits through 30″ commercial doorways |
| Handle height | 41″ | Ergonomic for 5’6″–6’2″ operators |
| Usable interior | 19″ × 19″ | Standard 22 lb ice bag drops in flat |
| Empty weight | 70 lb | Heavy enough to track straight, light enough to maneuver loaded |
| Wheels | No-flat, non-marking | No air maintenance, no tire marks on tile |
| Brakes | Foot + Dead Man | Holds on ramps; dead-man releases on operator step-away |
| Warranty | 2-year | Industry-leading for commercial ice handling |
Bagged ice carts are uniquely dangerous. The load is dense, wet, and shifts as the bags melt. A single foot brake holds the cart parked, but if the operator steps away on a grade the cart will start rolling once the bags settle. The dead-man brake engages whenever the operator releases the handle — the cart locks the moment you step away, every time, regardless of grade or load shift.
Standard 5012-002 ships without liner. Optional heavy-duty vinyl liner snaps into the three-sided tray for: (1) thermal insulation — reduces ice melt by ~20% on a 30-minute route, (2) traction — bags don’t slide on the vinyl during tilt-back, (3) spill containment if a bag splits inside the cart.
