The Albion 94NX10528STRL is a 10" x 3" nylon plate caster rated 7100 lbs per caster, mounted on a 6-1/2" x 7-1/2" plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 10" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed by noon CT (Mon-Fri). BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 94NX10528STRL earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 10" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 94NX10528STRL is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
7100 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 10" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed by noon CT (Mon-Fri). Larger quantities ship within 1-2 business days.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

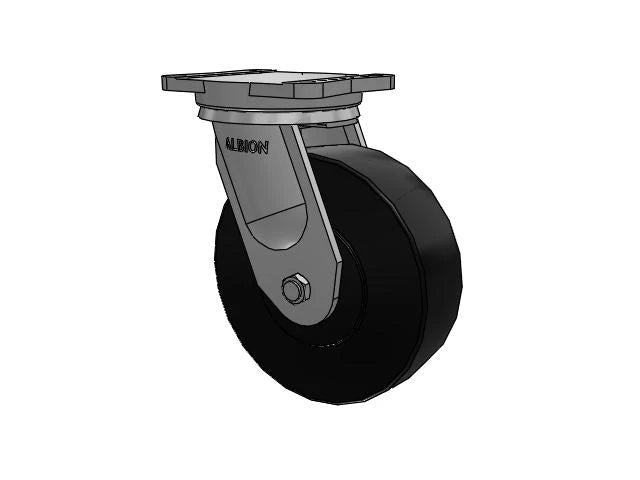

The Albion Casters Super-Duty TRL 10" x 3" Trionix Nylon Caster is engineered to provide superior performance and reliability in demanding industrial environments. This caster features a robust 10-inch diameter and a 3-inch width, making it ideal for handling heavy loads with ease. The 7 1/2" x 6 1/2" plate offers a stable base for mounting, ensuring secure attachment and optimal load distribution.
Crafted from high-strength Trionix Nylon, this caster boasts exceptional durability and impact resistance. Its design minimizes vibration and rolling resistance, delivering a smooth and efficient performance on various surfaces. The Super-Duty TRL caster is perfect for applications where reliability and longevity are paramount, including heavy machinery, industrial carts, and equipment that demands consistent, dependable movement.
Albion Casters stands out for its commitment to quality and innovation. The 94NX10528STRL model reflects the company's dedication to providing products that enhance operational efficiency while ensuring long-term durability. Whether for industrial, commercial, or heavy-duty applications, this caster offers unmatched performance and value.
Invest in the Albion Casters Super-Duty TRL 10" x 3" Trionix Nylon Caster for unparalleled durability and reliability. Designed for high-load capacities and smooth, stable movement, this caster is an excellent choice for any demanding application. Enhance your equipment’s performance and ensure its longevity with Albion’s innovative engineering and high-quality materials.
This Albion 94NX10528STRL 10" x 3" Nylon Caster — 7100 lb is rated to 7100 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Nylon wheel with a 3" tread width. Nylon resists chemicals and moisture and carries high loads, which suits washdown and wet environments.
This caster uses a top-plate mount with a 6-1/2" x 7-1/2" plate and a 4-1/2" x 6" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -30°F to 220°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Nylon wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.
The overall height (floor to top of plate or stem) is 9.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,447.00
| Identification | |
|---|---|
| Part Number / SKU | 94NX10528STRL |
| Core | |
| Load Capacity | 7100 lbs |
| Wheel Diameter | 10" |
| Wheel Width | 3" |
| Floor to top of mounting plate (or stem shoulder).Overall Height (OAH)Floor to top of mounting plate (or stem shoulder). | 9.5" |
| Rig Type | Swivel |
| Brake | No Brake |
| Distance from swivel centerline to the outer edge of the wheel when turned.Swivel RadiusDistance from swivel centerline to the outer edge of the wheel when turned. | 7-1/2" |
| Horizontal distance from the swivel centerline (kingpin) to the wheel axle.Swivel Lead (Offset)Horizontal distance from the swivel centerline (kingpin) to the wheel axle. | 2-1/2" |
| Mounting | |
| Mount Style | Plate |
| Plate Size | 6-1/2" x 7-1/2" |
| Center-to-center spacing of the top-plate mounting holes.Bolt Hole Pattern (BHP)Center-to-center spacing of the top-plate mounting holes. | 4-1/2" x 6" |
| Recommended Mounting Bolt | 1/2" |
| Wheel | |
| Wheel Material | Nylon |
| Wheel tread hardness. Shore D is hard; Shore A is softer.Durometer (Shore)Wheel tread hardness. Shore D is hard; Shore A is softer. | 78-82 Shore D |
| Wheel Color | Black Polymer |
| Bearing Type | Precision Ball Bearing |
| Thread Guard | None |
| Construction | |
| Frame / Finish | Zinc Plated Steel |
| Temperature Range | -30°F to 220°F |
| Warranty | 1 Year |

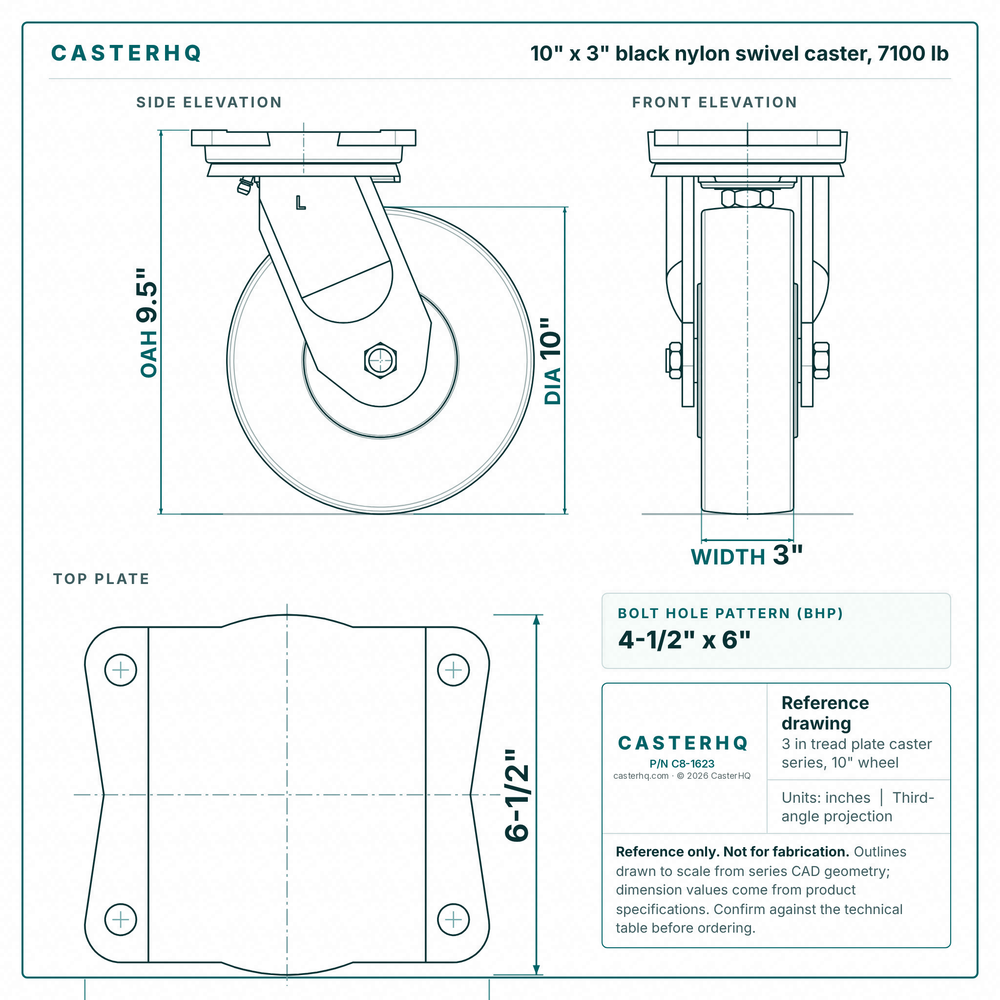

Drag to rotate. Select a label (OAH, Plate, BHP, Dia, Width) for its dimensioned drawing view; Esc or Back to 3D returns. Double-click or Reset view to recenter. Values from manufacturer specs; series geometry for the 3" tread plate caster family.
Series geometry, reference only. Verify critical dims against the spec table.
Free for design use. Redistribution or resale prohibited.
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating within the same duty class, all in stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 7000 lbsLighter duty | 10" × 3"Polyurethane | Rigid | 12-1/2" | $1,479.00 | View → | |
| 7000 lbsLighter duty | 10" × 3"Polyurethane | Swivel | 12-1/2" | $1,371.00 | View → | |
| 7100 lbs | 10" × 3"Nylon | Swivel | 9.5" | $1,447.00 | Viewing |
