The Albion 94FS06509STRL is a 6" x 3" fs plate-mount caster rated 10,000 lb per caster, mounted on a 7.5" x 6.5" top plate plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 6" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.

Where the 94FS06509STRL fits in your application

• Industrial tooling carts
• MRO equipment
• Material handling fixtures
• Production line equipment
• Workshop and assembly carts
• Maintenance carts

FAQs

Related collections & resources

Top 10 Features

• Super Duty Construction: Forged steel wheel designed for maximum durability and strength, suitable for the most demanding industrial environments.
• High Load Capacity: Supports up to 10,000 lbs, providing reliable performance for heavy-duty applications.
• Industrial Plate Size: Comes with a 7.5 x 6.5 inch plate, ensuring secure and stable mounting to various equipment.
• Enhanced Maneuverability: Smooth-rolling design with precision bearings for easy movement and reduced effort.
• Maintenance-Free: No need for lubrication or regular maintenance, ensuring hassle-free operation.
• Heavy-Duty TRL Design: Engineered for robust performance and longevity, ideal for high-stress conditions.
• Versatile Applications: Suitable for use in industrial carts, machinery, and equipment requiring high load-bearing capabilities.
• Corrosion-Resistant: Forged steel material offers excellent resistance to wear and corrosion, extending the caster's lifespan.
• Easy Installation: Features a standard plate size for straightforward installation on most industrial equipment.
• Reliable Brand: Manufactured by Albion Casters, known for quality and innovation in caster technology.

• Flat-rate shipping by order size. Final shipping cost shown before payment.
• No post-checkout shipping adjustments or re-billing.
• Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

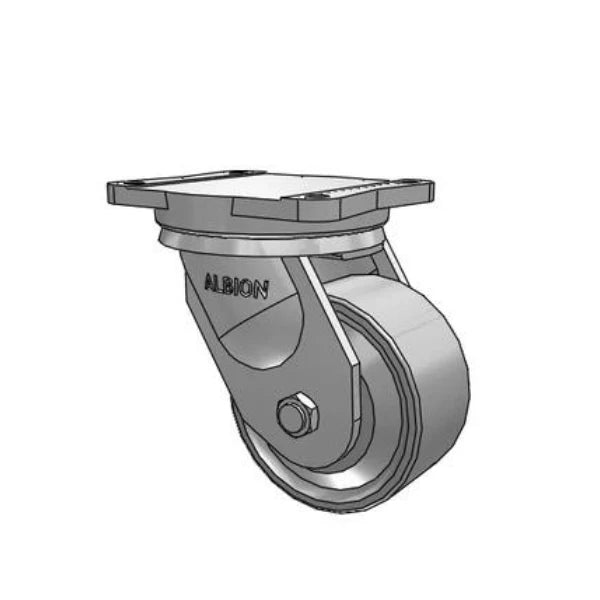

Albion Casters 6" x 3" Industrial Line - Super Duty TRL Forged Steel Wheel Caster with 7.5 x 6.5" Plate - 94FS06509STRL

The Albion Casters 6" x 3" Super Duty TRL Forged Steel Wheel Caster is designed to meet the rigorous demands of industrial applications. Engineered for superior performance, this caster combines robust construction with high load capacity, making it an ideal choice for heavy-duty use. With a focus on durability and ease of use, this caster ensures reliable mobility in even the most challenging environments.

Product Overview

• Brand: Albion Casters
• Model: 94FS06509STRL
• Size: 6" x 3"
• Type: Super Duty Forged Steel Caster
• Material: Drop-Forged Steel
• Load Capacity: 10,000 lbs

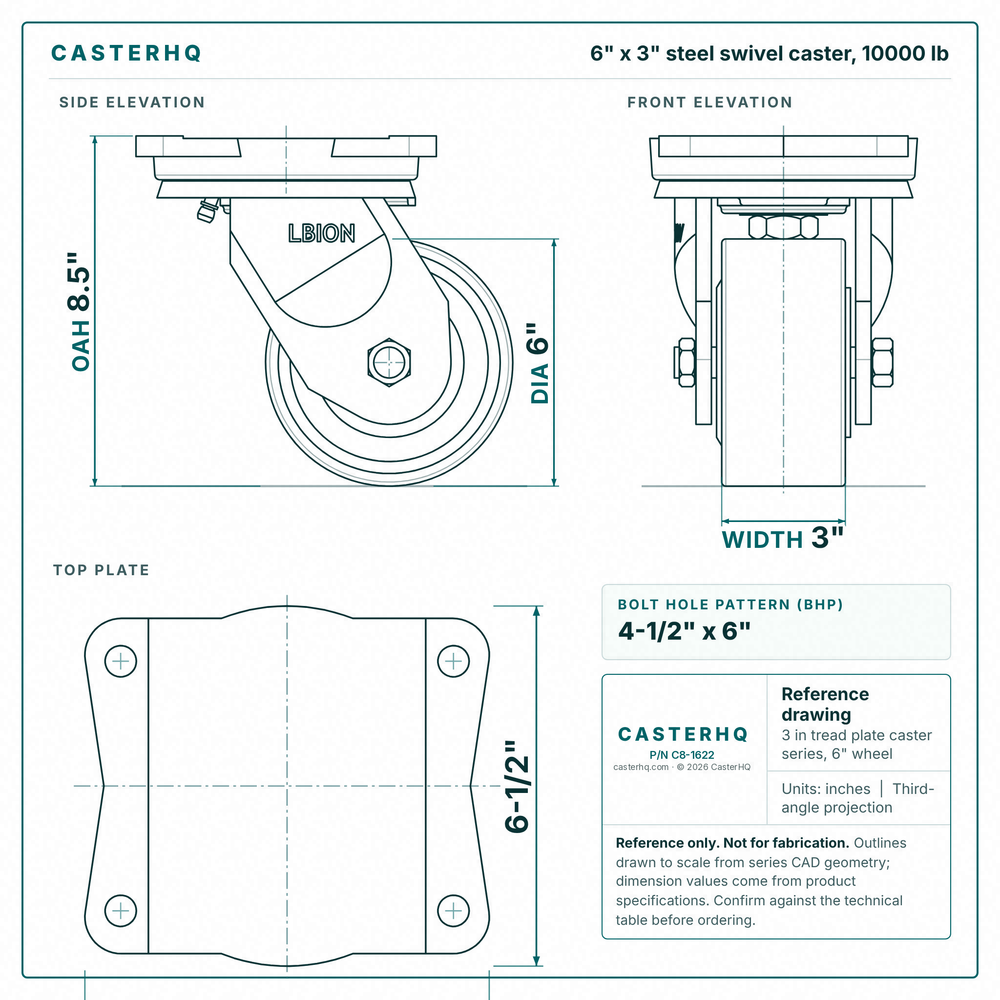

• Mounting Height: 8.5 in
• Plate Size: 7.5" x 6.5"

Key Features

• Heavy-Duty Construction: Made from drop-forged steel for maximum strength and durability, capable of handling up to 10,000 lbs.
• Precision Bearings: Features a precision tapered roller bearing with a 5” outside diameter and a 1-1/4” thrust bearing for smooth operation and increased load capacity.
• Maintenance-Free Design: No brakes or thread guards required, reducing maintenance needs and simplifying usage.
• High-Performance Wheel: Machined flat with rounded edges and a Rockwell 80 B hardness rating for enhanced durability and performance.
• Versatile Mounting: Includes a 7.5" x 6.5" top plate with a 6" x 4.5" bolt hole pattern and 1/2" bolt size recommendation for easy and secure installation.
• Corrosion-Resistant Finish: Zinc-plated for excellent resistance to wear and corrosion, extending the caster's lifespan.
• Wide Operating Temperature Range: Functional up to +800°F, making it suitable for a variety of industrial applications.

Applications

This caster is ideal for use in demanding industrial environments where high load-bearing capacity and durability are required. Common applications include use on heavy-duty carts, machinery, and equipment that need reliable mobility under substantial weight.

Why Choose Albion Casters?

Albion Casters is known for its high-quality, reliable products. This caster exemplifies their commitment to engineering excellence and durability. By choosing Albion, you're investing in a product that combines innovative design with robust performance, ensuring long-term satisfaction and efficiency in your operations.
