Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Because of its size and weight, this item typically ships LTL freight on a pallet. Smaller add-on items may ship parcel. Freight cost is calculated by destination and shown before payment, or quoted for large orders.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

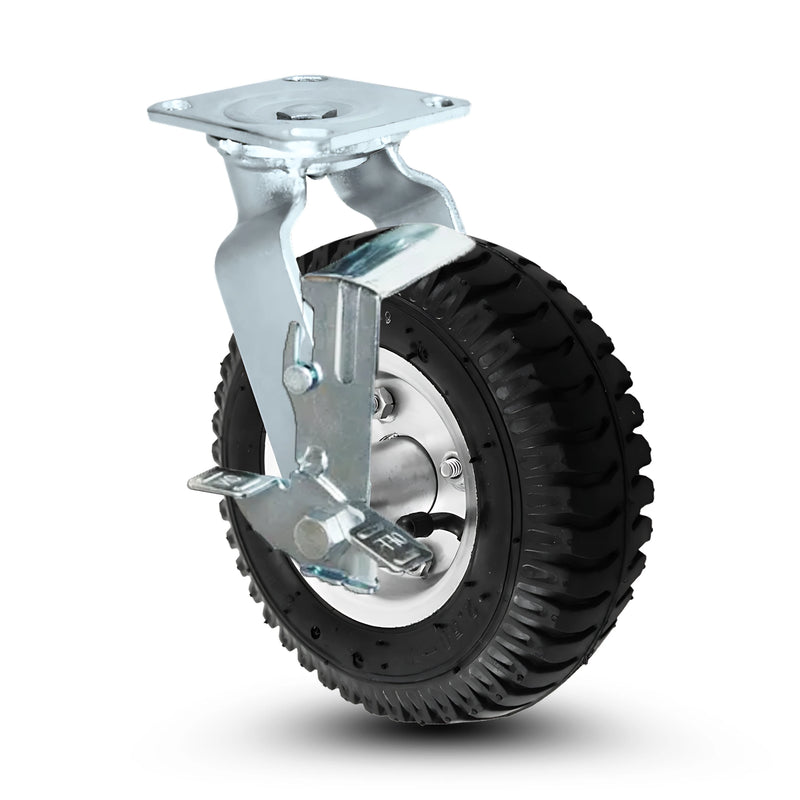

This 8" Pneumatic Swivel Caster with Brake 4" x 4-1/2" Top Plate – 250 lb is rated to 250 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount with a 4" x 4-1/2" plate and a 2-5/8" x 3-3/8" slotted to 3" x 3" bolt pattern. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
This is a Swivel with Brake caster with a wheel brake. Swivel casters rotate 360 degrees for full maneuverability. The brake locks the wheel to hold the load in place. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 10". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$71.00
| Dimensions & Mounting | |
| Wheel Diameter | 8" |
| Wheel Tread Width | 2-1/2" |
| Overall Height | 10" |
| Plate Size | 4" x 4-1/2" |
| Bolt Hole Pattern | 2-5/8" x 3-3/8" slotted to 3" x 3" |
| Mount Style | Plate |
| Rig Type | Swivel with Brake |
| Load & Performance | |
| Wheel Capacity | 250 lbs |
| Temp Range | -20°F to 180°F |
| Brake Type | Side Lock Brake |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
8" Pneumatic Swivel Caster – 250 lb | 4" x 4-1/2" Top Plate | CasterHQ
8" x 2-1/2" · 250 lbs · Direct fit
$67
8" Air Filled Pneumatic Rigid Caster – 250 lb | CasterHQ
8" x 2-1/2" · 250 lbs · Direct fit
$58
Hamilton 8" x 2 1/2" Duralast Polyurethane Rigid Caster – 3/4" Ball Bearing | CasterHQ
8" x 2-1/2"
$0
View all 8" x 2-1/2" casters & wheels · the platform-truck standard size →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 250 lbs | 8" × 2-1/2" | Swivel with Brake + brake | 10" | $71.00 | Viewing | |
 Direct fit8" Pneumatic Swivel Caster – 250 lb |
250 lbsSame capacity | 8" × 2-1/2" | Swivel | 10" | $67.00 | View → |
| 250 lbsSame capacity | 8" × 2-1/2"Rubber | Rigid | 10" | $58.00 | View → | |
| 1500 lbsHeavier duty | 8" × 2-1/2" | Rigid | — | $224.00 | View → | |
| 1500 lbsHeavier duty | 8" × 2-1/2" | Swivel | — | $69.99 | View → |
