CasterDoctor is our healthcare field-service division — same-day inspection, white-glove install crew, and one accountable vendor for every wheeled asset in your facility. Approved Texas Health Resources vendor serving the entire DFW metroplex.
PH Casters' healthcare line covers hospital beds, patient lifts, treatment carts, IV stands, rehabilitation equipment, institutional kitchens, and assistive devices. Four series — Kinexus Light, Kinexus, Tandem Standard Height, and Tandem Low Height — built around polypropylene wheel cores, TPR treads, precision-sealed bearings, and Total-Lock or Swivel-only configurations. 75mm, 100mm, and 125mm wheel options across plate, bolt-hole, grip-ring, and threaded-stem mounts. All 195 SKUs stocked at CasterHQ Mansfield, Texas for 3-5 day shipping.
PH Casters' medical and healthcare line is built around four series engineered for different load classes and applications. Kinexus Light (165 lb / 75 kg per caster) targets shower chairs and light assistive devices. Kinexus (220-275 lb / 100-125 kg) is the workhorse for general hospital furniture, treatment carts, and rehab equipment. Tandem Standard Height and Tandem Low Height twin-wheel models handle the highest loads (up to 275 lb per caster) for hospital beds, patient lifts, treatment chairs, and heavy trolleys. All four series share the same construction principle: glass-fibre-reinforced polypropylene wheel cores, thermoplastic-elastomer (TPR) crown or flat treads, precision-sealed steel bearings, and red Total-Lock pedals on brake-equipped variants. Standard frame color is RAL 7001 gray; white-with-black-tread (RAL 9003 / 9011) variants are stocked for clinical-environment specifications.

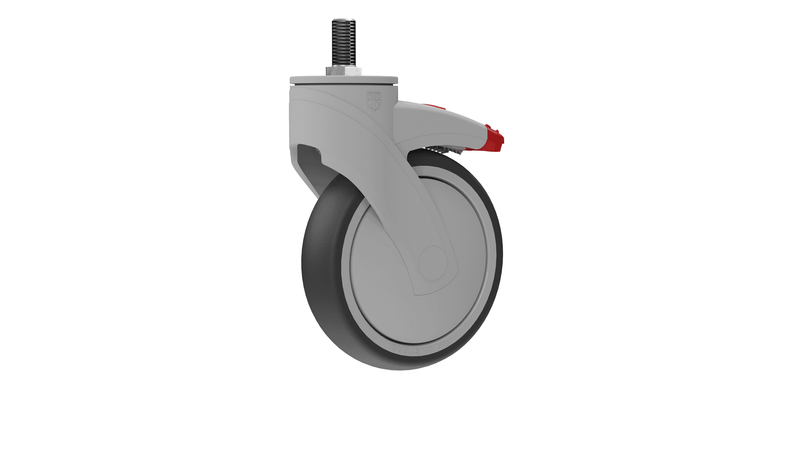

Light- to medium-duty single-wheel medical caster. 75mm wheel, 165 lb capacity. Plastic yoke. Grip-ring and threaded-stem mount options. Shower chairs, assistive devices, light hospital equipment.
Workhorse single-wheel medical caster for general hospital furniture, treatment carts, IV stands, supply trolleys, and rehabilitation equipment. Wide variant selection across mounting, color, and brake options.
Heavy-duty twin-wheel medical caster for hospital beds, patient lifts, treatment chairs, and high-load trolleys. 75/100/125mm wheel options across plate, bolt-hole, and threaded-stem mounts.
Compact twin-wheel medical caster with reduced overall height for hospital bed chassis, lift platforms, integrated dollies, and rehab equipment where vertical clearance is constrained.
Match the series to your load class, the wheel diameter to your equipment's clearance, and the brake configuration to the operational requirement (transfer safety, corridor tracking, or stationary positioning).
| Series | Wheel type | Wheel diameter | Load capacity | Primary use |
|---|---|---|---|---|
| Kinexus Light | Single | 75mm | 165 lb (75 kg) | Shower chairs, assistive devices |
| Kinexus | Single | 75-125mm | 165-220 lb | General hospital furniture, treatment carts |
| Tandem Standard Height | Twin | 75-125mm | up to 275 lb | Hospital beds, patient lifts |
| Tandem Low Height | Twin | 100-125mm | up to 275 lb | Compact chassis, lift platforms |
Tandem Standard Height twin-wheel with Total-Lock pedal. 4-caster array supports standard hospital bed + occupant + accessory load.
Kinexus 100mm Total-Lock for OR carts, anesthesia trolleys, and bedside procedure carts. Polypropylene wheel is wipe-down compatible.
Kinexus 75mm/100mm Swivel for IV poles, mobile monitors, and code carts. Lightweight rolling, quiet on vinyl corridors.
Tandem Low Height for transfer aids, mobility devices, and rehab platforms where reduced overall height is required.
Kinexus 100mm Swivel and Total-Lock for dietary carts, serving trolleys, and food-prep equipment in institutional settings.
Kinexus Light 75mm Total-Lock for bath aids, shower chairs, transfer benches. Plastic yoke resists water and chemical exposure.
CasterHQ operates Caster Doctor, an on-site service for Dallas-Fort Worth metroplex hospitals, surgery centers, long-term care, and rehabilitation facilities. Our technicians audit your wheeled equipment, match the correct PH Casters series per device, quote parts + labor, and install on-site.
Learn about Caster Doctor →"PH Casters covers the full healthcare load class with one product line. Kinexus Light handles the shower-chair and assistive-device end; Tandem Standard handles hospital beds and patient lifts at the high end. The thermoplastic-elastomer treads roll quietly on vinyl and polished concrete corridors and they don't mark floors, which matters in long-term care. We stock the full 195-SKU range so a procurement team can quote, order, and install in the same week. For DFW facilities, we'll come on-site through Caster Doctor and replace the full fleet without your team lifting a wrench."
Yes. All 195 SKUs of the medical and healthcare line are stocked at CasterHQ Mansfield, Texas. Standard ship time is 3-5 business days. Volume orders (50+ casters) ship in the same window from our Texas warehouse.
Kinexus is the single-wheel design — lighter, lower profile, and better for general hospital furniture and rehab equipment under 220 lb per caster. Tandem is the twin-wheel design — heavier-duty, rated up to 275 lb per caster, and used on hospital beds, patient lifts, and high-load trolleys. The Tandem Low Height variant fits compact chassis applications.
Kinexus Light: 165 lb per caster. Kinexus: 165-220 lb per caster depending on wheel diameter. Tandem Standard Height: up to 275 lb per caster. Tandem Low Height: up to 275 lb per caster. A standard 4-caster array supports 4× the per-caster rating with a 30% safety margin recommended.
Plate (M05), bolt-hole (H05 13mm, H06 11mm), grip-ring stem (F17 7/16"x7/8", F18 7/16"x1-7/16"), and threaded stem (T10 M12x25mm, T27 M10x25mm, T37 1/2"-13x1", T47 3/8"-16x1"). Verify against your equipment's existing mounting before specifying a replacement.
Yes. Bulk discounts apply at 50+, 100+, and 200+ caster quantities. For OEM contracts, monthly recurring orders, or fleet-wide replacement programs, request a quote and our team will return tier pricing with your specifications.
Yes — Caster Doctor is our turnkey on-site service for Dallas-Fort Worth healthcare facilities. We audit your equipment, match the correct PH Casters series to each device, quote parts + labor as a single bid, and install on-site during off-hours.
Standard stock colors are RAL 7001 gray (most common) and RAL 9003 white with RAL 9011 black tread. For larger orders (typically 500+ casters), PH Casters can produce custom frame and pedal colors. Contact our engineering team for OEM color matching, branding, and minimum-order specifications.
