The Albion 600VF06509S is a 6" x 3" plate caster rated 10000 lbs per caster, mounted on a standard plate. It is built for industrial use where part-number-exact specification, capacity, and bearing life take priority. The 6" diameter rolls cleanly over expansion joints and floor seams smaller wheels stall on. In stock at CasterHQ Mansfield, TX with same-day shipping on quantities of 1-100 placed before 2:00 PM Central. BAA / TAA documentation available on request for federal, defense, and aerospace procurement.
I spec Albion HD Raceway when the customer needs heavy capacity with hardened raceways that survive shock loading. The 600VF06509S earns its place when smooth-roll quiet operation and floor protection are the controlling spec. Pair 6" on the steered axle with a matching rigid version on the trailing axle for true four-position cart kinematics. If your floor has expansion joints over 1/2" wide, step up to a larger wheel diameter.
Albion encodes its part numbers by series, wheel material, wheel diameter, plate size, bearing type, and mount style. The 600VF06509S is decoded by your CasterHQ engineer at order time — call us at 844-439-4335 for a full breakdown.
10000 lbs per caster dynamic. On a 4-caster cart with even load distribution and a 1.3x safety factor for moving loads, that yields the rated working capacity per cart.
Yes for cast iron and steel wheels. 6" diameter rolls over expansion joints and seams cleanly. For polished or epoxy floors, ask us about poly-on-iron or thermoplastic options.
Albion's industrial casters are USA-manufactured. We provide BAA/TAA-compliant Country-of-Origin documentation on request for federal procurement, typical turnaround under 24 hours.
In stock at CasterHQ Mansfield, TX. Quantities 1-100 ship same-day for orders placed before 2:00 PM Central. Larger quantities ship within 1-2 business days.
Introducing the 600 Series caster, engineered for unmatched durability in demanding environments.
Built to withstand constant swiveling and heavy impact loads, these robust casters outperform
lesser options. The one-piece forged construction delivers exceptional strength, making them ideal for
applications in the automotive, aerospace, and other demanding industries.
Order processing
In stock. Orders placed before 12pm CT (Mon–Fri) typically ship the same or next business day from our Mansfield, TX warehouse.
Shipping method
Smaller orders ship parcel (UPS/FedEx Ground). Heavy or bulk quantities consolidate to LTL freight. The method and final cost are shown before payment, so there are no post-checkout adjustments.
Payment & procurement terms
New to CasterHQ? Open an account or request terms and send your resale or tax-exemption certificate before ordering so it is applied at checkout.
Volume pricing & quotes
Quantity discounts apply automatically — no codes needed. For large, recurring, or custom requirements, request a bulk quote and our team will confirm pricing, lead time, and total landed freight upfront.
Returns & warranty
Stock items carry a 30-day return policy in unused, resalable condition. Made-to-order and custom items are non-returnable once production starts. All products carry the manufacturer's warranty against defects.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas and freight deliveries may take longer.
For pallet freight, scheduled releases, or blanket purchase orders, contact our team and we'll confirm total landed cost before you commit. Direct line: 844-439-4335.

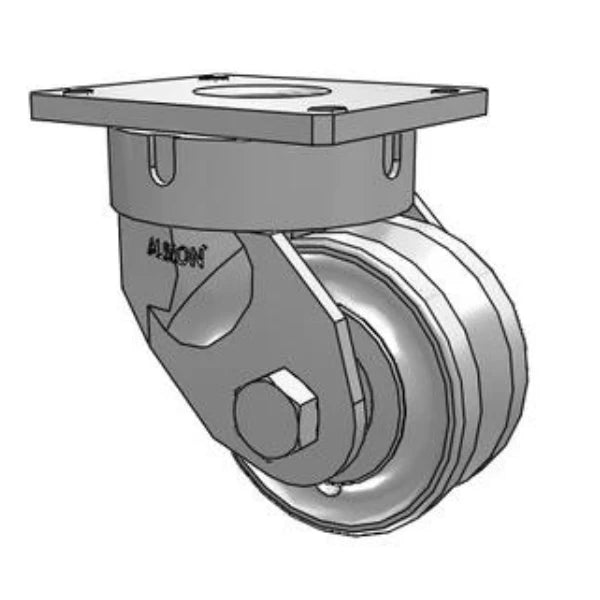

Experience peak industrial performance with our top-of-the-line Ultimate Kingpinless 6" x 3" Forged Steel V-Groove Wheel Caster. This premium caster delivers unmatched durability and capacity, ensuring your equipment operates smoothly and efficiently for years to come.
We prioritize quality. This caster is meticulously crafted with RoHS compliant zinc plating and rigorously tested to meet the stringent standards of ANSI ICWM:2012. This ensures exceptional performance and longevity, maximizing your investment.
This Albion 600VF06509S 6" x 3" Caster — 10000 lb is rated to 10000 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster uses a top-plate mount. Measure your existing mounting holes before ordering; if you are replacing casters, match the bolt pattern - most standard patterns interchange across brands.
Rated for -20°F to 180°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The overall height (floor to top of plate or stem) is 5.5". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$1,175.00
| Identification | |
| Brand | Albion Casters |
| Dimensions & Mounting | |
| Wheel Diameter | 6" |
| Wheel Tread Width | 3" |
| Overall Height | 5.5" |
| Mount Style | Plate |
| Load & Performance | |
| Wheel Capacity | 10000 lbs |
| Temp Range | -20°F to 180°F |
| Materials & Finish | |
| Frame Material | Zinc Plated Steel |
