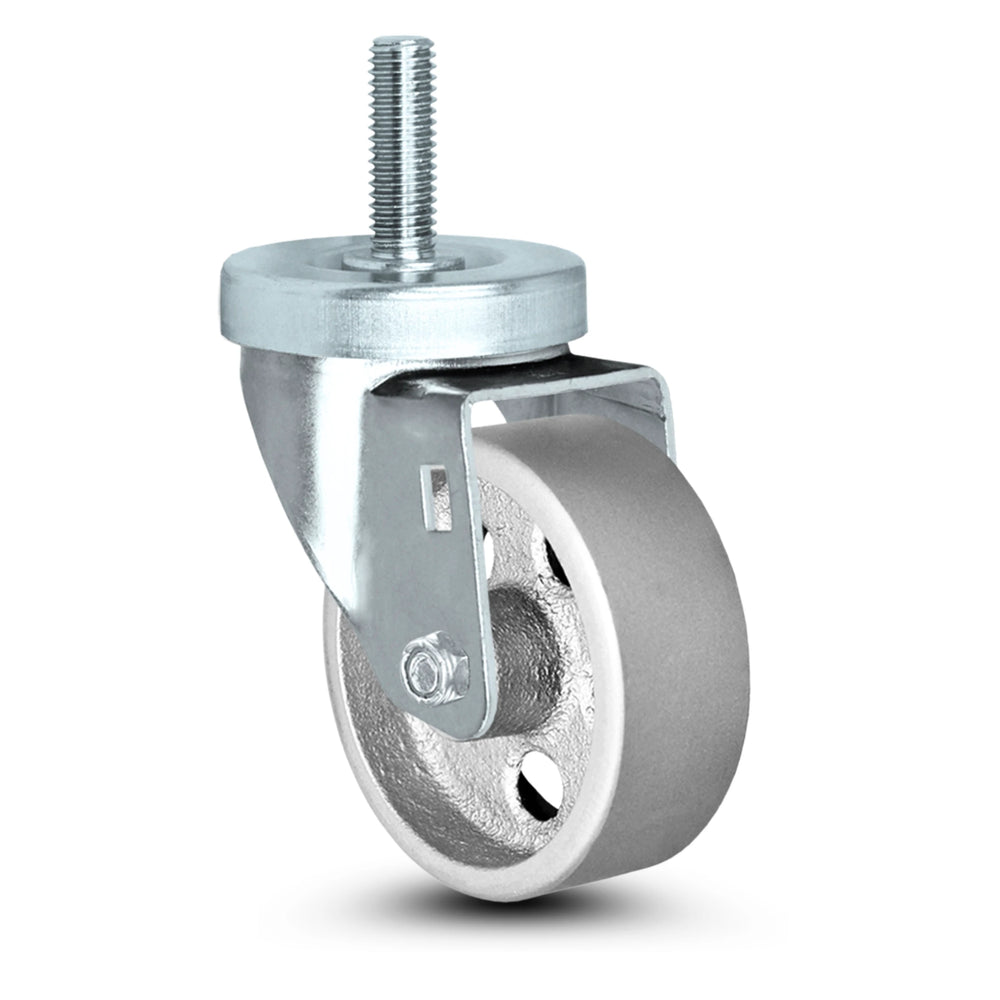

This 3" Semi-Steel Swivel Caster – 350 lb is rated to 350 lbs per caster. Size a set by dividing the total load by the number of casters, and for uneven floors assume 3 of 4 casters carry the load. Keep continuous-use loads within about 75-80% of the rating.
This caster runs a Cast Iron wheel with a 1-1/4" tread width. Steel / iron wheels give maximum capacity and durability on smooth, hard industrial floors and tolerate heat.

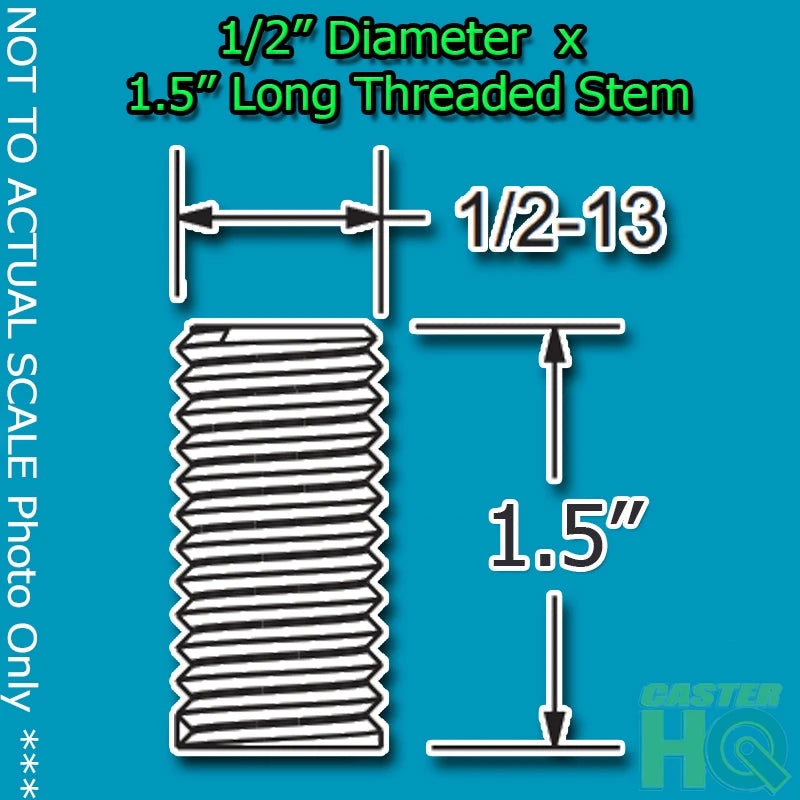

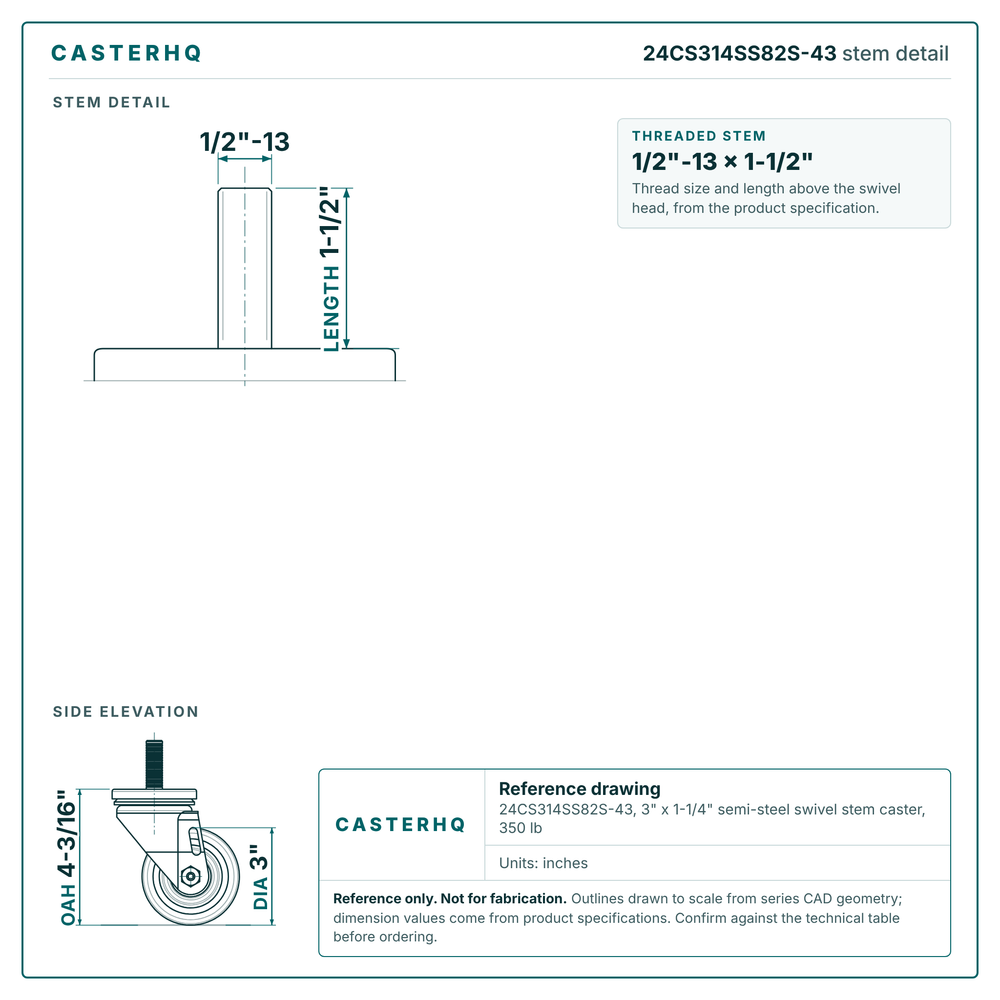

This caster uses a Threaded Stem mount (1/2"-13 x 1-1/2" stem). Stem casters press or thread into a socket - verify the stem diameter and length match your existing setup before ordering.
This is a Swivel caster. Swivel casters rotate 360 degrees for full maneuverability. For most mobile equipment we recommend 2 swivel + 2 rigid, or 4 swivel with at least 2 brakes.
Rated for -45°F to 600°F. Operating outside the rated range can reduce wheel life and load capacity, so match it to your environment (wash-down, freezer, oven-adjacent, etc.).
The Cast Iron wheel performs best on smooth, hard industrial floors. For non-marking or clean-environment needs, ask us about matching tread options.

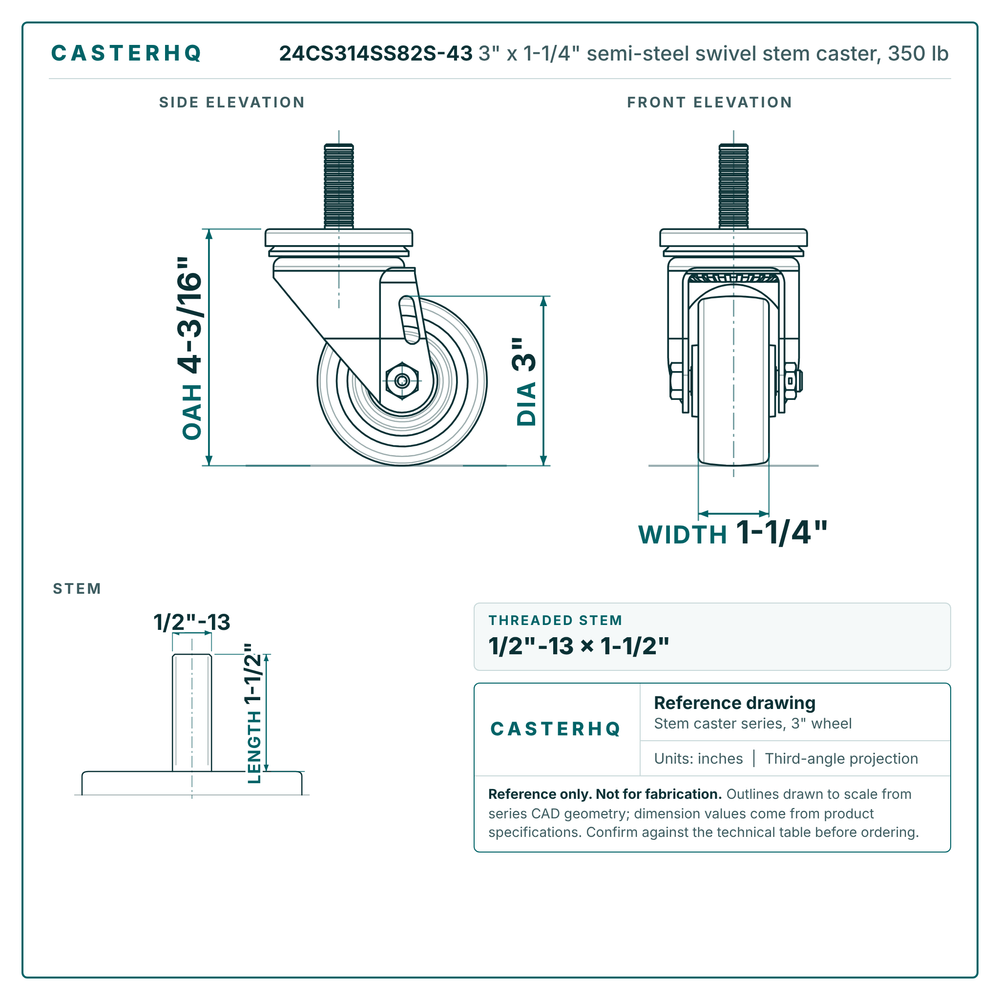

The overall height (floor to top of plate or stem) is 4-3/16". Account for it when checking equipment clearance, dock height, and ergonomic working height.
We accept purchase orders and offer Net 30 on approved accounts, ACH, and all major cards, plus tax-exempt ordering with a resale or exemption certificate. Volume discounts apply automatically; request a bulk quote for large or recurring orders. Stock items carry a 30-day return policy in unused condition (made-to-order items are non-returnable once production starts).
$23.00
| Dimensions & Mounting | |
| Wheel Diameter | 3" |
| Wheel Tread Width | 1-1/4" |
| Overall Height | 4-3/16" |
| Stem Size | 1/2"-13 x 1-1/2" |
| Mount Style | Threaded Stem |
| Rig Type | Swivel |
| Load & Performance | |
| Wheel Capacity | 350 lbs |
| Temp Range | -45°F to 600°F |
| Brake Type | No Brake |
| Materials & Finish | |
| Wheel Material | Cast Iron |
| Frame Material | Zinc Plated Steel |
3" Phenolic Swivel Caster 1/2" x 1-1/2" Threaded Stem – 350 lb | CasterHQ
3" x 1-1/4" · 350 lbs
$20
3" x 1.25" Polyurethane Swivel Caster – 300 lb | 1/2" x 1.5" Threaded Stem
3" x 1-1/4" · 300 lbs
$20
3" x 1-1/4" Steel Swivel Caster – 300 lb | 1/2"-13x1-1/2" Threaded Stem | CasterHQ
3" x 1-1/4" · 300 lbs
$23
View all 3" x 1-1/4" casters & wheels · 300-1,250 lb · medical, lab, toolbox →
Your selection is highlighted. Every option shares its wheel size and mount; a Direct fit tag means the same mounting plate — a drop-in replacement. Step up or down in load rating, all in-stock.
| Casters (in stock) | Load capacity | Wheel | Type | Overall height | Price | |
|---|---|---|---|---|---|---|
| 300 lbsLighter duty | 3" × 1-1/4"Cast Iron | Swivel | 4" | $23.00 | View → | |
| 300 lbsLighter duty | 3" × 1-1/4"Polyolefin | Swivel | 4" | $18.00 | View → | |
 This item3" Semi-Steel Swivel Caster – 350 lb |
350 lbs | 3" × 1-1/4"Cast Iron | Swivel | 4-3/16" | $23.00 | Viewing |
| 350 lbsSame capacity | 3" × 1-1/4"Phenolic | Swivel | 4-3/16" | $20.00 | View → |
