Hamilton Champion Rigid Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings - | CasterHQ

Hamilton Champion Rigid Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$371.00 USD - $411.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: R-CH-13DB70

Product Overview

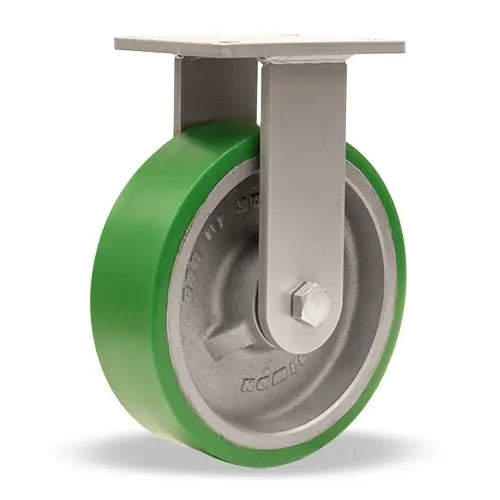

Hamilton Champion Rigid Caster with 10" x 3" Duralast XC Polyurethane (70D) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

The Hamilton Caster CH-13DB70 Champion Caster-is a top-of-the-line solution for extra heavy-duty applications. Designed to withstand the toughest environments and handle substantial loads, this caster is a reliable and robust choice for industrial settings. With exceptional performance and durability, the CH-13DB70 Champion Caster ensures smooth and efficient movement even under demanding conditions.

Crafted-with precision and attention to detail, the CH-13DB70 Champion Caster features a heavy-duty forged steel construction that provides maximum strength and longevity. It boasts a dual-ball raceway design, which enhances swivel action and load distribution, allowing for effortless maneuverability and improved weight-bearing capabilities. The caster's swivel section is fortified with a rugged 3/4" thick drop-forged steel mounting plate, ensuring exceptional stability and durability.

Equipped-with a 10" diameter by 3" wide extra-heavy-duty Duralast polyurethane wheel, the CH-13DB70 Champion Caster delivers superior load-bearing capacity and exceptional floor protection. The Duralast wheel's polyurethane tread is chemically bonded to a cast iron core, providing optimal shock absorption, noise reduction, and resistance to impact and abrasion. This combination of strength and versatility makes the CH-13DB70 Champion Caster ideal for traversing various surfaces, including concrete, metal, and uneven floors.

Technical Specs

Swivel or Rigid caster

Rigid

Load Capacity (lbs.) @ 3 mph

3900

Wheel Diameter (in.)

Wheel Face (in.)

Overall Height (in.)

12.5

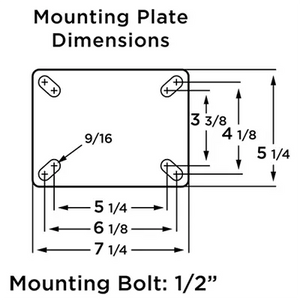

Mounting Plate (in.)

5 1/4 x 7 1/4

Bolt Hole 1 (in.)

3 3/8 x 5 1/4

Bolt Hole 2 (in.)

4 1/8 x 6 1/8

Mounting Bolt (in.)

0.5

Caster Color/Finish

Platinum Powder

Wheel Type

Duralast XC

Wheel Color/Finish

Black Poly on Gray Center

Replacement Wheel

W-1030-DB70-3/4

Wheel Material @ Tread

Polyurethane

Shipping Weight (lbs.)

Caster Rig Type

Weldment

Mounting Plate Length (in.)

7.25

Mounting Plate Width (in.)

5.25

Wheel Core Material

Cast Iron

Key Features

Extra heavy-duty-forged steel construction for maximum strength and durability

Design-for improved load distribution

3/4"-thick drop-forged steel mounting plate for enhanced stability

10" diameter by 3" wide-Duralast polyurethane wheel for superior load-bearing capacity and floor protection

Chemically-bonded polyurethane tread for optimal shock absorption, noise reduction, and resistance to impact and abrasion

Precision-tapered roller bearing for smooth motion

Sealed-precision ball bearings in the wheel for effortless rolling and reduced maintenance

Large-central grease zerk for easy lubrication and extended caster lifespan

Suitable-for heavy machinery, industrial equipment, and demanding applications.
