Hamilton Champion Swivel Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings - | CasterHQ

Hamilton Champion Swivel Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$650.00 USD - $763.68 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-CH-13GB95

Product Overview

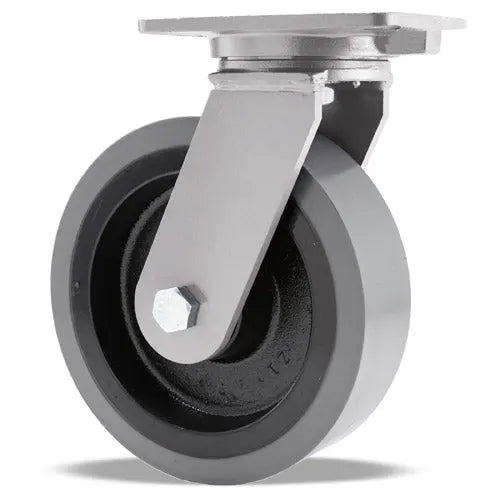

Hamilton Champion Swivel Caster with 10" x 3" DuraGlide 1" thick Polyurethane (95A) on Cast Iron Wheel with 3/4" Sealed Precision Ball Bearings

Experience-the pinnacle of strength and durability with the Hamilton Caster Champion Series - the ultimate solution for your heavy-duty caster needs. Designed to effortlessly handle extra-heavy loads, the S-CH-13GB95 caster is a true champion in the world of material handling.

Crafted-with meticulous attention to detail, this caster boasts exceptional performance and reliability. Its rugged construction ensures long-lasting use in the most demanding industrial environments. With a load capacity of up to 4,000 pounds, the S-CH-13GB95 provides unmatched support for even the heaviest machinery, equipment, and other substantial loads.

Equipped-with a precision tapered roller bearing in the swivel raceway, this caster offers superior maneuverability and ease of movement. The hardened steel balls allow for smooth swiveling action, minimizing friction and ensuring optimal performance. The sealed kingpin ensures long-lasting functionality, reducing maintenance requirements and enhancing the caster's overall lifespan.

Featuring-a robust forged steel mounting plate, the S-CH-13GB95 ensures secure attachment to your equipment. The plate is meticulously welded to the yoke base, creating a solid and reliable connection that can withstand rigorous use. Additionally, the thick, hardened top plate and legs add extra strength, ensuring stability and preventing bending or deformation under heavy loads.

Technical Specs

Swivel or Rigid caster

Swivel

Load Capacity (lbs.) @ 3 mph

4000

Wheel Diameter (in.)

Wheel Face (in.)

Overall Height (in.)

12.5

Swivel Offset (in.)

2.5

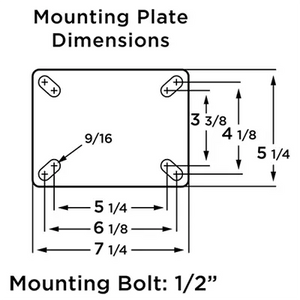

Mounting Plate (in.)

5 1/4 x 7 1/4

Bolt Hole 1 (in.)

3 3/8 x 5 1/4

Bolt Hole 2 (in.)

4 1/8 x 6 1/8

Mounting Bolt (in.)

0.5

Caster Color/Finish

Platinum Powder

Wheel Type

DuraGlide

Wheel Color/Finish

Gray Poly on Black Center

Replacement Wheel

W-1031-GB95-3/4

Wheel Material @ Tread

Polyurethane

Shipping Weight (lbs.)

Caster Rig Type

Integral Forged Kingpin

Mounting Plate Length (in.)

7.25

Mounting Plate Width (in.)

5.25

Wheel Core Material

Cast Iron

Key Features

Extra-heavy duty-caster designed for handling heavy loads

Load capacity-of up to 4,000 pounds

Precision-tapered roller bearing for superior maneuverability

Sealed-kingpin for reduced maintenance requirements

Robust-forged steel mounting plate for secure attachment

Thick-hardened top plate and legs for added strength

Polyurethane-on iron wheel for durability and versatility

Non-marking-wheel suitable for various surfaces
