Hamilton Champion Swivel Caster with 10" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing - | CasterHQ

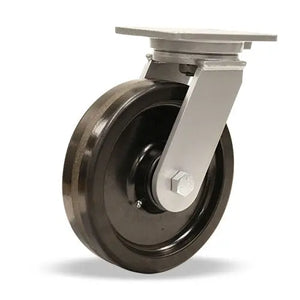

Hamilton Champion Swivel Caster with 10" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$315.00 USD - $428.68 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: S-CH-10PH

Product Overview

Hamilton Champion Swivel Caster with 10" x 2 1/2" Plastex Phenolic Wheel with 1" Straight Roller Bearing

Introducing the Hamilton Caster CH-10PH Champion Caster-the epitome of strength, durability, and reliability. This extra heavy-duty caster is designed to handle the toughest industrial applications, making it the ideal choice for demanding environments where exceptional performance is required.

With its robust construction and exceptional load-bearing capacity-the CH-10PH Champion Caster is built to withstand the harshest conditions. Whether you need to transport heavy machinery, equipment, or industrial materials, this caster is up to the task. Its superior strength ensures that your valuable assets are moved safely and efficiently, minimizing the risk of damage and enhancing overall productivity.

Featuring a precision-machined swivel section-the Champion Caster offers smooth and effortless maneuverability. The swivel section is designed to provide optimal steering control, allowing you to navigate tight spaces and corners with ease. This caster also incorporates a heat-treated kingpin, which enhances stability and ensures long-lasting performance, even under constant use.

Durability-is a hallmark of the CH-10PH Champion Caster. Its heavy-duty forged steel construction and hardened raceways are engineered to withstand heavy loads and frequent use, providing you with a caster that will stand the test of time. The caster's wheel is made from top-grade polyurethane, which offers excellent resistance to abrasion, chemicals, and impacts, further enhancing its durability.

Technical Specs

Swivel or Rigid caster

Swivel

Load Capacity (lbs.) @ 3 mph

2500

Wheel Diameter (in.)

Wheel Face (in.)

2.5

Overall Height (in.)

12.5

Swivel Offset (in.)

2.5

Mounting Plate (in.)

5 1/4 x 7 1/4

Bolt Hole 1 (in.)

3 3/8 x 5 1/4

Bolt Hole 2 (in.)

4 1/8 x 6 1/8

Mounting Bolt (in.)

0.5

Caster Color/Finish

Platinum Powder

Wheel Type

Plastex

Wheel Color/Finish

Black

Replacement Wheel

W-1025-P-1

Wheel Material @ Tread

Phenolic

Shipping Weight (lbs.)

Caster Rig Type

Integral Forged Kingpin

Note

The four-position swivel lock (-4SL) and swivel seals (-SS) cannot be ordered together on this specific caster.

Mounting Plate Length (in.)

7.25

Mounting Plate Width (in.)

5.25

Wheel Core Material

Phenolic

Key Features

Extra heavy-duty-caster for demanding industrial applications

Robust-construction for exceptional strength and durability

Precision-machined swivel section for smooth maneuverability

Heat-treated-kingpin for enhanced stability

Heavy-duty-forged steel construction and hardened raceways for durability

Top-grade-polyurethane wheel for excellent resistance to abrasion, chemicals, and impacts

Precision-secondary load-bearing design for even weight distribution

Foot-operated brake for secure wheel locking during loading and unloading operations
