PRODUCT CODE: HQ2040R-PL1-PIR-RED

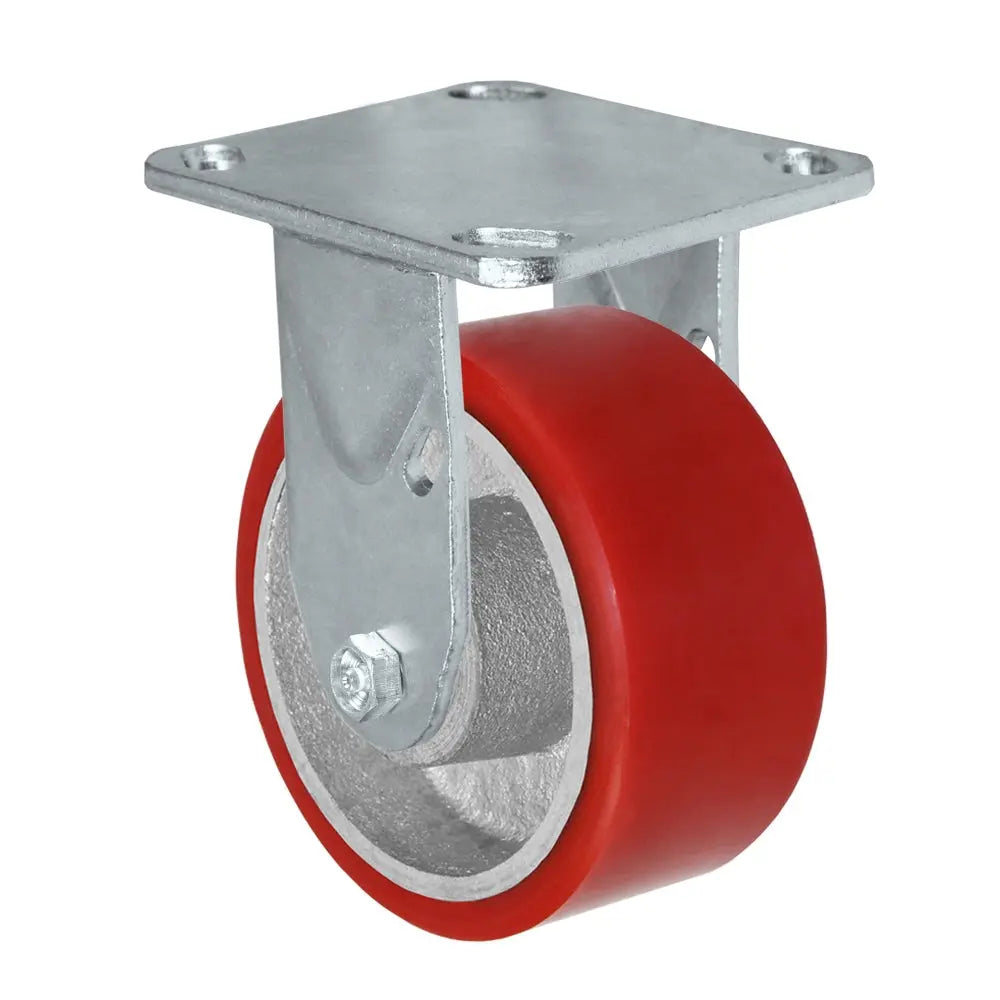

Caster HQ's Polyurethane elastomer tread chemically bonded to cast iron
core offers high weight capacities while providing good floor
protection and a quiet rolling operation. Optional precision ball bearings require less effort to start up and maintain a rolling load; they
also generate less friction heat and may prolong the life of
the wheel. This Caster and Wheel Work well in indoor and outdoor environments; however, the cast iron core can rust with lots of exposure to wet environments; if this is an issue, consider using aluminum or plastic core wheels.
CASTERHQ PART#: HQ2040R-PL1-PIR-RED
TECHNICAL SPECIFICATIONS:
| Wheel Diameter: 4" |
| Tread Width: 2" |
| Tread Face: Flat |
| Durometer: 95A (+/-5) |
| Hub Length ( Width where Axle Goes Through ): 2-7/16" |
| Maximum Capacity: 800 lbs each |
| Wheel Bearing: 3/4" Roller Bearing Included or Upgraded to a Sealed precision using the options menu on the right-hand side |
| Spanner: 1/2" |
| Axle Diameter: 1/2" |
| Color: Red Polyurethane on Silver Cast Iron Core |
| Wheel Diameter: 4" |
| Tread Width: 2" |
| Tread Face: Flat |
| Durometer: 95A (+/-5) |
| Hub Length ( Width where Axle Goes Through ): 2-7/16" |
| Maximum Capacity: 800 lbs each |
| Wheel Bearing: 3/4" Roller Bearing Included or Upgraded to a Sealed precision using the options menu on the right-hand side |
| Spanner: 1/2" |
| Axle Diameter: 1/2" |
| Color: Red Polyurethane on Silver Cast Iron Core |
CASTER FORK:
• Features wheels with 1-1/2” and 2” tread widths
• Large selections of wheels, bearings
and brake options
• Matching total-locking casters available
• Bright zinc finish
• Majority of this series and wheel types
are NSF listed
