Z20P2431NGD High-Temperature Over Rack Caster: Unyielding Efficiency and Durability

Exceptional Features

• Wheel Dimensions: 4 inches by 1.5 inches
• Mount Type: Plate Mount, 3 1/8″ x 4 1/8″
• Bearing Type: 5/16″ Quad X Precision Bearing
• Axle: 5/16″ with Nylon Lock Nut
• Load Capacity: High weight tolerance for light to medium duty applications
• Material: Green High-Temperature Epoxy Resin Wheel, Zinc Plated Steel with Lacquer Dip Yoke

Designed for exceptional performance under high-temperature conditions, the Z20P2431NGD Light/Medium Duty Caster ensures optimal mobility for a wide range of industrial applications. Its robust construction features a zinc-plated steel yoke with a lacquer dip finish and a green epoxy resin wheel that excels in both durability and heat resistance, making it the perfect choice for ovens, bakeries, and other heat-intensive environments.

Upgrade Your Equipment's Mobility

Upgrade your setup with the Z20P2431NGD Caster to enhance mobility, reliability, and efficiency of your equipment in demanding environments.

Z20P2431NGD Wheel Specifications

Material & Design

Caster Type: Swivel

Wheel Material: Epoxy Resin

Caster Finish: Zinc Plated Steel with Lacquer Dip

Wheel Profile: Flat

Wheel Durometer: Shore D95

Product Series and Applications

Product Series: 20

Series Types: 20-Light/Medium Duty

Industry: Food/Beverage, Hospitality, Institutional, Janitorial, Retail Environment

Application: Food Service, Institutional, Material Handling, Retail, Stocking, Waste Containers

Performance & Physical Characteristics

Wheel Diameter: 4"

Wheel Tread Width: 1 1/2"

Hub Width: 2"

Axle Size: 5/16"

Load Capacity: 300 LBS

Operating Temperature: -20F TO 475F

Bearing Details

Bearing Type: Quad X Precision

Bearing Material: Steel

Bearing Size: 5/16"

Plate Specifications

Plate Method: X

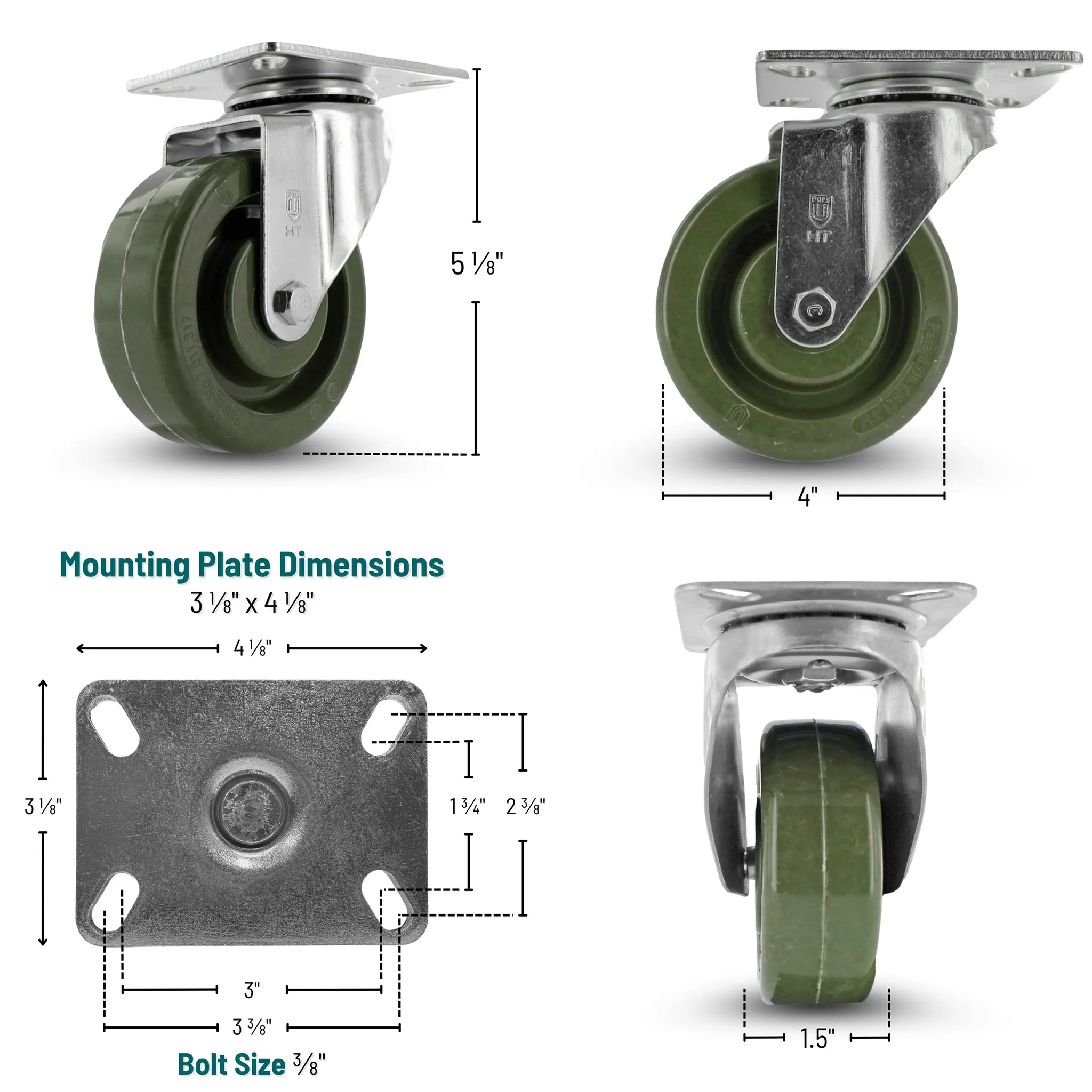

Imperial Plate Size: 3 1/8" x 4 1/8"

Plate Hole Centers: 2 1/16″ x 3 1/8″

Overall Height: 5 1/8"

Swivel Radius: 3 1/2"

Additional Features

Grease Fittings: ZA

Weight: 2 lb

Warranty Duration: 1 year

Wheel Part No: W12043NG

Top Features of the Z20P2431NGD Caster

• Wheel Size: 4 inches in diameter, 1.5 inches width for optimal balance and mobility.
• Temperature Resistance: High-temperature epoxy resin wheel suitable for environments up to 280°F.
• Mounting Type: Plate mount, dimensions 3 1/8″ x 4 1/8″, ensures secure and easy installation.
• Bearing Type: 5/16″ Quad X Precision Bearing for smoother motion and enhanced durability.
• Axle Specification: 5/16″ axle with a robust nylon lock nut, designed for long-lasting performance.
• Load Capacity: Designed for light to medium duty, handling loads efficiently.
• Material Quality: Wheel made of green high-temperature epoxy resin, yoke of zinc plated steel with lacquer dip for corrosion resistance.
• Yoke Finish: Lacquer dip finish not only protects but also enhances the caster's aesthetics.
• Application Versatility: Ideal for ovens, bakeries, and other high-heat industrial applications.
• Eco-friendly: Made with environmentally friendly materials, supporting sustainability in industrial environments.

• Flat-rate shipping by order size. Final shipping cost shown before payment.
• No post-checkout shipping adjustments or re-billing.
• Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Discover the Versatility and Durability of the Z20P2431NGD Caster

The Z20P2431NGD Caster is engineered for superior performance in demanding environments, featuring a robust 4-inch green epoxy resin wheel that withstands temperatures up to 280°F. This caster is specifically designed to provide reliable, smooth mobility under high-temperature conditions, making it an ideal choice for a variety of industrial applications including ovens and bakeries.

Its zinc-plated steel yoke with a protective lacquer dip finish ensures enhanced durability and corrosion resistance, safeguarding the caster against environmental factors in harsh settings. The 5/16″ Quad X Precision Bearings deliver exceptional maneuverability and load-bearing capabilities, supporting up to medium-duty applications efficiently.

Additional Product Features

• Easy Installation: The caster comes with a plate mount measuring 3 1/8″ x 4 1/8″, facilitating quick and secure installation.
• Load Capacity: Expertly designed to handle demanding loads, making it a reliable option for your machinery and equipment.
• Eco-Friendly Design: Committed to sustainability, the caster uses environmentally friendly materials, contributing to a greener planet.

Recommended Applications

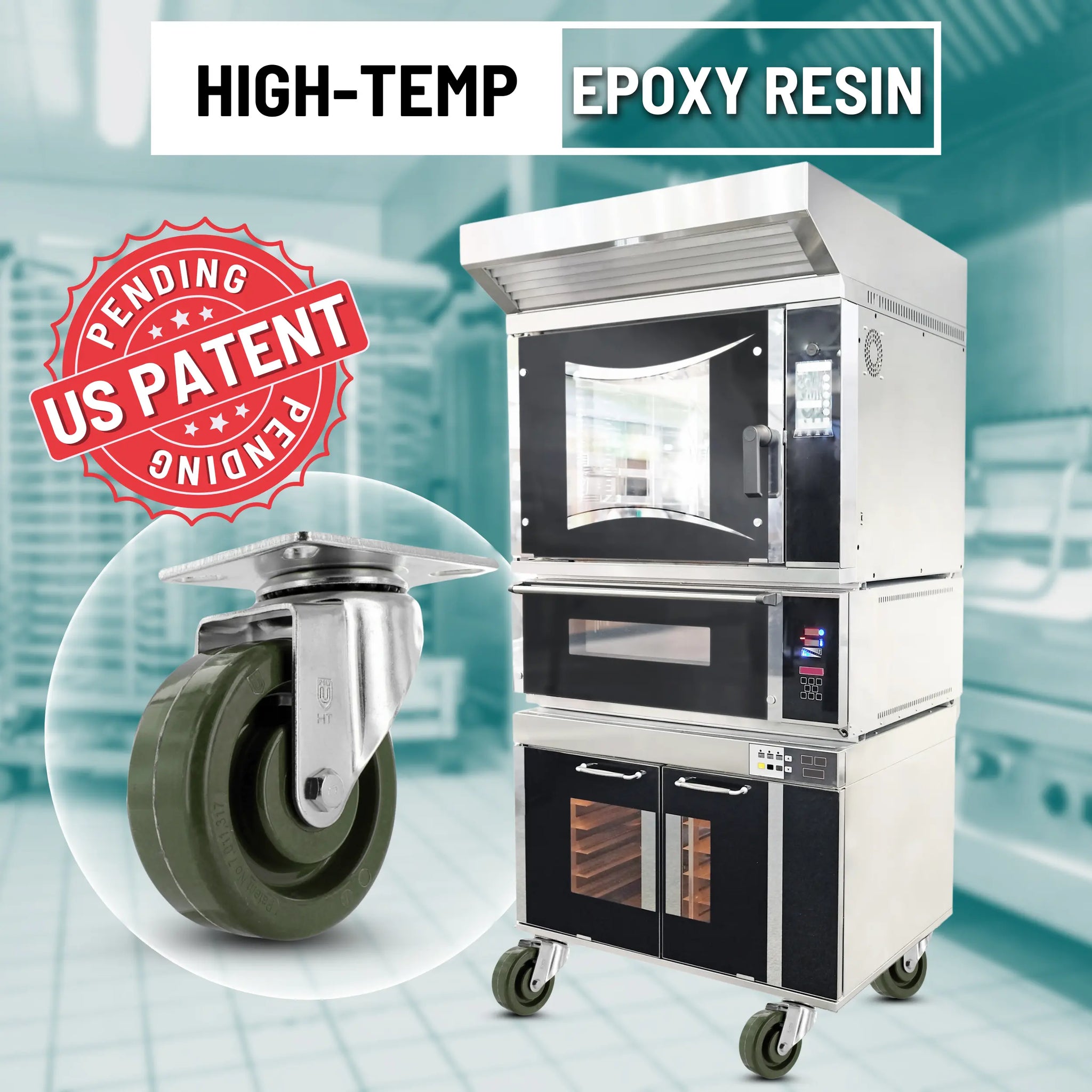

This caster is particularly suitable for bakery equipment, oven racks, and other machinery used in high-heat environments. Its high temperature tolerance and durability also make it an excellent choice for manufacturing facilities requiring reliable transport solutions.

Enhance Your Industrial Mobility Today

Upgrade to the Z20P2431NGD Caster for unmatched durability and performance. Shop now and ensure your equipment is equipped to handle any challenge with ease.
