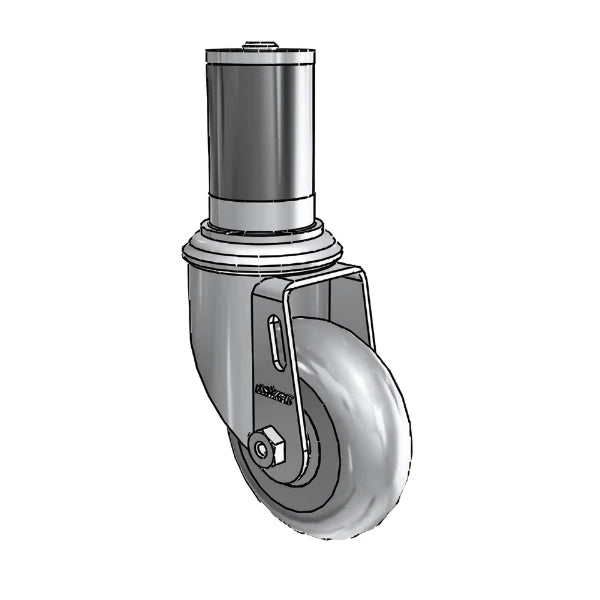

3.5" x 1.3125" Performa Ball Bearing Caster with 1-5/8" to 1-11/16" Inside Dia. Round Tubing Expanding Adapter (MTG47) - 2.03267.565 MTG47

Product Overview

• Size: 3.5" x 1.3125"
• Material: Performa ball bearing with high-quality components
• Bearings: Precision ball bearings for smooth and reliable operation
• Mounting Adapter: 1-5/8" to 1-11/16" Inside Dia. round tubing expanding adapter (MTG47)
• Mounting Type: Expanding adapter for easy installation on various tubing sizes
• Model: 2.03267.565 MTG47
• Durability: Built for industrial-grade environments, offering excellent load-bearing capacity
• Application: Suitable for carts, equipment, and other industrial machinery
• Performance: Delivers exceptional mobility and durability under heavy-duty use
• Corrosion Resistance: High-quality materials that ensure long-lasting protection against wear and corrosion

Key Benefits

The 3.5" x 1.3125" Performa Ball Bearing Caster with 1-5/8" to 1-11/16" Inside Dia. Round Tubing Expanding Adapter (MTG47) is engineered to offer exceptional strength, durability, and smooth operation for demanding industrial applications. Featuring precision ball bearings, this caster ensures easy movement and reliability, even under heavy loads. The expanding adapter allows for seamless installation on a variety of round tubing sizes, making it a versatile option for a wide range of equipment and machinery. The Performa ball bearing design offers superior load distribution, ensuring your equipment performs optimally for longer periods.

Customer Assurance

Our 3.5" x 1.3125" Performa Ball Bearing Caster with Expanding Adapter (MTG47) is crafted with precision and tested to meet the highest standards for industrial use. Each caster is designed to provide reliable performance in demanding environments, and we stand behind the quality and durability of our products. You can trust that our casters will offer exceptional value, ensuring that your equipment operates with maximum efficiency. Backed by our customer satisfaction guarantee, this caster delivers long-term performance with minimal maintenance.

Technical Specifications

• SKU: 2.03267.565 MTG47
• Caster Type: Swivel
• Raceway Type: Full double ball hardened raceways for enhanced performance and durability with multi-temp grease for extreme hot and cold temperatures
• Brake: None
• Load Capacity: 210 lb
• Wheel Tread Width: 1.31 in
• Wheel Description: Performa
• Wheel Color: Grey on Grey
• Wheel Bearing: Ball Bearing
• Wheel Profile: Round Tread
• Wheel Hardness: 65(+/-5) Shore A
• Wheel Thread Guards: None

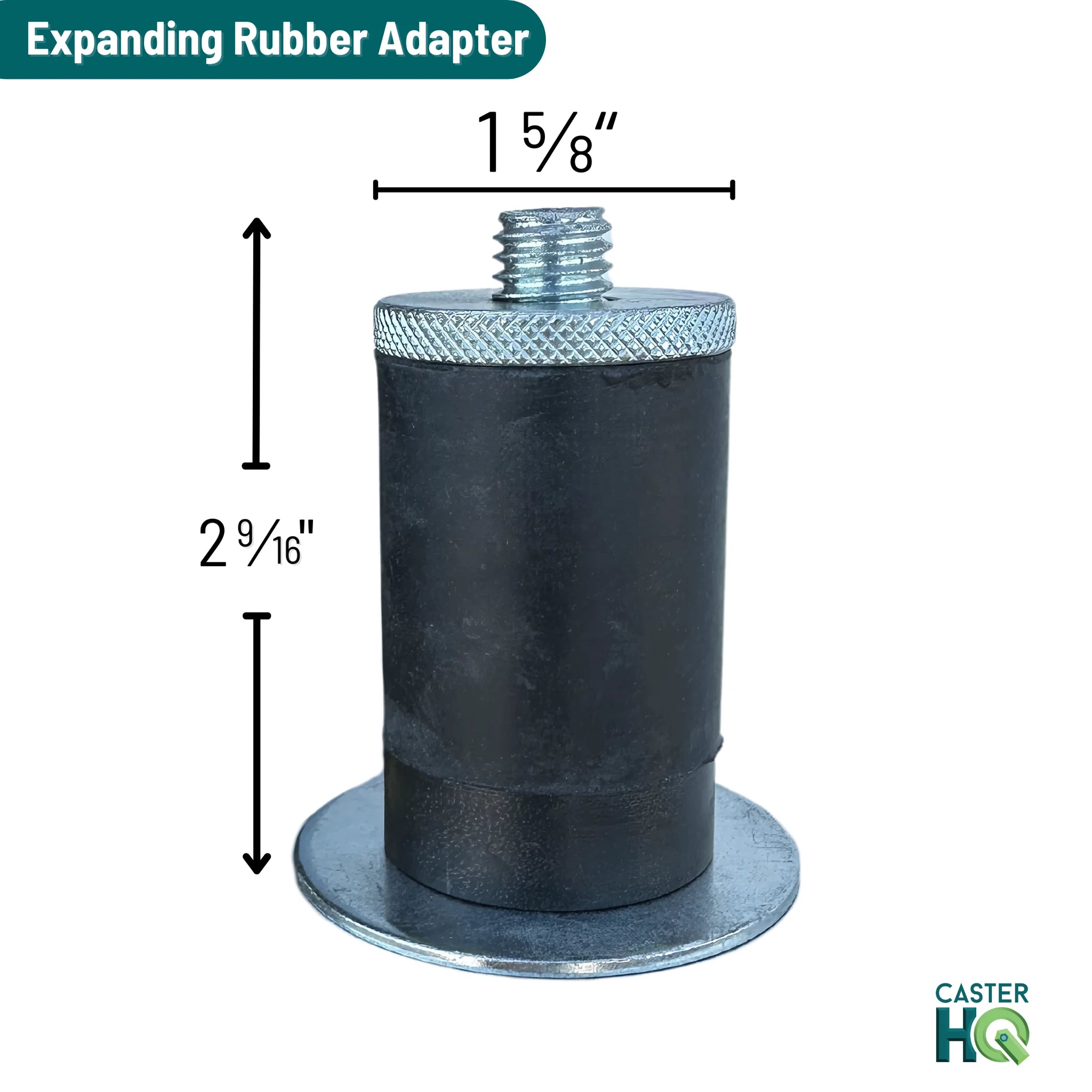

• Fastening: 1-5/8" to 1-11/16" Inside Dia. Round Tubing (MTG47) Expanding Adapter
• Mounting Height: 4.56 in
• Swivel Radius: 2.91 in
• Operating Temperature Range: -45°F to +180°F
• Warranty: 3 years
• Manufacturing Number: 2.03267.565 MTG47
• Conformity: RoHS compliant; NSF component (excluding thread guards)

Top 10 Product Features

• Heavy-Duty Load Capacity: Supports up to 210 lbs, providing reliable performance in industrial and heavy-duty applications.
• Precision Swivel Design: Features a swivel caster for smooth movement, offering flexibility and maneuverability for equipment and machinery.
• Durable Raceway Type: Full double ball hardened raceways with multi-temp grease ensure exceptional performance and durability under both hot and cold temperature extremes.
• Performa Wheel Construction: Performa wheels are designed for high durability, providing enhanced strength, longevity, and impact resistance for heavy-duty use.
• Optimal Wheel Hardness: The 65(+/-5) Shore A hardness ensures excellent load-bearing capacity while providing smooth, consistent rolling performance.
• Temperature Resilience: Operates in temperatures ranging from -45°F to +180°F, making it suitable for a wide variety of environments and conditions.
• Versatile Mounting Options: The expanding adapter (1-5/8" to 1-11/16" Inside Dia. Round Tubing) allows for easy installation on different tubing sizes, ensuring flexibility in equipment setup.
• Reliable Ball Bearing Design: Ball bearings provide smooth, low-resistance movement, contributing to increased reliability and long-lasting performance even under heavy loads.
• Easy-to-Use Fastening: The expanding adapter is designed for straightforward and secure fastening, allowing quick installation with minimal effort.
• RoHS & NSF Compliance: Conforms to RoHS standards and is an NSF component (excluding thread guards), ensuring quality and environmental responsibility.

• Flat-rate shipping by order size. Final shipping cost shown before payment.
• No post-checkout shipping adjustments or re-billing.
• Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

3.5" x 1.3125" Performa Ball Bearing Caster with Expanding Adapter (MTG47) - 2.03267.565 MTG47

Product Overview

The 3.5" x 1.3125" Performa Ball Bearing Caster with Expanding Adapter (MTG47) is an industrial-grade caster designed for heavy-duty applications. It is equipped with a full double ball hardened raceway, ensuring enhanced performance and long-term durability even under the most demanding conditions. This caster offers a high load capacity of 210 lbs, making it ideal for a variety of equipment and machinery in commercial and industrial settings.

Key Features and Benefits

• Load Capacity: The caster supports a robust load capacity of 210 lbs, providing reliable performance in various industrial applications.
• Swivel Design: The swivel caster ensures smooth, flexible movement, ideal for tight spaces and applications that require precise maneuvering.
• Durable Raceway Construction: The full double ball hardened raceways with multi-temp grease provide superior durability and performance, making the caster suitable for both extreme hot and cold environments.
• Performa Wheel: The Performa wheel construction offers high durability, ensuring strength and resistance to impact, providing smooth operation under heavy loads.
• Wheel Hardness: The 65(+/-5) Shore A hardness provides an optimal balance between load-bearing capacity and smooth movement, ensuring consistent performance over time.
• Temperature Resistance: Designed to operate in temperatures ranging from -45°F to +180°F, this caster is versatile enough for use in a variety of environments.
• Versatile Mounting: The expanding adapter accommodates tubing with diameters from 1-5/8" to 1-11/16", offering easy installation on a variety of equipment.
• Ball Bearing System: The precision ball bearing design delivers smooth, low-resistance movement, ensuring long-lasting performance even under heavy use.
• Easy Fastening: The expanding adapter ensures straightforward installation with minimal effort, making this caster an easy addition to various industrial setups.
• Compliance: RoHS compliant and an NSF component (excluding thread guards), this caster meets environmental and quality standards, giving you peace of mind regarding its safety and reliability.

Customer Assurance

The 3.5" x 1.3125" Performa Ball Bearing Caster with Expanding Adapter (MTG47) is built to withstand the demands of heavy-duty industrial environments. Whether you are looking to upgrade your equipment, improve mobility, or replace worn-out casters, this product delivers exceptional performance, durability, and ease of use. With a customer satisfaction guarantee, you can trust in the quality and reliability of this caster for your business needs.

Ideal Applications

This caster is perfect for machinery, carts, equipment, and other industrial applications where precision movement and high load-bearing capacity are critical. Its versatility makes it suitable for use in a variety of settings, from manufacturing plants to commercial kitchens and beyond. Whether you're in need of a durable solution for a mobile workbench, industrial cart, or transport equipment, this caster provides the reliability and performance you need.
