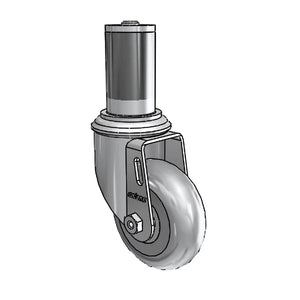

3.5" x 1.3125" Performa Delrin Bearing Caster with 1-1/2" to 1-9/16" Inside Dia. Round Tubing Expanding Adapter (MTG46) - 2.03267.561 MTG46

Product Overview

• Size: 3.5" x 1.3125"
• Material: Performa Delrin bearing
• Mounting Adapter: Expanding adapter for 1-1/2" to 1-9/16" inside diameter round tubing
• Model: 2.03267.561 MTG46
• Bearings: Delrin bearings for smooth and reliable performance
• Mounting Type: Expanding adapter (MTG46) designed for ease of installation
• Application: Perfect for light to medium-duty industrial applications
• Performance: Provides a smooth, low-friction ride for maximum load efficiency
• Durability: Designed for reliable, long-lasting performance in diverse environments
• Corrosion Resistance: Built to resist wear and tear in various industrial settings

Key Benefits

The 3.5" x 1.3125" Performa Delrin Bearing Caster with 1-1/2" to 1-9/16" Inside Dia. Round Tubing Expanding Adapter (MTG46) is engineered for industries requiring a balance of smooth performance and durability. The Delrin bearings ensure low-friction operation, enhancing the caster's lifespan and efficiency under load. The expanding adapter provides a simple yet secure way to install on round tubing ranging from 1-1/2" to 1-9/16" in diameter. Ideal for applications like light machinery, transport equipment, and industrial carts, this caster delivers outstanding value in terms of reliability, performance, and versatility.

Customer Assurance

Our 3.5" x 1.3125" Performa Delrin Bearing Caster with Expanding Adapter (MTG46) has been meticulously crafted to meet the highest standards of industrial excellence. Every component is rigorously tested to ensure superior durability and consistent performance, even under demanding conditions. We take pride in providing products that enhance operational efficiency and customer satisfaction, backed by our commitment to reliability. Whether you're outfitting machinery or equipment, this caster guarantees a secure, smooth, and dependable solution for your business.

Technical Specifications

• SKU: 2.03267.561 MTG46
• Caster Type: Swivel
• Raceway Type: Full double ball hardened raceways for enhanced performance and durability, featuring multi-temp grease for extreme temperature conditions (-45°F to +180°F)
• Brake: None
• Load Capacity: 210 lb
• Wheel Tread Width: 1.31 in
• Wheel Description: Performa
• Wheel Color: Grey on Grey
• Wheel Bearing: Delrin
• Wheel Profile: Round Tread
• Wheel Hardness: 65(+/-5) Shore A
• Wheel Thread Guards: None
• Fastening: 1-1/2" to 1-9/16" Inside Dia. Round Tubing (MTG46) Expanding Adapter
• Mounting Height: 4.56 in
• Swivel Radius: 2.91 in
• Operating Temperature Range: -45°F to +180°F
• Warranty: 3-year
• Manufacturing Number: 2.03267.561 MTG46
• Conformity: RoHS compliant; NSF component (less thread guards)

Top 10 Product Features

• Enhanced Performance: Features full double ball hardened raceways with multi-temp grease for superior durability and reliability in extreme hot and cold temperatures (Operating range: -45°F to +180°F).
• Heavy-Duty Load Capacity: Supports up to 210 lb, making it ideal for industrial applications requiring robust performance under load.
• Precision Bearings: Equipped with Delrin bearings, providing smooth, low-friction performance and longer lifespan even under heavy-duty conditions.
• Flexible Mounting Options: Includes an expanding adapter designed for easy installation on 1-1/2" to 1-9/16" inside diameter round tubing, ensuring a secure fit for various setups.
• Wheel Design: The Performa wheel features a round tread profile, designed for durability and smooth operation on a variety of surfaces.
• Optimal Wheel Hardness: With a 65(+/-5) Shore A hardness, the wheel strikes the perfect balance between grip and durability for long-lasting performance.
• Compact and Versatile: The 3.5" x 1.3125" wheel size offers versatility for use in a wide range of applications, including industrial machinery, carts, and transport equipment.
• Corrosion Resistance: Constructed from high-quality materials to resist wear and corrosion, providing long-term value and performance in various environmental conditions.
• Warranty and Support: Backed by a 3-year warranty, ensuring peace of mind with every purchase and ongoing support for industrial needs.
• Compliance and Quality Assurance: RoHS compliant and an NSF component (less thread guards), ensuring that the product meets high safety and regulatory standards for industrial applications.

• Flat-rate shipping by order size. Final shipping cost shown before payment.
• No post-checkout shipping adjustments or re-billing.
• Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Extended Product Information

Overview

The 3.5" x 1.3125" Performa Delrin Bearing Caster with Expanding Adapter (MTG46) is engineered for superior durability and performance in a variety of industrial environments. With a robust load capacity of 210 lb, this caster is designed to withstand the demands of heavy-duty applications. The caster’s high-quality Delrin bearings provide a smooth and low-friction ride, while the expanding adapter allows for easy installation onto round tubing ranging from 1-1/2" to 1-9/16" in diameter. It is an ideal solution for industrial machinery, carts, and other transport equipment that require stability and reliability.

Performance Features

• Full Double Ball Hardened Raceways: These raceways are designed for increased durability and performance, ensuring reliable movement even under extreme conditions. The multi-temp grease offers versatility, enabling use in a wide range of temperatures, from -45°F to +180°F.
• Heavy-Duty Load Capacity: With a load capacity of 210 lb, this caster ensures that your equipment and machinery remain functional and stable under heavy use, providing efficient and safe transport solutions for your business.
• Precision Delrin Bearings: Delrin bearings are known for their low friction, which helps reduce wear and tear, increasing the longevity of the caster while maintaining a smooth ride even under significant loads.

Design and Construction

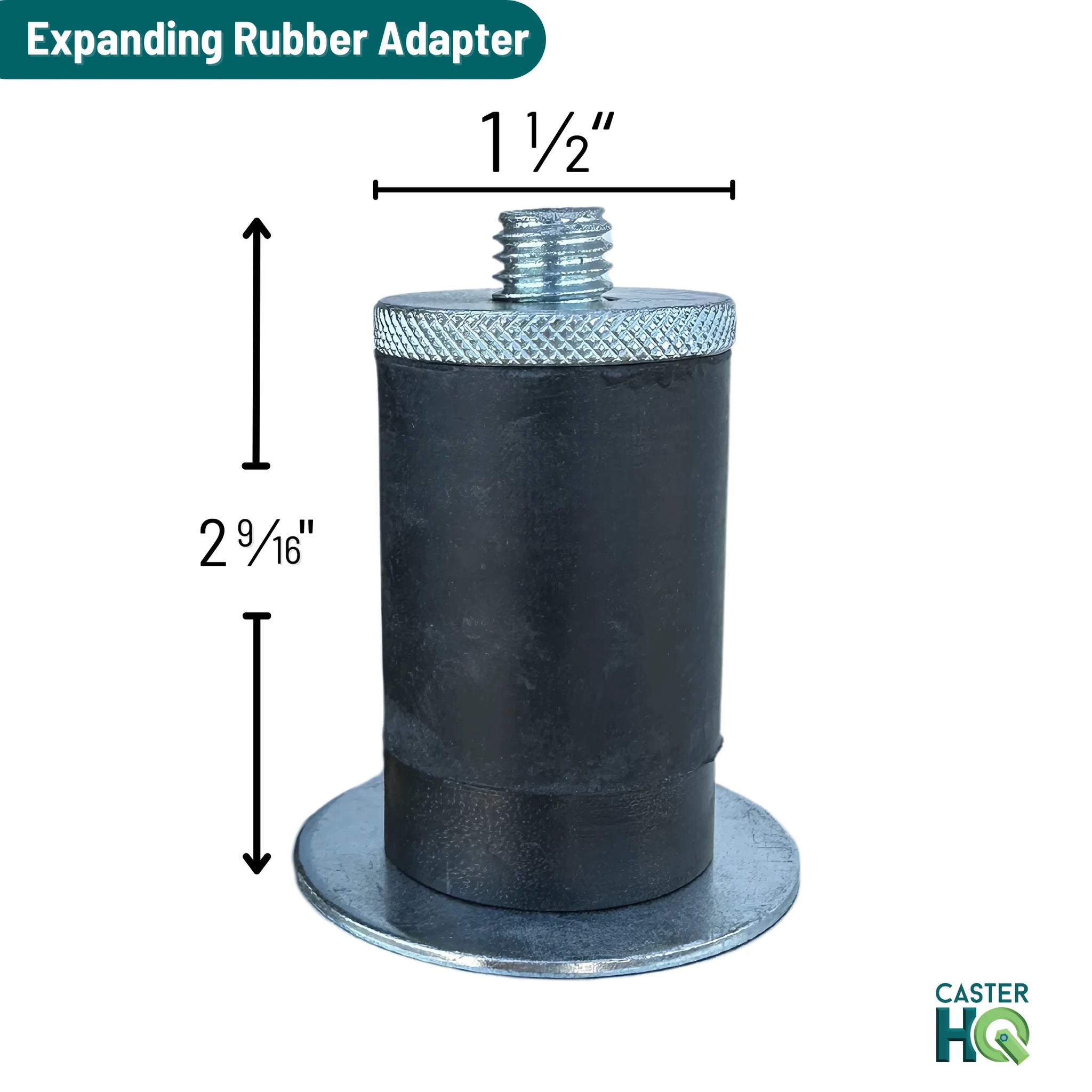

• Expanding Adapter for Easy Installation: The included expanding adapter (MTG46) provides a simple, secure mounting solution for 1-1/2" to 1-9/16" inside diameter round tubing. This feature ensures compatibility with a variety of industrial equipment setups.
• Performa Wheel for Durability: The Performa wheel, with its round tread profile, offers excellent resistance to impact and wear. It is designed to handle demanding environments, providing long-lasting performance with minimal maintenance.
• Optimal Wheel Hardness: With a 65(+/-5) Shore A hardness rating, the wheel is designed to offer a perfect balance between durability and grip, ensuring smooth movement and reduced wear on surfaces.

Applications and Benefits

This caster is perfect for use in industrial machinery, equipment carts, transport systems, and other applications requiring durability and smooth movement. Whether you need to upgrade your existing equipment or are designing a new system, this Performa Delrin bearing caster offers the reliability and performance you need. Its corrosion-resistant materials ensure it will perform well in diverse environments, providing long-term value for your business.

Compliance and Warranty

• RoHS Compliant: This caster complies with RoHS standards, ensuring that it is free from harmful substances and environmentally friendly.
• NSF Component: The caster is NSF certified (less thread guards), ensuring it meets the high standards required for food and healthcare industries.
• 3-Year Warranty: This product is backed by a 3-year warranty, providing assurance of its long-term reliability and performance.

Customer Assurance

Our 3.5" x 1.3125" Performa Delrin Bearing Caster with Expanding Adapter (MTG46) is crafted with the highest quality materials and attention to detail. Each caster is rigorously tested to ensure it meets the demanding standards required for industrial use. With our 3-year warranty and commitment to customer satisfaction, you can trust that this caster will provide reliable, long-lasting performance.
