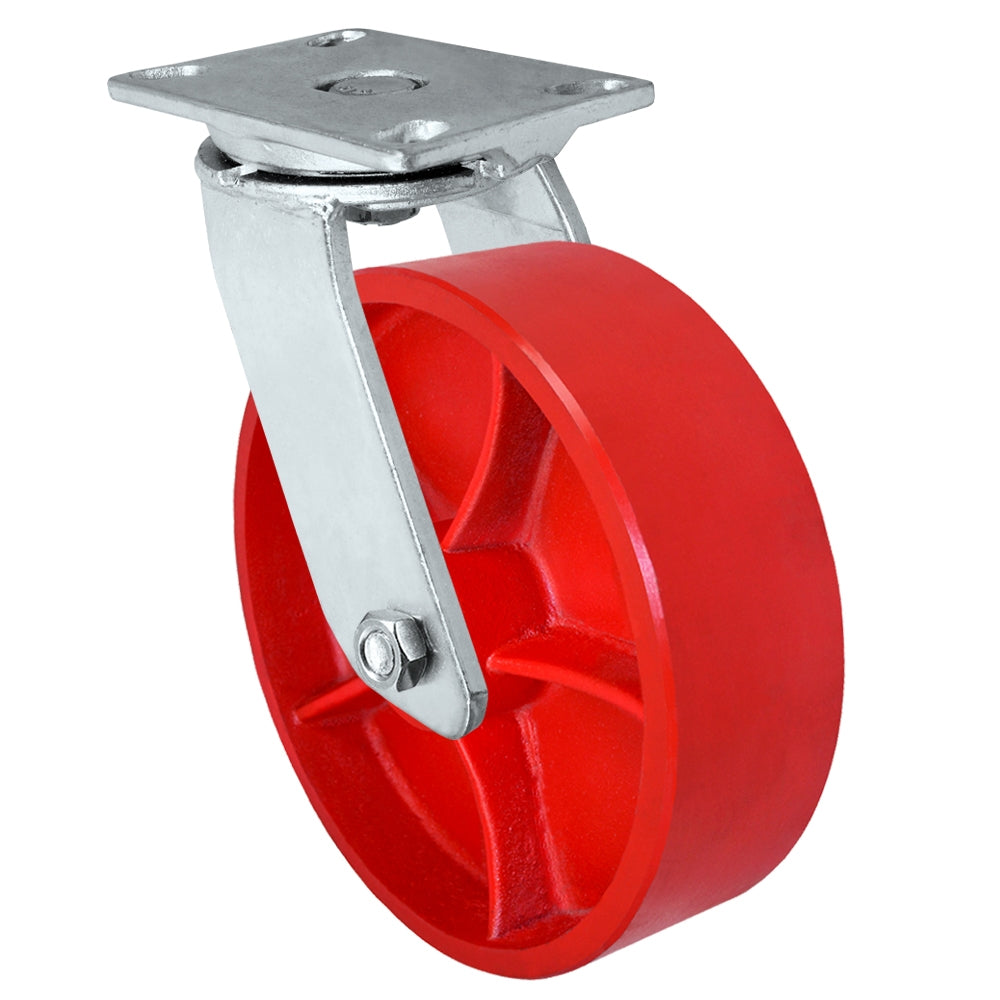

10" x 3" Heavy Duty Swivel Caster - Red Ductile Steel Wheel - 2,500 lbs Capacity Per Caster

10" x 3" Heavy Duty Swivel Caster - Red Ductile Steel Wheel - 2,500 lbs Capacity Per Caster - CasterHQ

10" x 3" Heavy Duty Swivel Caster - Red Ductile Steel Wheel - 2,500 lbs Capacity Per Caster

Quantity Discounts:

5% Off: 50-99 pcs
10% Off: 100-199 pcs
15% Off: 200+ pcs

Volume pricing applied automatically at checkout

.price-ui--loading { display: block !important; opacity: 1 !important; }

$407.00

Status: In Stock

Ships within 1–2 business days

PRODUCT CODE: 60CS1030DS25-04

Technical Specs

Wheel Diameter: 10"
Tread Width: 3"
Wheel Type: Red Ductile Steel Wheel
Bearing Type: 1" Roller Bearing w/ 3/4" Spanner Bushing (Precision Bearings Available)
Load Capacity: 2,500 lbs
Overall Height: 11-1/2"
Swivel Radius: 7-1/2"

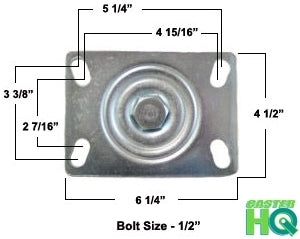

Mounting Plate Size: 4-1/2" x 6-1/4"
Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attaching Mounting Bolt Hole Size: 1/2"

Key Features

Heavy Duty Drop Forged Top Plate and Yoke Base Manufactured from 1045 Steel
3/8" Round Edge Steel Legs, Double Welded
3/4" Axle and Lock Nut
Zinc Plated Finish

Product Overview

10" x 3" Heavy Duty Swivel Caster - Red Ductile Steel Wheel - 2,500 lbs Capacity Per Caster

This listing is for a 10-inch diameter by 3-inch tread width Swivel Caster combined with Red Duclite Steel Wheels. These Casters are a Heavy Duty Series of Casters with a weight capacity of 2,500 lbs per caster. For more information please check out our features and technical specifications.

Wheel Diameter: 10"
Tread Width: 3"
Wheel Type: Red Ductile Steel Wheel
Bearing Type: 1" Roller Bearing w/ 3/4" Spanner Bushing (Precision Bearings Available)
Load Capacity: 2,500 lbs
Overall Height: 11-1/2"
Swivel Radius: 7-1/2"
Mounting Plate Size: 4-1/2" x 6-1/4"
Bolt Hole Pattern: 2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Attaching Mounting Bolt Hole Size: 1/2"
