Hamilton Champion Rigid Caster with 10" x 3" Forged Steel Wheel with 3/4" Sealed Precision Ball Bearing

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: R-CH-13FSB

Product Overview

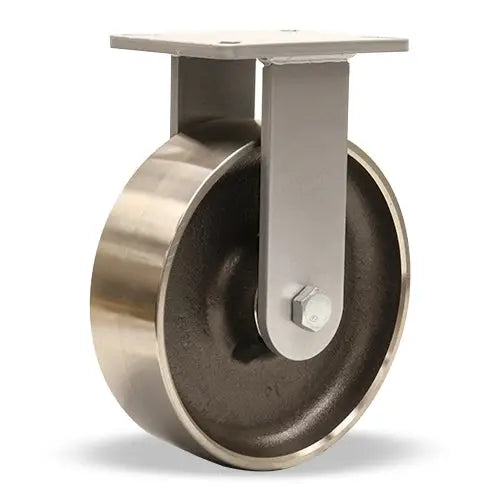

Hamilton Champion Rigid Caster with 10" x 3" Forged Steel Wheel with 3/4" Sealed Precision Ball Bearing


The Hamilton Caster CH-13FSB Champion Caster-is the epitome of exceptional strength and reliability. Designed for extra heavy-duty applications, this caster is built to withstand the toughest environments and deliver unmatched performance. Whether you need to move heavy machinery, industrial equipment, or other substantial loads, the CH-13FSB Champion Caster is the perfect solution for your needs.
The CH-13FSB Champion Caster comes with a large-heavy-duty wheel made of rugged, impact-resistant polyurethane. This wheel is designed to absorb shocks and vibrations, providing a cushioned ride while protecting your valuable cargo from damage. With its large diameter, it can easily roll over obstacles and uneven surfaces, ensuring a smooth and steady operation.
One of the standout features-of the CH-13FSB Champion Caster is its superior load-bearing capacity. It can support an impressive weight capacity of up to 4,000 pounds, making it ideal for demanding industrial applications where heavy loads need to be moved with ease and safety. The caster's sturdy construction and high load rating make it a reliable choice for industries such as manufacturing, warehousing, automotive, aerospace, and more.
Technical Specs
Swivel or Rigid caster
Rigid
Load Capacity (lbs.) @ 3 mph
4000
Wheel Diameter (in.)
10
Wheel Face (in.)
3
Overall Height (in.)
12.5

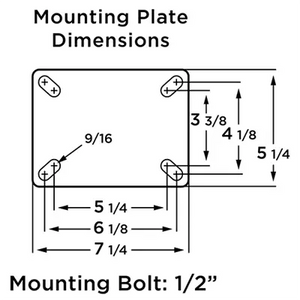

Mounting Plate (in.)
5 1/4 x 7 1/4
Bolt Hole 1 (in.)
3 3/8 x 5 1/4
Bolt Hole 2 (in.)
4 1/8 x 6 1/8
Mounting Bolt (in.)
0.5
Caster Color/Finish
Platinum Powder
Wheel Type
Forged Steel

Wheel Color/Finish
Clearcoat
Replacement Wheel
W-1030-FSB-3/4
Wheel Material @ Tread
Metal
Shipping Weight (lbs.)
43
Caster Rig Type
Weldment
Mounting Plate Length (in.)
7.25
Mounting Plate Width (in.)
5.25
Wheel Core Material
Steel
Key Features
Extra heavy-duty-construction for durability and longevity
Forged steel-construction for superior strength and stability
Precision ball bearing-in the section for effortless maneuverability
Large-polyurethane wheel for smooth and cushioned movement
High-load capacity of up to 4,000 pounds
Reliable foot-(Optional:)activated brake for secure locking and safety
