3-1/4" x 2" | 2 Swivel Casters & 2 Rigid Set of 4 | Phenolic Wheel | 2,800 Lbs Capacity CasterHQ

3-1/4" x 2" | 2 Swivel Casters & 2 Rigid Set of 4 | Phenolic Wheel | 2,800 Lbs Capacity

Volume discounts applied at checkout

50-99 units: 5% Off
100-199 units: 10% Off
200+ units: 15% Off

.price-ui--loading { display: block !important; opacity: 1 !important; }

$129.00 USD

Status: In Stock

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: HD-SC314-PH2S2R

Product Overview

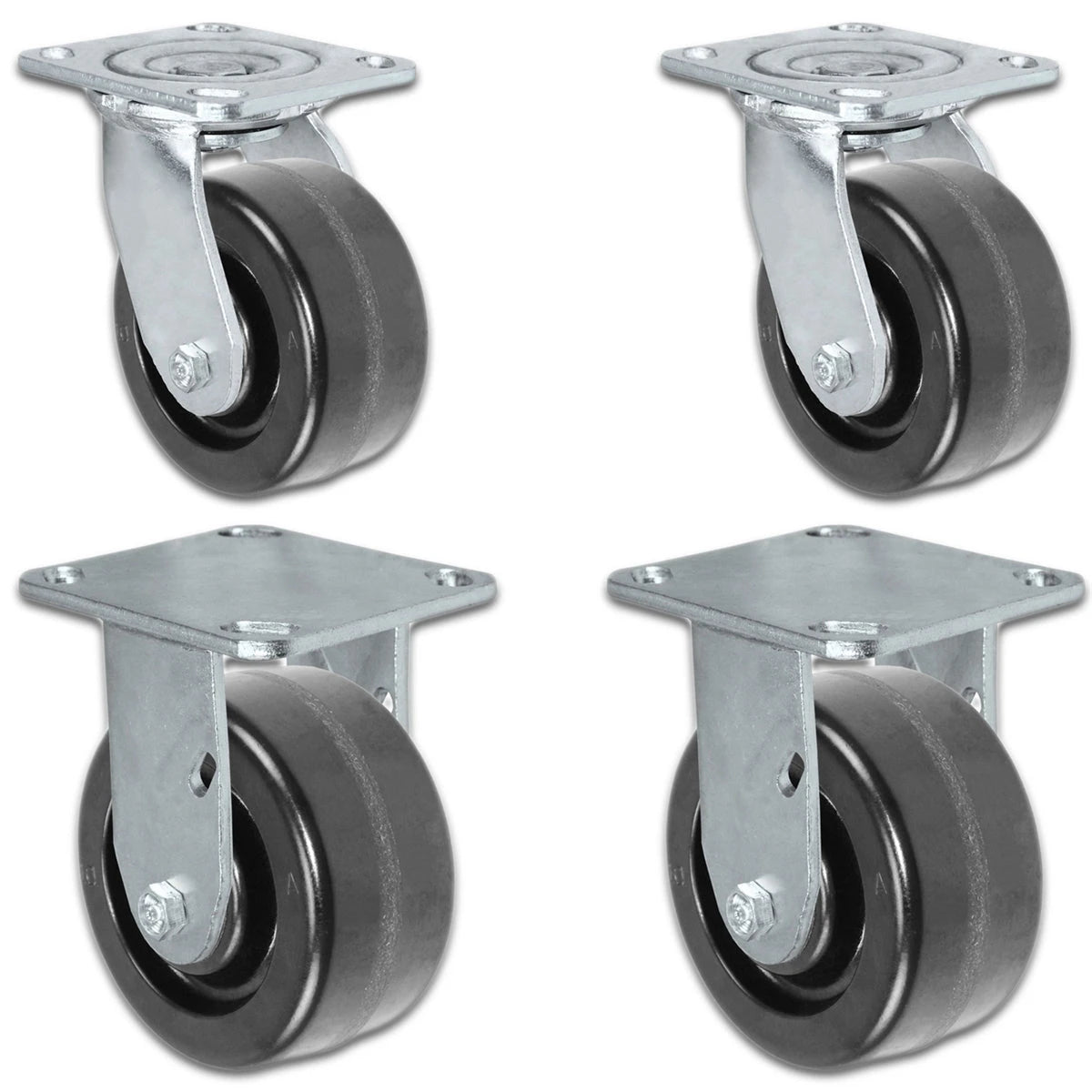

3-1/4" x 2" | 2 Swivel Caster & 2 Rigid Set of 4 | Phenolic Wheel | 2,800 Lbs Capacity

Our Medium Duty 'HD' Series is one of the most recognized and commonly used casters in a broad spectrum of industries and is one of the most popular selling caster series; offering exceptional quality, functionality, value and availability. We offer fast delivery and competitive prices.

This series is made of 1/4" thick cold rolled steel; designed, formed, and welded for optimal mobility and made to withstand the rigors and abuse typically seen in Medium duty applications. Double Ball raceways and a 5/8" nut & king-pin are standard features; however we also offer a rivet kingpin version & a kingpinless version.

Popular applications may include; various carts, trucks, dollies, racks & equipment, for almost every industry including industrial, warehousing, hospitality, institutional, food service, food processing, retail display, and countless other medium duty applications.

WHEEL MATERIAL: PHENOLIC
WHEEL DIAMETER: 3-1/4”
WHEEL TREAD WIDTH: 2”
LOAD CAPACITY: 700 LBS /EA | 2,800 lbs Per Set of 4

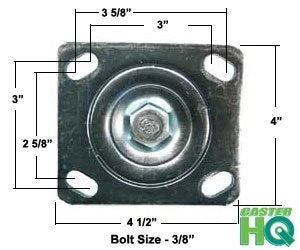

TOP PLATE SIZE: 4” X 4-1/2”
BOLT HOLE SPACING: 2-5/8” X 3-5/8” (Slotted to 3” x 3”)
SWIVEL RADIUS: 4-9/16” (INCREASES W/ CERTAIN BRAKE OPTIONS)
WHEEL DUROMETER: 90 SHORE D (+/-5)
MOUNTING BOLT SIZE: 3/8”
OVERALL HEIGHT: 4-1/4”
BEARING TYPE: ROLLER BEARING or PRECISION BEARING
WHEEL COLOR: BLACK
TEMPERATURE RANGE: -50F – 250F
CASTER BRACKET MATERIAL: ZINC PLATED STEEL
GREASE ZERK: YES
AXLE: ZERK AXLE

Technical Specs

Key Features

OEM PREFERRED SERIES
MAJORITY OF THIS SERIES & WHEELS ARE NSF LISTED
RoHS COMPLIANT
DOUBLE BALL RACEWAY WITH 5/8” KINGBOLT
MATCHING TOTAL LOCK CASTERS AVAIALBLE
GREASE FITTING IN RACEWAY & AXLE FOR MAINTENANCE
ZINC PLATED / RUST & CORROSION RESISTANT
PHENOLIC WHEEL IS STRONG AS STEEL
NON-MARKING WHEEL
HIGHLY RESISTANT TO CHEMICALS
