PRODUCT CODE: S-HEN-3HSB

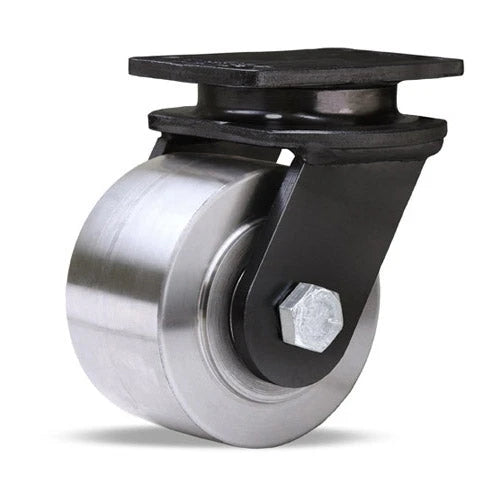

Discover the strength of the S-HEN-3HSB Hamilton High Heat Kingpinless Swivel Caster, engineered for the most demanding heat-intensive environments. Equipped with a 3" x 1-3/8" stainless steel wheel and 1/2" high heat stainless steel shielded precision ball bearings, this caster is rated to withstand temperatures up to 750° F. Ideal for high-heat applications within the aerospace, baking, and industrial sectors.
The S-HEN series is Hamilton’s answer to the industry's need for a caster that performs reliably in extreme temperatures. Experience minimal maintenance and uninterrupted service when you choose Hamilton for high-heat environments. Embrace the power of the high heat kingpinless design for your critical applications.
If the S-HEN-3HSB High Heat Swivel Caster is what you need for your high-temperature operations, our Hamilton Specialists are at your beck and call. Contact us Monday through Friday, from 8 am to 5 pm, and we’ll assist you with high heat caster selections that meet your exacting requirements.
Wheel Diameter (in.): 3
Wheel Face (in.): 1.375
Wheel Type: High Heat Stainless Steel
Wheel Color/Finish: Stainless
Wheel Core Material: Stainless Steel
Wheel Material @ Tread: Stainless Steel
Overall Height (in.): 4.1875
Swivel Offset (in.): 1.1875
Bearing Type: HH SS Precision Shielded Ball
Replacement Wheel: W-313-HSB-1/2
Caster Rig Type: Kingpinless
Caster Color/Finish: High Heat Black
Swivel or Rigid caster: Swivel

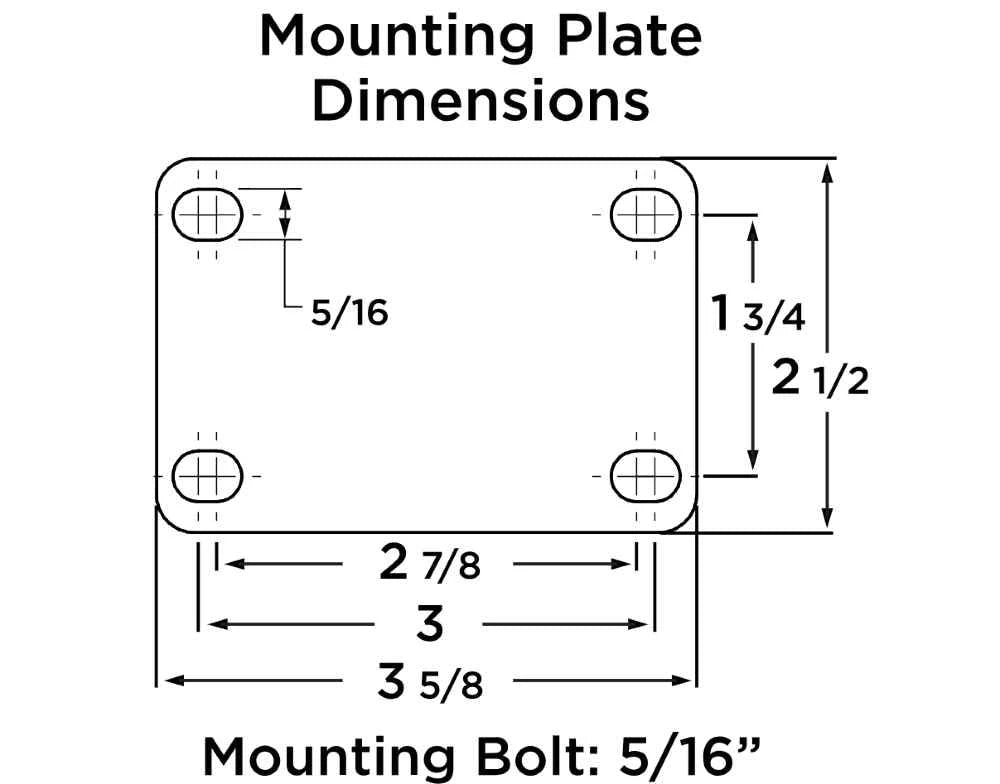

Mounting Plate (in.): 2 1/2 x 3 5/8
Mounting Bolt (in.): 0.3125
Bolt Hole 1 (in.): 1 3/4 x 2 7/8
Bolt Hole 2 (in.) (in.): 1 3/4 x 3
Mounting Plate Length (in.): 2.5
Mounting Plate Width (in.): 3.625
Shipping Weight (lbs.): 8
Load Capacity (lbs.) @ 550° F: 600
Load Capacity (lbs.) @ 750° F: 300
Load Capacity (lbs.) @ 3 mph: 600
Note: For further information, contact our product support team.
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
Our Hamilton S-HEN-3HSB Swivel Caster stands as a paragon of resilience. Rated to withstand temperatures reaching up to 750°F, this caster is designed with high-heat applications in mind, ideal for aerospace, foundries, and bakeries where reliability under thermal stress is not a luxury, but a necessity.
At the heart of the S-HEN-3HSB Caster is the 3" x 1-3/8" stainless steel wheel, complemented by 1/2" high-heat stainless steel shielded precision ball bearings. This combination ensures a smooth glide and exceptional durability, reducing maintenance requirements and increasing the lifespan of the caster.
The caster's kingpinless design removes a common point of failure, allowing it to bear loads with more reliability while ensuring a smoother swivel action. It's a design trusted by industry professionals who cannot afford down-time due to equipment failure.
Hamilton is not just about quality products; we're also about quality service. Our experts are on standby to provide support and answer any questions related to our high-heat kingpinless swivel casters, ensuring that you receive a solution tailored to your unique needs.
$779.00
