Durastar Medium Heavy Duty 35 Series - 6" x 2" Solid Polyurethane Swivel Caster - 1200 lb Capacity, Choose Bearing Option

Volume discounts applied at checkout
  • 50-99 units: 5% Off
  • 100-199 units: 10% Off
  • 200+ units: 15% Off
Status: In Stock
Shipping Truck

Most in-stock items ship same or next business day. Shipping rates shown at checkout.

PRODUCT CODE: 35-S-620-SPU-04

Product Overview

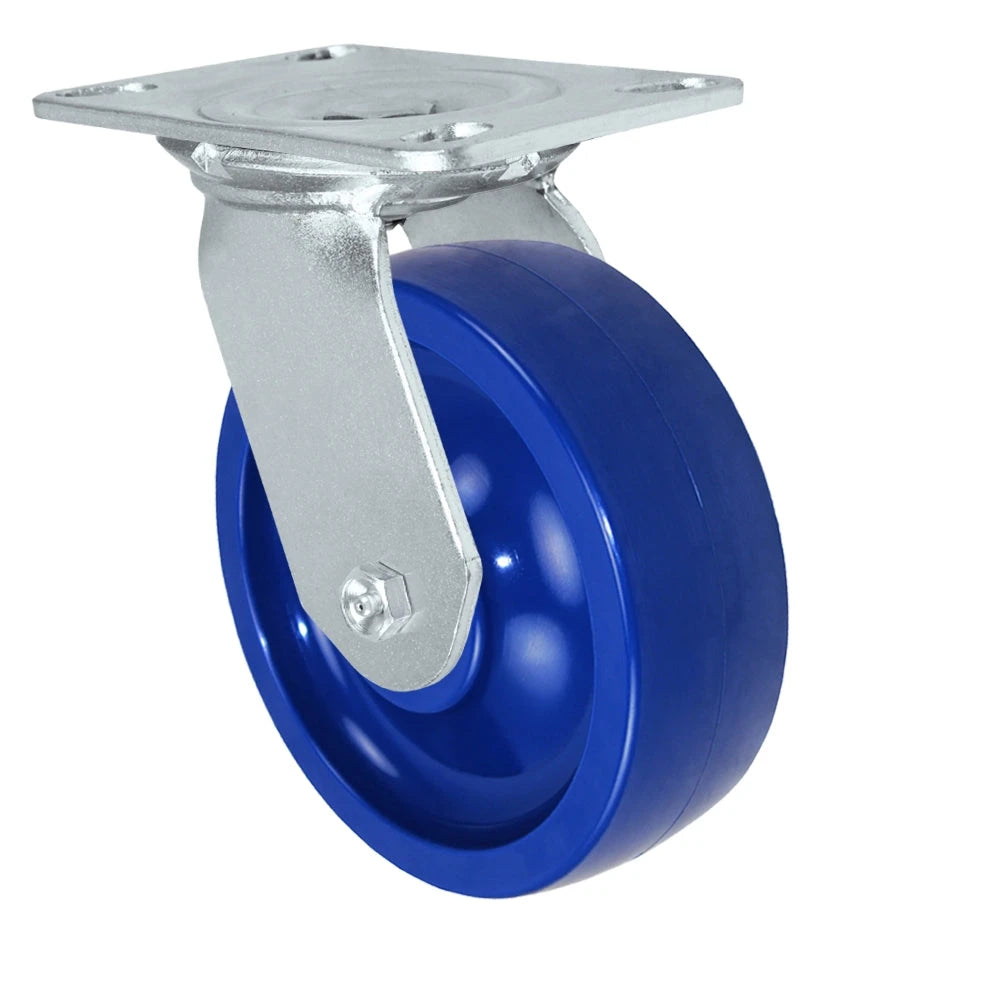

Durastar Medium Heavy Duty 35 Series - 6" x 2" Solid Polyurethane Swivel Caster - 1200 lb Capacity


Product Overview

The Durastar Medium Heavy Duty 35 Series Solid Polyurethane Swivel Caster represents the pinnacle of industrial mobility solutions. Featuring a robust 6" x 2" solid polyurethane wheel, this swivel caster supports an impressive load capacity of up to 1200 lbs while ensuring smooth and efficient mobility. With customizable bearing options, it is designed to adapt to a variety of operational needs in demanding industrial environments.

Key Features

  • Wheel Size: 6" diameter x 2" width Solid Polyurethane
  • Load Capacity: Supports up to 1200 lbs per caster
  • Caster Type: Swivel for enhanced maneuverability
  • Bearing Options: Choose from Roller, Precision Ball, or Delrin bearings
  • Durable Construction: Zinc-plated finish for corrosion resistance and longevity
  • Temperature Range: Suitable for use in environments up to 180°F
  • Maintenance: Zerk fitting included for easy lubrication

Applications

This versatile caster is ideal for use in:

  • Manufacturing plants and material handling facilities
  • Warehouses and distribution centers
  • Food processing equipment
  • Heavy-duty industrial carts and dollies
  • Conveyors and lift tables
  • Platform trucks and utility carts
Technical Specs

Technical Specifications

  • Wheel Diameter: 6"
  • Tread Width: 2"
  • Wheel Type: Solid Polyurethane
  • Plate Size: 4-½" x 6-¼"
  • Load Capacity: 1200 lbs per caster
  • Overall Height (OAH): 7-1/2"
  • Swivel Radius: 4-3/4"
  • Bearing Options: Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin
  • Caster Type: Swivel for enhanced maneuverability
  • Attaching Bolt Diameter: 1/2"
  • Bolt Pattern: 2-7/16" x 4-15/16" to 3-⅜" x 5-¼"
Key Features

Top 10 Product Features: Durastar Medium Heavy Duty 35 Series Solid Polyurethane Swivel Caster

  • High Load Capacity: Supports up to 1200 lbs per caster, ideal for heavy-duty industrial applications
  • Solid Polyurethane Wheel: 6" x 2" size offers excellent floor protection and quiet operation
  • Swivel Design: Enhances maneuverability with a 4-3/4" radius, perfect for navigating tight spaces
  • Customizable Bearings: Choose from Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin options to suit specific needs
  • Durable Construction: Zinc-plated finish for improved longevity and corrosion resistance
  • Versatile Applications: Ideal for manufacturing plants, warehouses, food processing equipment, and heavy-duty industrial carts
  • Temperature Resistant: Suitable for use in environments up to 180°F
  • Easy Installation: 4-½" x 6-¼" top plate with 2-7/16" x 4-15/16" to 3-⅜" x 5-¼" bolt pattern for secure mounting
  • Low Maintenance: One-piece mold design eliminates bonding failure and includes zerk fitting for easy lubrication
  • Non-Marking Performance: Resists oil, grease, water, and most solvents while protecting floors
Ordering & Shipping Information

Transparent pricing

All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.

Upfront shipping costs

Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.

Business-friendly ordering

We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.

Real support from product specialists

Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.

Trusted by industrial and commercial customers

CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.

  • Flat-rate shipping by order size. Final shipping cost shown before payment.
  • No post-checkout shipping adjustments or re-billing.
  • Most orders ship from our Texas headquarters near Dallas.

When will my order ship?

In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.

Will shipping cost more at checkout?

Shipping is not free on most orders. Your final shipping cost is shown before payment.

Typical transit times after shipment

Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.

Made-to-order items (lead times)

Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.

Need an exact freight quote for a large order?

Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.

Additional Information

Durastar Medium Heavy Duty 35 Series - 6" x 2" Solid Polyurethane Swivel Caster - 1200 lb Capacity

The Durastar Medium Heavy Duty 35 Series Solid Polyurethane Swivel Caster represents the pinnacle of industrial mobility solutions, combining robust construction with smooth operation. Designed for modern industrial and commercial applications, this 6" x 2" caster offers a perfect balance of durability and maneuverability, supporting loads up to 1200 lbs.

Key Features and Benefits

  • High Load Capacity: Supports up to 1200 lbs per caster
  • Solid Polyurethane Wheel: 6" x 2" size for excellent floor protection and quiet operation
  • Swivel Design: Enhances maneuverability with a 4-3/4" radius
  • Customizable Bearings: Choose from Roller, Q34 Precision Ball, ½" Delrin, or ¾" Delrin options
  • Durable Construction: Zinc-plated finish for improved longevity and corrosion resistance
  • Temperature Range: Suitable for use in environments up to 180°F
  • Easy Maintenance: Zerk fitting included for simple lubrication

Solid Polyurethane Wheel Advantages

  • 63 (±5) Durometer Shore (D) for optimal performance
  • 100% washable for easy maintenance
  • One-piece mold design eliminates bonding failure
  • High impact and abrasion resistant for extended life
  • Non-marking and floor-protective
  • Resists oil, grease, water, and most solvents

Why Choose Durastar?

With over 35 years of experience in manufacturing high-quality casters and wheels, Durastar has been serving industries from Automotive and Aerospace to Food Processing and Industrial Manufacturing. Our Medium Heavy Duty 35 Series casters undergo rigorous testing to ensure they meet or exceed industry standards for strength, durability, and performance. By choosing Durastar, you're investing in a product that combines cutting-edge design with dependable, everyday functionality to elevate your operational capabilities.

Expert Insight

Our team of caster specialists recommends the 6" x 2" Solid Polyurethane wheel for its excellent floor protection, impact resistance, and quiet operation. The swivel design enhances maneuverability in tight spaces, making it ideal for dynamic work environments. For maximum longevity and performance, we suggest regular maintenance, including periodic lubrication of the swivel raceway and checking for debris buildup around the wheel.

Experience the perfect blend of durability, maneuverability, and floor protection with Durastar's 35 Series Solid Polyurethane Swivel Caster. Engineered for demanding industrial environments, this caster delivers exceptional performance and longevity, ensuring your equipment moves smoothly and efficiently in any setting.
