PRODUCT CODE: R-EN-5MB

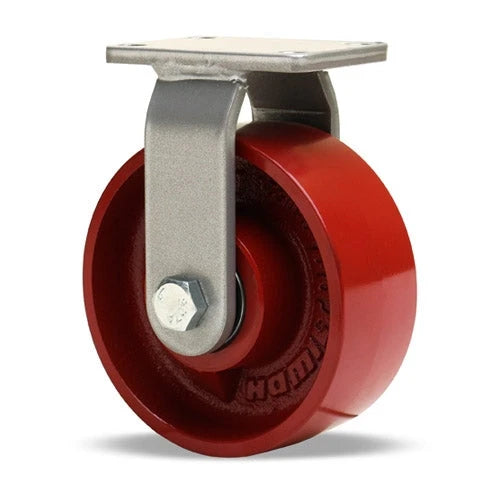

The Hamilton Endurance Rigid Caster S-EN-5MB is designed for maximum durability and performance. Its distinct feature is the 5" x 2" Metal Wheel, providing superior stability and strength for heavy-duty applications.
Equipped with a 1/2" Sealed Precision Ball Bearing, this Rigid caster offers smooth and effortless movement even under high loads. The bearing is sealed to minimize maintenance needs and prolong the caster's lifespan.
Choose Hamilton Endurance Rigid Caster S-EN-5MB for a reliable, high-performing, and durable caster solution!
| Feature | Specification |
|---|---|
| Swivel or Rigid Caster | Rigid |
| Load Capacity (lbs.) @ 3 mph | 1000 |
| Wheel Diameter (in.) | 5 |
| Wheel Face (in.) | 2 |
| Overall Height (in.) | 6.1875 |
| Mounting Plate (in.) | 2 1/2 x 3 5/8 |
| Bolt Hole 1 (in.) | 1-3/4 x 2-7/8 |
| Bolt Hole 2 (in.) | 1-3/4 x 3 |
| Mounting Bolt (in.) | .3125 |
| Caster Color/Finish | Platinum Powder |
| Wheel Type | Metal |
| Wheel Color/Finish | Crimson Red |
| Bearing Type | Precision Sealed Ball |
| Replacement Wheel | W-520-MB-1/2 |
| Wheel Material @ Tread | Metal |
| Shipping Weight (lbs.) | 7 |
| Caster Rig Type | Weldment |
| Wheel Core Material | Cast Iron |
Transparent pricing
All pricing and quantity discounts are applied automatically. No promo codes required and no post-checkout price changes.
Upfront shipping costs
Shipping is calculated by order size and weight. Final shipping costs are shown before payment so there are no surprises.
Business-friendly ordering
We support bulk orders, repeat purchases, and fast quotes for larger or custom requirements.
Real support from product specialists
Need help confirming fit, compatibility, or application? Our team works directly with engineers, maintenance teams, and buyers every day.
Trusted by industrial and commercial customers
CasterHQ supplies casters and wheels for manufacturing, material handling, retail, and distribution environments nationwide.
When will my order ship?
In-stock items typically ship same or next business day. Weekend orders ship Monday or Tuesday unless stated otherwise.
Will shipping cost more at checkout?
Shipping is not free on most orders. Your final shipping cost is shown before payment.
Central & Southern U.S.: typically 1–2 business days
East & West Coasts: typically 2–3 business days
Remote areas may take longer.
Some custom products (select Made in USA casters, keyway wheels, drive wheels) are built after purchase and ship on a longer lead time. When applicable, the ship-time estimate is shown on the product page.
Contact us before ordering and we’ll confirm total landed cost upfront. Contact us.
The Hamilton Endurance Rigid Caster R-EN-5MB is a high-performing mobility solution, equipped with a robust 5" x 2" metal wheel and a 1/2" sealed precision ball bearing. With its ability to handle a load capacity of 1000 lbs. at 3 mph, this caster is ideal for heavy-duty applications.
Designed for endurance, the R-EN-5MB features a metal wheel with a crimson red finish and a cast iron core, ensuring durability and resistance to wear and tear. The precision sealed ball bearing allows for smooth, frictionless movement, reducing the need for maintenance and prolonging the caster's lifespan.
The Hamilton Endurance Rigid Caster comes with a mounting plate measuring 2 1/2 x 3 5/8 inches and bolt holes for easy installation. The replacement wheel W-520-MB-1/2 is readily available, adding to the product's convenience and cost-effectiveness.
Finished in a platinum powder, the caster boasts a professional and sleek look that's perfect for any setting. The kingpinless rig type of the caster adds to its strength and efficiency. With an overall height of 6.1875 inches.
Experience the reliability and superior performance of the Hamilton Endurance Rigid Caster R-EN-5MB, a testament to Hamilton's commitment to quality and innovation.
